Daxys Bp188 Tire Inflator Electric Bike Pump User Manual

DAXYS BP188 Tire Inflator Electric Bike Pump

Smart Bike Pump

Thank you for purchasing the Smart Bike Pump. Please read this user manual carefully before using this product , and keep it for future reference.

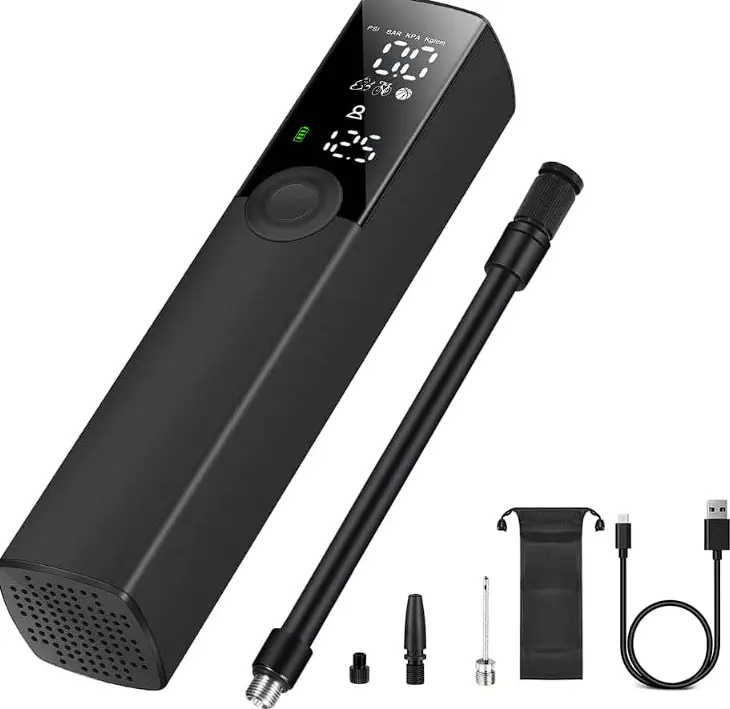

Packing list

Specification

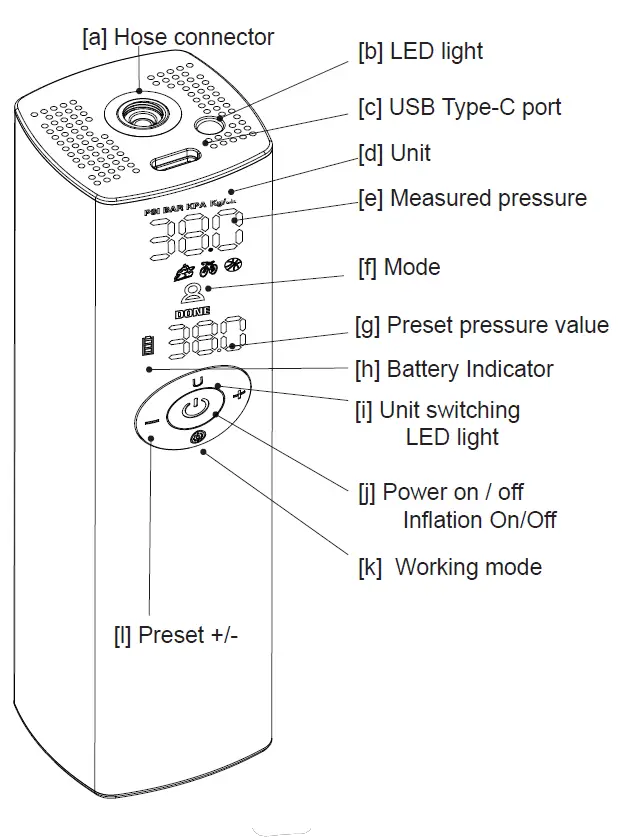

Illustration

ATTENTION

1. Do not leave during inflation
2. Keep away from combustible and explosives.
3. Avoid moisture, sand and prevent from falling.
4. Do not store the product in a place that is too cold or hot.
5. It is forbidden to throw the product into fire or discard it at random due to the built-in lithium battery.
6. Not for children

How to use

Charging method

The USB charger is recommended to use 5V / 2A. Use the Type-C charging cable to connect the air pump and power adapter (not included) for charging
Charging status: battery indicator flashes
Full state: the battery indicator is green and does not flash The product cannot be used during charging.

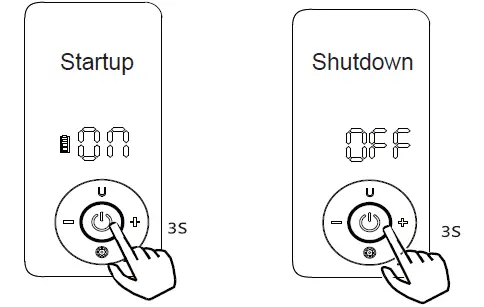

Startup and shutdown

• Long press the power button for 3 seconds, as shown in the figure. Switch on successfully
• Long press the power button for 3 seconds, as shown in the figure Shut down successfully
• Automatic shutdown in 3 minutes without operation
• Automatically shut down when battery is low

Mode switching

Short press mode selection key [k] ,you can choose 5  inflatable scene modes. They are:

Unit switching

Short press the unit switch key [i], you can switch the air pressure display unit. The unit conversion formula is shown below

Preset pressure value

Short press +/- button [l]: adjust the preset pressure value +/- 0.5PSI Long press +/- button [l]: can quickly adjust the preset pressure value
Note: The scene switch and preset pressure value are automatically saved by the pump. You only need to switch the mode for  the next use, and the preset pressure will be automatically set.

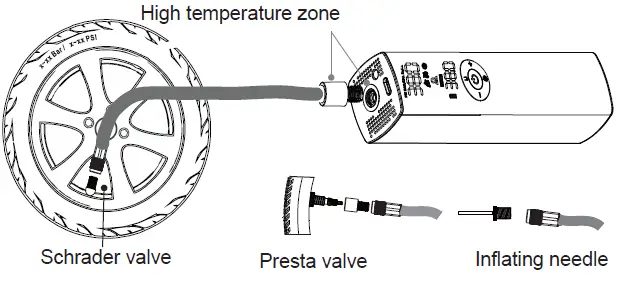

Hose connection

The connection of the hose is shown in the following figure:

Start inflation

Short press the inflation switch [j] to start inflation. The digital display of the real-time air pressure value [e] changes during inflation. Noise cannot be avoided during inflation, and the hose will be heated after long-term work.
Avoid touching the hose and joints [a] by your hands after long-term use.

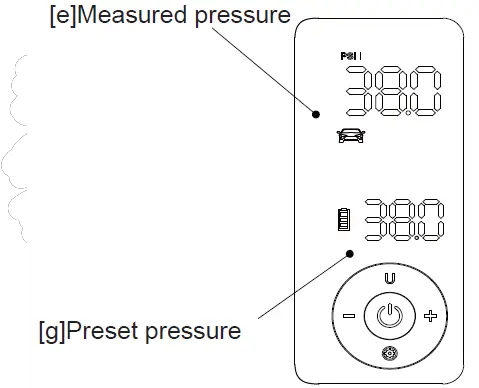

Stop inflation

• Short press the inflation switch [j] to stop inflation manually.
•  When the measured pressure [e] reaches the preset pressure [g], stop inflation automatically.

LED Lighting

• Long press LED [i] to turn on LED lighting.
• Press and hold the LED light button [i] to turn off the LED light.

Measuring pressure

After switching on, connect the hose to the measured object,
and the measured pressure value [e] shows the current pressure value.

Reset the pressure

After switching on, when the measured pressure value is not zero, press the preset +/- key [l] for 3 seconds to enter auto reset.
Note:
The product has been calibrated the factory. Due to the difference in altitude or the sensor tolerance, the measured pressure may not be detection. Do not connect inflatable objects when reseting.

High temperature safety precautions

When the hose is unscrewed, the air pipe and the joint will be heated due to long-term work. Do not touch it with your hands for a long time.

Common product pressure values
