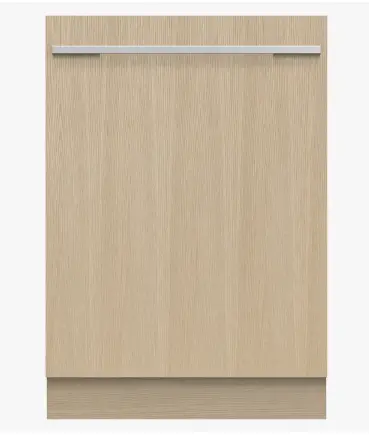

QUICK REFERENCE GUIDE > DW60U2I2
Integrated Dishwasher,
Sanitise
Series 5 | Integrated
Designed to be integrated seamlessly into surrounding cabinetry, with superior wash performance.
- Customize with your own front panel and handle to match your kitchen cabinetry
- Seven wash programs from Heavy to Light, including Auto and 60min
- Dry+, Sanitise, and Half Load modifiers provide extra wash options
- Wi-Fi enabled and works with the SmartHQ™ app for remote control and notifications

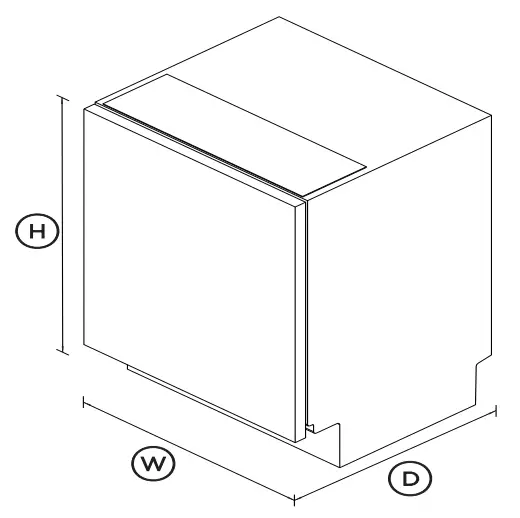

DIMENSIONS
| Height | 820 – 880mm |
| Width | 598mm |
| Depth | 554mm |
SPECIFICATIONS
Accessories
| Contemporary round handle | AHS-OBDD-60S |
| Contemporary square fine | AHD5-OBDD-60S |
| Contemporary square handle | AHD3-OBDD-60S |
| Cutlery basket | • |
| Kickstrip | Custom |
Capacity and loading
| Adjustable height, foldable | • |
| Easy lift adjustable upper | • |
| Fold down tines | • |
| Place settings | 15 |
Consumption
| Energy rating | 4 star |
| Water rating | 5 star (WELS) |
Controls
| Child lock | • |
| Rinse aid indicator light | • |
| Wi-Fi connectivity | • |
Controls
| ThermoDry system | • |
| Three-stage filtration system | • |
Performance
| Noise emissions | 46dBA |
Power requirements
| Amperage | 10A |
| Supply frequency | 50Hz |
| Supply voltage | 230V |
Product dimensions
| Depth | 554mm |
| Height | 820 – 880mm |
| Width | 598mm |
Warranty
| Parts and labour | 2 years |
Wash Program Modifiers
| Dry + | • |
| Half-load | • |
| Sanitise | • |
| Wash modifiers | 3 |
Wash Programs
| 60 min | • |
| Auto | • |
| Eco | • |
| Heavy | • |
| Light | • |
| Medium | • |
| Rinse | • |
| Wash programs | 7 |
Water connection
| Water supply | 3/4 BSP Connector water inlet |
| SKU | 82431 |
The product dimensions and specifications in this page apply to the specific product and model. Under our policy of continuous improvement, these dimensions and specifications may change at any time. You should therefore check with Fisher & Paykel’s Customer Care Centre to ensure this page correctly describes the model currently available. ? Fisher & Paykel Appliances Ltd 2020
