BMV2 Smart Projector
User Manual
IC-V2

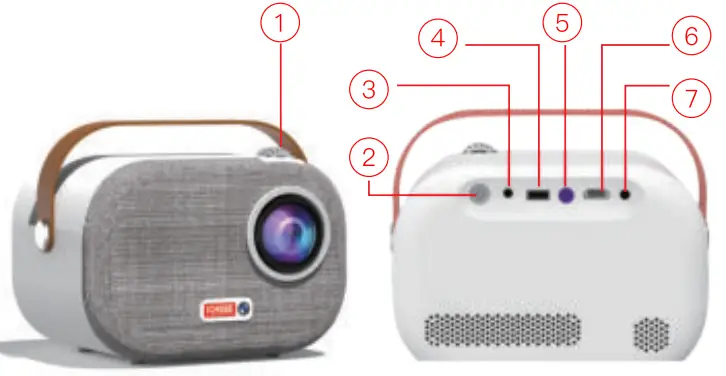

Schematic
- Focus wheel
- Power ON/OFF
- 3.5mm audio output
- USB2.0
- Infrared receiver
- HDMI2.0-compatible
- AC input

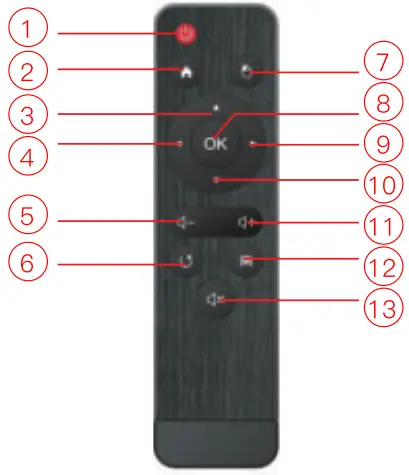

Remote control key description
| 1. Power ON/OF 2. Home page 3. Arrow keys (up) 4. Arrow Key (left) 5. Volume – 6. Return 7. Mouse | 8. OK 9. Arrow key (right) 10. Arrow Keys (down) 11. Volume + 12. Menu 13. Mute |
How to use the projector
Step 1: Turn on the projector
Plug in the power cord, and the indicator light on the fuselage is red. Press the fuselage power button for 1 second or the power button on the remote control to turn it on, and the fuselage indicator will turn into a blue light source, projector is turned on.
Step 2: focusing
Scroll the focus wheel left and right to adjust Screen focus (the shortest effective distance is 1.2 meters).
Step 3: quick start

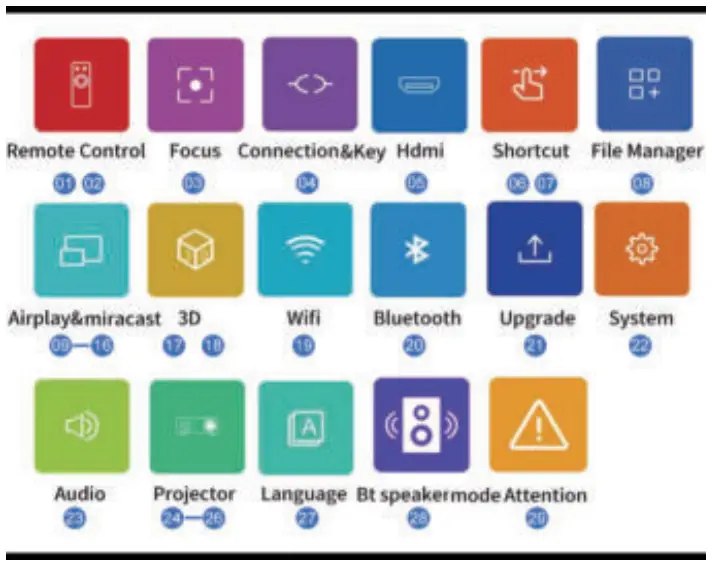

The projector includes a built-in self-help manual, if you want to know more information, please click on the user manual application to use more functions of the product.
Parameters
| Display Technology | LCD |
| Light Source | LED |
| Native Resolution | 1920×1080 Pixels |
| Max Compatible Pixels | 4096x2160dpi H.265/30Hz |
| Installation Options | Front/Rear/Ceiling |
| Aspect Ratio | 16:09 |
| Focus | Manual |
| Keystone | Auto ±40° |
| Speaker | 5W*2 |
| Power Supply | AC 100-240V 50/60Hz 1.5A |
| Maximum Power | 65W |
| Smart System | Android 9.0 |
| Memory Capacity | 2+16GB |
| Wireless Mirroring | Support |
| Wi-Fi | 2.4G/5G Wi-Fi |
| Bluetooth-compatible | BT5.0 |
| Photo Format Supported | JPEG/BMP/PNG/GIF |
| Audio Format Supported | MP3/WMA/MP2/OGG/AAC/M4A/MA4/FLAC/APE/3GP/WAV |
| Video Format Supported | MPEG-1/MPEG-2/MPEG-4/ H.263/H.264/H.265/WAV |
| Ports | HD In xl /USB x1 /Audio Outx1 |
| Unit Dimension | 190*130*140mm |
Warranty policy
In order to provide better service & shopping experience for you. Please purchase the goods through legal channels. We will provide 12-month warranty. The warranty don’t include man-made damage,disassemble buming,water ingress, breakage etc.
FCC Warning Statement: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
FCC Radiation Exposure Statement
The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be co ‐located for operating in conjunction with any other antenna or transmitter.
