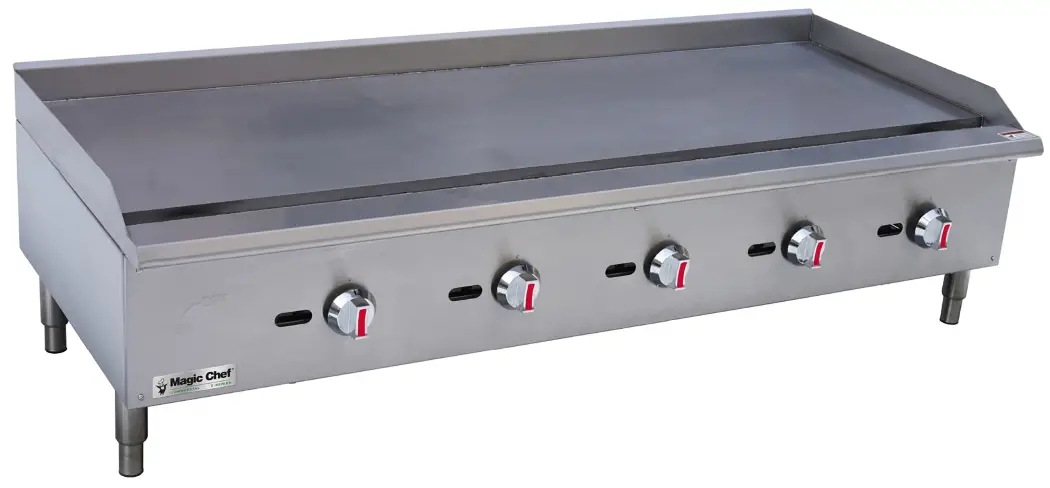

Magic Chef M60MG 60-Inch Manual Griddle
Standard Features
- 150,000 BTU output
- 60.0” x 19.4” Cooking area
- Stainless steel U-shaped burner
- Easy to clean grease trap
- Heavy duty chrome plate knobs
- Propane gas conversion kit included
- 3/4″ Griddle plate thickness
Exterior Features
- Stainless steel body and legs
- 4″ Adjustable legs
Certified Safety Standard
- ETL Certified
- ETL Sanitation Listed
Warranty Information
- One year on-site Parts and Labor

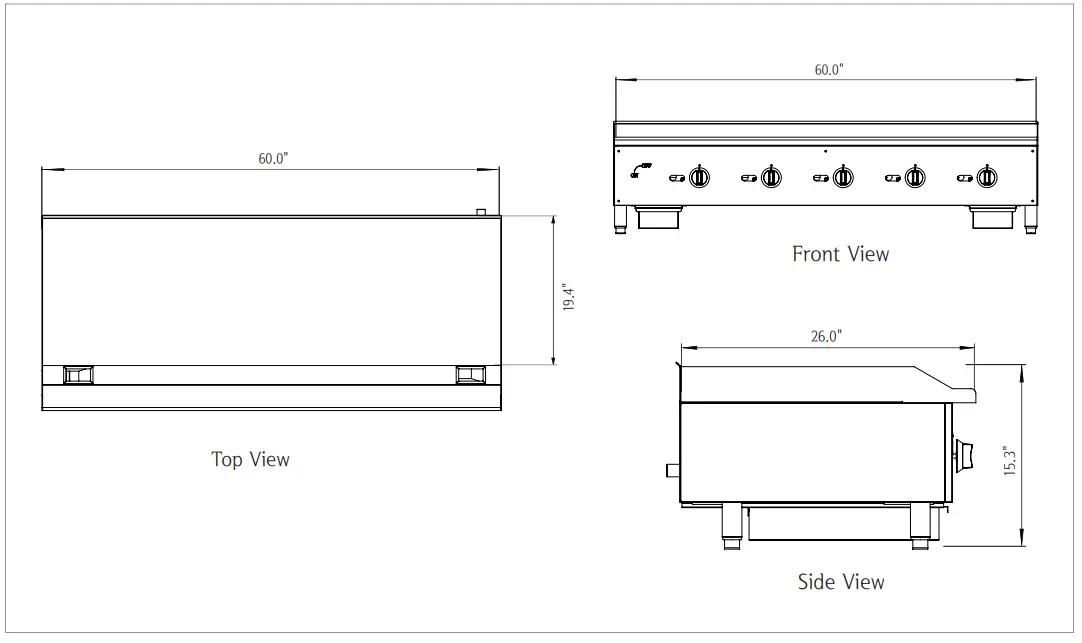

Dimensions
| Model | M60MG | Propane Conversion | |
| Gas Output (BTU) | 150,000 | 150,000 | |
| Number of Burners | 5 | 5 | |
| Shipping Weight (Lbs) | 415.0 | 415.0 | |
| Manifold Pressure | Natural Gas | 4″ W.C. | – |
| Propane Gas | – | 10″ W.C. | |
| Manifold Size | 3/4″ | 3/4″ | |
| Burner Orifice Size | 36/2.75mm | 51/1.75mm | |
| Cooking Area (Sq. In.) | 1,164.0 | 1,164.0 | |
| Dimensions (W x D x H) | 60.0″ x 26.0″ x 15.3″ | 60.0″ x 26.0″ x 15.3″ | |
| Crated Dimensions (W x D x H) | 63.0” x 30.0” x 22.0” | 63.0” x 30.0” x 22.0” | |
Clearance requirements
- For use only on non-combustible floors.
- Legs or casters are required for non-combustible floors.
Options and accessories
| Clearance requirements | Combustible Surfaces | Noncombustible Surfaces |
| Rear | 4 | 0″ |
| Left | 4 | 0″ |
| Right | 4 | 0″ |
