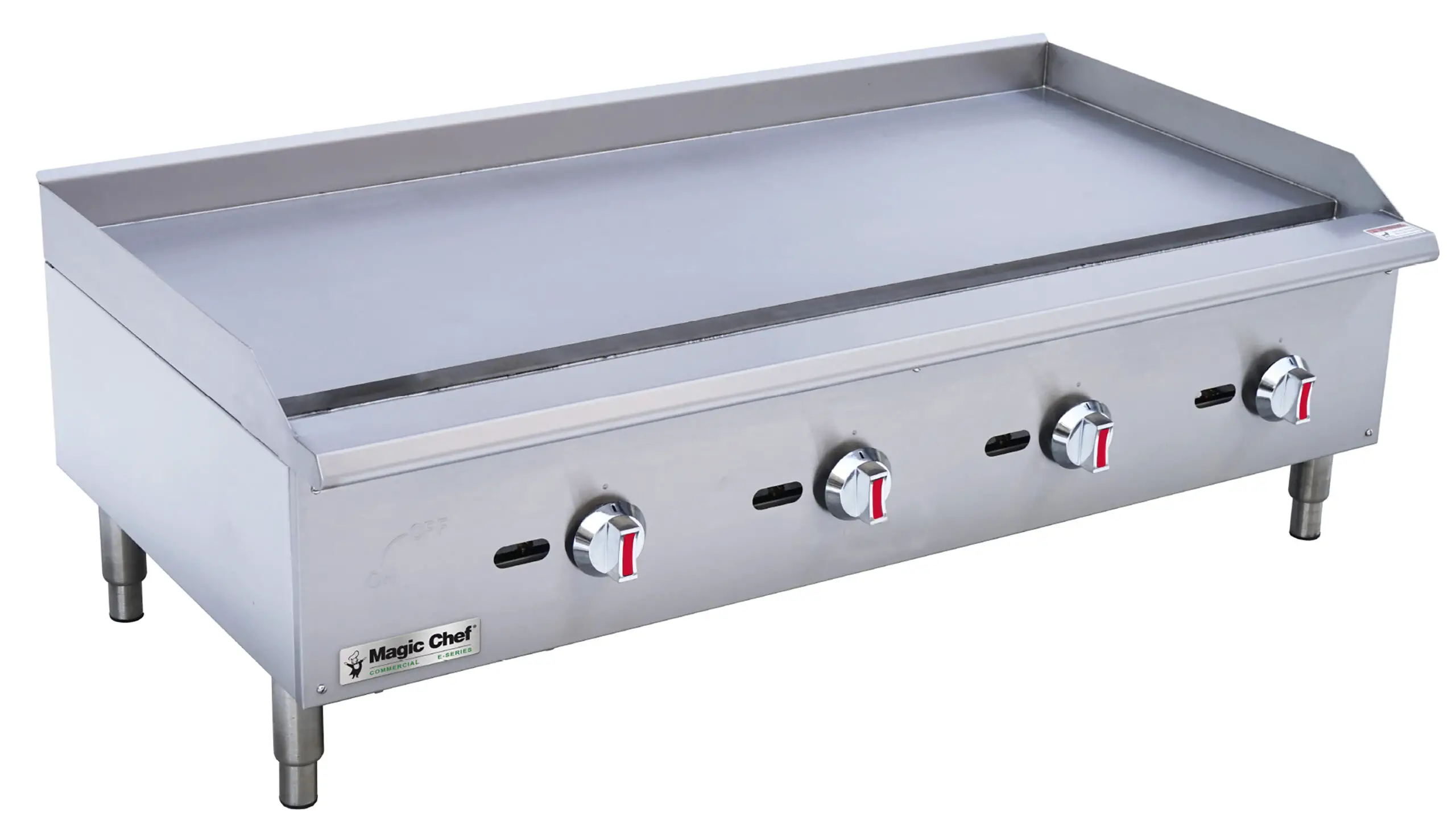

Magic Chef M48TG E-Series 48-Inch Thermo Griddle
Standard Features
- 120,000 BTU output
- 48.0” x 19.4” Cooking area
- Stainless steel U-shaped burner
- Easy to clean grease trap
- Heavy duty chrome plate knobs
- Propane gas conversion kit included
- 3/4″ Griddle plate thickness
Certified Safety Standard
- ETL Certified
- ETL Sanitation Listed
Exterior Features
- Stainless steel body and legs
- 4″ Adjustable legs
Warranty Information
- One year on-site Parts and Labor
48-Inch Thermo Griddle ◆ M48TG – E-Series
Model M48TG Propane Conversion
- Gas Output (BTU
120,000 120,000 - Number of Burners
4 4 - Shipping Weight (Lbs)
359.0 359.0 - Manifold Pressure
Natural Gas 4″ W.C. –
Propane Gas – 10″ W.C. Propane Gas - Manifold Size
3/4″ 3/4″ - Burner Orifice Size
36/2.75mm 51/1.75mm - Cooking Area (Sq. In.)

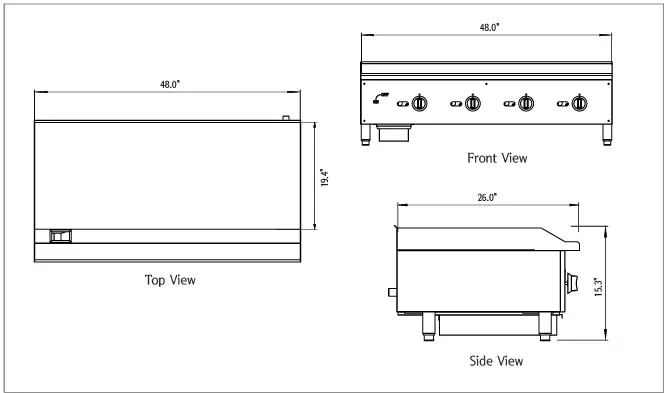

931.2 931.2 - Dimensions (W x D x H)
48.0″ x 26.0″ x 15.3″ 48.0″ x 26.0″ x 15.3″ - Crated Dimensions (W x D x H 50.0” x 30.0” x 22.0” 50.0” x 30.0” x 22.0”
Clearance requirements:
- For use only on non-combustible floors.
- Legs or casters are required for non-combustible floors.
Clearance requirements Combustible Surfaces Noncombustible Surfaces
| Rear | 4 | 0″ |
| Left | 4 | 0″ |
| Right | 4 | 0″ |
Options and accessories
Due to continuing product development, specifications may be subject to change, without prior notice
