HUSKY K40366 Universal Telescoping Tripod
Pre-Assembly
SPECIFICATIONS

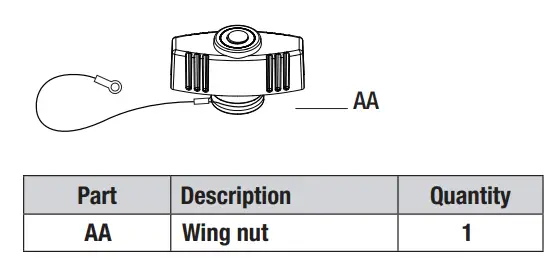

HARDWARE INCLUDED
PACKAGE CONTENTS
Assembly

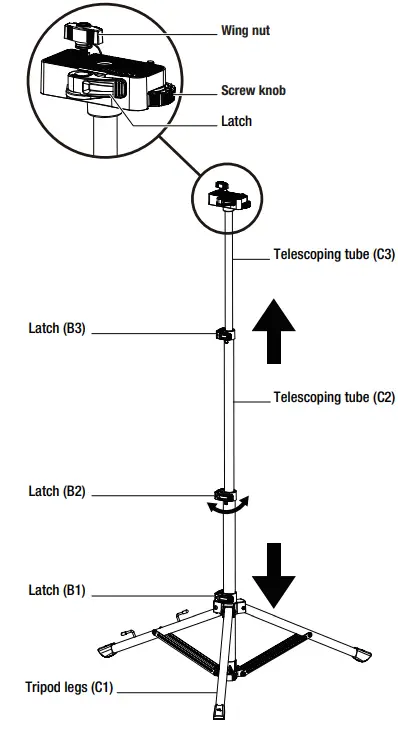

- Preparing the tripod
- Open the latch (B1), expand The tripod legs (C1) outwards, adjust to the bottom, and then x the latch (B1).
- Open the latch (B2, B3), adjust the telescoping tube (C2, C3) upwards, and adjust them to the desired height. Then x the latch (B2, B3).
- Attaching lights to the tripod

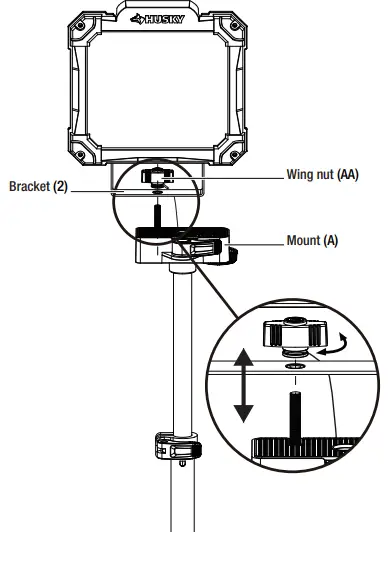

- Remove tripod wing nut (AA) and lift screw upright.
- Place the bracket (2) over the screw of the mount (A), tighten the wing nut (AA).
- To remove the light from the mount (A), remove the wing nut (AA) and lift the light.

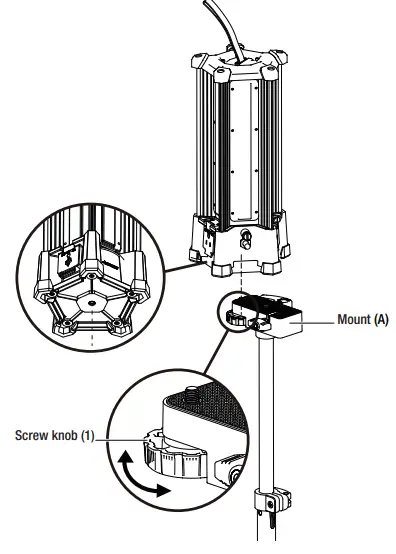

- Installation mode-2
- Push screw knob (1) up, insert the screw into the threads at the bottom of the light, then twist and tighten the screw knob (1) .
- To remove the light from the mount (A), unscrew knob (1) and lift the light.

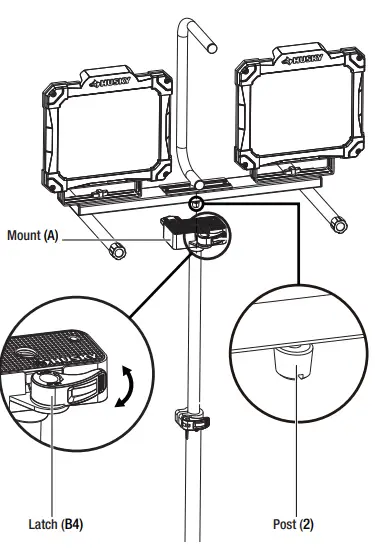

- Installation mode-3
- Open latch (B4), then put the post (2) of the light into the center of the mount (A)
- Then close the latch (B4) to secure the light. To remove the light from the mount (A), open the latch (B4) and lift the light.
Care and Cleaning
- Clean the tripod regularly with a non-abrasive cleaner.
- Store in a safe and dry place, out of the reach of children.
Warranty
The manufacturer warrants the products to be free from defects in materials and workmanship for a period of three (3) years from date of purchase. We take pride in the design and construction of each of our products and work to maintain the quality of our materials and craftsmanship to assure your satisfaction. If any problems appear, the purchaser may return the item, freight prepaid, together with a copy of your original purchase receipt to place of purchase and it will be replaced with the same or comparable model free of charge. This warranty does not cover fixtures that have been altered in any way; it is void if damage or defect has resulted from accident, abuse, misuse or faulty repair. In no event will the manufacturer be liable for any incidental or consequential damages. No charge will be acceptable for unauthorized repairs, parts or service. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the above exclusion or limitation of incidental or consequential damages may not apply to you. Legal warranty rights will vary from state to state and you may have other rights. Contact the Customer Service Team at 1-888-HD-HUSKY or visit www.HUSKYTOOLS.com.
Questions, problems, missing parts?
- Before returning to the store, call
- Husky Customer Service
- 8 a.m. – 7 p.m., EST, Monday – Friday
- 9 a.m. – 6 p.m., EST, Saturday
- 1-888-HD-HUSKY
- HUSKYTOOLS.COM
