Smart Switch Installation
Instructions Manual

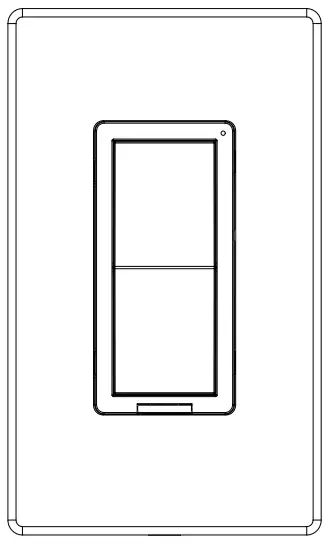

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch

Contents hide

1 SNA042CLR3-ZB-1X600-P Smart Switch

2 RF EXPOSURE STATEMENT

3 Function Parts Information

4 Installation and testing

5 Using instruction

6 Troubleshooting

7 Distribution network

8 Mobile app operation

9 Documents / Resources

10 Related Posts

SNA042CLR3-ZB-1X600-P Smart Switch

Model No.	SNA042CLR3-Z13-1×600- P
Rated Voltage	120-277V∼
Rated Frequency	6011z
Operating Voltage		120V∼	277V ∼
Load Range	I ncand.	5A	3A
	LED/CFL	5A	3A
	Res	5A	3A
	Motor	1/6HP	1/6 HP’
Communication module	Z igBee
Operating Environment	Temperature: 0°C – 40°C
	Humidity: 10% R.H. – 90% R.H.
Usage Environment	Indoor use only
Model Size	105 mm×44 mm×33mm (L×W×H)

Model No.	SNA042CLR3-ZB-1×1200- P
Rated Voltage	120-277V∼
Rated Frequency	601h
Operating Vol age		120V∼	277V∼
Load Range	I ncand.	10A/1200VA	8A/2216VA
	LED/CFL	10A/1200VA	8A/2216VA
	Res	10A/1200VA	8A/2216VA
	Motor	1/2 HP	1 HP
Communication module	Z i gBee
Operating Environment	Temperature: 0°C – 40°C
	Humidity: 10% R.H. – 90% R.H.
Usage Environment	Indoor use only
Model Size	105 mm×44 mm×33mm (L×W×H)

WARNINGSAND CAUTIONS

To protect against the dangers of fire and electric shock, a product has to be installed according to electrical codes and standards.
This product should be use together with an upstream air-switch.
Turn power off at circuit breaker or fuse and test that power is off before installing.
If you are unsure about any part of these instructions, consult a licensed electrician.

RF EXPOSURE STATEMENT

This equipment complies with the FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.
This equipment meets the exemption from the routine evaluation limits in section 2.5 of RSS-102. It should be installed and operated with a minimum distance of 20cm between the radiator and any part of your body.

IC Information

This device contains licence-exempt transmitter(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions:(1) This device may not cause interference.and (2) This device must accept any interference, including interference that may cause undesired operation of the device.

FCC Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.

FCC CAUTION
Any changes or modifications to this unit not expressly approved by the manufacture could void the user’s authority to operate the equipment.

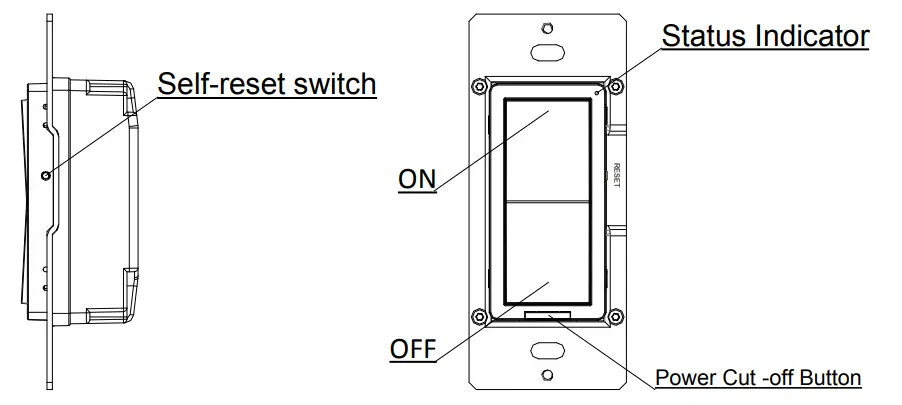

Function Parts Information

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 1

Short press: Within 0.5s .
Long press: Over 5s.

Status Indicator

Indicator lights red: OFF status.
Indicator lights green: ON status.
Green Indicator flashing: enter distribution network mode.

ON/OFF

Load power ON: When the load is powered off, press the ON button once.
Load power OFF: When the load is powered on, press the OFF button once.
Network mode: when the light is on, Long press ON or OFF for 5 seconds. After the status indicator blinks quickly, the phone can be connected to the smart switch. (if it is not connected, exit the network mode after 3 minutes).

Self-reset Switch

Network mode: when the light is on, Long press the reset switch for 3 seconds. After the status indicator blinks quickly, the phone can be connected to the smart switch. (if it is not connected, exit the network mode after 3 minutes).

Power Cut -off Button

Put in the power cut-off button to connect the power.
Put out the power cut-off button to cut off the power.

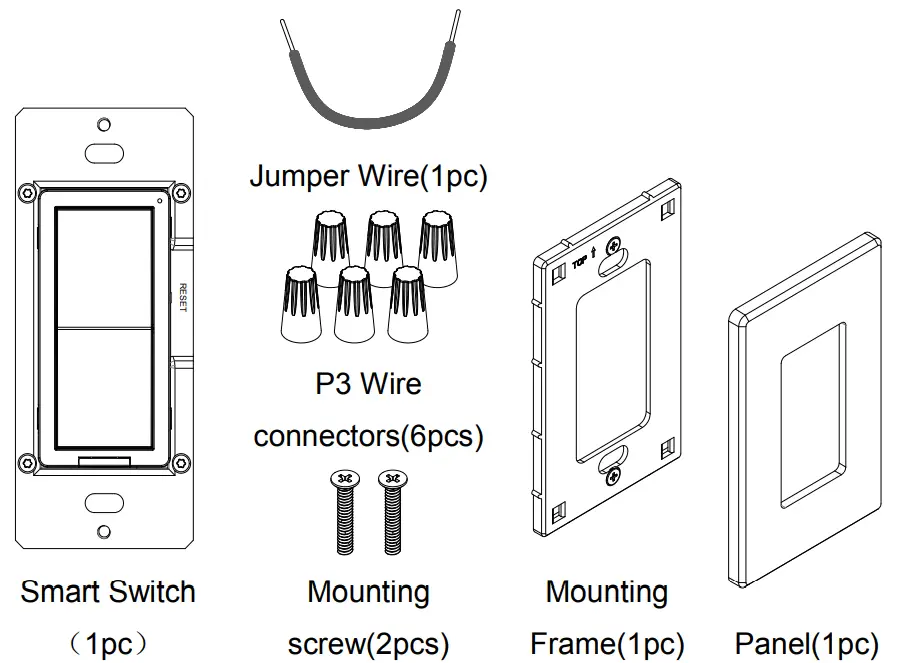

Parts Information

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 2

Tools needed to install your smart switch

Φ3mm Slotted Screwdriver	Φ5mm Philips Screwdriver	Electrical Tape	Cutters
Pliers	Test Pencil	Ruler

Installation and testing

Step 1 WARNING: To avoid fire and electrical shock,TURN OFF POWER at circuit breaker or fuse and test that power is off before wiring.

Step 2 Removing existing switch: Remove existing wall plate and switch mounting screws. Carefully pull switch from wall box, identify and take out the wires attached to the switch, then remove the switch. DO NOT remove wires which are taken out from the switch at this time.(If new configuration is without this step)

Step 3 Identifying your wiring application
NOTE: If the wiring in the wall box does not resemble any of these configurations, consult an electrician.

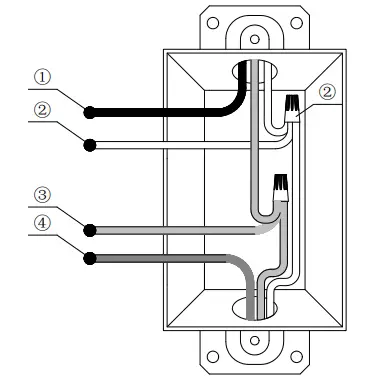

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 3

Single-Pole
①Line (Hot)
②Neutral
③Ground
④Load

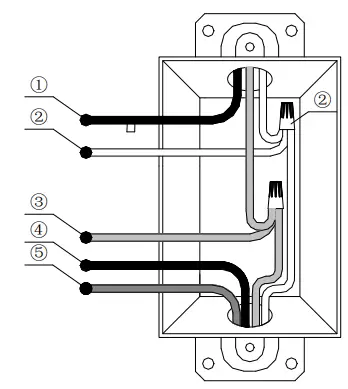

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 4

3-Way
①Line or Load
(See note below)
②Neutral
③Ground
④Traveler 1
⑤Traveler 2

Please note that for 3-way application,there have a power cord from the original switch be a different color (Black) or marked Common. Finding this power cord from both the Smart Switch’s junction box and 3-way junction box and marking as common (live or load).

Step 4 Typical wiring application
Power supply mode: Live wire or Neutral and Live wire.
(Note: If there is Neutral and Live wire condition, please connect to Neutral and Live wire for better compatibility.)

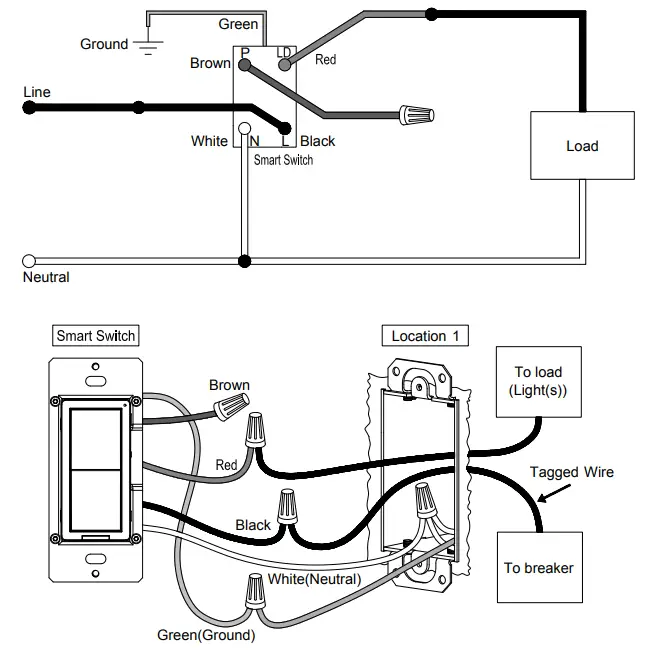

Step 4a Single-Pole
Note: the Smart Switch can also work normally if N wire is not connected.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 5

Location 1 wiring:

Connect the green wire on the smart switch with the green or bare copper ground wire on the wall box and tighten it by screwing the P3 wiring nut.
Connect the black wire on the smart switch with the live wire of the circuit breaker or load wire and tighten it by screwing the P3 wiring nut.
Connect the white wire on the smart switch with the neutral wire, and tighten it by screwing the P3 wiring nut. (Note: the Smart Switch can also work normally if N wire is not connected.)
Connect the red wire on the smart switch with the live wire of the circuit breaker or load wire and tighten it by screwing the P3 wiring nut.
Protect the remaining brown wire on the smart switch by screwing the P3 wiring nut.

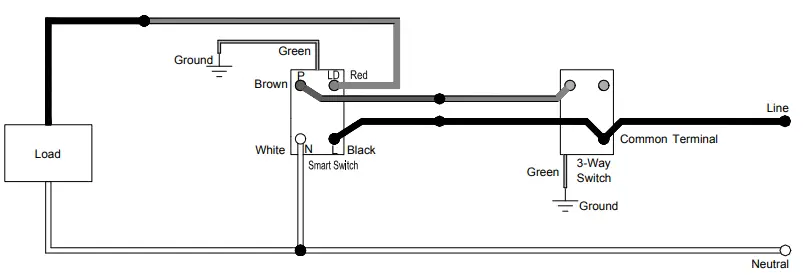

Step 4b-1 3-Way(3-way Switch)
Wiring scheme 1
Note: the Smart Switch can also work normally if N wire is not connected.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 6

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 7

Location 1 wiring:

Connect the green wire on the smart switch with the green or bare copper ground wire on the wall box and tighten it by screwing the P3 wiring nut.
Connect the black wire on the smart switch with Traveler 1 and tighten it by screwing the P3 wiring nut.
Connect the white wire on the smart switch with the neutral wire and tighten it by screwing the P3 wiring nut.
(Note: the Smart Switch can also work normally if N wire is not connected.)
Connect the brown wire on the smart switch with Traveler 2 and tighten it by screwing the P3 wiring nut.
Connect the red wire on the smart switch with the labeled wire （load w ire）and tighten it by screwing the P3 wiring nut.

Location 2 wiring:

Connect Traveler 2 with Screw 1 or Screw 2 of the 3-way Switch.
Connect the 3-way Switch Common Terminal with the Jumper wire, then connect Traveler 1 with the Jumper wire, as well as the live wire of the circuit breaker and tighten it by screwing the P3 wiring nut.

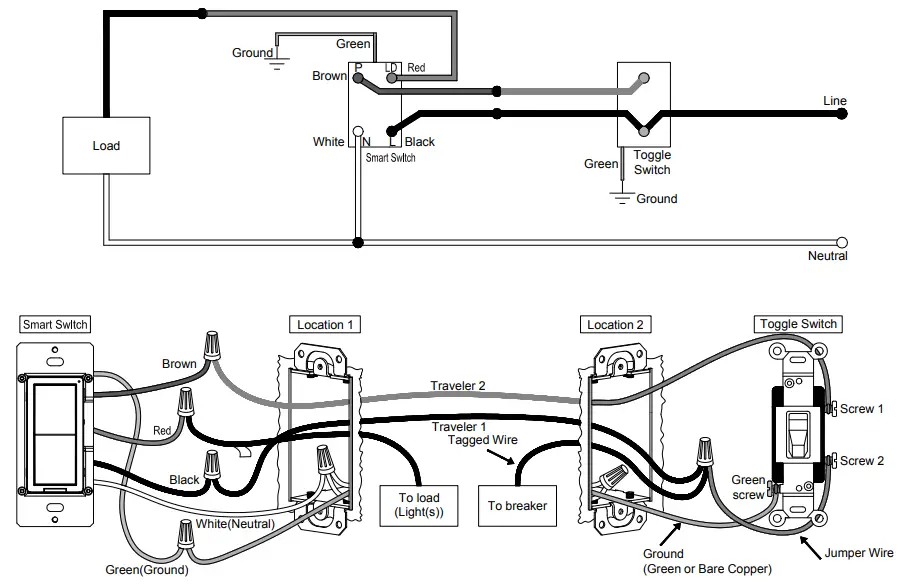

Step 4b-2 3-Way(Toggle Switch)
Wiring scheme 2
Note: the Smart Switch can also work normally if N wire is not connected.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 8

Location 1 wiring:

Connect the green wire on the smart switch with the green or bare copper ground wire on the wall box and tighten it by screwing the P3 wiring nut.
Connect the black wire on the smart switch with Traveler 1 and tighten it by screwing the P3 wiring nut.
Connect the white wire on the smart switch with the neutral wire and tighten it by screwing the P3 wiring nut.
(Note: the Smart Switch can also work normally if N wire is not connected.)
Connect the brown wire on the smart switch with Traveler 2 and tighten it by screwing the P3 wiring nut.
Connect the red wire on the smart switch with the labeled wire （load wire）and tighten it by screwing the P3 wiring nut.

Location 2 wiring:

Connect Traveler 2 with Screw 1 of the Toggle Switch.
Connect the Toggle Switch Screw 2 with the Jumper wire,then connect Traveler 1 with the Jumper wire, as well as the live wire of the circuit breaker, and tighten it by screwing the P3 wiring nut.

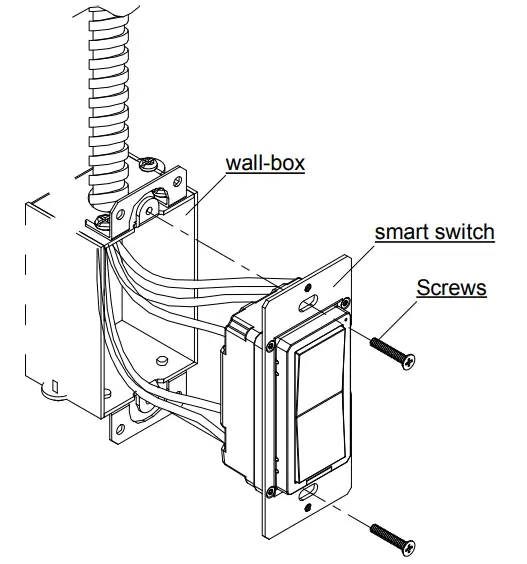

Step 5 Installing smart switch

Carefully position all wires inside the wall-box, leaving enough space to insert the smart switch and tighten with the matched screws.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 9

Step 6 Install the panel

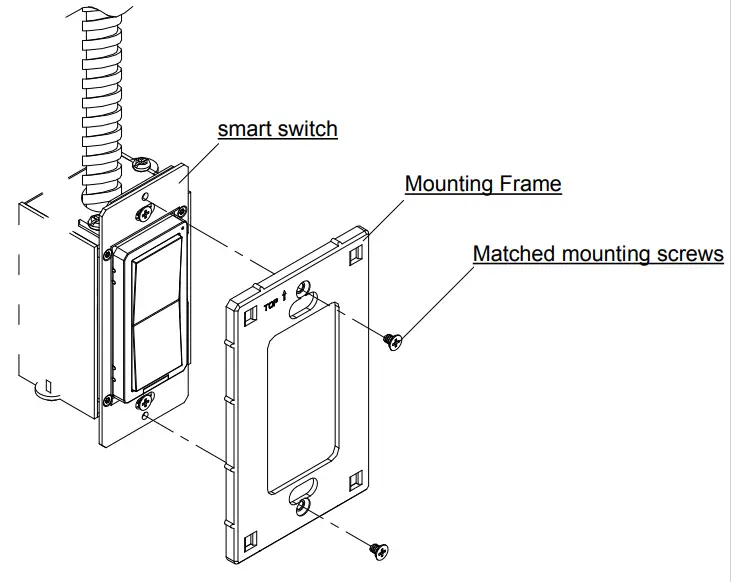

Step 6a Split panel

Install the mounting frame on the smart switch and secure it with the supporting mounting screws.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 10

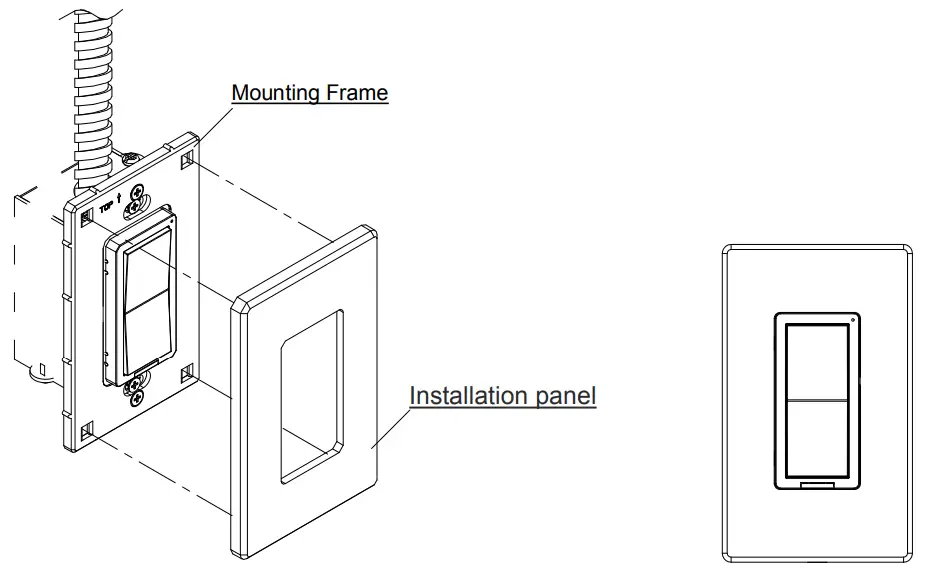

Put the panel and mounting frame together, press gently to make sure it is be installed firmly.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 11

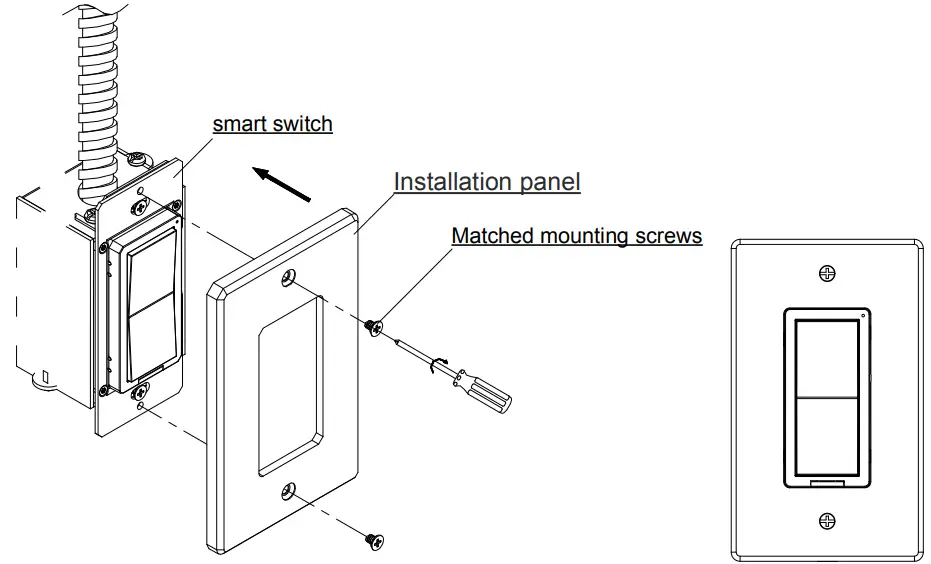

Step 6b Integrated panel

Place the panel on the mounted smart switch and secure it with the matching mounting screws.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 12

Using instruction

Table 1 Single – Pole Function table

Function	smart switch Operation Way	smart switch Operation	APP Operation
Distribution network mode	Long press ON or OFF for 5 seconds		x
Distribution network mode	Long press the reset switch for 5 seconds		x
ON	Press the ON button once	√	√
OFF	Press the OFF button once	J	√
Time switch on/off	NOT	x	√
Shared device	NOT	x	√
group control	NOT	x	√

Table2 3 – way Function table

Function	smart switch Operation Way	smart switch Operation	3-way Switch or Toggle Switch Operation	APP Operation
Distribution network mode	Long press ON or OFF for 5 seconds	√	x	x
Distribution network mode	Long press the reset switch for 5 seconds	√	x	x
ON	Press the ON button once	√	√	√
OFF	Press the OFF button once
Time switch on/off	NOT	x	x	√
Shared device	NOT	x	x	√
group control	NOT	x	x	√

Troubleshooting

Problems	Possible Cause	Solution
Lights flickering	Lamp has a bad connection.	Reconnect and fix the wires.
Lamps can’t be turn on	Circuit breaker has tripped.	Turn power on
	Fuse bum out	Change fuse
	Lamp burned out	Change lamp
	Lamp neutral connection is not wired	Reconnect the lamp neutral
Lights out of control or unable to connect to the network	abnormal	Pull out the power cut-off switch and disconnect the power supply; Insert the power cut-off switch and turn on the power again;

Distribution network

Network mode: when the light is on, Long press ON or OFF for 3 seconds. After the status indicator blinks quickly, the phone can be connected to the smart switch. (if it is not connected, exit the network mode after 3 minutes).
Supports Amazon Echo Plus and Philips Hue control.

Mobile app operation

Step 1 Download the ‘Smart Life’ App

Use your mobile device to scan the QR code below or search for “Smart Life” in the App Store or Google play to download and install the app.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - QR Code https://smartapp.tuya.com/tuyasmart

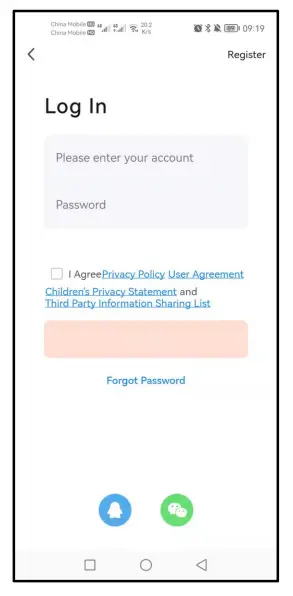

Step 2 Register an account and Login

Open the Smart Life app,click Register to create an account and login.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 13

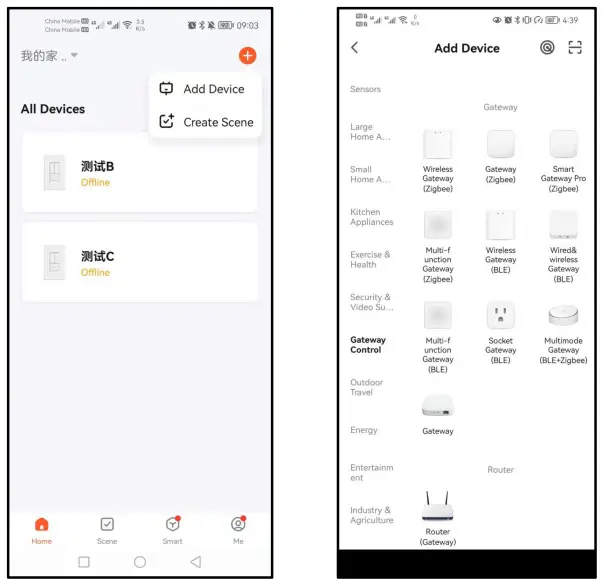

Step 3 Add the ZigBee gateway

Click on the top right, click Add Device;
Click Gateway Control and then click,to enter the device connection interface.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 14

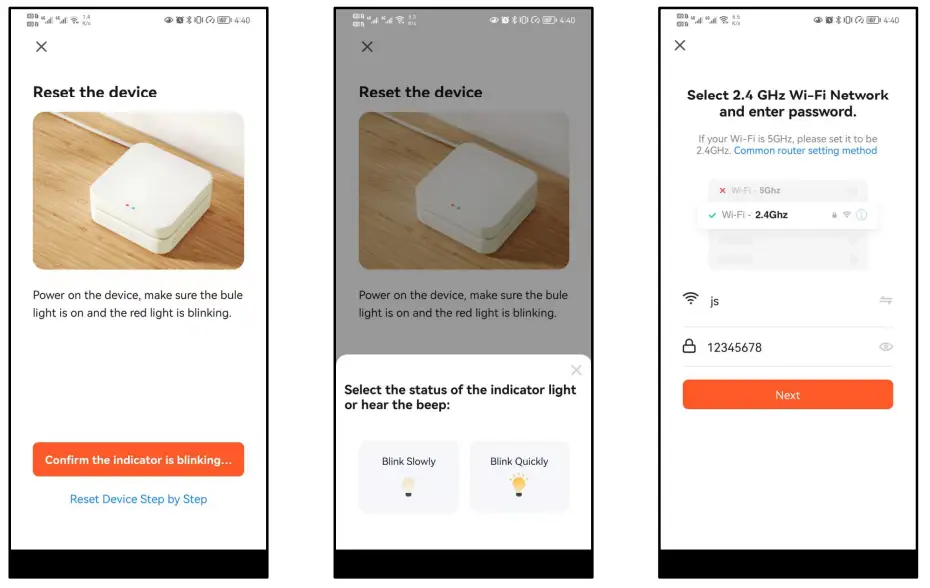

Make sure the App control indicator LED1 is blinking, click Confirm the indicator is blinking…,click 。
Enter your home Wi-Fi password,click Next, and wait for the connection.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 15

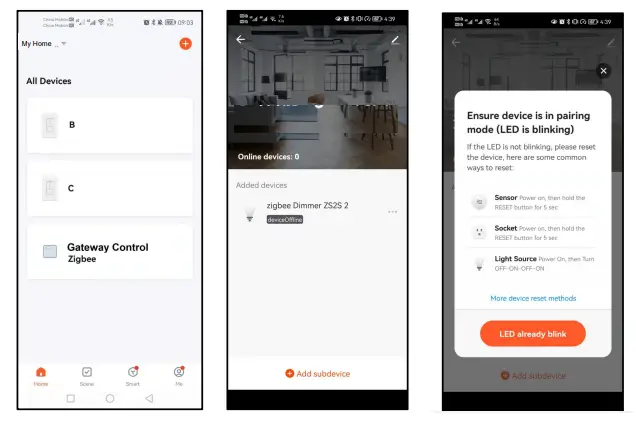

Step 4 Add the Smart Switch

Network mode: when the light is on, Long press ON or OFF for 5 seconds. After the status indicator blinks quickly, the phone can be connected to the smart switch. (if it is not connected, exithe network mode after 3 minutes).
Click,Click Add subdevice,Click LED already blink,and wait for connection.

Xiamen Tenia Lighting Electrical SNA042CLR3-ZB-1X600-P Smart Switch - Fig 16

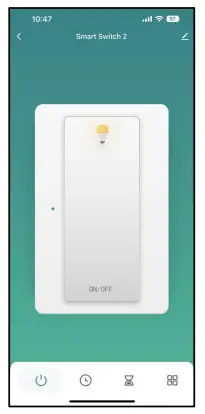

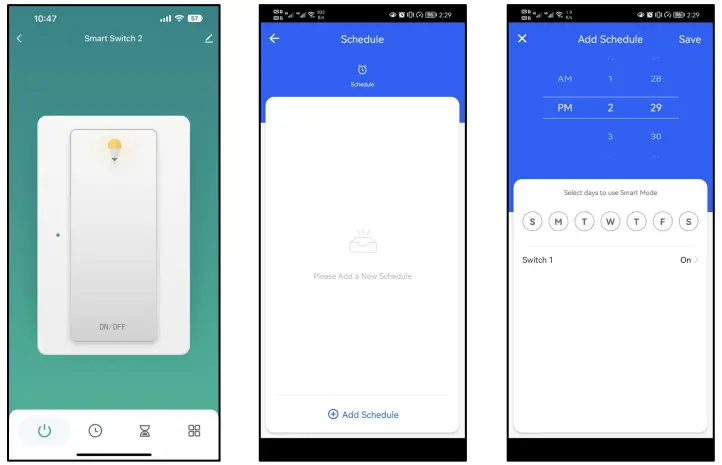

Step 5 Use the phone App to control smart switch

Click,control the light on and off function of the smart switch.
Click,to set the timer light on and off function of the smart switch.
Add timing and save.
After the smart switch is connected, it can be shared with multiple people, that is, one smart switch can be controlled by multiple apps.
Click the upper right corner to,enter the device details interface.
Click Share Device,to enter the Device sharing interface and add family members.
