AA210460 Lowering Frame for 24 Inch Visor Hood
Instructions

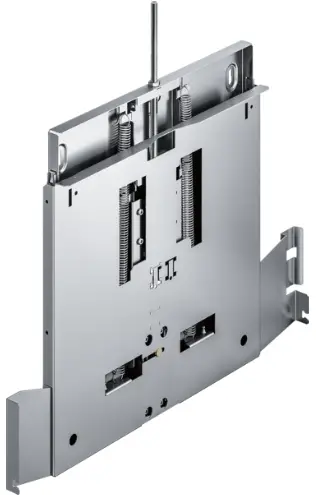

AA210460 Lowering Frame for 24 Inch Visor Hood
To be installed with AF 210 visor hood. The patented lowering frame allows the visor hood to completely disappear behind the upper cabinet.

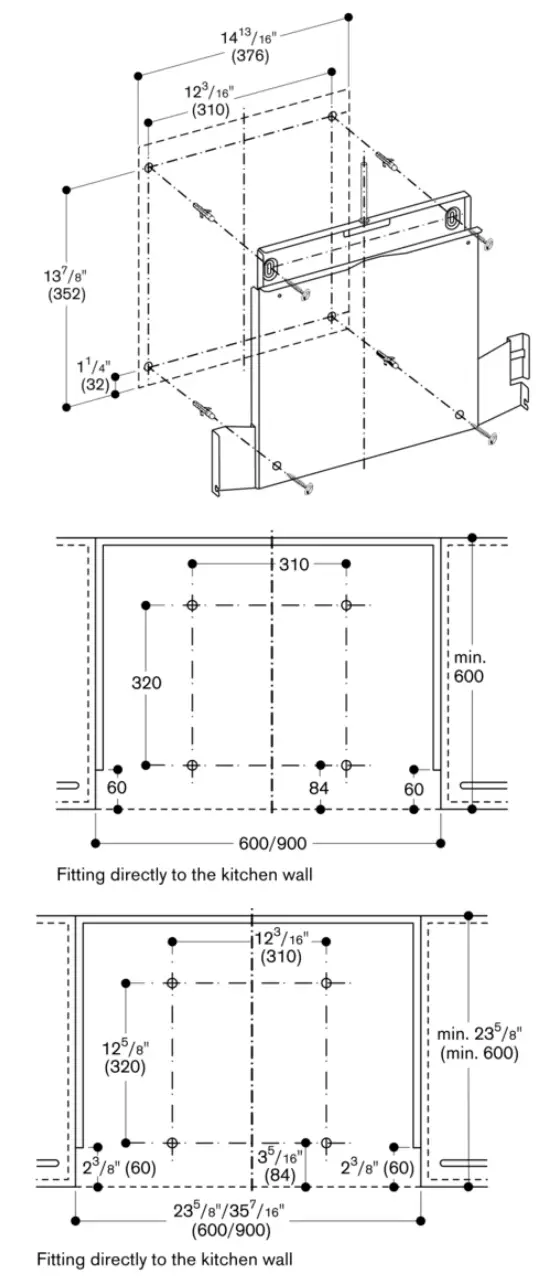

For assembly directly on the kitchen wall or reinforced upper cabinet.
Color Variants
AA210460
Product Features
Product Description
Accessory
Brand
Gaggenau
Product name/series name
SKU
AA210460
Internal article number
000000000017001426
EAN code
4242006256654
Product packaging dimensions
(HxWxD)
Net weight
6.000
11
Quantity per packing unit
Standard number of units per pallet
30
UPC code
825225919636
Product image

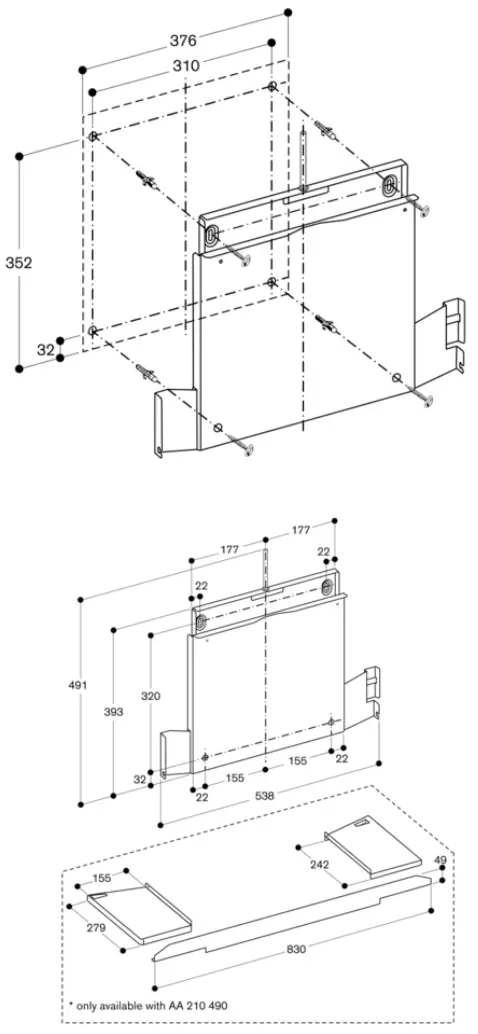

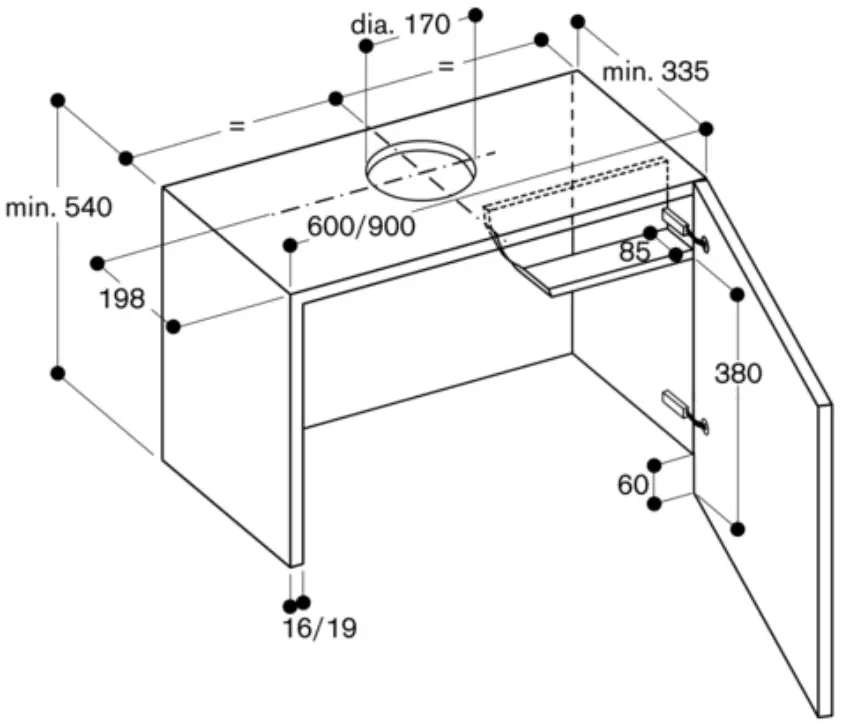

Upper cabinet for AF 210 with AA 210 460/AA 210 490 lowering frame

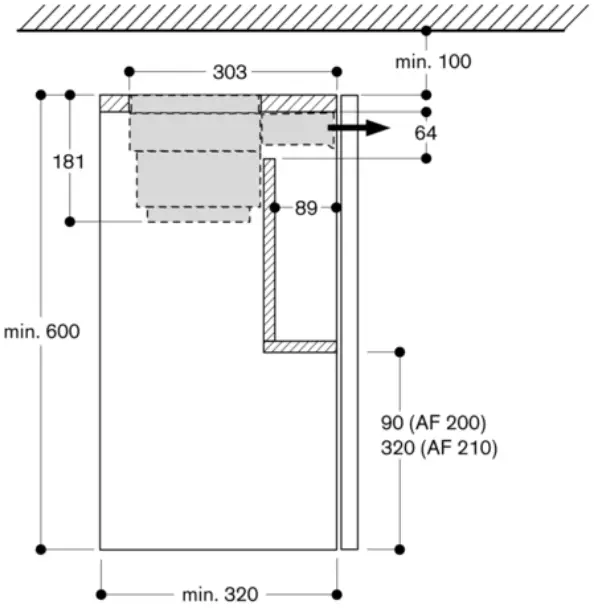

Cross-section of upper cabinet with AA 211 812

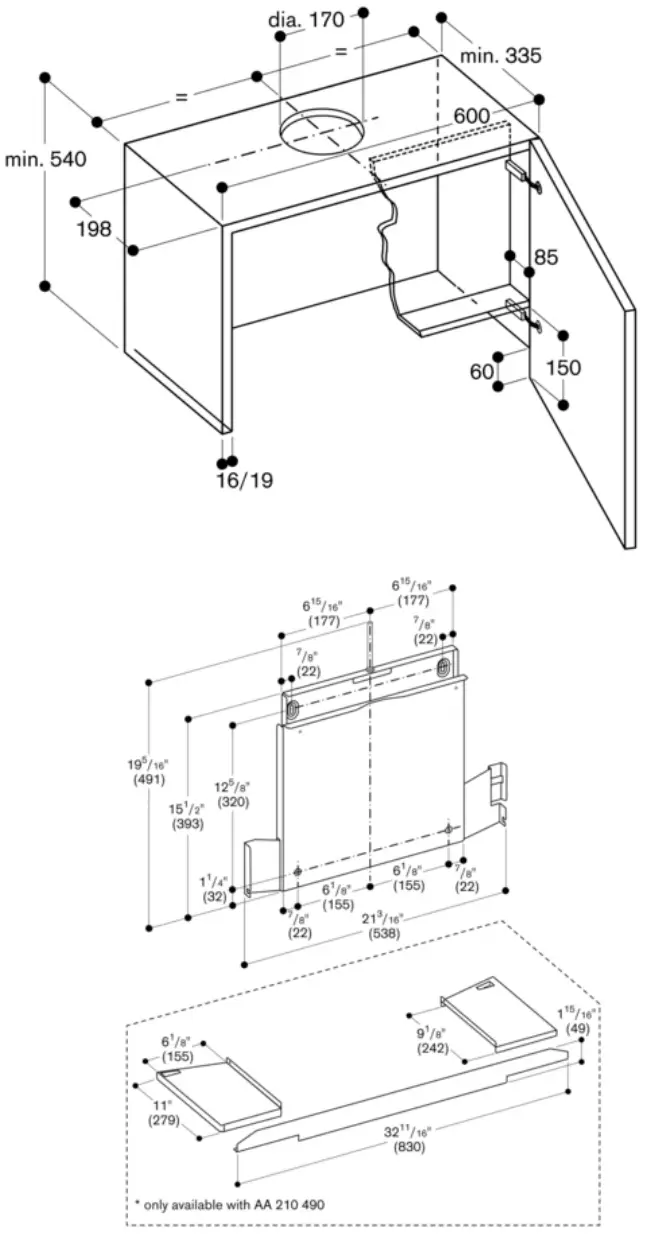

Upper cabinet for AF 200 160 with AA 210 480 lowering frame
 |  |
2022-10-27
