RAF5654-5410006 Adjusting Front or Rear Glass Slide Tilt Sunroof Panel
Instructions
RAF5654-5410006 Adjusting Front or Rear Glass Slide Tilt Sunroof Panel
2018 Mini Cooper S 2-Door HT (F56) L4-2.0L Turbo (B46M)
ADJUSTING FRONT OR REAR GLASS SLIDE/TILT SUNROOF PANEL [REP-REPRAF5654-5410006 -V.3]
Repair instruction
Adjusting front or rear glass slide/tilt sunroof panel
54 13 004 | REP-REP-RAF5654-5410006 – V.3
54 13 004 Adjusting front or rear glass slide/tilt sunroof panel
Special tools required:
- 00 9 315
- 00 9 340
Installation note:
Microencapsulated screws (Loctite) must be replaced and may be reused.
Note
- Screw connection must be completed within 20 min. (start of hardening)
- Microencapsulated screws must be retightened.
- When using nuts multiple times, first clean the thread.
Note:
Make the adjustment with an assitant.
Perform setting with fully closed glass slide/tilt sunroof.

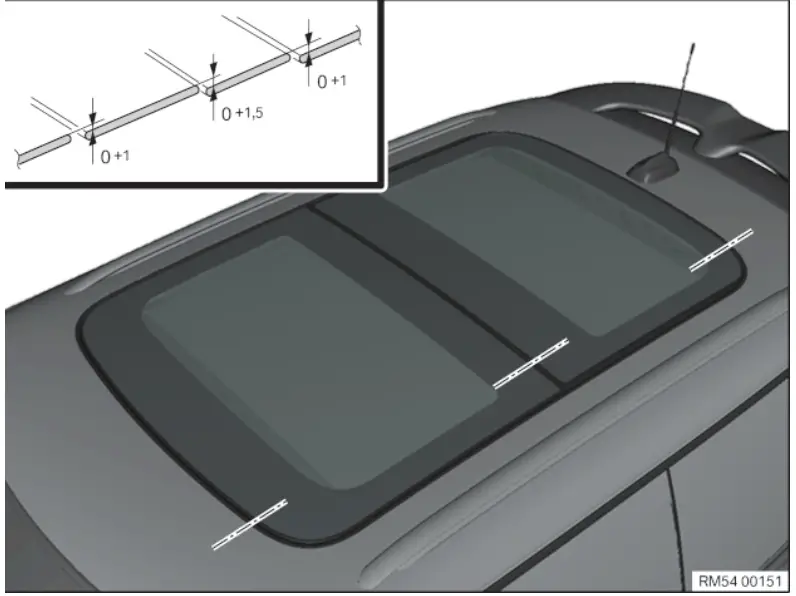

Height adjustment
- Front edge of glass slide/tilt sunroof panel at front 0 to 1 mm under roof edge
- Rear edge of front glass slide/tilt sunroof panel 0 to 1.5 mm above rear glass slide/tilt sunroof panel
- Rear edge of glass slide/tilt sunroof panel 0 to 1 mm above roof edge
Height adjustment:
Note:
Front glass slide/tilt sunroof panel must be adjusted first.

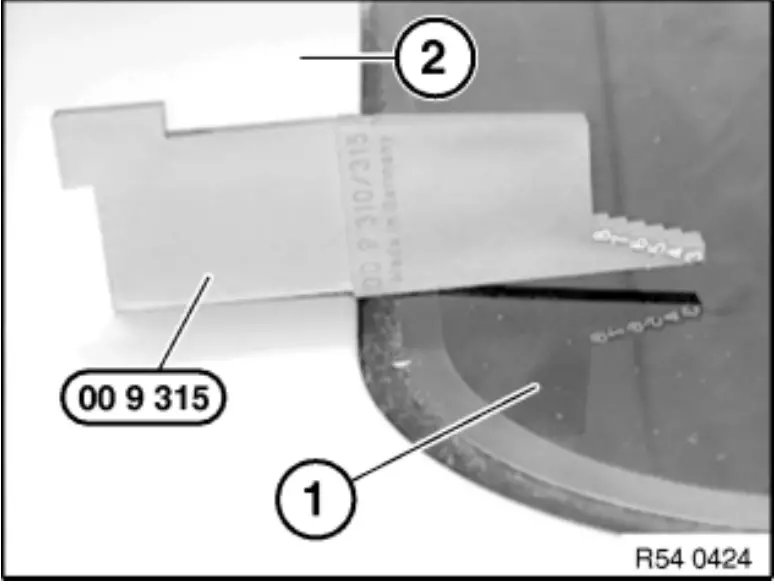

Check height of glass slide/tilt sunroof panel (1) in relation to body (2) with special tool 00 9 315.
Press glass slide/tilt sunroof panel (1) at front and rear upwards or downwards until ideal position is reached.
Distance setting:

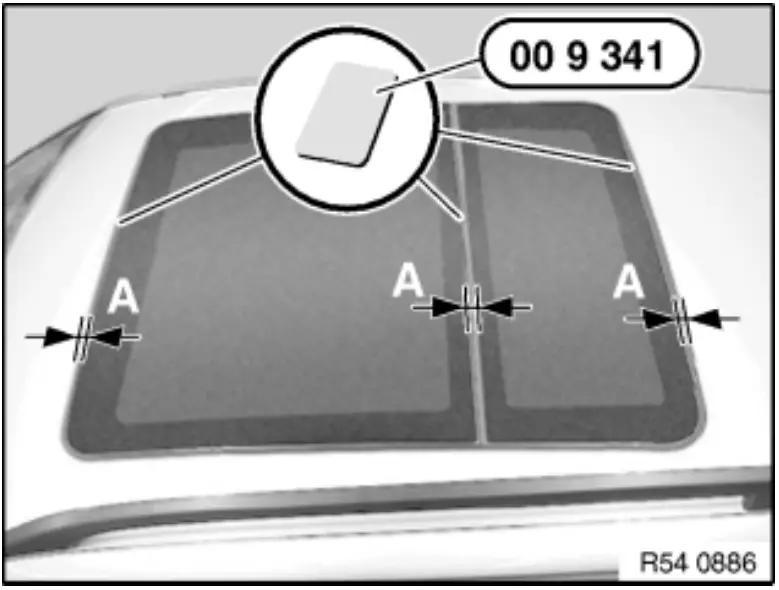

Use special tool 00 9 340 check that the gap between the glass slide/tilt sunroof panel and body is the same.
Slide special tool 00 9 340 or similar between gasket and insert. It must be possible to slide the card against the same level of resistance.
Slide glass slide/tilt sunroof panel towards front or rear until ideal position is reached.
Adjusting glass slide/tilt sunroof panel at front:
Carry out the following step on one side first and then the other (first left, then right or vice versa):

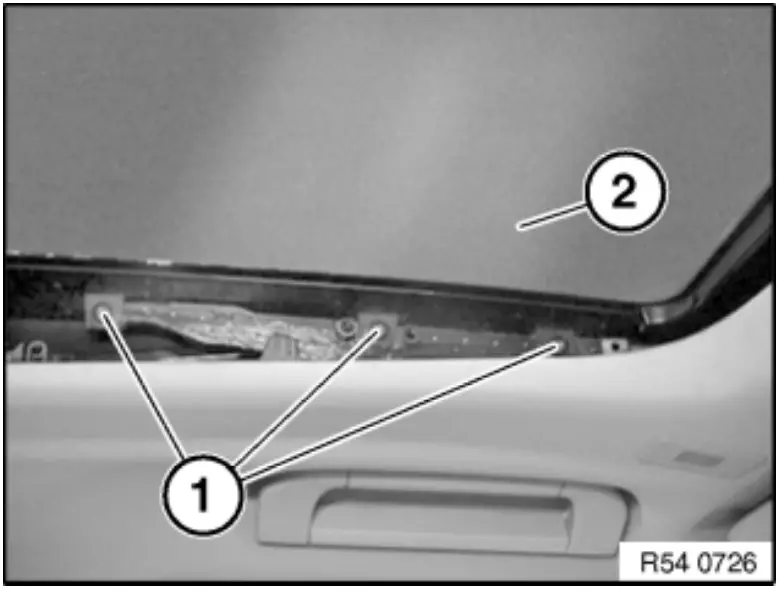

- Loosely screw in Torx screws (1) on left/right until glass slide/tilt sunroof panel (2) can just still be shifted
- Shift glass slide/tilt sunroof panel (2) as required
- Make sure all screws are tightened down.
- Tightening torque:
54 12 4AZ Type Thread Tightening specifications Dimension 4 Glass A slide/t Z ilt sunro of panel to mech anics R50 / R53 / R56 Renew screws. 4 Nm R60/R61/F54/F55 /F56 / F60 M5x6 Renew screws. 4,5 Nm - Repeat procedure on other side.
Glass slide/tilt sunroof panel rear setting:
Carry out the following step on one side first and then the other (first left, then right or vice versa):

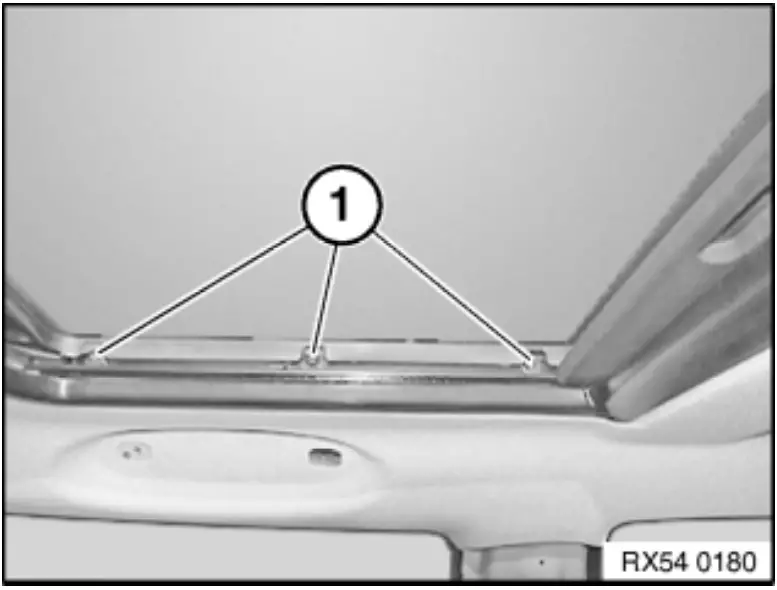

- Loosely screw in torx screws (1) on left/right until glass slide/tilt sunroof panel (2) can just still be shifted
- Shift glass slide/tilt sunroof panel (2) as required
- Make sure all screws are tightened down.
- Tightening torque:
54 12 4AZ Type Thread Tightening specifications Dimension 4 Glass A slide/t Z ilt sunro of panel to mech anics R50 / R53 / R56 Renew screws. 4 Nm R60/R61/F54/F55 /F56 / F60 M5x6 Renew screws. 4,5 Nm - Repeat procedure on other side.
Check function and adjustment.
Carry out initialization.
