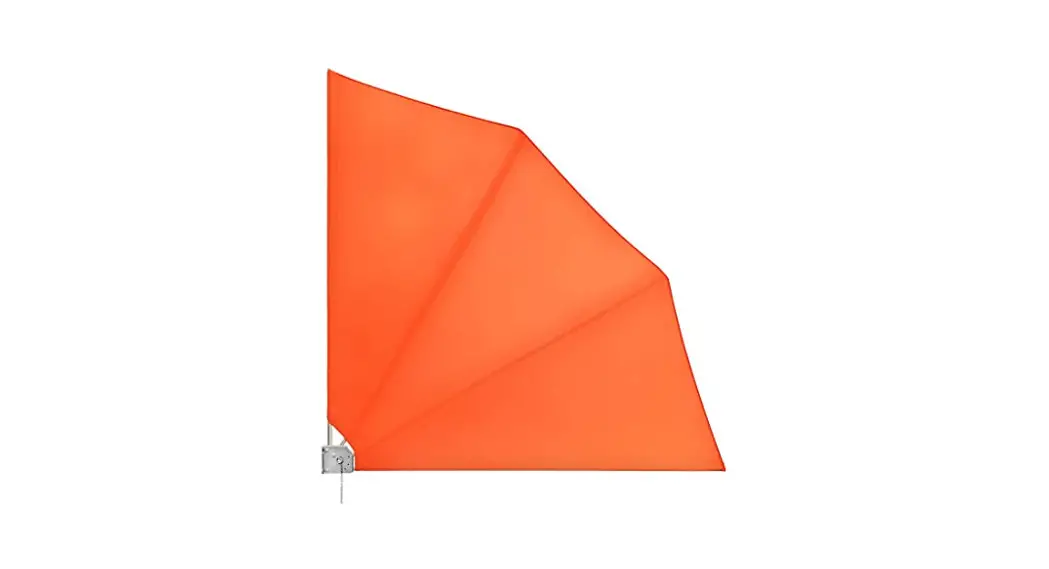

Konifera Balcony Sunshade Bw92001 Instruction Manual

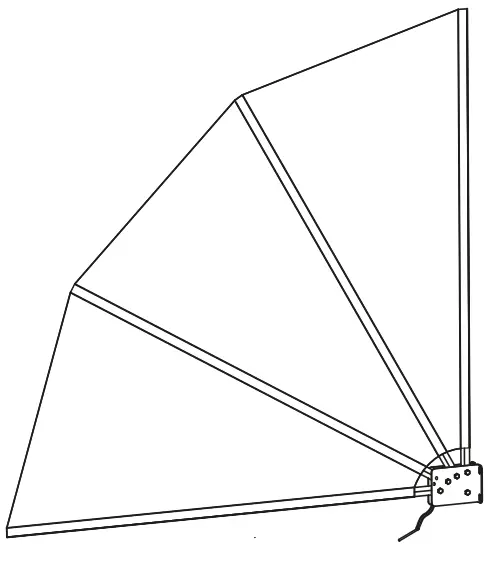

Balcony Sunshade
Installation and operating instructions
BW92001

Instruction manual

SPECIFICATIONS

Precautions and safety instructions for installation and operation

Attention!
Before opening the balcony sunshade, make sure that all fixing bolts have been properly installed and tightened. Always close the balcony sunshade on windy days, or when it is not in use.
Failure to observe these instructions may lead to material and structural damage to the balcony sunshade. Before opening and closing the balcony sunshade, please make sure you have removed the plug pin.
Explanation of symbols:
Avoid!
Important!
Do not install the balcony sunshade in a windy place as it may get damaged and cause injuries.

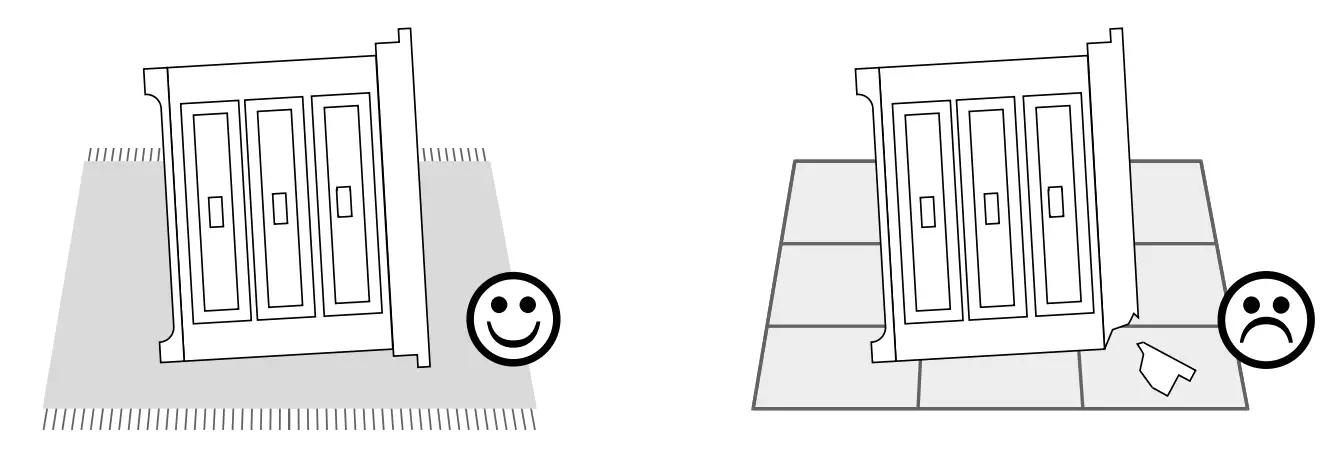

Before unpacking and installing the sunshade, make sure that you have all the required tools and sufficient space in a clean and dry area for performing the installation.
The product can be installed by laypersons, provided that the instructions are followed correctly. Please consult a qualified person, if you come across any problems during installation.
Please use all screws and nuts correctly when installing the balcony sunshade, as using a product that is not mounted properly can be very
risky.
Watch your fingers during the installation process.
Do not install the sunshade in a place that is exposed to heat, such as a wall near a furnace.
Do not hang anything on the frame, as this may cause damage or injuries.
Never use the balcony sunshade on windy days.
Please close the balcony sunshade on windy days.
The balcony sunshade must not be modified in any way.
Do not use a barbecue or ignite a fire near the balcony sunshade.
Do not use the balcony sunshade if it is in any way damaged or faulty.
Use of the balcony sunshade in frosty conditions may cause damage to the product.

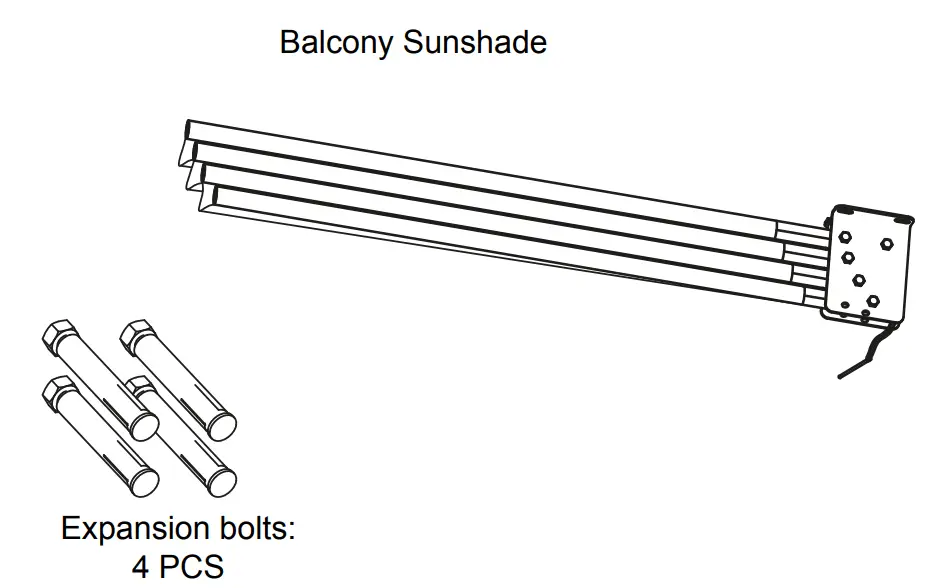

ACCESSORIES AND REQUIRED TOOLS

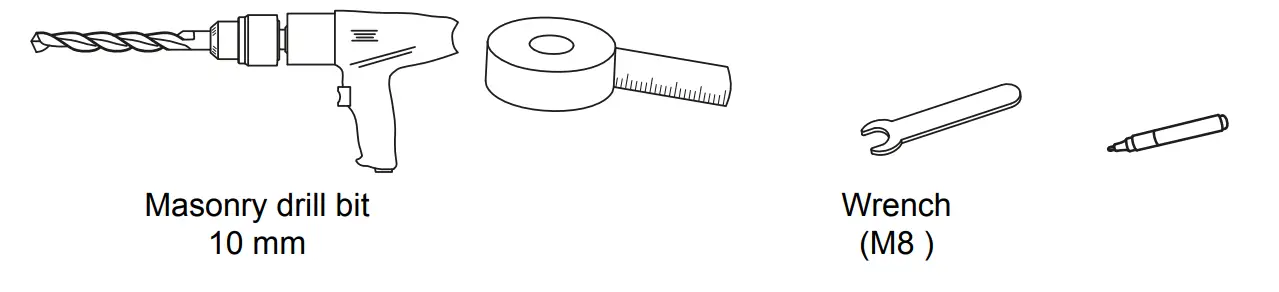

Please prepare the following tools before installation:

INSTALLATION

Choose the place where you would like to install the product.
Caution: The provided expansion bolts are intended for brick and concrete walls. To install the balcony sunshade on other materials, please use suitable bolts and make sure the wall is strong enough to support the product.

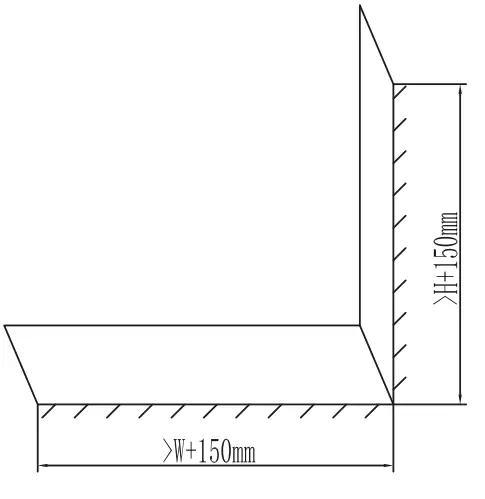

1. Installation dimensions:
H = height of the balcony sunshade
W = width of the balcony sunshade
MONTAGE

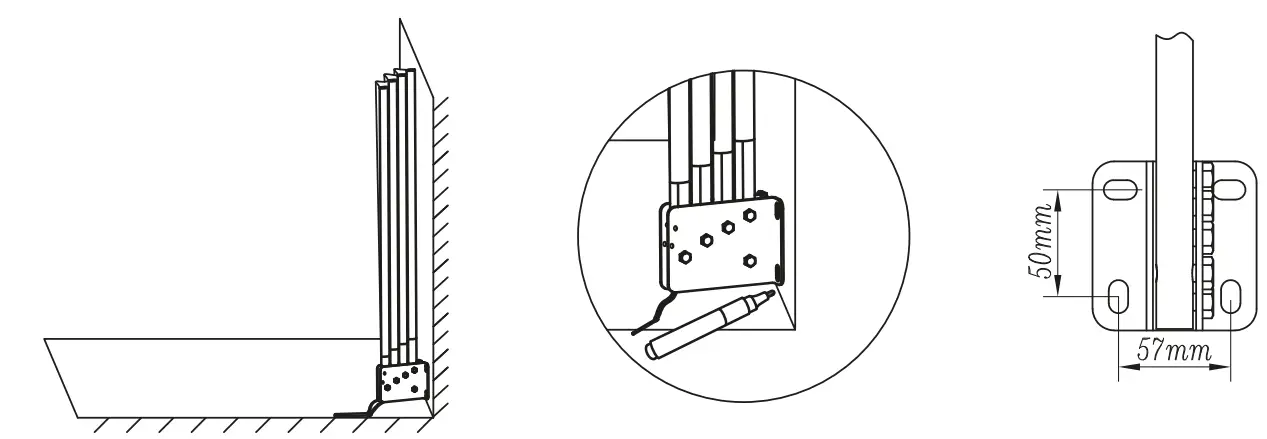

2. Mark the holes for drilling and install the balcony sunshade.

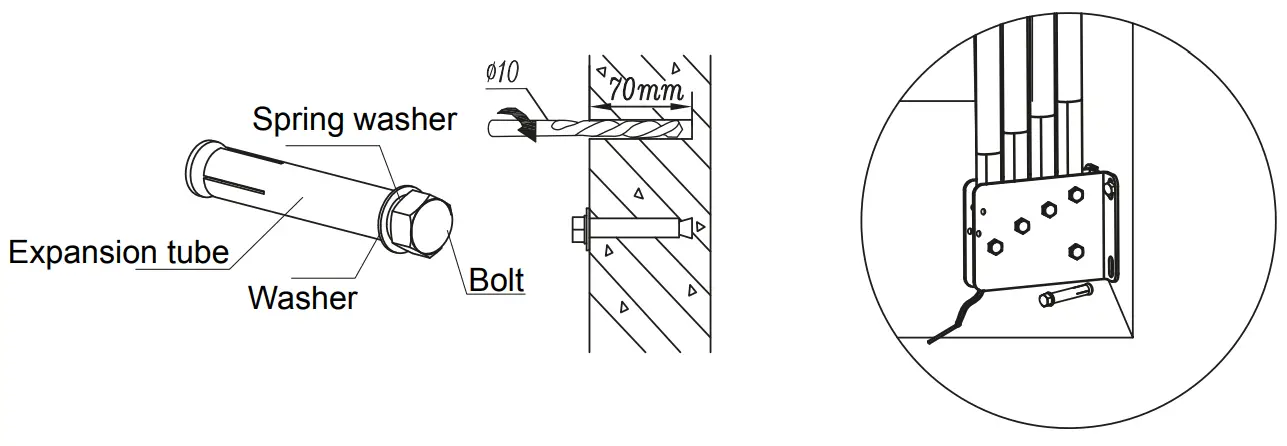

Hammer the expansion tubes into the holes with a mallet, then secure the wall bracket with the bolts.

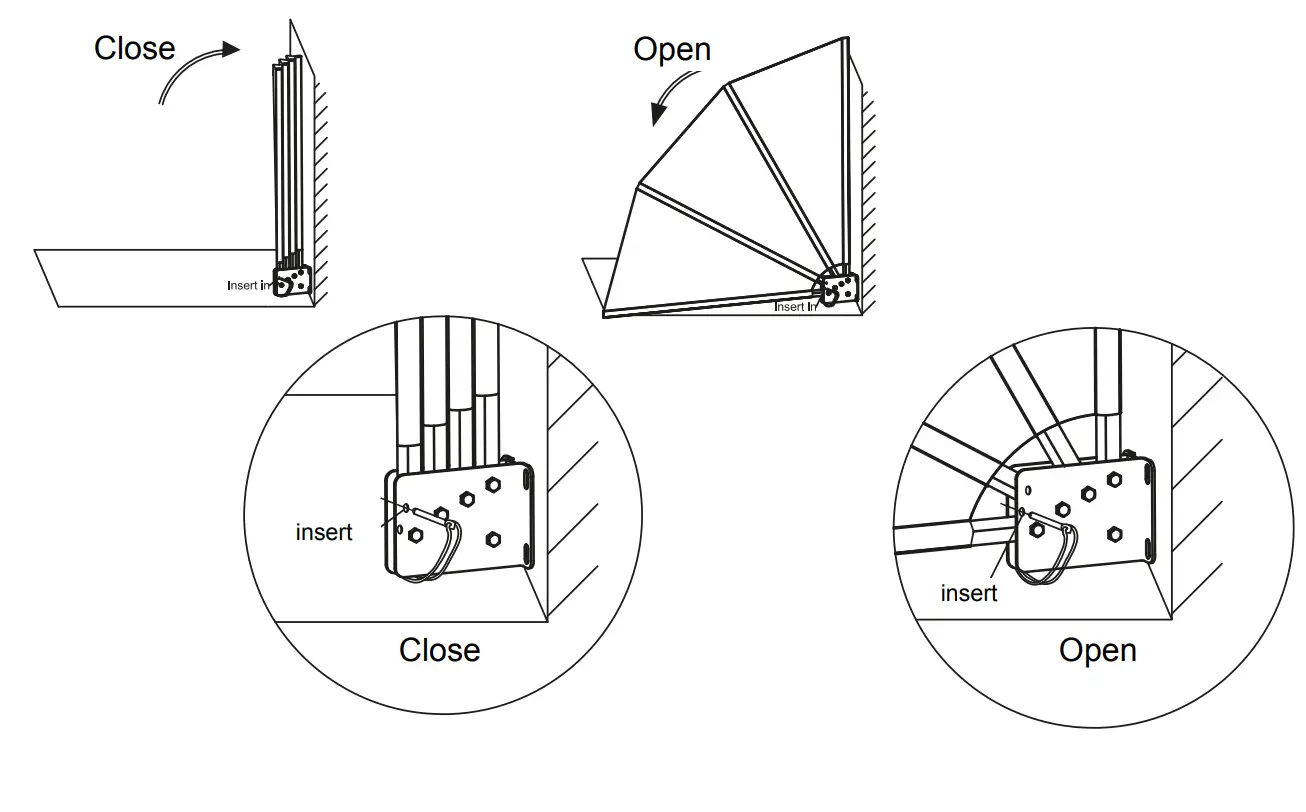

Operating instructions

Service

Name	Balcony Sunshade
No.
Type	BW92001

Imported by baumarkt direkt GmbH & Co KG
Alter Teichweg 25, D-22081 Hamburg, Germany
