Dull Ragon Dflp1 Party Light User Manual

DFLP1 Party Light

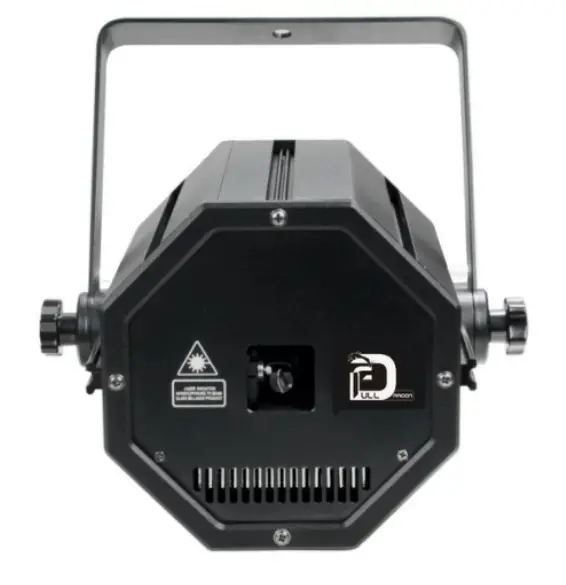

Product Information: DFLP1 Laser Animation Stage Light

The DFLP1 Laser Animation Stage Light is a high-tech and high-performance product designed according to international standards. It comes with a user manual, a power cable, and a hanger. The control options for this unit include single or master-slave mode. The LCD display function menu allows easy operation and adjustment of settings. It is important to note that this product emits light radiation that can cause eye or skin damage. All protective measures must be applied for safe operation. The unit has been tested at the factory and requires no assembly.

Product Usage Instructions:

1. Before using the product, read the user manual carefully and keep it in a safe place for future reference.
2. Upon receiving the product, check that it has not been damaged during transportation.
3. Do not open the bottom cover without permission. Operate according to the user manual and call a technician if the machine breaks down.
4. Avoid direct eye exposure to the light beam.
5. Before connecting or disconnecting power, adjust the luminance of the light diode to the lowest setting to avoid damage.
6. Keep the unit dry and avoid using it in rainy or dusty environments. If used outdoors, use a water-proof cover protector.
7. Avoid shaking or hitting the light to prevent damage.
8. Prevent dust from entering the equipment to avoid problems.
9. To control the lights with a DMX controller, input DMX signal and link the controller and lights using the control line. Each controller must have its own address, with the first light address set to 1 and subsequent lights set to 28 or 53 (the first light address code plus 27 or 52 channels).
10. In master-slave mode, link the lights together with the light that does not receive signal acting as the master light.
11. To connect with a professional laser show, convert the DB25 interface signal to RJ45 8P signal and connect the lamps with a network cable.

Introduction

Thank you for purchasing this product.We always try to develop our product with high-tech and high performance to meet your requirement and exception. The unit is designed strictly according to the international standard. The control way is single or master-slave in option. The manual include the skill parameter and detail instructions. Please read this manual carefully before using the product. After reading it, please keep it in a safe place for future reference. This unit has been tested at our factory before being shipped to you, there is no assembly required. Once after receiving this product, please take and put carefully. And check cautiously that whether the product was damaged or not during the transportation.

Checking parts

Please check if the following parts are included:

• 1 x Light
• 1 x User manual
• 1 x Power cable 1
• x Hanger

Danger Light Radiation!
Avoid direct eye exposure!
Light radiation can cause eye damage or skin damage All protective measures for a safe operation of this light must be applied.

Installation

1. Please check the voltage whether is the same with the one showed on the equipment or not.
2. It must ask for the technical person and set the light safety when installation. And let the light beam at the suitable angle.
3. When install this equipment please make sure there’s no flammable surfaces (decorated things, etc) within at least 2.5M and maintain minimum distance of 0.5M from the equipment to the walls. 4. Please make sure that there’s no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe.
4.  Products should be install immobility.
5. In case of safety, it’s very important that to connect the earth with line.

Attention

1. Please do not open the bottom cover yourself without permission. Operate it accord the user manual. Call the technician when the machine breaks down.
2. Please do not see the light beam directly to avoid any damage.
3. Before connect or disconnect the power, please adjust the luminance of the light diode to the least to avoid any damage to the light diode.
4. This unit should be keep dry, do not use in the rain and dusty environment. It can be use in the outdoor with the water-proof cover protector.
5. Set the light immobility and try to avoid strong shake or hit. 6. Prevent dust into the equipment to avoid problems.
6. Please keep that there’s no other equipment or decorating materials obstructed the exhaust fan and the vent-pipe when the equipment was working.
7. Before connect power, check the plug is immobility or not, power line should be connect well.
8. Please do not open or close the equipment frequently that’s to avoid any affect to the life span of the light diode, and try the best to avoid the long time working.
9. Due to the characteristic of the light diode, after four hours working, it should be close at least 25 minutes until the light diode cooling then work again.
10. Don’t touch the light or draw the power line when your hand was wet. And do not pull the electronic power line.
11. Maintain the distance at least 3M above from the equipment to the object.
12.  This equipment does not have any parts can repair for the users, please do not open the equipment.
13. When the light diode became dim or damaged please contact the dealer timely.
14. When you want to re-transfer the product, you’d better use the original package to shockproof.

LCD display function menu

DMX setting

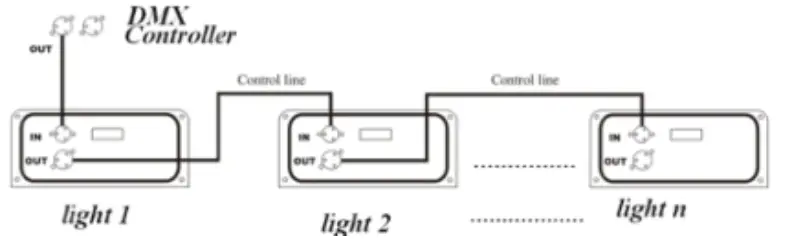

Input DMX signal, and the link the DMX controller and the lights by the control line as the following picture, you can control the lights by the controller.

When using any controller, each one must be have its own address. The fist light address is set to 1, the second light address code is set to 28 or 53 (the first light address code 1 plus 27 or 52 channel), the third set of lights on the 55 or 105. (This setting also need to be based on different console to set, now only by general practice)

Master-slave Setting

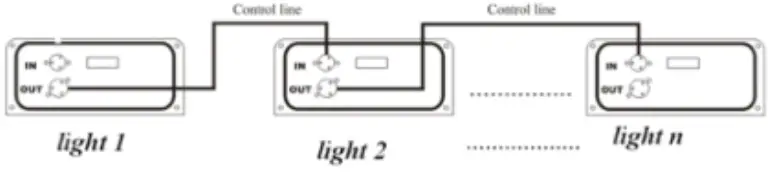

Link the lights as the following picture (the light which does not receive signal, only output signal, will be the master light)

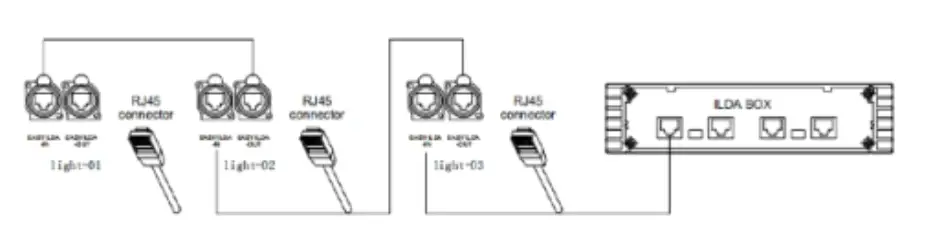

Link the lights with professional laser show Convert the DB25 interface signal to RJ45 8P signal, and the lamps are connected by network cable.

Using before please must be check power supply link with earth wire correctly or not.

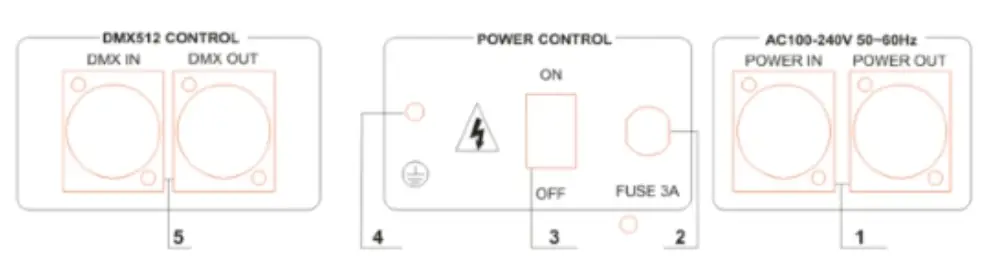

The specification of the front and rear panel:

1. Input rated voltage
2. Fuse
3. Power switch button
4. Ground marking
5. DMX IN/ DMX OUT: DMX signal output and input

Technical Specifications

• Power input: AC100~240V, 50/60Hz
• Power consumption: 100W, 200W
• Lamp: Single color RGB
• Lamp modulation: TTL Analog
• Scanner: 20kpps 25kpps 30kpps Channel: 27CH / 52CH
• Control mode: sound, auto, master-slave, dmx, ilda Cool system: forced air cooling system
• Working temperature: 0℃ – 35℃
• N.W./G.W.: 4.5kg/5kg
• Package size: 30 x 25 x 30cm

DMX-512 Channel Introduction

27CH as following:

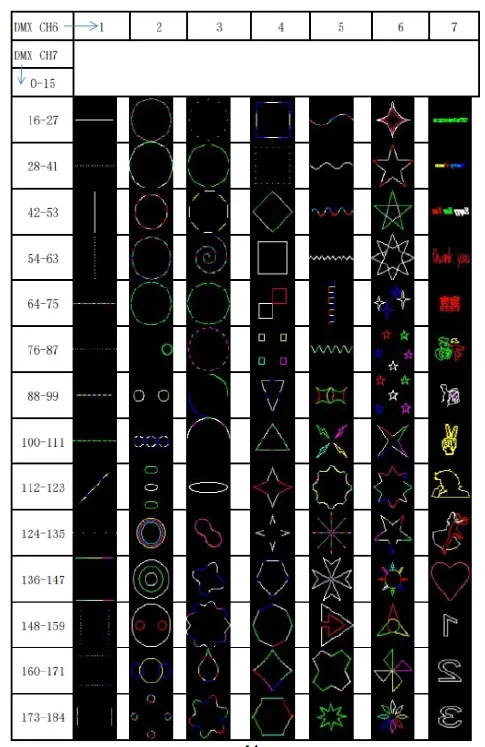

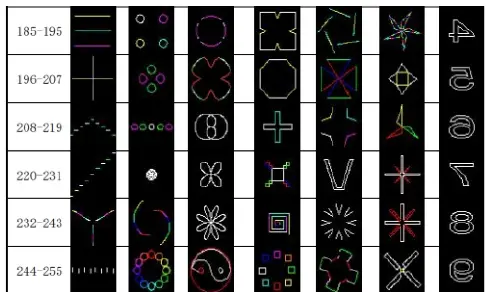

Detail DMX pa5ern as following :

• DMX 1-7 Means CH 6 page
• DMX 0-255 means CH 7 Cue

Auto play
In LED display, by encoder knob to select Operation mode, Auto TRG, light play the built-in pattern and animation effect( page and cues)

Music play
In LED display, by encoder knob to select Operation mode, Music TRG

Master-slave play
In LED display, by encoder knob to select System config, Master- salve, slave fixture set DMX address 001

Safety warning and maintain
Safety warning
The installation should be carried bu a qualified installer The fans and air-vents should not be jammed by other equipment or decorate materials Avoid looking directly in the light source Maintain Please read the user manual in detail before operating the equipment. Maintenance should be performed every 3 month, different period according to the environment. Use a sponge which is dipped with alcohol, rather than wet cloth or other chemical liquid, to clean the mirror. Keep the equipment away from water or moisture
Make sure the power is off and fixture is not connected to the power supply before opening the unit or any maintenance.

Declaration
This device has left our premises in absolutely perfect condition. To maintain this condition and to ensure a safe operation, the user must follow the safety instructions and the warning note written in his user manual. We cannot be made liable for damages caused by incorrect installations and unskilled operation.

Product common breakdown comparison table
