Aostirmotor S07-g Electric Bike Owner's Manual

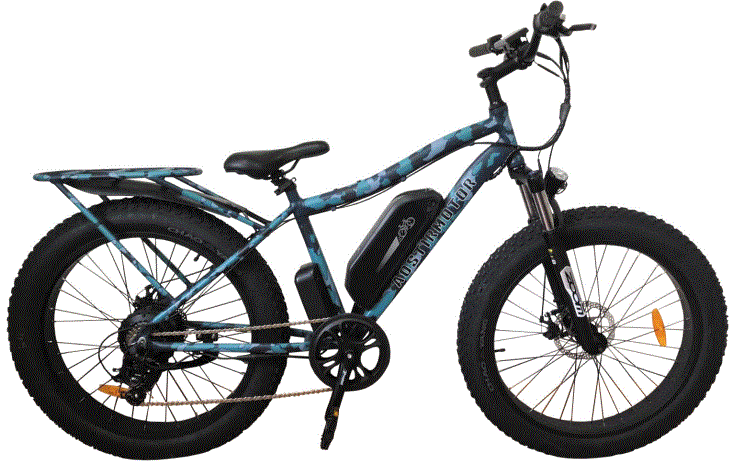

AOSTIRMOTOR S07-G Electric Bike

Using Instructions

• OPEN: Mode/M 1.5 seconds long press.
• CLOSE: In standby mode, long press Mode/M for 3 seconds
• SETTING: After booting, press UP+DOWN for 2.5 seconds(exit in the same way)
  • The detailed settings are as follows: (on the boot state)

Wheel Diameter Setting

1. UP or DOWN
2. 2.16-28inch C Default 26inch)
3. Select, Mode Confirm

Speed Setting

1. UP or DOWN
2. 12-45 KM/H
3. Select, Mode Confirm.

Light Setting

1. UP or DOWN
2. 1-3 (Brightness)
3. Select, Mode Confirm

MPH/KM Setting

1. UP or DOWN.
2. MPH or KM/H
3. Select, Mode Confirm

SPEED Setting

1. UP or DOWN For 3 seconds
2. MAX/AVG/NOW
3. Select, Mode Confirm

RANGE Setting

1. PRESS Mode/M
2. Riding mileage/ accumulated total mileage

Front Light Open

1. Exit Settings
2. UP FOR 3 Seconds
3. Front lamp will work
4. Default: 1

Power Shift Setting

1. Exit Settings
2. UP/DOWN
3. 1-5 (Power)
4. Default: 1

Cruise Mode Setting

1. Exit Settings
2. PRESS DOWN FOR 3 Seconds
3. Default: 6KM/H
4. Pushing state, non riding

• Ride your bike in a safe way. Don’t hit or knock the display.
• Keep away from the bad environments when use, such as downpours, large snowflakes and solarization.
• Try not to use in under-voltage condition.
• The screen will gets dark along with the temperature reduction when temperature below 10 °C . The screen will return to normal when the temperature rises again.

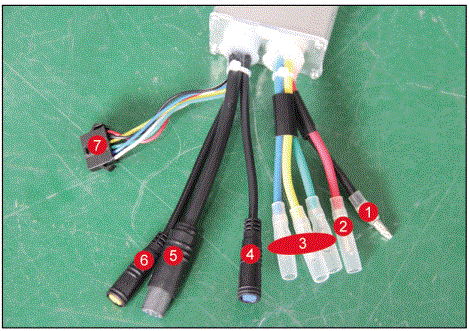

Controller Use & Maintenance

1. Battery negative connection line
2. Battery positive connection line
3. Phase line – EROR 23
4. Tail light wire
5. Integrated main line
6. Power sensor line
7. Motor Hall plug wire

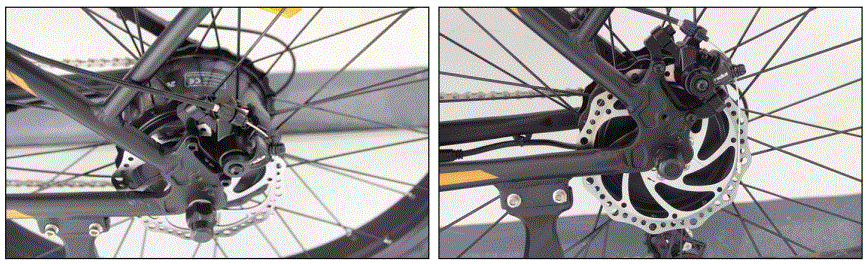

Motor Maintenance

1. Please check the integrity of motor blocking piece regularly.
2. Please check the integrity of cable before and after riding.
3. Please check the integrity of motor shell before and after riding.
4. Please do not use the motor in extreme environments, and do not let the motor work in water.
5. When you find the motor power is insufficient, please get out of the bike and not force it.

FAQ

• Is there a power usage or battery gauge on the bike?
  • Yes, there is a full screen LCD display. There is also an additional LED battery gauge on the side of the battery pack. 2x the info!
• Is there a switch to prevent accidental starting?
  • Yes, there is an on/off button on the battery pack. The brake levers also come standard with a safety power stop switch built in.
• How do I lock it up and what can I do to help minimize the chance of it being stolen?
  • AOSTIRMOTOR Bike has some great anti-theft features, including a locking battery rack with keys to keep bike safe, and rear wheel which is bolted down reduce the chances to be stolen.
  • Most standard U-locks and cable locks work fine on our AOSTIRMOTOR Ebike.
• Does it work in the rain?
  • The components are all waterproof and work very well in wet conditions,
  • But we do not suggest to use our ebike in a rain day.
  • We suggest that you should keep your bike parked indoors and keep him in a dry situation.
