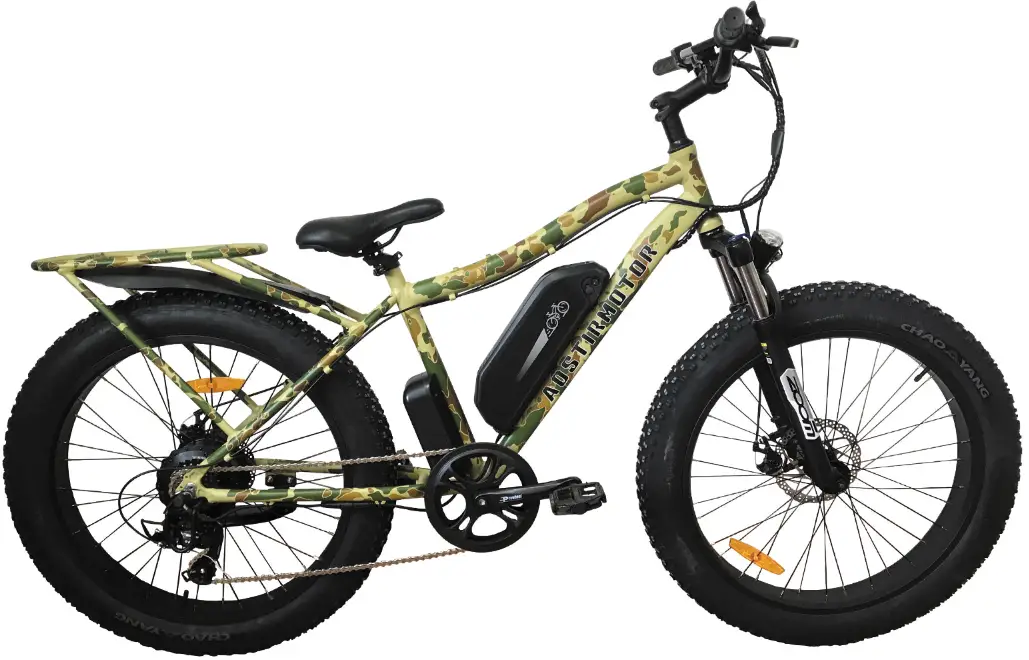

S07-E 750W Electric Mountain Bicycle
Instruction Manual
Display Use & Maintenance
SW-LCD display
OPEN: Mode/M 1.5 seconds long press.
CLOSE: In standby mode, long press Mode/M for 3 seconds
SETTING: After booting, press UP+DOWN for 2.5 seconds(exit in the same way) The detailed settings are as follows:(on the boot state)
 | ||

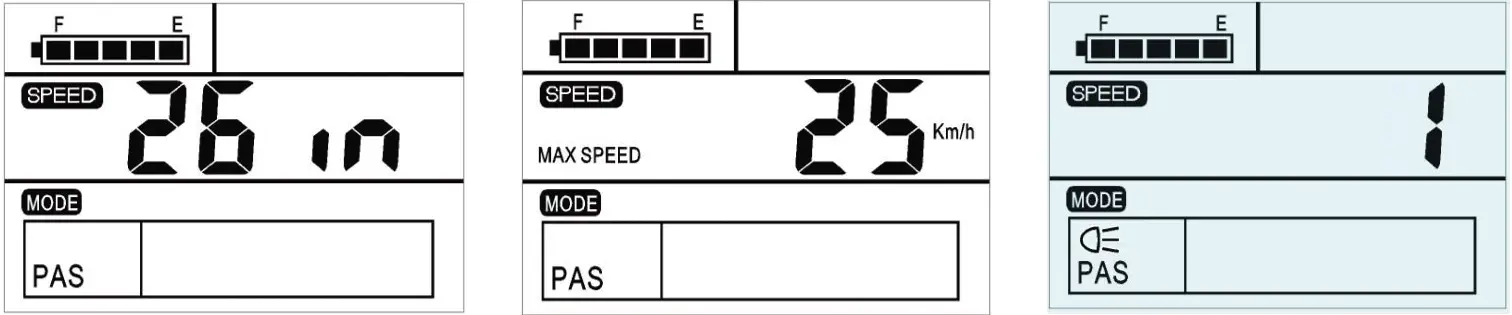

| Wheel Diameter Setting: 1. UP or DOWN 2. 16-28inch (Default 26inch) 3 . Select, Mode Confirm | Speed Setting: 1. UP or DOWN 2.12-45 KM/H 3. Select, Mode Confirm | Light Setting: 1. UP or DOWN 2 . 1 – 3 (Brightness) 3 . Select, Mode Confirm |
 | ||

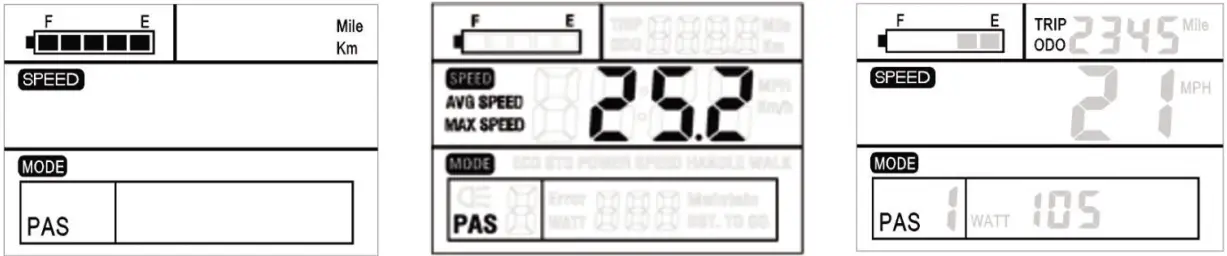

| MPH/KM Setting: 1. UP or DOWN 2. MPH or KM/H 3 . Select, Mode Confirm | SPEED Setting: 1. UP or DOWN For 3 seconds 2. MAX/AVG/NOW 3 . Select, Mode Confirm | RANGE Setting: 1. PRESS Mode/M 2. Riding mileage/accumulate- total mileage |
 | ||
| Front Light Open: 1. Exit Settings 2. UP FOR 3 Seconds 3. Front lamp will work 4. Default: 1 | Power Shift Setting: 1. Exit Settings 2. UP/DOWN 3. 1 – 5 (Power) 4. Default: 1 | Cruise Mode Setting: 1. Exit Settings 2. PRESS DOWN FOR 3 Seconds 3. Default: 6KM/H 4. Pushing state, nonriding |
- Ride your bike in a safe way. Don’t hit or knock the display.
- Keep away from bad environments when used, such as downpours, large snowflakes, and solarization.
- Try not to use it in under-voltage conditions.
- The screen will get dark along with the temperature reduction when the temperature is below -10°C. The screen will return to normal when the temperature rises again.
Controller Use & Maintenance

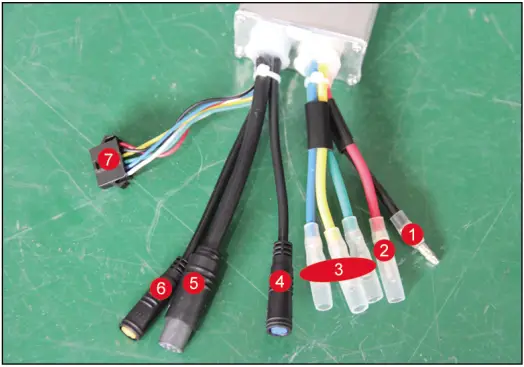

- Battery negative connection line
- Battery-positive connection line
- Phase line – ERROR 23
- Tail light wire
- Integrated the main line
- Power sensor line
- Motor Hall plug wire
- Please be careful not to get water into t h e controller box
- When the bike does not work:
1)Check the connection of controller cables;
2) Try to restart or Replace the controller ;
3)Contact us by email

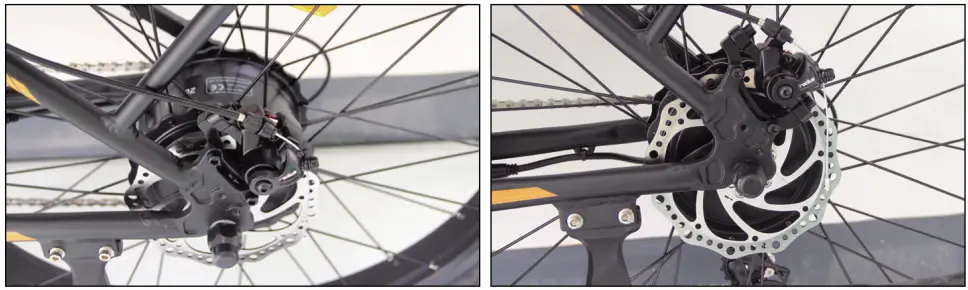

Motor Maintenance
- Please check the integrity of the motor blocking piece regularly.
- Please check the integrity of the cable before and after riding.
- Please check t h e integrity of m o t o r s h e l l before and after riding.
- Please do not use the motor in extreme environments, and do not let the motor work in water.
- When you find the motor power is insufficient, please get out of the bike and not force it.
FAQ
– Yes, there is a full-screen LCD display. There is also an additional LED battery gauge on the side of the battery pack. 2x the info!
– Yes, there is an on/off button on the battery pack. The brake levers also come standard with a safety power stop switch built in.
– I do help minimize the chance of it being stolen.
– AOSTIRMOTOR Bike has some great anti-theft features, including a locking battery rack with keys to keep the bike safe, and the rear wheel which is bolted down reduces the chances to be stolen.
– Most standard U-locks and cable locks work fine on our AOSTIRMOTOR E-bike.
– The components are all waterproof and work very well in wet conditions, But we do not suggest using our bikes on a rainy day.
– We suggest that you should keep your bike parked indoors and keep him in a dry situation.
