Magic Play Lollipops Vending Machine Game Instructions
Safety Precautions
Attention
- DO NOT put the machine on places uneven, sloping and easily be
- Check wires and cables regularly
- Protect wires from damage by
- DO Not put the machine under the direct sunlight, it will damage the inside
Warning
- Always plug into a grounded
- The power must be turned off before any
- DO NOT let the machine fall down or be
- DO NOT put pour any liquid to the machine or put it them leaking or any web
- DO NOT put the machine near
Danger
- DO NOT touch the power cord with wet
- DO NOT let the power cord be scraped, cut or over
- DO NOT put heavy objects on the
- DO NOT use any damaged power
- DO NOT let Non-professionals check or repair the
- DO NOT perform repairs or maintenance on this machine with the power
I. Technical parameters and parts
- Technical parameters
Dimension: W730*D745*H1520 (mm)
Weight: 70KG
Power: 60W
2. Parts
| No. | Name | Quantity |
| 1 | Key | 1 |
| 2 | Power Cord | 1 |
| 3 | Manual | 1 |
| 4 | Belt | 1 |
Before product use, please confirm the product content first, if anything is missing, please contact us right away.
II. How to Play
- Insert
- Press button, lights
- Press button, lights stop running, the lighted number is the winning prize
- The machine release prize, get prize from the
III. Appearance

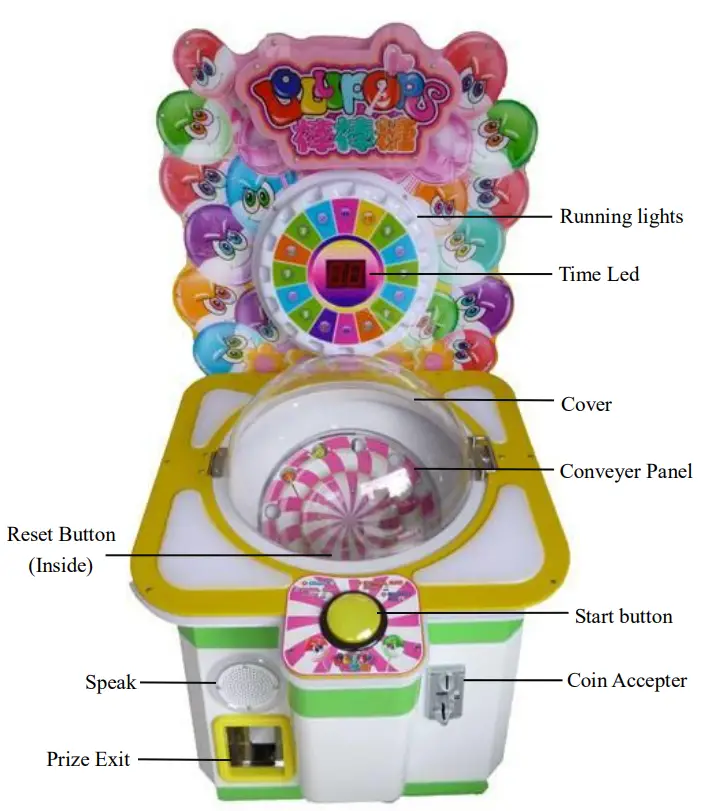

Frond View
Remark: If lollipops can not be release for run out, blocked or other reason. Please press Start Button and lease lollipops again.

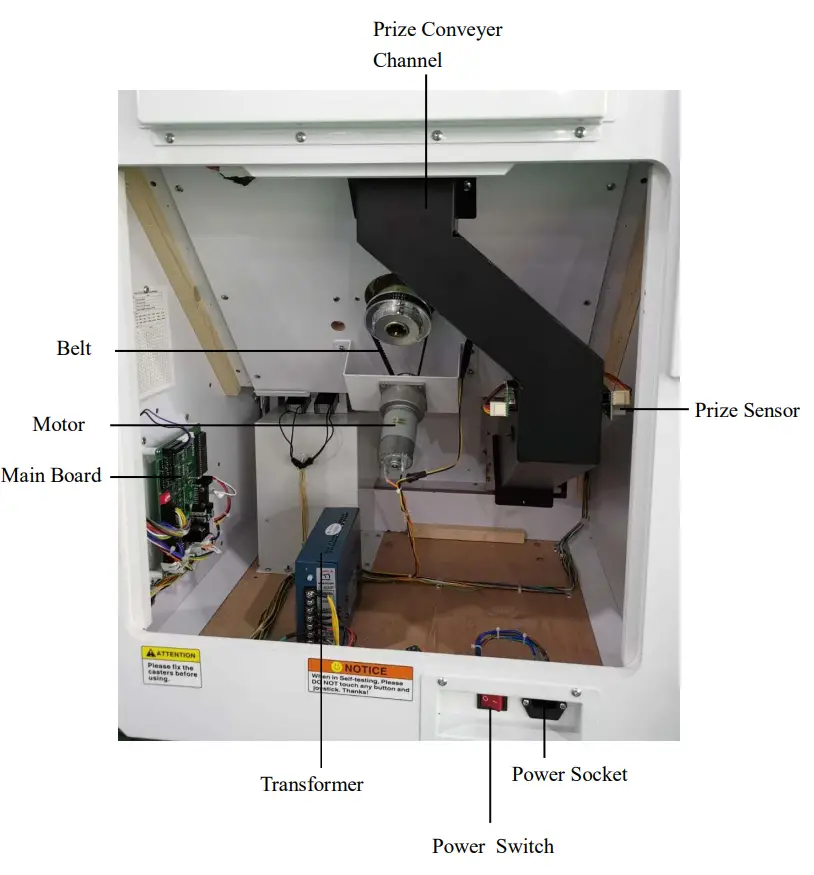

Back View

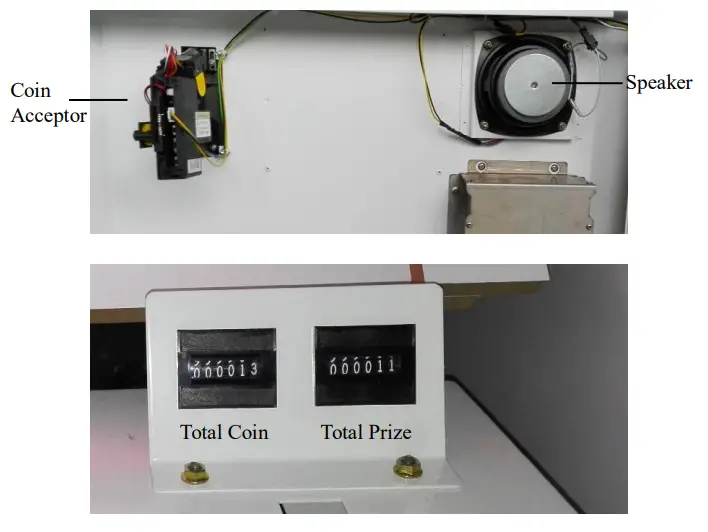

Front Door inside View
IV. Auto Test
1. Start up auto test:
- Start button
- Coin acceptor
- Motor
- Prize sensor
Please don’t touch start button or other parts when auto testing.
2. Error Code
| Error code | Error |
| E1 | Start button damage |
| E2 | Prize sensor damage |
| E3 | Motor or prize sensor damage |

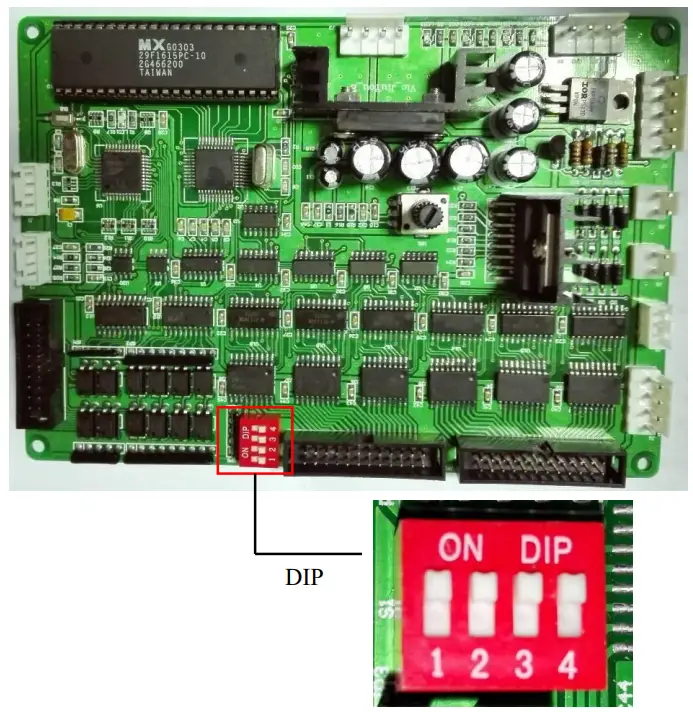

V. Set up
1. Coins per play
| Coin | DIP Switch | |
| 1 | 2 | |
| 1 | ON | ON |
| 2 | OFF | ON |
| 3 | ON | OFF |
| 4 | OFF | OFF |
2. game volume
Setting method
- Machine power
- Set Switch DIP – 3:
- Press start button to choose volume.
- Choose degree and set Switch DIP – 3: Finish setup.
3. Degree of difficulty
Setting method
- Machine power
- Set Switch DIP – 4:
- Press start button to choose
- Choose degree and set Switch DIP – 4: Finish setup.
| DIP- 4 | |
| ON | Standby |
| OFF | Difficulty: 0-18 |
Difficulty list as following:
Degree of difficulty and prize rate list
| Degree of difficulty | prize rate | Total prize per 100 play | 1 occurrence number | 2 occurrence number | 3 occurrence number | 5occurrence number | 10 occurrence number |
| 0 | Random | ||||||
| 1 | 1.8 | 180 | 67 | 17 | 8 | 5 | 3 |
| 2 | 1.7 | 170 | 69 | 16 | 8 | 5 | 2 |
| 3 | 1.6 | 160 | 78 | 11 | 5 | 3 | 3 |
| 4 | 1.5 | 150 | 79 | 12 | 4 | 3 | 2 |
| 5 | 1.4 | 140 | 84 | 10 | 2 | 2 | 2 |
| 6 | 1.3 | 130 | 87 | 7 | 3 | 2 | 1 |
| 7 | 1.2 | 120 | 86 | 10 | 3 | 1 | 0 |
| 8 | 1.1 | 110 | 90 | 10 | 0 | 0 | 0 |
| 9 | 1 | 100 | 100 | 0 | 0 | 0 | 0 |
VI. Maintenance
Keep the machine clean by using mild types of cleaners
Use NON-FLAMMABLE solvents for cleaning. DO NOT use gasoline kerosene or thinners.
VII. Warranty Terms
- 1 year limited warranty from date of delivery, other than abuse, natural calamities or improper
- This warranty does not cover the following:
- Damage due to improper installation and/or use.
- Game abuse or misuse
- Stuck or jammed coin mechanisms (caused by improper coin usage).
- Damage from repairs or modifications without our authorization.
- Damage incurred during shipping/transit from our
- Damage caused by weather, water, lightening or electrical
- Damage due to extreme heat over 90°F or temperatures below 65°F.
