Instruction of
Lollipops Vending Machine
Please read the instruction first before the machine is used.
Safety Precautions
Attention
- DO NOT put the machine on places uneven, sloping, and easily be shaken.
- Check wires and cables regularly
- Protect wires from damage by rats.
- DO Not put the machine under direct sunlight, it will damage the inside parts.
Warning - Always plug into a grounded circuit.
- The power must be turned off before any movement.
- DO NOT let the machine fall down or be hit.
- DO NOT put pour any liquid into the machine or put it them leaking or any web location.
- DO NOT put the machine near the fire.
Danger - DO NOT touch the power cord with a wet hand.
- DO NOT let the power cord be scraped, cut, or over bent.
- DO NOT put heavy objects on the cord.
- DO NOT use any damaged power cord.
- DO NOT let Non-professionals check or repair the machine.
- DO NOT perform repairs or maintenance on this machine with the power on.
Technical parameters and parts
1. Technical parameters
Dimension: W730*D745*H1520 (mm)
Weight: 70KG
Power: 60W
2. Parts
| No. | Name | Quantity |
| 1 | Key | 1 |
| 2 | Power Cord | 1 |
| 3 | Manual | 1 |
| 4 | Belt | 1 |
Before product use, please confirm the product content first, if anything is missing, please contact us right away.
How to Play
- Insert coin.
- Press button, lights running.
- Press the button, lights stop running, the lighted number is the winning prize number.
- The machine release prize, get a prize from the exit.
Appearance

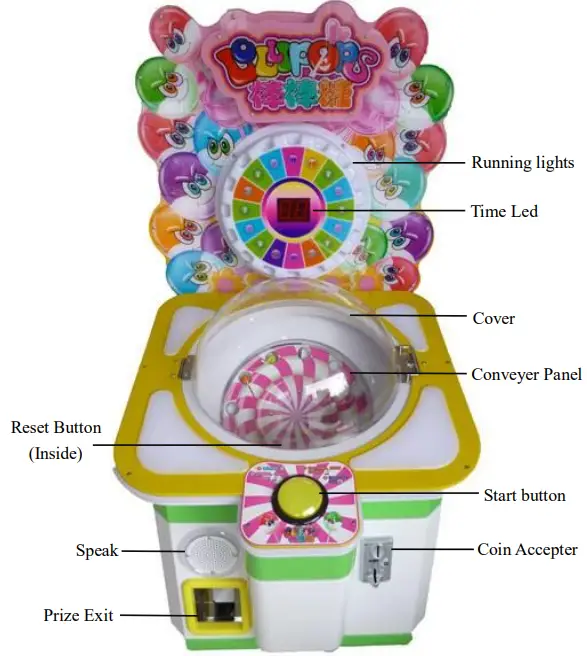

Frond View
Remark: If lollipops can not be released for run out, blocked, or other reasons. Please press Reset Button and lease lollipops again.

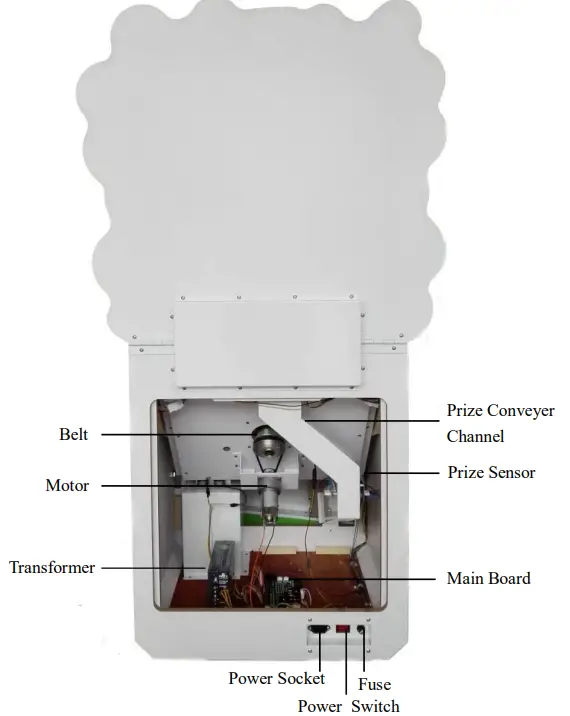

Back View

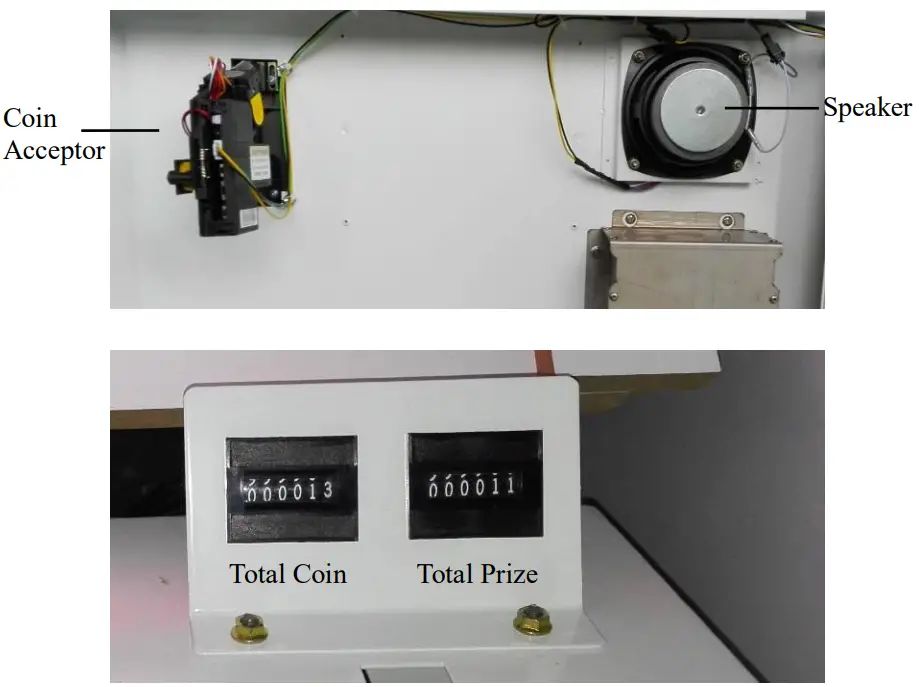

Front Door inside View
Auto Test
Front Door inside View
Auto Test1. Startup autotest:
a) Start button
b) Coin acceptor
c) Motor
d) Prize sensor
Please don’t touch start button or other parts when auto testing.
2. Error Code
| Error code | Error |
| E1 | Start button damage |
| E2 | Prize sensor damage |
| E3 | Motor or prize sensor damage |

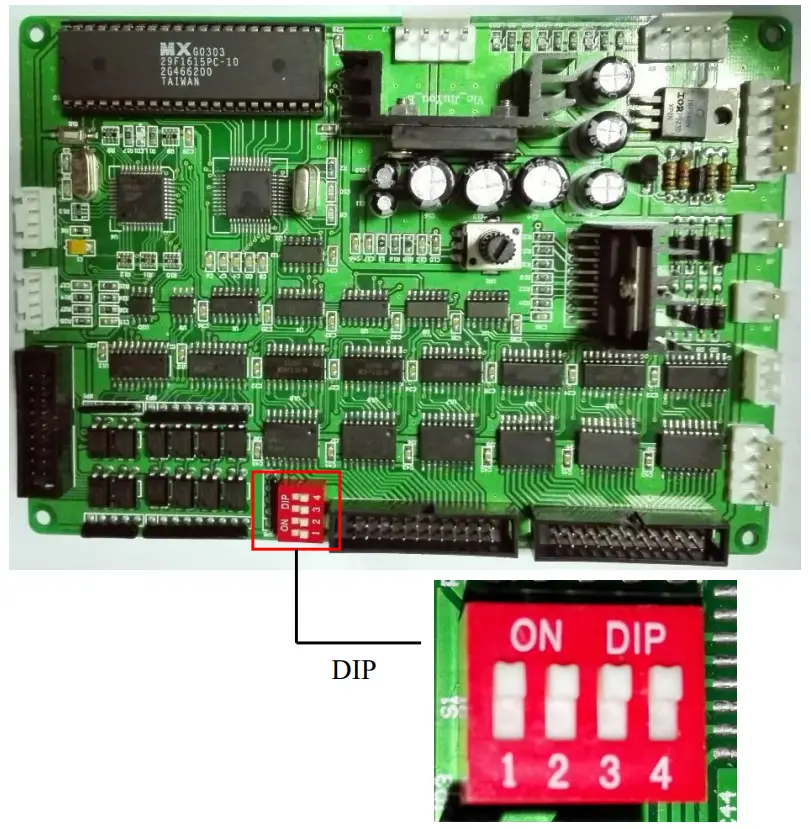

Set up
Coins per play
| Coin | DIP Switch | ||
| 1 | 2 | 3 | |
| 0 | ON | ON | ON |
| 1 | OFF | ON | ON |
| 2 | ON | OFF | ON |
| 3 | OFF | OFF | ON |
| 4 | ON | ON | OFF |
| 5 | OFF | ON | OFF |
| 6 | ON | OFF | OFF |
| 7 | OFF | OFF | OFF |
Degree of difficulty
Setting method
- Machine power on.
- Set Switch DIP – 4: OFF.
- Press the start button to choose the difficulty.
- Choose degree and set Switch DIP – 4: ON. Finish setup.
| DIP- 4 | |
| OFF | Standby |
| ON | Difficulty: 0-18 |
Difficulty list as follows:
Degree of difficulty and prize rate list
| Degree of difficulty | prize rate | Total prize per 100 play | 0 occurrence number | 1 occurrence number | 2 occurrence number | 3 occurrence number | 5 occurrence number |
| 0 | Random | ||||||
| 1 | 1.8 | 180 | 0 | 55 | 24 | 14 | 7 |
| 2 | 1.7 | 170 | 0 | 60 | 22 | 12 | 6 |
| 3 | L6 | 160 | 0 | 65 | 20 | 10 | 5 |
| 4 | L5 | 150 | 0 | 70 | 18 | 8 | 4 |
| 5 | L4 | 140 | 0 | 75 | 16 | 6 | 3 |
| 6 | 1.3 | 130 | 0 | 80 | 14 | 4 | 2 |
| 7 | L2 | 120 | 0 | 86 | 10 | 3 | 1 |
| 8 | 1.1 | 110 | 0 | 90 | 10 | 0 | 0 |
| 9 | 1 | 100 | 0 | 100 | 0 | 0 | 0 |
| 10 | 0.9 | 90 | 10 | 90 | 0 | 0 | 0 |
| 11 | 0.8 | 80 | 20 | 80 | 0 | 0 | 0 |
| 12 | 0.7 | 70 | 30 | 70 | 0 | 0 | 0 |
| 13 | 0.6 | 60 | 40 | 60 | 0 | 0 | 0 |
| 14 | 0.5 | 50 | 50 | 50 | 0 | 0 | 0 |
| 15 | 0.4 | 40 | 60 | 40 | 0 | 0 | 0 |
| 16 | 0.3 | 30 | 70 | 30 | 0 | 0 | 0 |
| 17 | 0.2 | 20 | 80 | 20 | 0 | 0 | 0 |
| 18 | 0.1 | 10 | 90 | 10 | 0 | 0 | 0 |
Maintenance
Keep the machine clean by using mild types of cleaners Use NON-FLAMMABLE solvents for cleaning. DO NOT use gasoline kerosene or thinners.
Warranty Terms
- 1 year limited warranty from date of delivery, other than abuse, natural calamities or improper servicing.
- This warranty does not cover the following:
- Damage due to improper installation and/or use.
- Game abuse or misuse
- Stuck or jammed coin mechanisms (caused by improper coin usage).
- Damage from repairs or modifications without our authorization.
- Damage incurred during shipping/transit from our warehouse.
- Damage caused by weather, water, lightning, or electrical damage.
- Damage due to extreme heat over 90°F or temperatures below 65°F.
