AEPREK Dual Color Solar Deck Lights User Manual
BEFORE USE
- Please read this [User Manual] carefully before using the product for proper use, and keep it for future use. If you have any questions or suggestions about our products, please contact: support@agptek.com.
- This product is designed to illuminate and decorate your stairs, roads, decks, gardens, fences, lanes or any outdoor location..
- Important Note: the lighting performance of this product is affected by the weather, such as cloudy, rainy, snowy and other severe weather. AT A GLANCE —Solar Panel Switch .:5 —Screw Hole

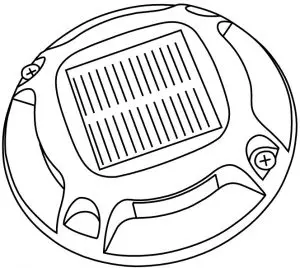

AT A GLANCE
12 * Solar Deck Light
12 * Screw
2 * Anchor 1
Note: Please check the package for defective and missing parts upon receipt, if you find any missing or defective, please contact us for help.
SPECIFICATIONS
| Solar Panel | Monocrystalline silicon; 2V/150mA |
| Battery | NiMH; 1.2V/600mAh |
| Battery Type | Irreplaceable battery |
| LED | 8 Pcs |
| Light Color | Dual color |
| Luminous Flux | 401M |
| Waterproof | IP68 |
| Material | Aluminum Alloy+ABS+ PC |
| Working Temp | -20 C -4-70 C (-47—+158°F) |
| Charging Time | 4-5 hrs |
| Working Time | 20 hrs |
| Visible Distance | >500m |
| Bearing Capacity | <- tons |
HOW IT WORKS

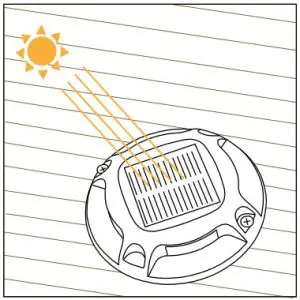

- The product uses solar panel to collect and store the solar energy. Then convert the energy into electricity to store on the battery

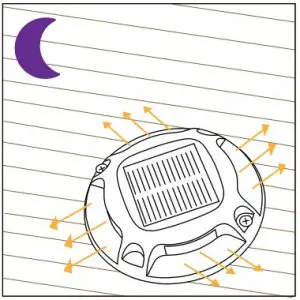

- Then, the battery gets powered up & automati-, cally lighten at night.
LIGHTING MODES
2 Kinds of light sources can be selected, so you can select your favorite light’s color by moving the switch. Warm White (2800K-3200K) White (12000K-15000K).
ATTENTION FOR INSTALLATION SITE
- Don’t install it in the shade of trees and other places where sunlight cannot reach.
- Don’t install it in monitoring area, because the infrared rays will affect the work of solar light..
- Don’t install in a place with short lighting time. Please install in where the light can receive direct sunshine each day for at least 5 hours.
- Don’t install it in a place with bright light. Because the light will automatically turn off like at daytime, not light up.
INSTALLATION

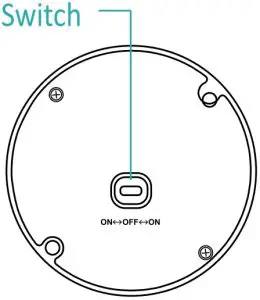

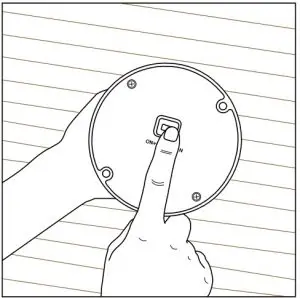

- Turn on the light by moving the switch to ON position.

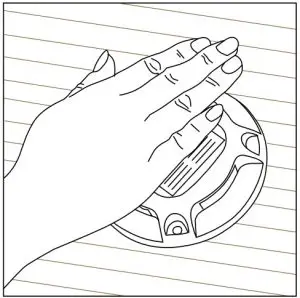

- Cover the panel by hand to check whether the light will light up or not.

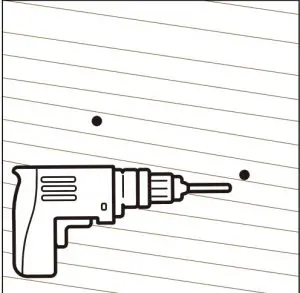

- Drill two 9mm(4)) holes on your desired position

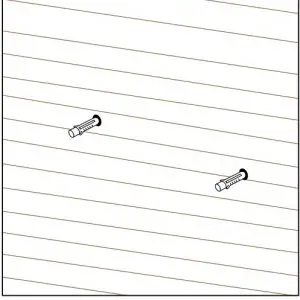

- Respectively insert 2 anchors into the 2 holes.

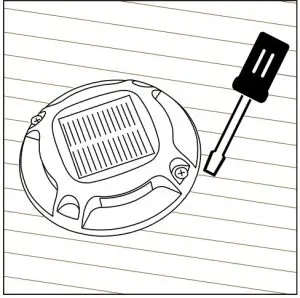

- Install 2 screws to 6. the light’s hole and . insert them into the anchor to fix the light well. Then, tighten the screws.

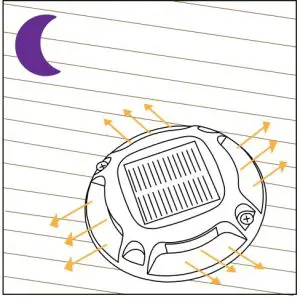

- Finish the installation.
IMPORTANT NOTE
- Please keep the switch on when charging, or it can not get powered up.
- For first use, please place it on somewhere with direct and sufficient sunlight to charge it for 4-5 hours.
- If the product is not used for a long time, place it on somewhere with direct and sufficient sunlight to charge it for a day. In order to maintain the battery, it is best to place it in a sunny place every month.
- The charging time and charging efficiency of solar panels will be affected by weather and installation position.
- Avoid long-term use it in high temperature, high humidity and corrosive environment, or it will affect the service life of the product.
- The light is resistant to rainy and humid environment, but can not be immersed in water.
MAINTENANCE
- Please keep the solar panels clean, regularly wipe off the dust or other debris on the surface with a damp cloth. Excessive dust or debris will reduce the charging efficiency of the solar panel.
- The solar panels should be cleaned up in time in heavy snow, to avoid freezing on the surface of the panel.
- Frequently moving switch will greatly reduce its service life, so it is necessary to minimize the use of switch.
FAQ
| Questions | Causes | Solutions |
| Cannot work after charging? | Its switch is Off. | Move the switch to ON position to turn on. |
| The light is too close to other light sources | Cover the panel with your hand for testing, if it lights up, please move and install the light to other place. If not, please contact us for help. | |
| The panel isn’t activated due to long-time of non-use. | Charge the light for 2 to 3 days to activate the panel. | |
| Battery failure. | Please contact us for help. | |
| Cannot turn on the light automate- cally at night? | Confirm whether the installing position has sufficient light during daytime. | Install it in a place with direct sunlight and ensure the place without any shade from 9.00 to 15:00. |
| Check whether the installing position is exposed to bright light or infrared rays. | Please stay away from bright light or infrared monitoring areas | |
| Short working time or very dim light? | Because it is installed in shady place or charging on a cloudy day, there is not enough sunlight. | Please install it in a place with direct and sufficient sunlight. |
| Covered by dust or debris, the charging efficiency of | Regularly clean the panel to ensure it is exposed to sunlight. If the light cannot get | |
| the panel is affected. | enough sunshine due to rainy day, once the weather is sunny, it will automatically return to its best working condition. | |
| Stop working after a short time (a few we- eks/mon- ths). | There is not enough sunlight for a long time. | Move the light to an open area where the panel is exposed to direct sunlight and can receive the full sunlight without block. |
| Water gets in the light after a heavy rain or snow, or the working environment is too bad. | Please contact us for help. Battery failure. Please contact us for help.
|
