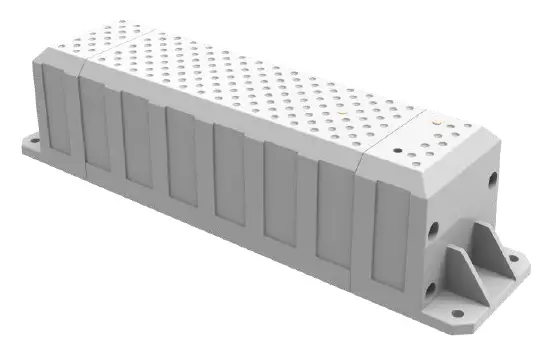

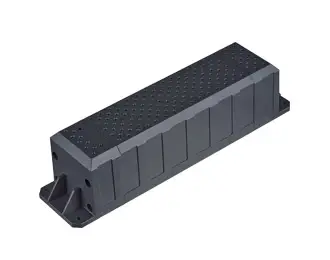

Suntech ST4910 4G Asset Tracking Device
Product Description
Asset Tracker with longer battery lifetime
The ST4910 is a multi-purpose tracking device useful for varied applications such as trailer or container management, vehicle/motorcycle tracking or any kind of valuable asset tracking. The ST4910 supports 4G networks and has a water-resistant (IP67/IP65 compliant) rugged, hard case. Designed to minimize power consumption efficiently, the device incorporates a large battery suitable for longer-term usage.
Key Features
- Network: LTE Cat. M1/NB-IoT
- Extremely Low Power Consumption
- Low Battery Alert
- Built-in 3-axis accelerometer, Temperature, humidity, Light and motion detector and Barometric pressure sensors(Optional)
- Maintenance Server Supported (Optional)
- Firmware upgradeable remotely (OTA)
- Waterproof compliant: IP67 (with humidity sensor), IP65 (without humidity sensor)
GENERAL SPECIFICATION
| Network Frequency | LTE Cat M1/ NB-IoT 4G : B2, B4, B5, B12, B13 |
| Power | Power Class 3 (23 dBm) for LTE category M1 |
| Battery | Battery: 3.6V, 57Ah Primary Battery |
| Motion Detection | Built-in 3-axis Acceleration sensor |
| Power Consumption | Active mode : 40~60mA Sleep mode : less than 3.5mA Deep sleep mode : less than 15uA |
| Dust and water Resistant | IP67 (with humidity sensor), IP65 (without humidity sensor) |
| Temperature Range | -10°C ~ +60°C |
| AT Command | GSM 07.07 , 07.05 |
| LED Indicator | 4G, POWER |
| Packet Switched data rate | LTE Category M1 Up to 375 kb/s UL Up to 375 kb/s DL |
| PC Sync Track | USB cable |
| Dimension | 125(W) × 90(L) ×50(T) mm |
| Weight | 197g |
| Approval | FCC, IC, PTCRB |
GPS RECEIVER SPECIFICATION
| Receiver Type | GPS & Glonass GPS L1 band(1575.42MHz), Glonass L1 band (1601.71MHz) SBAS : WAAS, EGNOS, MASA, |
| Update Rate | 1Hz |
| Accuracy1) | Position 2.5m CEP SBAS 2.0m CEP |
| Acquisition 2) | Cold starts <35s Aided start <1s Hot start <1s |
| Sensitivity 3) | Tracking -167dBm Reacquisition -161dBm Acquisition -149dBm |
| Antenna type | Patch Antenna |
- All SV @ –130 dBm
- It depends on aiding data connection speed and latency
- The 3 figures were measured with a good active antenna.
AVAILABLE OPERATION / FEATURES
| Configuration | either by SMS or PC |
| Parameter Change | either by SMS or GPRS |
| Command /Control | either by SMS or GPRS |
| Reporting | either by GPRS or SMS (as a back up) |
| Transmission Protocol | TCP/UDP |
| GPRS Connection | either always connected or upon needed |
| Basic Data reported | NMEA location, Speed, Course, GPS signal status, Message No, Accumulated moving distance |
| Data Storage | up to 2,000 locations, in case of transmission failure or cost issue |
| Reports | Possible to make a cyclic location report at an adjustable intervalonly when command comes |
| Report Back up | possible (dual IP reporting or Backup SMS reporting) |
| Power down | Deep sleep on no network (less than 15uA): |
| Firmware Upgrade | by OTA (Over The Air ) or pc tool. |
INSTALLATION, CONFIGURATION AND PROTOCOL
Most important point is to install the unit horizontally in order to have the top cover to see the sky For the details of product handlings/installations, please refer to the attached pictures.
Note 1: Do not take out SIM card when the power line is connected. Before taking out SIM card, disconnect power line first.
Note 2: Configuration or Parameter setting should be done before installation.
Configuration: Refer to separate document and software tool for configuration.
Protocol: Refer to separate document for the standard protocol
Caution:
FCC Part 15.19
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference,
- and this device must accept any interference received, including interference that may cause undesired operation.
FCC Part 15.21
Any changes or modifications (including the antennas) to this device that is not expressly approved by the manufacturer may void the user’s authority to operate the equipment.
FCC and IC RF Radiation Exposure Statement: This equipment complies with FCC RF Radiation exposure limits set forth for an uncontrolled environment. This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter. This equipment should be installed and operated with a minimum distance of 20 cm between the radiator and your body.
This device contains license-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s license-exempt RSS(s). Operation is subject to the following two conditions:
- This device may not cause interference.
- This device must accept any interference, including interference that may cause undesired operation of the device.
