Canyon Wireless Gamepad Cnd-gpw6 User Guide

Dear Customer!

Congratulations on purchasing the premium quality CANYON product!

We are happy to present you with our gaming accessories, which are a combination of new technology and fresh design.

Our own design bureau implements the latest trends in fashion and design, while our scrupulous quality control system ensures a long life of CANYON products.

To take full advantage of this product, we recommend you to read this manual completely.

Have a good time with our product!

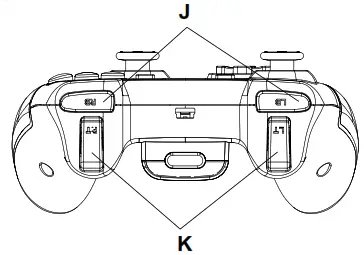

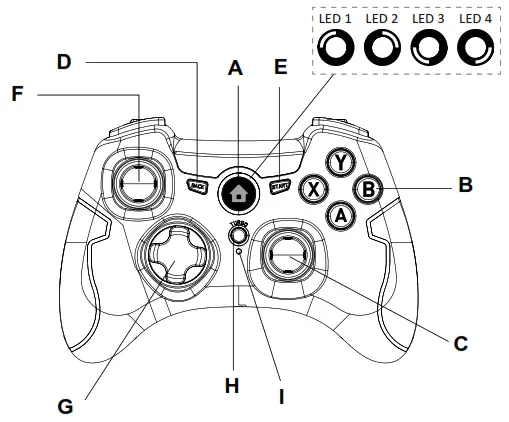

Device overview

GP-W6 v 1.1

Driver http://canyon.eu/drivers-and-manuals/

Note: Linear pressure LT/RT buttons, according to the difference in button pressure, produce different key effects such as speed and weight

Technical specifications

PS3 connection/pair Settings

1. Insert the receiver into the PS3 console USB port.
2. The controller LED should turn off.
3. Quickly press the HOME button twice, 4 channel LED lights should flash.
4. When the channel LED stays on, the connection is successful.

Channel LED:
when the battery voltage is lower than 2 V, connected channel LED(s) flashing warning lower power, and close the vibration function.

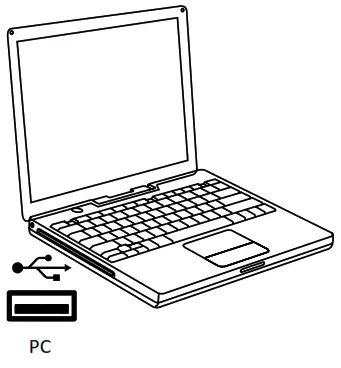

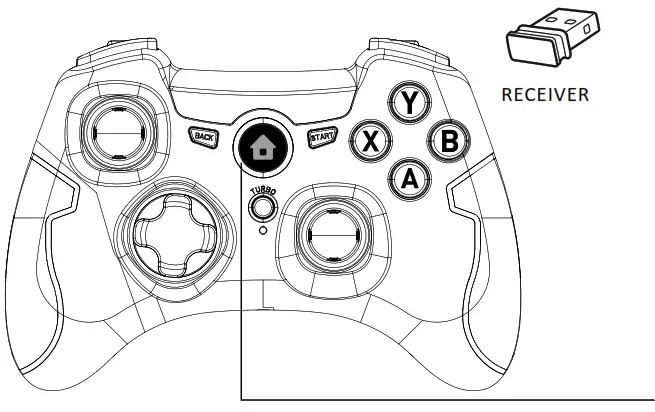

PC connection/pair Settings

1. Insert Receiver into a PC USB port.
2. The controller LED should turn off.
3. Quickly press the HOME button twice, 4 channel LED lights should flash.
4. When channel LED1+LED2 stays on, the connection is successful.

Note: DINPUT needs to install a driver to have a vibration function.Channel LED:
when the battery voltage is lower than 2 V, connected channel LED1+LED2 flashing warning lower power, and close the vibration function.

Modes and indicators:

1. The default mode is Xinput, LED1+LED2 will light.
2. Hold the “HOME” button for 6
   seconds, when changing to D-input mode successfully, LED1 + LED3 will light.
3. You can press the “Home” button once to change to the digital mode when it is in Dinput mode, LED1+LED4 will light. In this mode, the direction key and left joystick swaps function position.

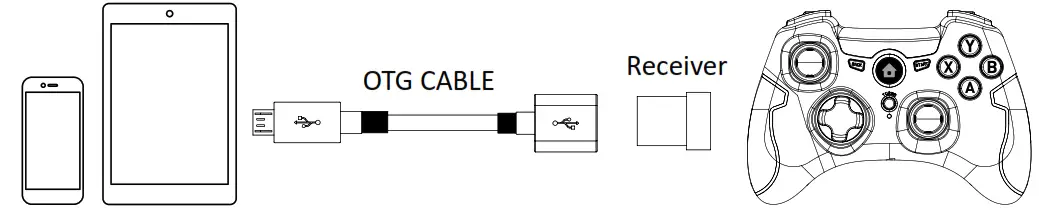

Mobile phone / tablet connection Settings

1. Insert the receiver into the OTG cable.
2. Connect the OTG cable to the phone/tablet.
3. The controller LED should turn off.
4. Quickly press the HOME button twice, 4 channel LED lights should flash.
5. When channel LED3+LED4 stays on, the connection is successful.

Note:

1. The mobile phone or tablet must support the OTG function and be able to use an OTG
   cable connection.
2. The current Android version does not support the controller vibration function.
3. If not in Android mode, you can press the HOME button for 6 seconds to switch mode.

Note: The factory default is xinput mode. Controller with memory function can save settings from last time of use.

Troubleshooting

The gamepad does not work
» Check USB connection;
» Try to plug gamepad into a different USB port;
» Restart computer/console.
» Gamepad works well when plugging into a full-powered USB port. If you use a USB
HUB, it must have its own power supply.
The gamepad detects a disconnection when playing a game
» Check your console system is the latest version or not, if you updated your system, please download our updating software.

Warranty

» This product comes with 24-months limited warranty.
» For more information about usage and warranty, please refer to www.canyon.eu/support
Manufacturer: Asbisc Enterprises PLC, Cyprus, Limassol 4103. Diamond Court, 43
Kolonakiou Street. Agios Athanasios. http://canyon.eu/
