Brother Mfc-j4340dw 4-in-1 Colour Inkjet Printer User Guide

MFC-J4340DW MFC-J4440DW MFC-J4540DW
Quick Setup Guide
Read the Product Safety Guide first, then read this Quick Setup Guide for the correct installation procedure.

UK Version 0

Video setup instructions: support.brother.com/videos
https://support.brother.com/videos

The latest manuals are available at the Brother support website: support.brother.com/manuals
https://support.brother.com/videos

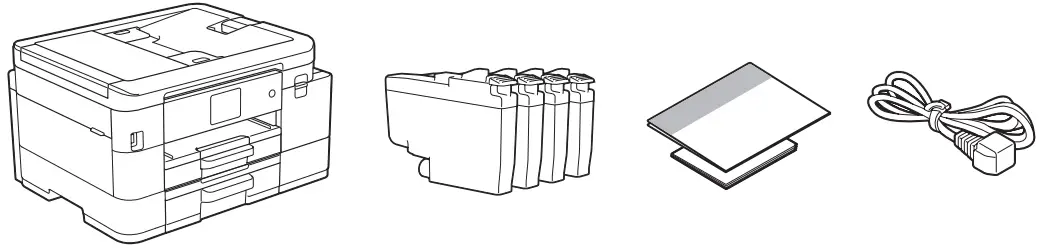

Unpack the machine and check the components

Remove the protective tape or film covering the machine and the supplies. The components included in the box may differ depending on your country.
* Most of the illustrations in this Quick Setup Guide show the MFC-J4540DW.

NOTE

• Save all packing materials and the box in case you must ship your machine.
• You must purchase the correct interface cable for the interface you want to use.
  USB cable
  Use a USB 2.0 cable (Type A/B) that is no more than 2 meters long.
  Ethernet (Network) cable (MFC-J4440DW / MFC-J4540DW only)
  Use a straight-through Category 5 (or greater) twisted-pair cable for 10BASE-T or 100BASE-TX Fast Ethernet Network.
• Brother aims to reduce waste and save the raw materials and energy required for their production. Read more about our environmental work at www.brotherearth.com.

 Load plain A4 paper in the paper tray

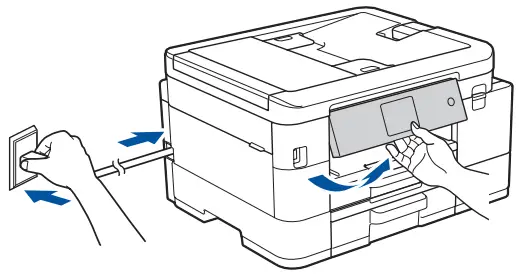

Connect the power cord

NOTE You can adjust the control panel angle to read the LCD more easily.

Select your country or language

After turning the machine on, you may need to set your country or language (depending on your machine). If required, follow the LCD instructions.

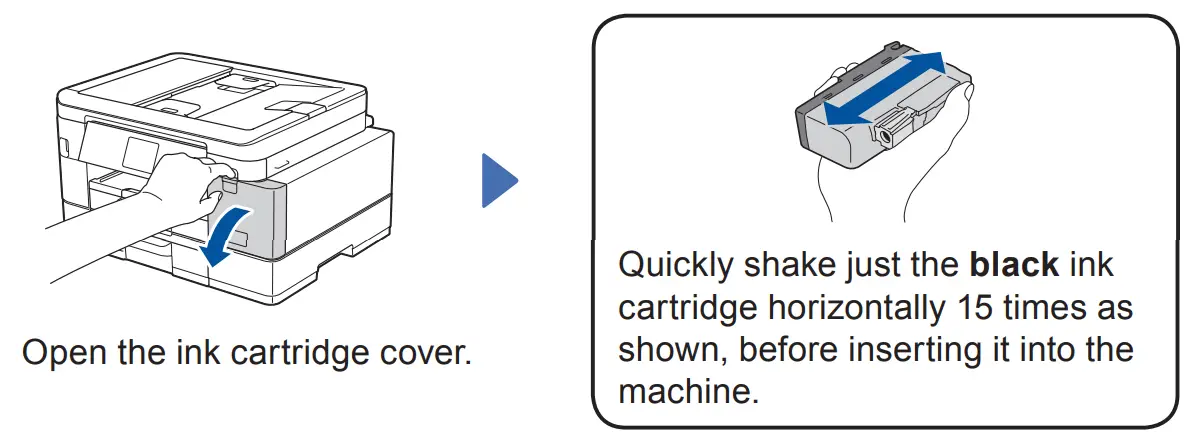

 Install the inbox ink cartridges

Follow the LCD instructions to install the ink cartridges. Close the ink cartridge cover. The machine will prepare the ink tube system for printing.

NOTE
The first time you install a set of ink cartridges the machine will use an amount of ink to fill the ink delivery tubes for high-quality printouts. This process will only happen once.

Set the date and time

Follow the LCD instructions to set the date and time.
After setting the date and time, you can set the Firmware Update defaults.

 Check the print quality

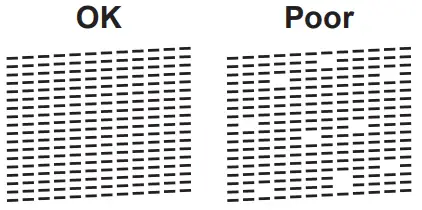

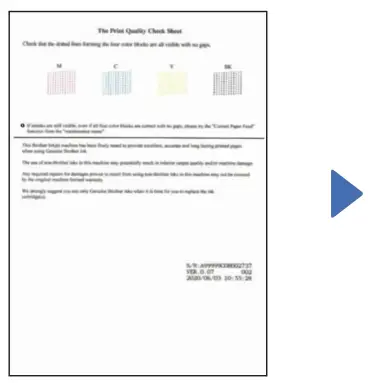

Follow the LCD instructions, and then press [OK] or. The machine prints the Print Quality Check Sheet.	Follow the LCD instructions to check the quality of the four-color blocks on the sheet, and then start the cleaning procedure.

 Adjust the print alignment (recommended)

To adjust the print alignment before using your machine, press [Start] or.

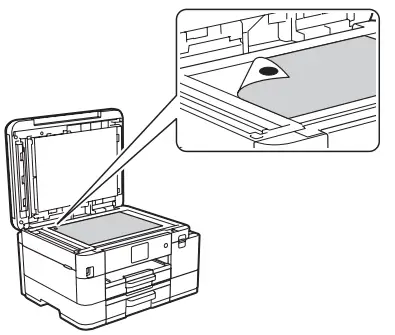

Follow the LCD instructions to print the Adjustment Sheet. The black circle mark is located in the upper left corner of the sheet.	Place the Adjustment Sheet face down on the scanner glass. Make sure the black circle mark is in the upper left corner of the scanner glass. Follow the LCD instructions and complete adjusting the alignment. When finished, remove the Adjustment Sheet from the scanner glass.

 Machine settings

Follow the LCD instructions to configure the machine settings.

• (MFC-J4540DW only) Configure the tray set.
•  Check the software installation information.

Select your language (if needed)

MFC-J4340DW

1. Press Settings.
2. Press or to select the following:
   a. Select [Initial Setup], and then press OK.
   b. Select [Local Language], and then press OK.
   c. Select your language, and then press OK.
3. Press Stop/Exit.

MFC-J4440DW / MFC-J4540DW

1.  Press[Settings] > [All Settings] >[Initial Setup] > [Local Language].
2. Press your language.
3. Press.

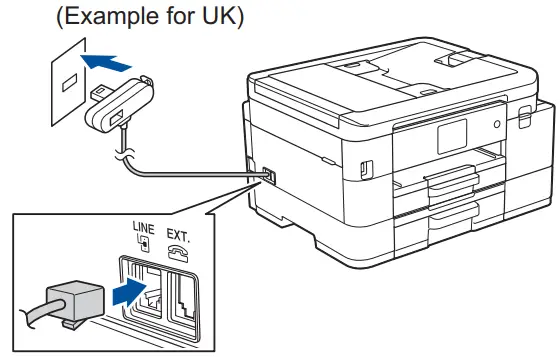

 Connect the telephone line cord

If you are not using your machine as a fax, go to 12. For more information on using the fax feature, see the Online User’s Guide.

(For Europe) We can send you a genuine Brother cord-free of charge if you need one. To contact us, visit www.brother.EU.

Connect your computer or mobile device to your machine

Follow these steps to complete the setup using one of the connection types available on your machine.

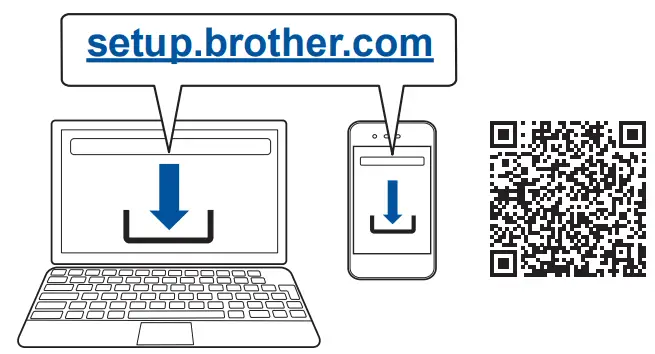

Visit setup.brother.com to download and install Brother software.

setup.brother.com

Follow the on-screen instructions and prompts.

NOTE

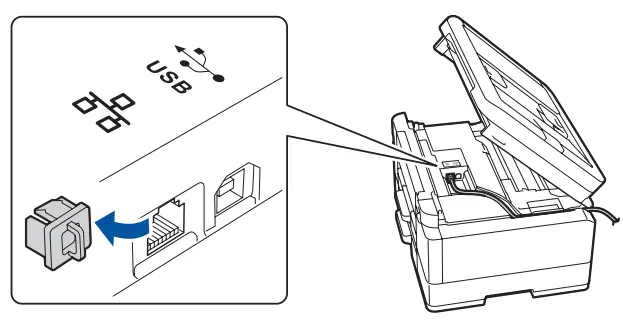

For Wired Network Connection (MFC-J4440DW / MFCJ4540DW only) and USB Connection, locate the correct port (based on the cable you are using) inside the machine as shown.

Setup Finished
You can now print and scan using your machine. To check for the latest firmware, visit support.brother.com/up7.

Important Notice for Network Security: The default password to manage this machine’s settings is located on the back of the machine and marked “Pwd”. We recommend immediately changing the default password to protect your machine from unauthorized access.

Can’t Connect? Check the following:

* MFC-J4440DW / MFC-J4540DW only

 Manual wireless setup

If the wireless setup is not successful, try to set up the connection manually.

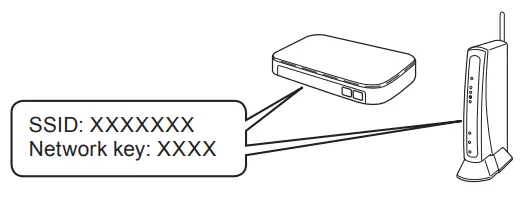

Find your SSID (Network Name) and Network Key (Password) on your wireless access point/router and write them in the table provided below.

SSID (Network Name)
Network Key (Password)
If you cannot find this information, ask your network administrator or wireless access point/router manufacturer.

MFC-J4340DW

1. Go to your machine, and press on the panel.
2. Press OK to select
   [Find Wi-Fi Network]. The [Enable WLAN?] message appears on the LCD.
3. Pressto selects Yes.

MFC-J4440DW / MFC-J4540DW

Go to your machine and press>[Find Wi-Fi Network] > [Yes].

Select the SSID (Network Name) for your access point/ router and enter the Network Key (Password). When the wireless setup is successful, the LCD displays [Connected].

If the setup is not successful, restart your Brother machine and your wireless access point/router, and repeat 13.

Go to 12 to install the software.

For detailed machine information and product specifications, see the Online User’s Guide at support.brother.com/manuals.
© 2020 Brother Industries, Ltd. All rights reserved.
