Honeywell Home CWIREADPTR4001-U C Wireless Adapter

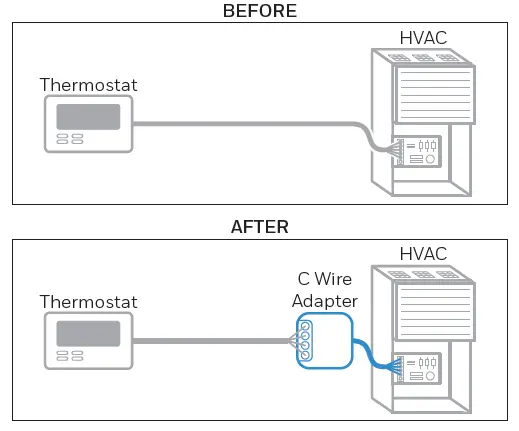

Overview
This product provides a C wire (common wire) to power a thermostat. Only install if you do not have a C wire available to connect to your thermostat.
ZONING CONTROL PANEL CHECK
For zoned systems, install the C Wire Adapter between the thermostat and the zoning panel, NOT between the zoning panel and HVAC equipment.

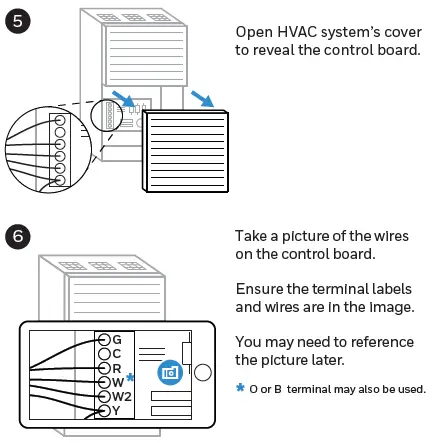

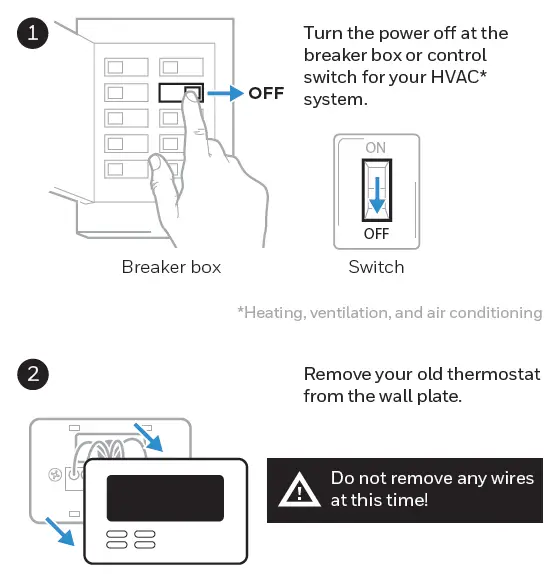

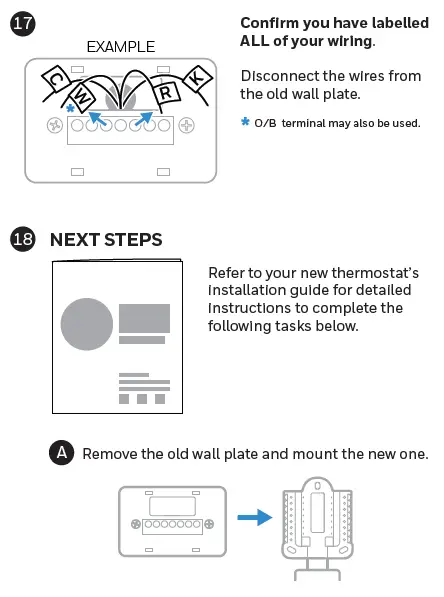

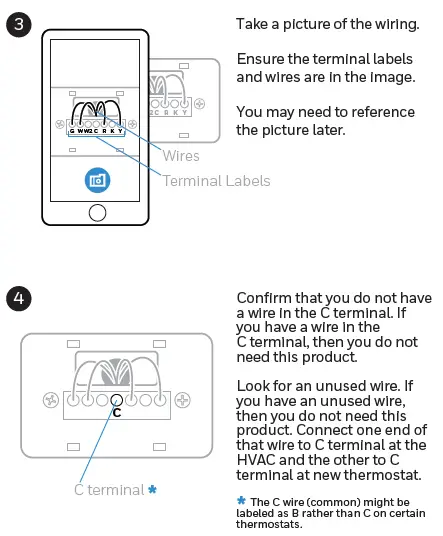

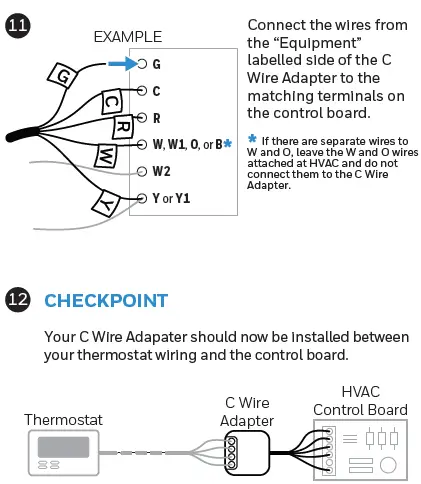

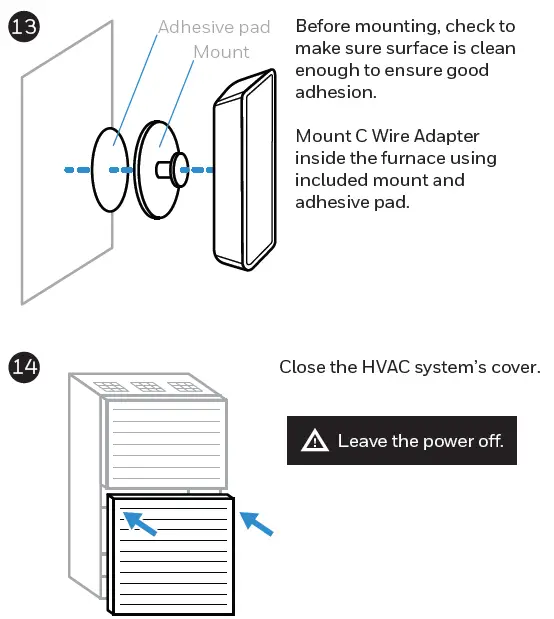

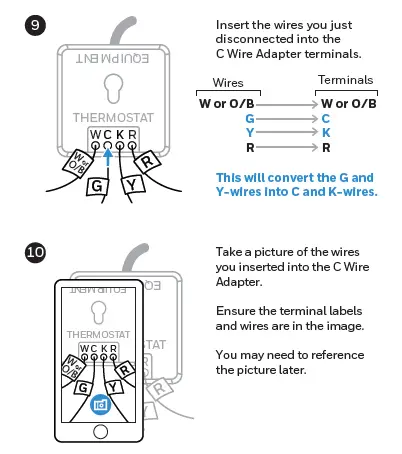

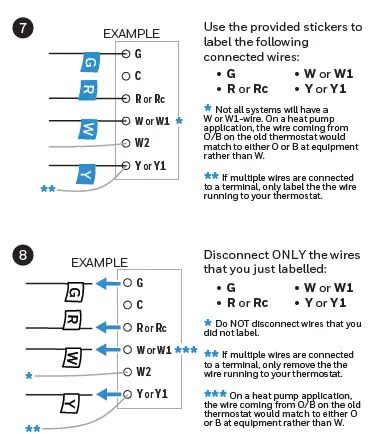

INSTALLATION:
Resideo Technologies, Inc.
1985 Douglas Drive North, Golden Valley, MN 55422
1-800-468-1502
33-00342—08 M.S. Rev. 05-20 | Printed in United States
© 2020 Resideo Technologies, Inc. All rights reserved. The Honeywell Home trademark is used under license from Honeywell International, Inc. This product is manufactured by Resideo Technologies, Inc. and its affiliates.
