M Smart MM3SB3350N3 Bluetooth Wi-Fi dual-band Communication Module
Product Overview
MM3SB3350N3 wireless module is a fully functional, highly integrated, low power consumption dedicated Wi-Fi & Bluetooth module for the Internet of things. It supports IEEE802.11a/b/g/n protocol, also embedded IPV4, TCP, UDP, DNS, HTTP and other complete network protocol, so that the terminal in the Internet of things applications more reliable, convenient and easy to use. MM3SB3350N3 core chip adopts the MT7697D single chip scheme of Media corp. The chip is highly integrated with CPU, PMU, RAM, T/R SW, LNA, PA and other major parts, thus greatly reducing the power consumption of the whole machine. The module adopts the integrated three-dimensional metal antenna design, which can not only reduce the cost of the antenna for customers, but also save the assembly space of the antenna, greatly reduce the area of the board, and make the product more competitive. At present, the module provides a complete serial port interface function to communicate with the device, and can connect the cloud and the device through the serial port and the mobile client.
The module has the following characteristics:
- Support IEEE 802.11a/b/g/n protocol
- Supports 20MHz and 40MHz bandwidth in the 2.4ghz band and 5GHz band
- Support bluetooth BLE 4.2
- The module has a built-in dual-mode metal antenna
- Low power listening mode
- Both up and down theoretically support a connection rate of 150Mbps
- Support encryption protocols: WFA, WPA, WPA2, WPS2.0
- Support IPV4, TCP, UDP, DNS, HTTP and other network protocols

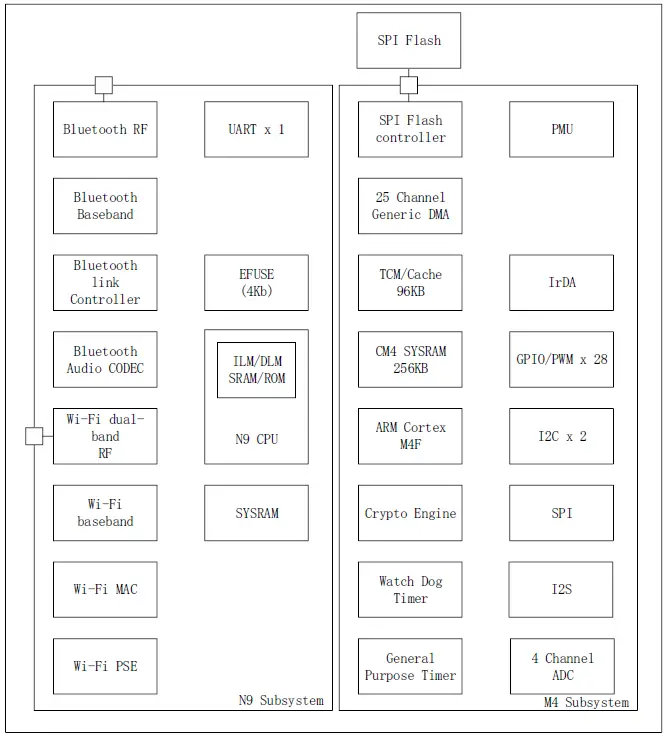

The block diagram of the module is as follows:
Note/FCC warning:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: - Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
MODIFICATION:
Any changes or modifications not expressly approved by the grantee of this device could void the user’s authority to operate the device. Because the working frequency of the device is in 5150-5250 MHZ, so this module is suitable for indoor use of the equipment. This equipment must be installed to provide a separation distance of at least 20cm from all persons.

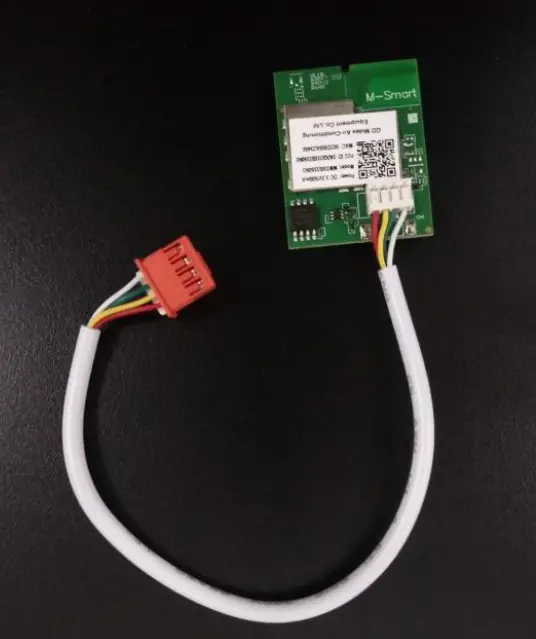

Top view
Radio frequency characteristics
transmission and reception characteristics
Support IEEE 802.11a/b/g/n standard; For parameters such as transmitting power, receiving sensitivity, EVM and distribution, a more stringent standard than the IEEE specification is sought. Please refer to the attached table for the specifications.
Wi-Fi 2.4ghz Band RF Specifications
| TX Characteristics | Min. | Typ. | Max. | The Unit | |
| 1. The Frequency range | 2400 | – | 2483.5 | MHz | |
| 2. The Output power | |||||
| 1 Mbps CCK | 16 | dBm | |||
| 11 Mbps CCK | 16 | dBm | |||
| 6 Mbps OFDM | 15 | dBm | |||
| 54 Mbps OFDM | 13 | dBm | |||
| HT20, MCS0 | 15 | dBm | |||
| HT20, MCS7 | 13 | dBm | |||
| HT40, MCS0 | 15 | dBm | |||
| HT40, MCS7 | 13 | dBm | |||
| 3. The TX EVM entry | |||||
| 6 Mbps OFDM | – 5 | The dB | |||
| 54 Mbps OFDM | – 25 | The dB | |||
| HT20, MCS 0 | – 5 | The dB | |||
| HT20, MCS 7 | 27 – | The dB | |||
| HT40, MCS 0 | – 5 | The dB | |||
| HT40, MCS 7 | 27 – | The dB | |||
| RX Characteristics | Min. | Typ. | Max. | The Unit |
| 1. The Frequency range | 2400 | – | 2483.5 | MHz | |
| 2. Minimum Input Level Sensitivity | |||||
| 1) 1 MBPS (FER) ≦ 8% CCK | – 82. | dBm | |||
| 2) 2 MBPS (FER) ≦ 8% CCK | – 80. | dBm | |||
| 3) 5.5 Mbps (FER) ≦ 8% CCK | – 78. | dBm | |||
| 4) 11 MBPS (FER) ≦ 8% CCK | – 76. | dBm | |||
| 5) BPSK rate 1/2, 6 Mbps OFDM | – 82. | dBm | |||
| 6) BPSK rate 3/4, 9 Mbps OFDM | – 81. | dBm | |||
| 7) QPSK rate 1/2, 12 Mbps OFDM | – 79. | dBm | |||
| 8) QPSK rate 3/4, 18mbps OFDM | – 77. | dBm | |||
| 9) 16QAM rate 1/2, 24mbps OFDM | – 74. | dBm | |||
| 10) 16QAM rate 3/4, 36 Mbps OFDM | – 70. | dBm | |||
| 11) 64QAM rate 1/2,48mbps OFDM | – 66. | dBm | |||
| 12) 64QAM rate 3/4, 54mbps OFDM | – 65. | dBm | |||
| 3. RX Sensitivity BW=20MHz Mixed mode 800ns Guard Interval non-stbc | |||||
| 1)MCS 0, BPSK rate 1/2 | – 82. | dBm | |||
| 2)MCS 1, QPSK rate 1/2 | – 79. | dBm | |||
| 3)MCS 2, QPSK rate 3/4 | – 77. | dBm | |||
| 4)MCS 3, 16QAM rate 1/2 | – 74. | dBm | |||
| 5)MCS 4, 16QAM rate 3/4 | – 70. | dBm | |||
| 6)MCS 5, 64QAM rate 2/3 | – 66. | dBm | |||
| 7)MCS 6, 64QAM rate 3/4 | – 65. | dBm | |||
| 8)MCS 7, 64QAM rate 5/6 | – 64. | dBm | |||
| 4. RX Sensitivity BW=40MHz Mixed mode 800ns Guard Interval | |||||
| 1)MCS 0, BPSK rate 1/2 | – 79. | dBm | |||
| 2)MCS 1, QPSK rate 1/2 | – 76. | dBm | |||
| 3)MCS 2, QPSK rate 3/4 | – 74. | dBm | |||
| 4)MCS 3, 16QAM rate 1/2 | – 71. | dBm |
| 5)MCS 4, 16QAM rate 3/4 | – 67. | dBm | |||
| 6)MCS 5, 64QAM rate 2/3 | – 63. | dBm | |||
| 7)MCS 6, 64QAM rate 3/4 | – 62. | dBm | |||
| 8)MCS 7, 64QAM rate 5/6 | – 61. | dBm | |||
| 5. Maximum Input Level (FER = 10%) | |||||
| 6 Mbps OFDM | – 20 | dBm | |||
| 54 Mbps OFDM | – 20 | dBm | |||
| The MCS 0 | – 20 | dBm | |||
| The MCS 7 | – 20 | dBm |
Wi-Fi 5GHz Band RF Specifications
| TX Characteristics | Min. | Typ. | Max. | The Unit | |
| 1. The Frequency range | 5150 | – | 5850 | MHz | |
| 2. The Output power | |||||
| 6 Mbps OFDM | 16 | dBm | |||
| 54 Mbps OFDM | 15 | dBm | |||
| HT20, MCS0 | 16 | dBm | |||
| HT20, MCS7 | 15 | dBm | |||
| HT40, MCS0 | 16 | dBm | |||
| HT40, MCS7 | 15 | dBm | |||
| 3. The TX EVM entry | |||||
| 6 Mbps OFDM | – 5 | The dB | |||
| 54 Mbps OFDM | – 25 | The dB | |||
| HT20, MCS 0 | – 5 | The dB | |||
| HT20, MCS 7 | 27 – | The dB | |||
| HT40, MCS 0 | – 5 | The dB | |||
| HT40, MCS 7 | 27 – | The dB | |||
| RX Characteristics | Min. | Typ. | Max. | The Unit |
| 1. The Frequency range | 5150 | – | 5850 | MHz | |
| 2. Minimum Input Level Sensitivity | |||||
| 1) BPSK rate 1/2, 6 Mbps OFDM | – 82. | dBm | |||
| 2) BPSK rate 3/4, 9 Mbps OFDM | – 81. | dBm | |||
| 3) QPSK rate 1/2, 12 Mbps OFDM | – 79. | dBm | |||
| 4) QPSK rate 3/4, 18mbps OFDM | – 77. | dBm | |||
| 5) 16QAM rate 1/2, 24mbps OFDM | – 74. | dBm | |||
| 6) 16QAM rate 3/4, 36 Mbps OFDM | – 70. | dBm | |||
| 7) 64QAM rate 1/2,48mbps OFDM | – 66. | dBm | |||
| 8) 64QAM rate 3/4, 54mbps OFDM | – 65. | dBm | |||
| 3. RX Sensitivity BW=20MHz Mixed mode 800ns Guard Interval non-stbc | |||||
| 1)MCS 0, BPSK rate 1/2 | – 82. | dBm | |||
| 2)MCS 1, QPSK rate 1/2 | – 79. | dBm | |||
| 3)MCS 2, QPSK rate 3/4 | – 77. | dBm | |||
| 4)MCS 3, 16QAM rate 1/2 | – 74. | dBm | |||
| 5)MCS 4, 16QAM rate 3/4 | – 70. | dBm | |||
| 6)MCS 5, 64QAM rate 2/3 | – 66. | dBm | |||
| 7)MCS 6, 64QAM rate 3/4 | – 65. | dBm | |||
| 8)MCS 7, 64QAM rate 5/6 | – 64. | dBm | |||
| 4. RX Sensitivity BW=40MHz Mixed mode 800ns Guard Interval | |||||
| 1)MCS 0, BPSK rate 1/2 | – 79. | dBm | |||
| 2)MCS 1, QPSK rate 1/2 | – 76. | dBm | |||
| 3)MCS 2, QPSK rate 3/4 | – 74. | dBm | |||
| 4)MCS 3, 16QAM rate 1/2 | – 71. | dBm | |||
| 5)MCS 4, 16QAM rate 3/4 | – 67. | dBm | |||
| 6)MCS 5, 64QAM rate 2/3 | – 63. | dBm | |||
| 7)MCS 6, 64QAM rate 3/4 | – 62. | dBm | |||
| 8)MCS 7, 64QAM rate 5/6 | – 61. | dBm |
| 5. Maximum Input Level (FER = 10%) | |||||
| 6 Mbps OFDM | – 20 | dBm | |||
| 54 Mbps OFDM | – 20 | dBm | |||
| The MCS 0 | – 20 | dBm | |||
| The MCS 7 | – 20 | dBm |
Blutooth LE RF Specifications
| TX Characteristic | Min. | Typ. | Max. | The Unit | |
| 1. The Frequency range | 2400 | – | 2483.5 | MHz | |
| 2. The Output power | 0 | 10 | dBm | ||
| 3. Carrier Frequency Offset and Drift | |||||
| 1) the Frequency Offset | – 150. | 150 | KHz | ||
| 2) Frequency Drift | – 50 | 50 | KHz | ||
| 3) Max Drift Rate | – 20 | 20 | Hz/us | ||
| 4. The Modulation Characteristic | |||||
| Delta f1avg | 225 | 275 | KHz | ||
| Delta f2max | 185 | KHz | |||
| Delta f1avg/delta f2avg | 0.8 | 0.94 | Hz/Hz | ||
| 5. The In – band Spurious Emission | |||||
| Plus or minus 2 m Offset | – 20 | dBm | |||
| > plus or minus 3 MHZ offset | – 30 | dBm |
| RX Characteristic | Min. | Typ. | Max. | The Unit | |
| 1. The Frequency range | 2400 | – | 2483.5 | MHz | |
| 2. The Receiver Sensitivity | – 95. | dBm | |||
| 3. The C/I Co – channel | 6 | 21 | The dB | ||
| 4. The C/I 1 MHZ | 7 – | 15 | The dB | ||
| 5. C/I 2 MHZ | – 30 | – 17 | The dB |
| 6. The C/I 3 MHZ or higher | – 33 | 27 – | The dB | ||
| 7. C/I Image channel | – 20 | 9 – | The dB | ||
| 8 C/I Image 1 MHZ | – 30 | – 15 | The dB | ||
| 9. Intel – modulation | – 50 | – 35 | dBm | ||
| 10. Out-of-band blocking | |||||
| 30 MHZ to 2000 MHZ | – 30 | dBm | |||
| 2001 MHZ to 2339 MHZ | – 35 | dBm | |||
| 2501 MHZ to 3000 MHZ | – 35 | dBm | |||
| 3001 MHZ to 12.75 GHz | – 30 | dBm |
characteristics of the module antenna
The passive performance of the antenna of the Wi-Fi & Bluetooth module should meet the following requirements (passive performance can only be used as a reference, and the antenna performance test is mainly based on the active throughput test) :
parameter | In 2.4g frequency band: 2400MHz~ 2483.5mhz And 5G frequency band: 5150MHz~5850MHz in the requirements |
| Return loss | < – 10 db |
| The efficiency of | > 40% |
Product structure diagram

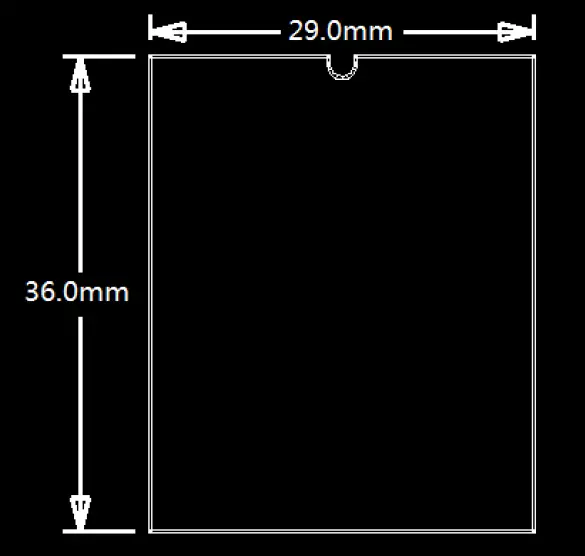

PCB size
Thickness of module plate:
1.0mm Tolerance: + / – 0.2 mm

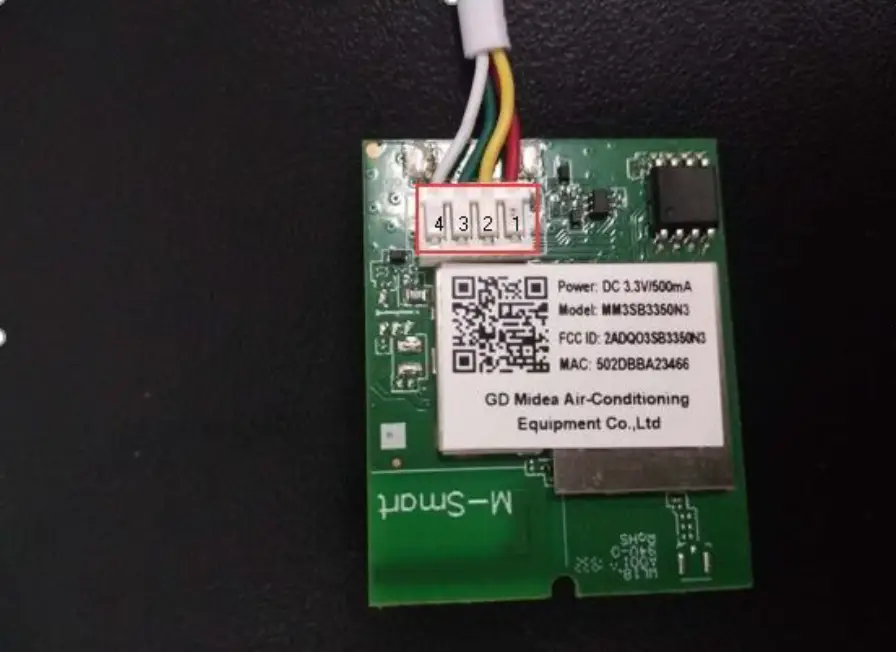

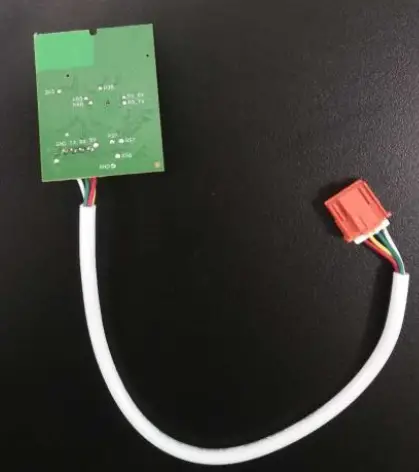

line drawings
The serial number | tag | Wi-Fi module end pin description | Home appliance end pin description |
| 1 | V | The VCC power supply | The VCC power supply |
| 2 | R | RXD module receives | TXD appliance delivery |
| 3 | T | TXD module send | Reception of RXD appliances |
| 4 | GND symbol | GND to | GND to |

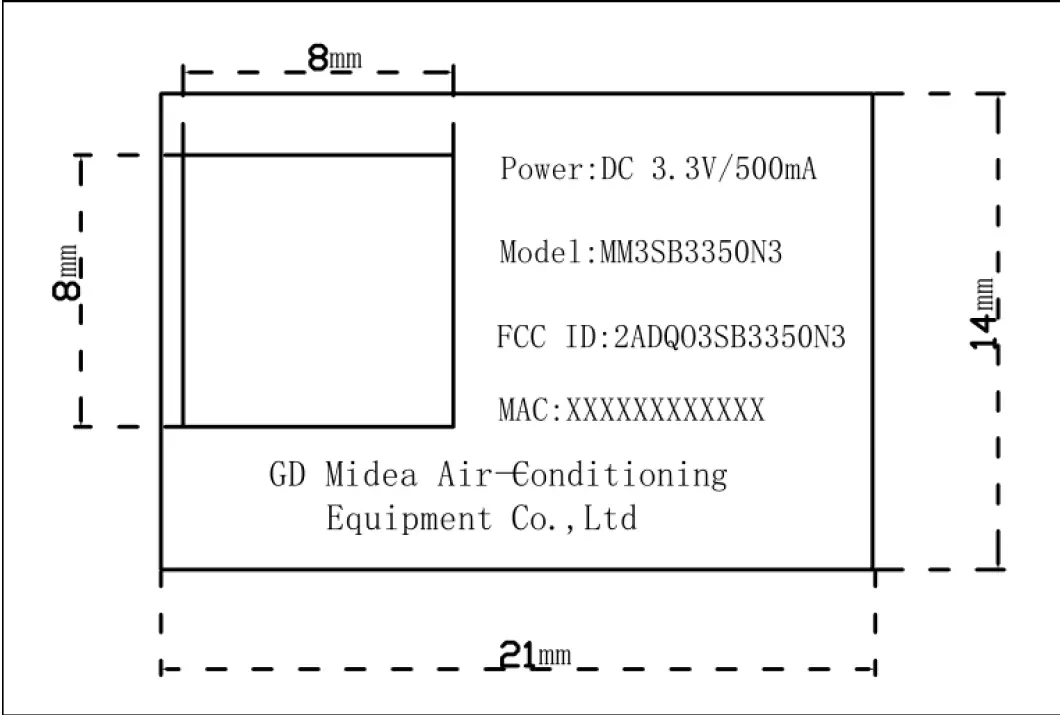

4.3 label requirements
Label printing requirements:
Label size is 21*14mm, label material is white, Song typeface; The dimension of the QR code is 8*8mm.
QR code content:
The content of the QR code is shown in the following table.
| QR | code content | |
| Field | Characters in length | note |
| The initial code | 4 | Fixed content as “MAC:” |
| The MAC address | 12 | Fixed as “XXXXXXXXXXXX” |
| Production information | 26 | If the content is less than 26 characters, fill in the front with the character “X” Factory code (2 a) + job number (8) + production date (6th) + small software version number (6) + enterprise code (4 digits) : “01 xxxxxxxx1608020001090000” |
| Software version number | 12 | Fixed as ” 050808011944″ |
| The power supply | 4 | Fixed content as “3.3v” or “5.0v” |
| current | 5 | Fixed content as “500mA” |
Note:
Starting code (4 bits) :MAC:
MAC address (12 bits) : XXXXXXXXXX
Production information (bit 26) : 01 XXXXXXXX 160919 000109 0000
Position 1 and 2: represent the manufacturing plant
Position 3-10: represents the job number of the manufacturing plant
Bit 11~16: production date, such as September 19, 2016 marked 160919 Bits 17 to 22: software minor version Numbers
No. 23-26: enterprise code, midea’s internal business department is “0000”
Non-american enterprise code according to the software code.
Software version (12 bits) : 050808011944
Power supply (4-bit) : working voltage of the module
Current (5 bits) : 500mA
Power consumption description
The State | The Average current in 2 min (mA) | Peak current (mA) in | Max current in 2 min (mA) | Min current in 2 Min (mA) |
| Idle | 80 or less | 100 or less | 100 or less | 80 or less |
| The STA | 100 or less | 800 or less | 800 or less | 80 or less |
| AP | 100 or less | 800 or less | 800 or less | 80 or less |
Electrical parameters
Power supply parameters:
Under 5V working power supply:
| Symbol | parameter | The minimum value | Typical values | The maximum | unit |
| VDD | The power input | 4.5 | 5 | 5.5 | V |
(ripple control within 100mv) 3.3v Operating Power:
| Symbol | parameter | The minimum value | Typical values | The maximum | unit |
| VDD | The power input | 3.135 | 3.3 | 3.465 | V |
(ripple control within 100mv)
Communication serial port level parameters:
Under 5V working power supply:
| Symbol | parameter | The minimum value | Typical values | The maximum | unit |
| VIH | High Level Input Voltage | 4.5 | 5 | VDD | V |
| VIL | Low Level Input Voltage | 0.3 | – | 0.3 | V |
| VOH | High Level Output Voltage | 4.5 | 5.0 | VDD | V |
| VOL | Low Level Output Voltage | 0 | – | 0.4 | V |
3.3v Operating Power:
| Symbol | parameter | The minimum value | Typical values | The maximum | unit |
| VIH | High Level Input Voltage | 3.135 | 3.3 | VDD | V |
| VIL | Low Level Input Voltage | 0.3 | – | 0.3 | V |
| VOH | High Level Output Voltage | 3.135 | 3.3 | VDD | V |
| VOL | Low Level Output Voltage | 0 | – | 0.4 | V |
Compliance with standards and certification
The Wi-Fi & Bluetooth module shall be certified by the state radio administration of the ministry of industry and information technology of the People’s Republic of China.
Precautions for use
The Wi-Fi & Bluetooth module exposed in the air (the core board inside the module or the whole composed of the core board and the base board) shall at least meet the service environmental conditions of general consumer electronic products, including but not limited to:
- Working temperature: – 20 ~ 75 ℃
- Storage temperature: – 20 ~ 75 ℃
- Working humidity: 0~95 %RH
- Storage humidity: 0~98 %RH
- Tolerance – 20 / + 75 ℃, every 2h a cycle, thermal shock, under the impact of the cycle of at least 20 don’t appear dysfunction or performance degradation, no significant tin crack phenomenon.
- When working for a long time, the temperature rise of the circuit components should meet the requirements of their own specifications.
- To simulate the transportation process and home application scenarios, the module should be able to withstand a certain degree of mechanical impact and drop.
Through certain protective means, Wi-Fi & Bluetooth module can have higher environmental adaptability. When designing a Wi-Fi & Bluetooth module, the performance, size and process margin required for the implementation of protection measures should be reserved.
label statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:
- This device may not cause harmful interference, and
- this device must accept any interference received.
To satisfy FCC exterior labeling requirements, the following text must be placed on the exterior of the end product.
“Contains Transmitter module FCC ID: 2ADQO3SB3350N3”.
