MI901 External Microphone V1.0
User Manual
Warning and safety instructions
Read intended use before putting into service.
Read intended use before putting into service.Intended use

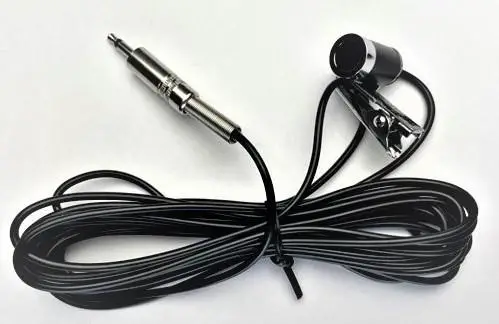

MI901 is an external microphone for LAK901. MI901 can be placed near the client so that it is easier for LAK901 to hear any sound.
Commissioning
Simply plug in LAK901 and position the microphone optimally without disturbing the client.
Cleaning
The product can be cleaned with a fruity cloth or wet wipe.
Spare parts and accessories
Spare parts and accessories can be ordered from Knop Elektronik A/S at www.knop.dk.
Technical data
| Cable length: | 4m |
| Power supply: | 2V |
| Power consumption, max: | 1mA |
| Surrounding environment: | Indoor use. ≤ 90% non-condensing |
| Ambient temperature: | 0°C to +40°C |
| Cable/Microphone colour: | Black |
| Density: | IP20 |
The right to make changes is reserved
All rights reserved.
© KNOP Elektronik A/S
Symbol explanation and approvals
 | This product complies with: Directive 2017/745/EU: MDR Directive 1907/2006/EU: REACH Directive 2011/65/EU: RoHS ISO 14971:2019: Risk Management for Medical devices EN 301 498-1 V2.2.3: Electro Magnetic Compatibility EN 301 489-3 V3.1.1: Electro Magnetic Compatibility EN 50130-4:2011 + 2014: Immunity alarm systems EN 300 220-1 V3.1.1: Short Range Devices EN 300 220-2 V3.1.1: Short Range Devices EN 300 220-3 V2.1.1: Short Range Devices EN 60601-1-2:2014 + 2015: Electromagnetic compatibility (Medical) EN 62368-1:2020: Electrical safety EN 50581:2012: Hazardous substances |
 | The product must not be used if the packaging is damaged. |
 | Medical Device Class 1 |
 | Manufacturer KNOP Elektronik A/S, Fabriksvej 20, DK-7600 Struer, Denmark |
 | Read the manual(s) before installation and commissioning. |
 | Interference may occur in the environment of equipment marked with this symbol. |
 | Must be protected against liquids. |
 | 0°C to +40°C, temperature limit for transport/storage and use. |
 | The product must not be disposed of with normal household waste. |
 | Single Registration Number DK-MF-000025631 |
 | Unique Device Identifier 05744002853466 |
 | Product reference/product number/warning text. External microphone for LAK901 |
 | Serienummer Placed on the product |
 | Ingress Protection code IP20 |
