17V 1CT/10X10F Halogen Non Reflector Lamps
Owner’s Manual

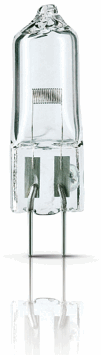

Halogen non-reflector
14623 95W G6.35 17V 1CT/10X10F
Halogen non-reflector lamps offer high-quality light and are easy to install, replace and operate. All halogen non-reflector lamps incorporate a distortion-free quartz bulb and precise positioning of the mounted filament. These ensure optimal beam performance and consistent, high light output. A wide range of wattages is available for a broad ariety of applications, including projection systems. In addition you get all the proven advantages of halogen technology such as a full spectrum and a colorendering index CRI) of 100 – the same as natural light and the best that it can be. Halogen lamps also create a comfortable warm white light, and they maintain their lumen output, with lmost no reduction, throughout their lifetime.
Product data
| General information | |
| Cap base | G6.35 [ G6.35] |
| Philips code | 14623 |
| ANSI Code | – |
| LIF Code | – |
| Operating position | S90 [ Standing +/-90D or Base Down (BDH)] |
| Main application | Projection |
| Life to 50% failures (nom.) | 2000 h |
| Light technical | |
| Luminous flux (rated) (nom.) | 2150 lm |
| Colour rendering index (nom.) | – |
| Operating and electrical | |
| Power (Rated) (Nom) | 95 W |
| Voltage (Nom) | 17 V |
| Mechanical and housing | |
| Bulb material | Quartz-UV Open |
| Filament shape | Flat |
| Filament dimensions WxH | 5.24 x 3.13 |
| Luminaire design requirements | |
| Bulb temperature (max.) | 900 °C |
| Pinch temperature (max.) | 350 °C |
| Pinch temperature (max.) | 350 °C |
| Product data | |
| Full product code | 8.71E+14 |
| Order product name | 14623 95W G6.35 17V 1CT/10X10F |
| EAN/UPC – product | 8.71E+12 |
| Order code | 42667350 |
| SAP numerator – quantity per pack | 1 |
| Numerator – packs per outer box | 100 |
| SAP material | 9.24E+11 |
Halogen non-reflector
Net Weight (Piece): 0.004 kg

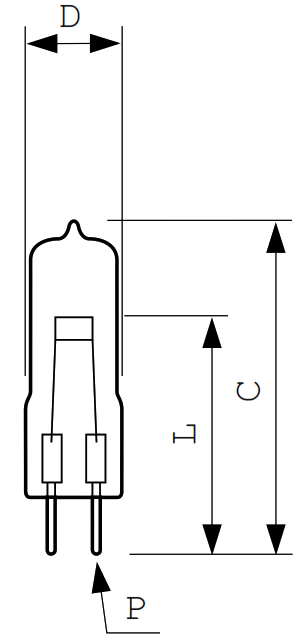

Dimensional drawing
14623 95W G6.35 17V 1CT/10X10F
| Product | D (max) | L (min) | L (max) | L | P (max) | P | P (min) | C (max) |
| 14623 95W | 11.5 mm | 31.5 mm | 32.25 | 32 | 1.05 mm | 1 mm | 0.95 | 50 mm |
| G6.35 17V | mm | mm | mm | |||||
© 2022 Signify Holding All rights reserved. Signify does not give any representation or warranty as to the accuracy or completeness of the information included herein and hall not be liable for any action in reliance thereon. The information presented in this document is not intended as any commercial offer and does not form part of any quotation or contract, unless otherwise agreed by Signify. Philips and the Philips Shield Emblem are registered trademarks of Koninklijke Philips N.V.
www.lighting.philips.com
2022, September 12 – data subject to change
