INTRODUCING THE COMMANDER
4 WAY & 8 WAY SMART TOUCH
SWITCH PANELS
Instruction Manual
Commander 4 Way and 8 Way Smart Touch Switch Panels
| Product Model No. | Product Name. |
| KT70952 | 4 Way Commander Smart Touch Switch Panel |
| KT70954 | 8 Way Commander Smart Touch Switch Panel |

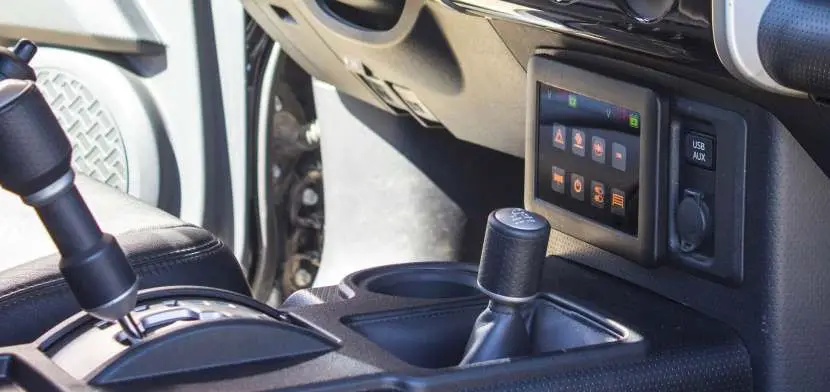

Ideal for Automotive, 4WD & Marine applications, The KT Commander Switch Panel is the perfect innovative solution to controlling power of 12V devices in your Vehicle, 4WD, Caravan, Motorhome or Boat.
Available in both a 4 Way & 8 Way switch configuration with each unit rated to 20A maximum, the switch panel is simple to install with wiring terminals at the rear and a simple power on / off touch switch on the display allows all circuits to be on / off with ease.
IDEAL FOR A WIDE RANGE OF APPLICATIONS
KEY FEATURES
- 8 Circuits Rated to 20A Max (Total)
- Master On/Off Power Icon on Display
- Voltage Display visible whilst unit is ‘On’
- Easy DIY Installation

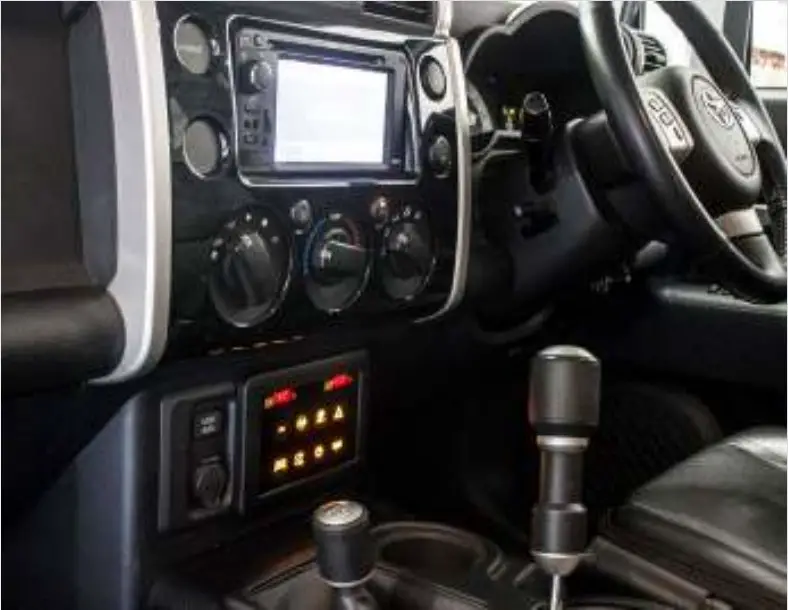

- Switches illuminate ‘Blue’ for active circuit, ‘Amber’ for inactive circuit
- Includes 96 Programmable Icons
- Suitable For Use With 12V Devices
- Suitable For Automotive & Marine Applications
KIT INCLUDES
- 1 x 4 Way / 8 Way Commander Smart Touch Switch Panel
- 4 x Mounting Screws

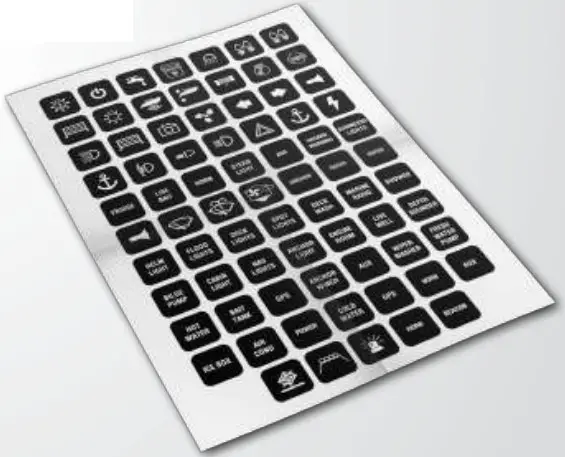

- 96 Flexible Icons
- 1 x User Manual
SPECIFICATIONS
| Technical Parameters | 4 Way | 8 Way |
| Rated Working Voltage: | 12V | 12V |
| Standby Current Consumption: | 70mA | 230mA |
| Min. Operating Voltage: | 8.5A | 8.5A |
| Max Operating Voltage: | 18V | 18V |
| Single Switch Rated Output Current: | 20A | 20A |
| Single Switch Rated Max Loading Current: | 22A | 22A |
| Single Switch Rated Output Power: | 240W | 240W |
| Single Switch Rated Loading Power: | 265W | 265W |
| Switch Responding Time: | <60ms | <60ms |
| Ambient Temperature Range: | -20°C to -60°C | -20°C to -60°C |
| Relative Humidity: | 10-90% | 10-90% |
| Switch Panel Max Amp: | 20A | 20A |

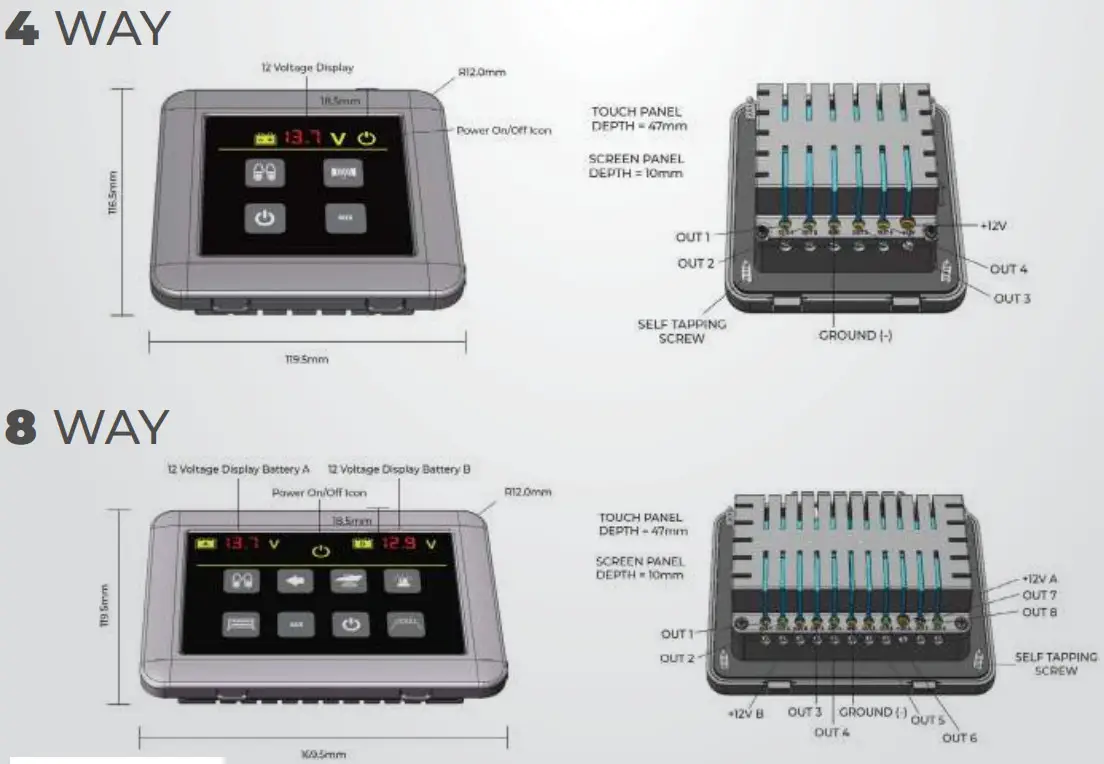

DIAGRAMS
