Oster Fpstje9010-000 Juice Extractor Chute User Guide

Oster FPSTJE9010-000 Juice Extractor Chute

IMPORTANT SAFEGUARDS

• Read all instructions before using this product.
• To protect against electric shock, do not place or immerse cord, plugs, or appliance in water or other liquid.
• This appliance is not intended for use by children or by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge. Close supervision is necessary when any appliance is used near children. Children should be supervised to ensure that they do not play with the appliance. Keep the appliance and its cord out of reach of children.
• Turn the appliance OFF, then unplug from outlet when not in use, before putting on or taking off parts and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning.
• To unplug, grasp the plug and pull from the outlet. Never pull from the power cord.
• Avoid any contact with blades or moveable parts.
• Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Do not attempt to replace or splice a damaged cord. Return appliance to the manufacturer (see warranty) for examination, repair or adjustment.
• For appliances with markings on plug blade: This appliance has important markings on the plug blade. The attachment plug or entire cordset (if plug is molded onto cord) is not suitable for replacement. If damaged, the appliance shall be replaced.
• The use of accessory attachments, including canning jars, not recommended or sold by the appliance manufacturer may cause fire, electric shock or injury.
• Do not use outdoors or for commercial purposes.
• Do not let cord hang over edge of table or counter, or touch hot surfaces, including the stove.
• Always make sure juicer cover is clamped securely in place before motor is turned on. Do not unfasten clamps while juicer is in operation. Do not attempt to defeat the clamps interlock mechanism.
• Be sure to turn switch to OFF position after each use of the unit. Make sure the motor stops completely before disassembling.

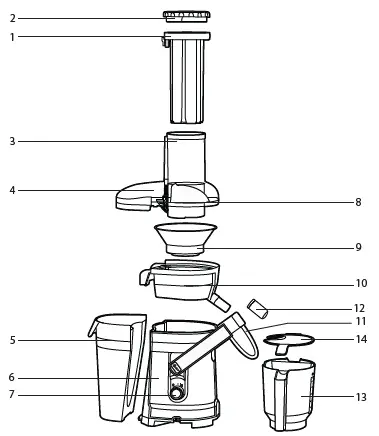

DESCRIPTION OF THE APPLIANCE

• Food Pusher with Water
• Compartment for Auto-Clean
• Food Pusher Lid
• Food Chute
• Juice Extractor Cover
• Large Pulp Collector Container
• Motor Base Housing
• Control Knob
• Mechanism for Auto-Clean
• Stainless Steel Filter
• Filter Basket
• Stainless Steel Locking Arm
• Anti-Drip Adjustable Rubber Sleeve for the Spout
• 1.25-Liter Jar with Froth Separator
• Jar Lid

OPERATING INSTRUCTIONS

ASSEMBLING THE JUICE EXTRACTOR
Follow the assembling instructions listed below before using your Oster®

Juice Extractor:

• Before you start assembling your juice extractor, make sure it is unplugged and it is placed on a dry and level surface.

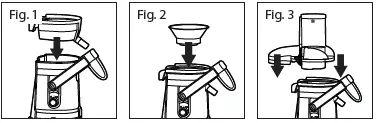

• Place filter basket on top of the motor base
• Place the stainless steel filter on top of the filter basket pushing down and turning it until it fits into the grooves of the motor shaft
• Place juicer cover/lid on top of the filter basket

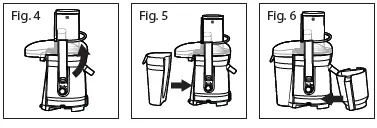

• Raise the stainless steel locking arm and place it on the grooves on the sides of the lid. Your juice extractor is equipped with a safety feature that will ensure the unit will not operate unless the lid is properly locked.
• Place the pulp container into position by tilting it slightly  Push pulp container forward until it snaps into place.
  Place the 1.25 liter jar under the spout located on the right hand side of the juicer by tilting it slightly. Other jars or glasses can be used as well

USING THE JUICE EXTRACTOR

• Make sure your juice extractor is properly assembled. Please follow the instructions from the section “Before Using Your Appliance.”
• Ensure the juice extractor and its accessories are clean by following the cleaning and maintenance section of this manual.
• Place the jar or any other container/glass you may wish to use to collect the juice under the spout and make sure the pulp collector is in place prior to begin juicing. Do not allow the pulp collector container to overfill as this may cause the unit to stall.
• Plug the power cord into an electrical outlet and select your desired speed. Use “I” for soft foods or “II” for tougher foods.
• Once the juicer is on, place the fruits and vegetables on the food chute and use the food pusher slowly to drive them down. Place the food pusher in the food chute, making sure the tab “ ” in the food pusher aligns with the juicing indicator icon  In order to extract the maximum amount of juice, it is important to push the food pusher slowly

EXCLUSIVE FILTER AUTO-CLEAN TECHNOLOGY

• Your juice extractor includes a patented and innovative filter auto-clean technology that will make cleaning a fast and easy task.

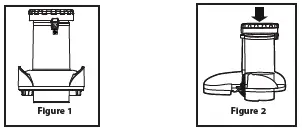

• Remove food pusher from food chute.
• Twist open food pusher lid.
• Completely fill water compartment inside food pusher Be careful not to turn the filled food pusher on it’s side as water could spill out.
• Replace lid and turn it clockwise to lock it into place on food pusher.
• Place food pusher back on food chute, ensuring the tab on the food pusher aligns with the top of the mechanism for auto-clean  Turn the control knob to the auto-clean position
• Press and hold down the food pusher while pressing the button  Auto-clean feature will automatically shut off after 25 s. You can also pulse the food pusher up and down when in self cleaning mode for the allocated 25 seconds as well.

AFTER USING THE JUICE EXTRACTOR

• Before cleaning and storing your juice extractor, follow the instructions below to disassemble the unit:
• Turn juice extractor off “O” and unplug it from the electrical outlet
• Remove the jar and the pulp collector container by tilting them slightly.

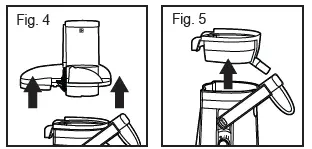

• Unlock the stainless steel locking arm and move it to the right and down to release the cover/lid
• Lift the lid up and remove it from the juice extractor
• In order to remove the filter basket and the filter, hold the filter basket with two hands and then lift it straight up .

CARE AND CLEANING & MAINTENANCE

CARE AND CLEANING

• Unplug from outlet before disassembling and cleaning.
• After disassembling all removable parts of the juice extractor, wash them  by hand with warm soapy water or in the dishwasher (top shelf only).
• If the pulp dries out in the pulp collector container, the filter or the filter basket, let it soak in water for approximately 10 min before washing it.
• Wipe the motor base with a damp cloth.
• It is very important to keep the filter very clean, free of residue blocking the holes in order to ensure optimal performance.
• Wash it thoroughly with warm soapy water. If the holes in the mesh remain blocked, soak the filter in hot water with a water solution with 10% lemon juice.

MAINTENANCE
Some plastic parts might stain when in contact with some fruits and vegetables for too long. In order to avoid this from happening, all parts should be washed immediately after each use. This appliance has no user serviceable parts. Any servicing beyond that described in the Cleaning Section should be performed by an Authorized Service Representative only. See warranty section.

TROUBLESHOOTING

TIPS AND SUGGESTIONS

•  Do not place any fruits or vegetables inside juicer until you turn the unit on. Allow unit to run for at least 10 s before you start juicing.
•  Do not allow the pulp container to overfill as this may prevent correct operation or damage the unit.
•  Be sure to remove large pits from fruits such as peach, mango, etc. as they can damage the unit.
•  You can use a plastic bag inside the pulp collector container to avoid having to clean it.
•  Do not use bananas or avocados as they do not contain juice and will clog the unit. You can use a blender to add them to the juice.
•  You can use the pulp of the juices you prepare in a variety of ways. The pulp from fruits and vegetables contains high amounts of fiber and cellulose, which are essential for a healthy and well balanced diet. You can use the pulp to thicken soups and casseroles, or to enhance your desserts. Make sure to use the pulp the same day you juice to avoid loss of vitamins.

RECIPES

FRUIT POTPOURRI
Ingredients:

• 4 medium apricots
• 2 cups cubed melon
• 1 large apple
• 1 orange

Preparation:
Process the fruits in the Oster® Juice Extractor, mix well and add a few ice cubes. Serve immediately.

PINK CLOUD

Ingredients:

• 1 cup strawberries
• 1 cored orange
• 1 cup cubed pear
• 1 small carrot

Preparation:
Process the fruits in the Oster® Juice Extractor, mix thoroughly. Serve immediately. Add a few ice cubes

MIRACLE EXTRACT

Ingredients:

• 1 cup pineapple cubes
• 1 apple cubes
• 2 small carrots
• 1 cored orange
• 2 celery stalks
  1 lime with peal

Preparation:
Process the fruits with the Oster® Juice Extractor, mix well. Add a few ice cubes. Serve immediately.

TOMATO COCKTAIL

Ingredients

• 8 tomatoes
• 4 celery stalks
• 1 lime, peeled
• 1 carrot
• ½ teaspoon salt
• 1 tablespoon Worcestershire sauce

Procedure:
Wash vegetables thoroughly. Process the tomatoes, celery, lime and cucumbers. Mix the juices, add condiments, and stir well. Serve over ice in tall glasses. Garnish with a celery leaf. Yields 4 servings.

WARRANTY

1 YEAR LIMITED WARRANTY
Sunbeam Products, Inc. (collectively “Sunbeam”) warrants that for a period of one year from the date of purchase, this product will be free from defects in material and workmanship. Sunbeam, at its option, will repair or replace this product or any component of the product found to be defective during the warranty period. Replacement will be made with a new or remanufactured product or compo-nent. If the product is no longer available, replacement may be made with a similar product of equal or greater value. This is your exclusive warranty. Do NOT attempt to repair or adjust any electrical or mechanical functions on this product.

Doing so will void this warranty.
This warranty is valid for the original retail purchaser from the date of initial retail purchase and is not trans-ferable. Keep the original sales receipt. Proof of purchase is required to obtain warranty performance. Sunbeam dealers, service centers, or retail stores selling Sunbeam products do not have the right to alter, modify or any way change the terms and conditions of this warranty. This warranty does not cover normal wear of parts or damage resulting from any of the following: negligent use or misuse of the product, use on improper voltage or current, use contrary to the operating instructions, disassembly, repair or alteration by anyone other than Sunbeam or an authorized Sunbeam service center. Further, the warranty does not cover: Acts of God, such as fire, flood, hurricanes and tornadoes.

What are the limits on Sunbeam’s Liability?
Sunbeam shall not be liable for any incidental or consequential damages caused by the breach of any express, implied or statutory warranty or condition. Except to the extent prohibited by applicable law, any implied warranty or condition of merchantability or fitness for a particular purpose is limited in duration to the duration of the above warranty. Sunbeam disclaims all other warranties, conditions or representations, express, implied, statutory or otherwise. Sunbeam shall not be liable for any damages of any kind resulting from the purchase, use or misuse of, or inability to use the product including incidental, special, consequential or similar damages or loss of profits, or for any breach of contract, fundamental or otherwise, or for any claim brought against purchaser by any other party.
