Wet Sounds Mc-tr-mini Mini Transom Remote Owner's Manual

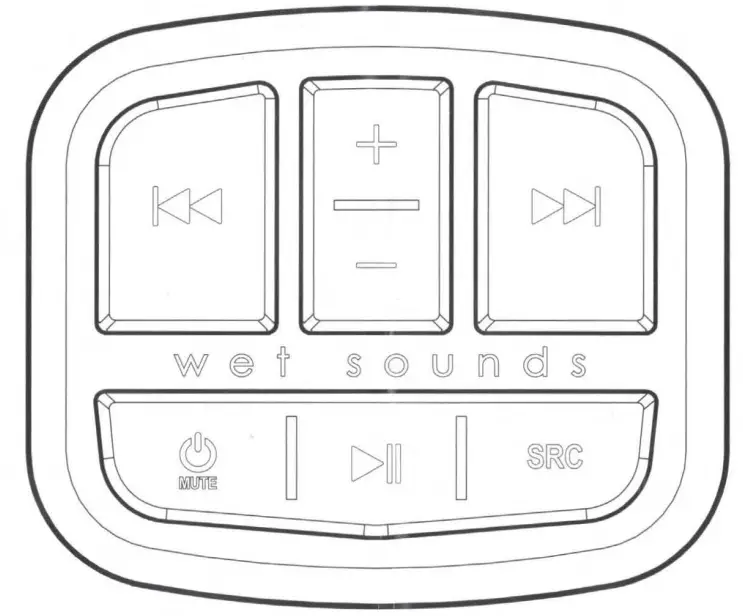

wet sounds MC-TR-MINI Mini Transom Remote Features

• IPX7 Rated marine grade construction
• Compact size; Easy mounting
• For use with WS-MC-5 (WS-MC-1 & WS-MC-2 w/ software update and MC-TR-MINI-ADP cable)
• 25′ 3.5mm to 3.5mm extension cable included

Compatible with

• WS-MC-5
• WS-MC-1 (with software update and MC-TR-MINI-ADP cable)
• WS-MC-2 (with software update and MC-TR-MINI-ADP cable)

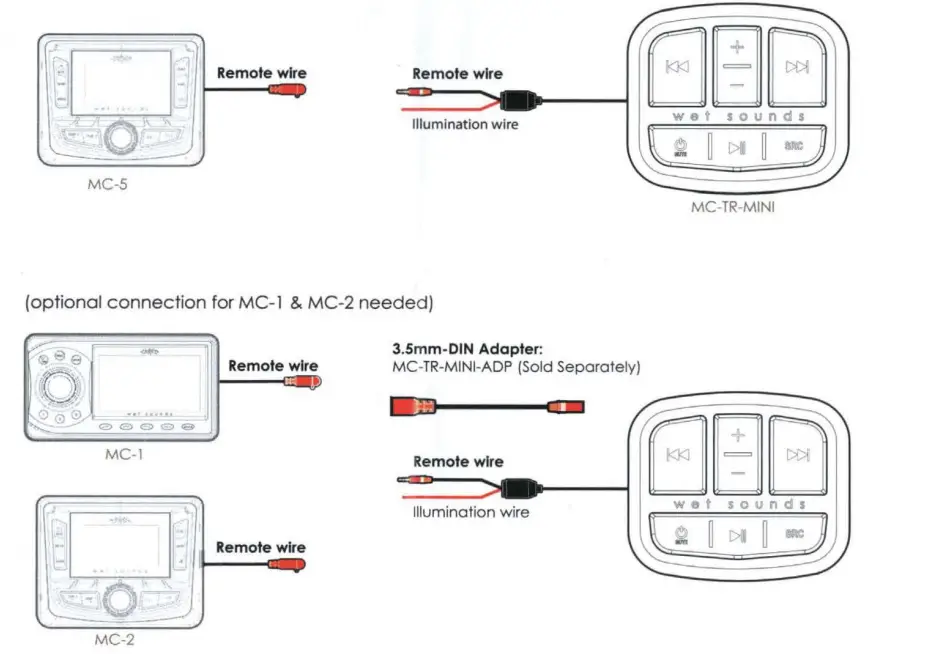

Wiring Diagram for MC-TR-MINIMounting Instructions

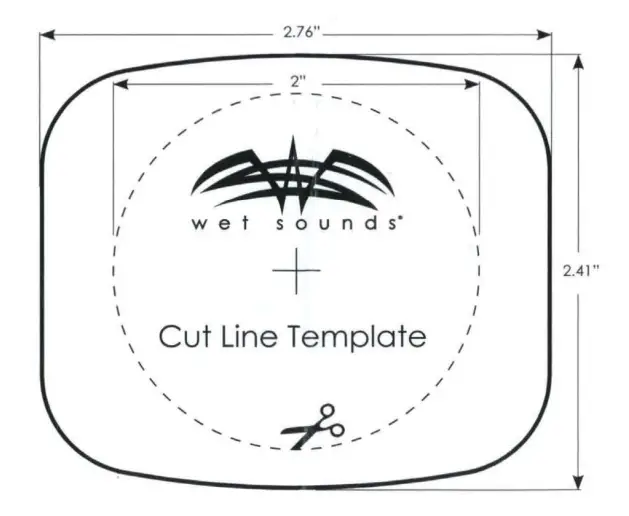

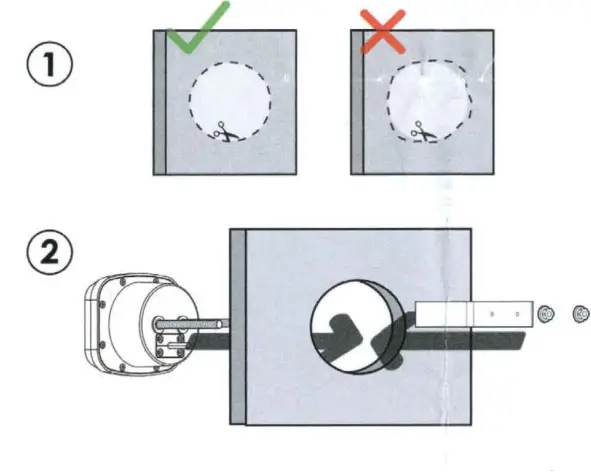

• Use the template to mark a cut line. Avoid cutting outside the cut line to prevent improper fitment. Taping the surrounding surface helps to prevent damage to the surface.
• Place unit into the opening and use the aluminum Li-shaped bracket to sandwich the dash between the unit and rear bracket. Tighten the bracket to fit a variety of walls.
