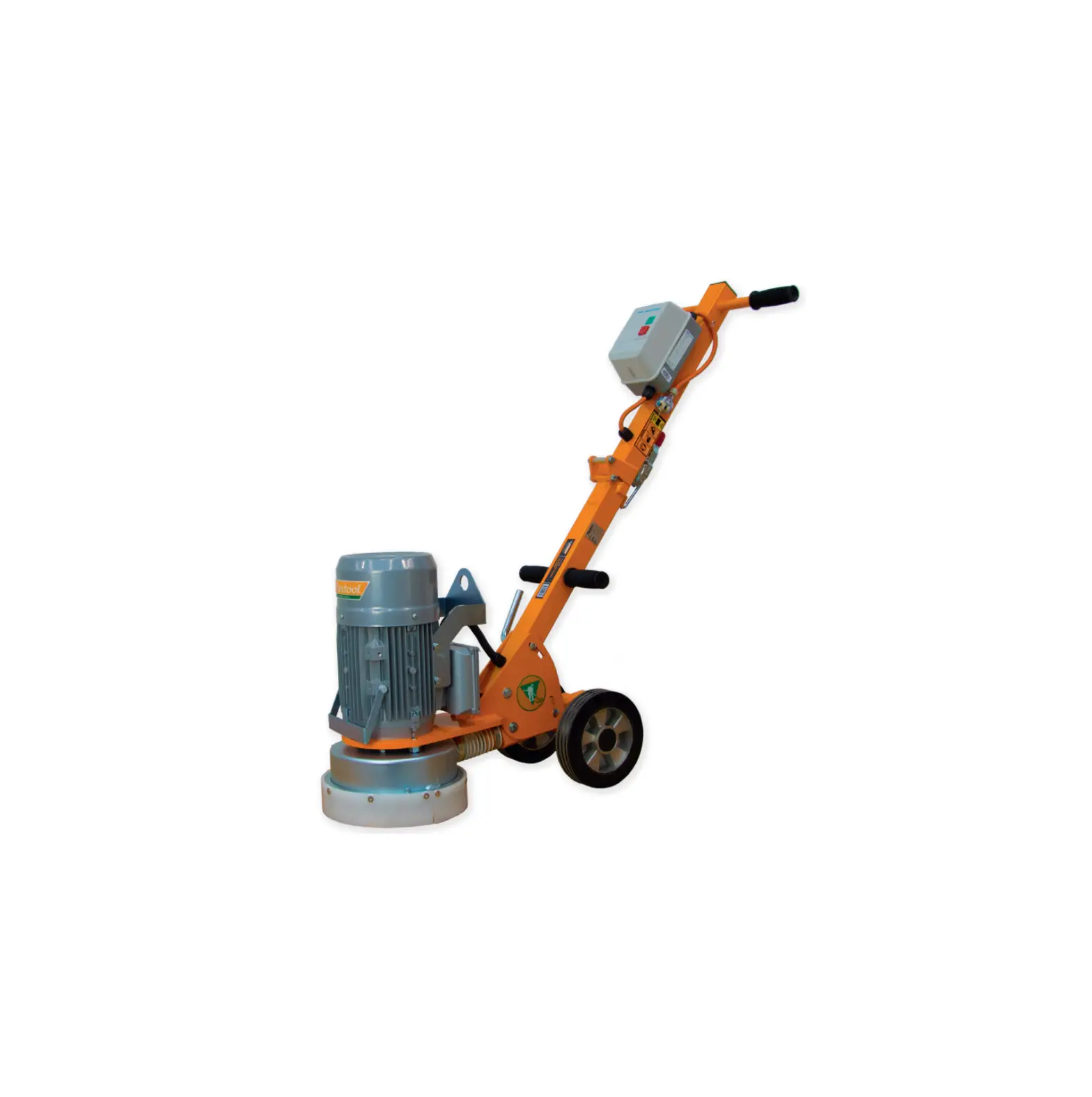

Flextool ART-CUB Cub Floor Concrete Grinder User Manual
FLEXTOOL SPARE PARTS

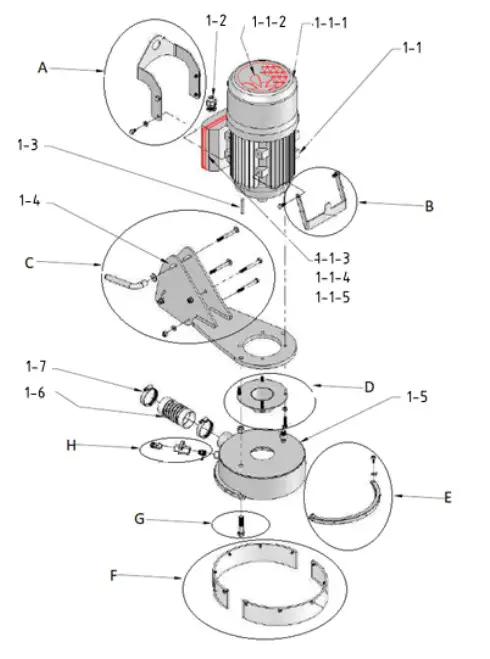

| Item No. | Product Code | Description | Qty | Remarks |
| A | NPS11011-UNIT | FLX CUB BACK LIFTING HANDLE COMPL SET (ART-01-1011) | 1 | |
| B | NPS11010-UNIT | FLX CUB FRONT LIFTING HANDLE COMPL SET(ART-01-1010) | 1 | |
| C | NPS13020-UNIT | FLX CUB CHASSIS BOLT SET (ART-01-3020) | 1 | |
| D | NPS13006-UNIT | FLX CUB ADAPTOR COMPLETE SET (ART-01-3006) | 1 | |
| E | NPS1006A-UNIT | FLX CUB ALUM WEAR STRIP REMOVABLE SET (ART-01-1006A) | 1 | |
| F | NPS1006B-UNIT | FLX CUB SHROUD PLASTIC WEAR STRIPS SET (ART-01-1006B) | 1 | |
| G | NPS13004-UNIT | FLX CUB SHROUD BOLT SET (ART-01-3004) | 1 | |
| H | NPS13022-UNIT | FLX CUB WATER KIT COMPLETE SET (ART-01-3022) | 1 | |
| 1-1 | NPS12001-UNIT | FLX CUB 1.8KW SINGLE PHASE MOTOR (ART-01-2001) | 1 | |
| 1-1-1 | NPS12011-UNIT | FLX CUB ELEC MOTOR FAN COWLING MTC 100 (ART-01-2011) | 1 | |
| 1-1-2 | NPS12012-UNIT | FLX CUB ELEC MOTOR PLASTIC COOL FAN (ART-01-2012) | 1 | |
| 1-1-3 | NPS12007-UNIT | FLX CUB TERMINAL BOX COMP ME100KMTC (ART-01-2007) | 1 | |
| 1-1-4 | NPS12009-UNIT | FLX CUB ELEC MOTOR START CAPACITOR (ART-01-2009) | 1 | |
| 1-1-5 | NPS20909-UNIT | FLX CUB ELEC MOTOR RUN CAPACITOR (ART-01-2010) | 1 | |
| 1-2 | NPS12006-UNIT | FLX CUB ELEC GLAND STARTER BX & CHAS (ART-01-2006) | 1 | |
| 1-3 | NPS12004-UNIT | FLX CUB KEY ELECTRIC MOTOR (ART-01-2004) | 1 | |
| 1-4 | NPS11003-UNIT | FLX CUB CHASSIS (ART-01-1003) | 1 | |
| 1-5 | NPS11006-UNIT | FLX CUB SHROUD HOUSING (ART-01-1006) | 1 | |
| 1-6 | NPS13012-UNIT | FLX CUB FLEX DUCT SHROUD OUTLET (ART-01-3012) | 1 | |
| 1-7 | NPS13013-UNIT | FLX CUB HOSE CLAMP (ART-01-3013) | 2 |

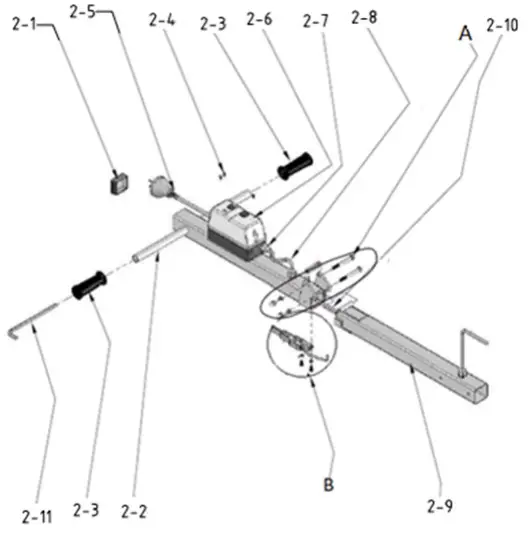

Handle (ART-CUB)
| Item No. | Product Code | Description | Qty | Remarks |
| A | NPS60247-UNIT | FLX CUB HANDLE BOLT SET (ART-01-3010) | 1 | |
| B | NPS13023-UNIT | FLX CUB HANDLE LATCH COMPLETE SET (ART-01-3023) | 1 | |
| 2-1 | NPS13003-UNIT | FLX CUB WATER KIT COMPLETE (ART-01-3003) | 1 | |
| 2-2 | NPS21111-UNIT | FLX CUB HANDLE TOP SECTION (ART-01-1001) | 1 | |
| 2-3 | NPS20862-UNIT | FLX CUB RUBBER HAND GRIP (ART-01-3001) | 2 | |
| 2-4 | NPS13007-UNIT | FLX CUB SCREW PAN HEAD (ART-01-3007) | 4 | |
| 2-5 | NPS12005-UNIT | FLX CUB PLUGGED LEAD (ART-01-2005) | 1 | |
| 2-6 | NPS12002-UNIT | FLX CUB STARTER BOX C/W INT SWITCHES (ART-01-2002) | 1 | |
| 2-7 | NPS12006-UNIT | FLX CUB ELEC GLAND STARTER BX & CHAS (ART-01-2006) | 1 | |
| 2-8 | NPS12003-UNIT | FLX CUB ELEC CABLE (ART-01-2003) | 1 | |
| 2-9 | NPS11002-UNIT | FLX CUB HANDLE BASE SECTION (ART-01-1002) | 1 | |
| 2-10 | NPS13009-UNIT | FLX CUB PLASTIC SHEATH (ART-01-3009) | 1 | |
| 2-11 | NPS13016-UNIT | FLX CUB ALLEN KEY (ART-01-3016) | 1 |

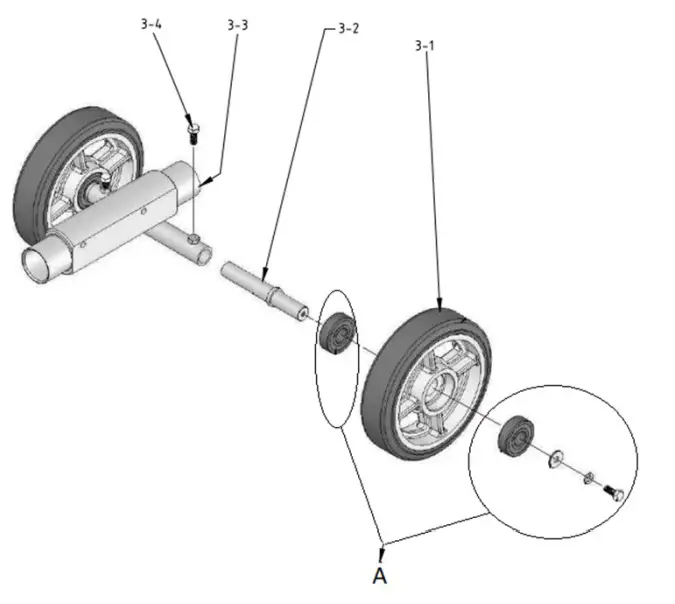

Wheel Assembly (ART-CUB)
| Item No. | Product Code | Description | Qty | Remarks |
| A | NPS13011-UNIT | FLX CUB AXLE BEARING KIT COMPLETE SET (ART-01-3011) | 2 | |
| 3-1 | NPS13002-UNIT | FLX CUB 200MM RUBBER WHEEL (ART-01-3002) | 2 | |
| 3-2 | NPS11005-UNIT | FLX CUB WHEEL AXLE (ART-01-1005) | 2 | |
| 3-3 | NPS11004-UNIT | FLX CUB WHEEL AXLE CARRIER (ART-01-1004) | 1 | |
| 3-4 | NPS13017-UNIT | FLX CUB BOLT (ART-01-3017) | 2 |
Grinding (ART-CUB)
| Item No. | Product Code | Description | Qty | Remarks |
| A | NPS13014-UNIT | FLX CUB GRIND HUB BOLT SET (ART-01-3014) | 1 | |
| B | NPS13021-UNIT | FLX CUB GRIND SHOE ADAPT PLATE BOLT SET (ART-01-3021) | 1 | |
| C | NPS13015-UNIT | FLX CUB GRIND HD COUPLING BOLT SET (ART-01-3015) | 1 | |
| 4-1 | NPS11007-UNIT | FLX CUB GRIND HUB MOTOR ADAPTOR (ART-01-1007) | 1 | |
| 4-2 | NPS11009-UNIT | FLX CUB GRIND HEAD FLEXIBLE COUPLING (ART-01-1009) | 1 | |
| 4-3 | NPS1008A-UNIT | FLX CUB GRIND SHOE ADAPT PLATE (ART-01-1008A) | 1 | |
| 4-4 | FT1TE250-UNIT | BLA GRINDING SHOE QUICK FIT ADAPT PLATE (CUB-EZPLATE-250) | 1 | |
| 4-5 | NPS13018-UNIT | FLX CUB SCREW BACKING PLATE 4 PACK (ART-01-3018) | 1 |
