NOTIFIER BAT Series Batteries Sealed Lead-Acid
General
BAT Series Batteries are Power-Sonic brand batteries. BAT Series (or Power-Sonic brand) batteries are recommended for secondary power or backup power for all NOTIFIER fire alarm control equipment.
Features
- Provide secondary power for control panels.
- Sealed and maintenance-free.
- Overcharge protected.
- Easy handling with leak-proof construction.
- Ruggedly constructed, high-impact case (ABS).
- Long service life.
- Compact design.
Agency Listings and Approvals The listings and approvals below apply to BAT Series Batteries. In some cases, certain modules may not be listed by certain approval agencies, or listing may be in process. Consult factory for latest listing status.
UL Recognized Components: MH20845 (Power-Sonic).
Ordering Information
- BAT-1250-BP: 10-unit bulk pack of BAT-1250 (12 V 5 AH).
- BAT-1270-BP: 5-unit bulk pack of BAT-1270 (12 V 7 AH).
- BAT-12120-BP: 4-unit bulk pack of BAT-12120 (12V 12 AH).
- BAT-12180-BP: 2-unit bulk pack of BAT-12180 (12 V 18 AH).
- BAT-12260-BP: 2-unit bulk pack of BAT-12260 (12 V 26 AH).
- BAT-12550: single battery (12 V 55 AH).
- BAT-121000: single battery (12 V 100 AH).
Part Number Reference & Specifications
| Part Number | Power- Sonic Part Number | Battery Description | DIMENSIONS | |||||||||||
| Nominal Voltage V | Nominal Capacity @ 20 hr. rate A.H. | Width | Depth | Height | Height over terminal | Weight | ||||||||
| in. | mm | in. | mm | in. | mm | in. | mm | lb. | kg. | |||||
| BAT-1250 | PS-1250 | 12 | 5 | sealed | 3.54 | 90 | 2.76 | 70 | 3.98 | 101 | 4.21 | 107 | 3.50 | 1.59 |
| BAT-1270 | PS-1270 | 12 | 7 | sealed | 5.95 | 151 | 2.56 | 65 | 3.7 | 94 | 3.86 | 98 | 4.8 | 2.18 |
| BAT-12120 | PS-12120 | 12 | 12 | sealed | 5.95 | 151 | 3.86 | 98 | 3.7 | 94 | 3.94 | 100 | 7.92 | 3.59 |
| BAT-12180 | PS-12180 | 12 | 18 | sealed | 7.13 | 181 | 3.00 | 76 | 6.59 | 167 | 6.59 | 167 | 12.6 | 5.72 |
| BAT-12260 | PS-12260 | 12 | 26 | sealed | 6.5 | 167 | 6.97 | 177 | 4.92 | 125 | 4.92 | 125 | 17 | 7.71 |
| BAT-12550 | PS-12550 | 12 | 55 | sealed | 9.04 | 230 | 5.45 | 138 | 8.15 | 207 | 8.98 | 228 | 36 | 16.33 |
| BAT-121000 | PS-121000 | 12 | 100 | sealed | 12 | 305 | 6.6 | 168 | 8.15 | 207 | 8.98 | 228 | 68 | 30.84 |

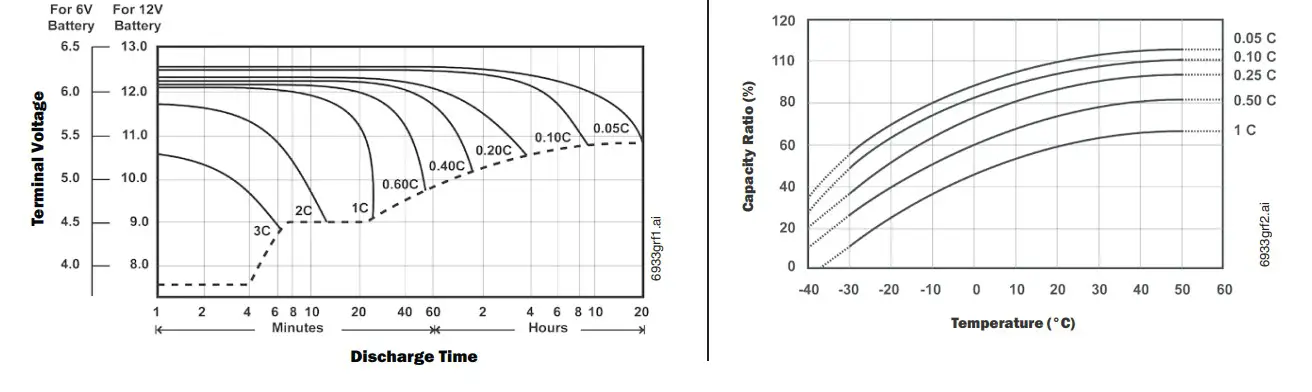

Discharge Characteristic Curves at 20°C (68°F) / Effect of Temperature on Capacity
PS-121000 Shelf-Life and Storage

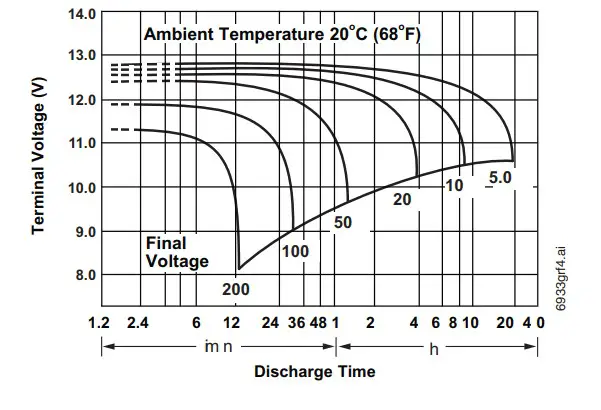

PS-121000 Discharge Characteristics
