LUMASCAPE LS9407LED Vedita Ceiling Cavity Mount Downlight Luminaire

Warranty void if not installed as per installation instructions
Note: Fixture uses intelligent driver. Always leave on for 20 seconds unless programing.

DANGER

• ISOLATE LUMINAIRE FROM POWER
• Failure to isolate power  supply before installation or  maintenance may result in  fire, serious injury, electric  shock, death and may  damage the luminaire.

WARNING

• It is strongly recommended to use Lumascape power supply or transformer
• Use of electronic transformer will permanently damage luminaire
• All connections must be kept dry; failure to do so may result in product reliability issues
• Opening luminaire will void warranty

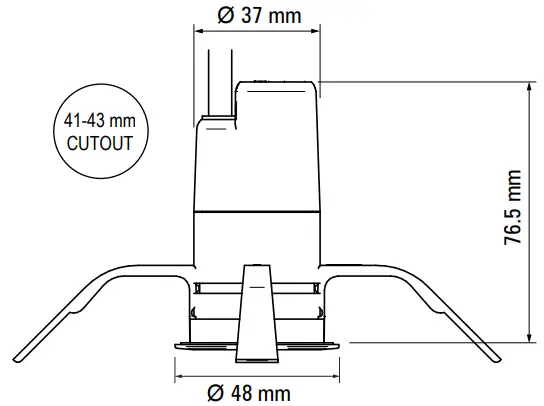

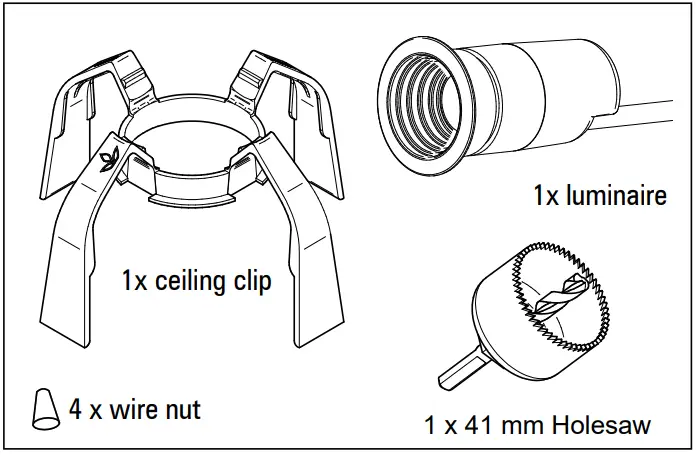

BOX CONTAIN

INSTALLATION INSTRUCTION

1. Use a Lumascape supplied 24 V DC ripple free power supply or transformer, locate centrally in relation to the luminaires.
   NOTE: Generally 24 V DC ripple free power supplies should be installed in a well ventilated fully under cover environment.
   NOTE: DC Power supplies are more efficient than AC transformers. Under no circumstances can an ‘electronic’ transformer be used, this may damage the product.
2. Mark actual locations of luminaires to be installed. Using the charts overleaf calculate the cable size on each run including all luminaires to be connected to a run of cable. Use the same chart to select power supply.
3. Mark locations of luminaires and using holesaw supplied, drill hole in ceiling or cavity wall.

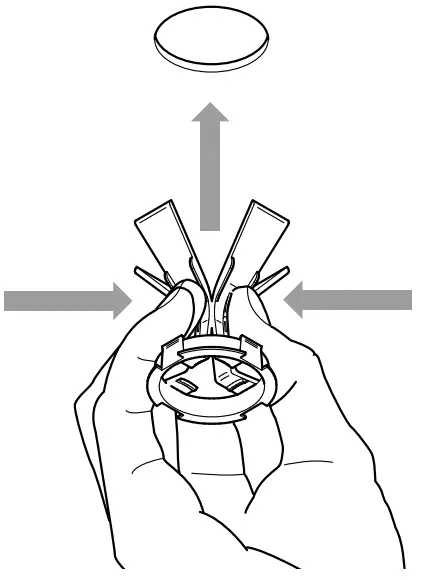

4. Fold legs up on the ceiling clip and insert into hole and feed LS9407LED cable through mounting clip, connect to supply as per instructions supplied with the LS9407LED and test.



5. Lay cable from power supply/transformer for each cable run. NOTE: If dimming is required then four conductors will be required. For non-dimmed (usual installation) only two conductors are required. Dimming circuit can use 1 mm cable.
6. Connect the luminaire to the supply cable using the wire nuts supplied. Any joint must be dry and water tight or warranty will be void.

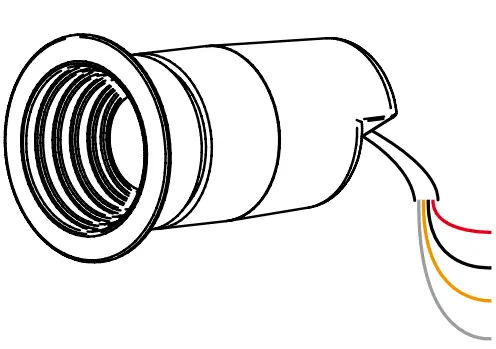

   NOTE: The orange and grey wires are for optional PwM digital dimming using 0-10 V. Lumascape accessory LS6125 is required.
   If dimming is not required, do not connect the orange and grey wires. In all cases they are to be sealed and kept dry. Failure to do so will result in the T5 smart driver dimming the luminaire due to a voltage differential between the two conductors.
7. Switch on and check each luminaire is operating.

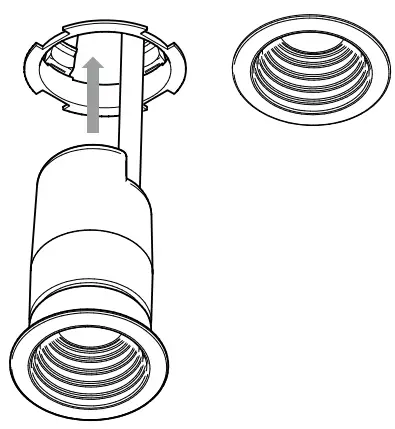

8. Press LS9407LED fully into mounting clip.

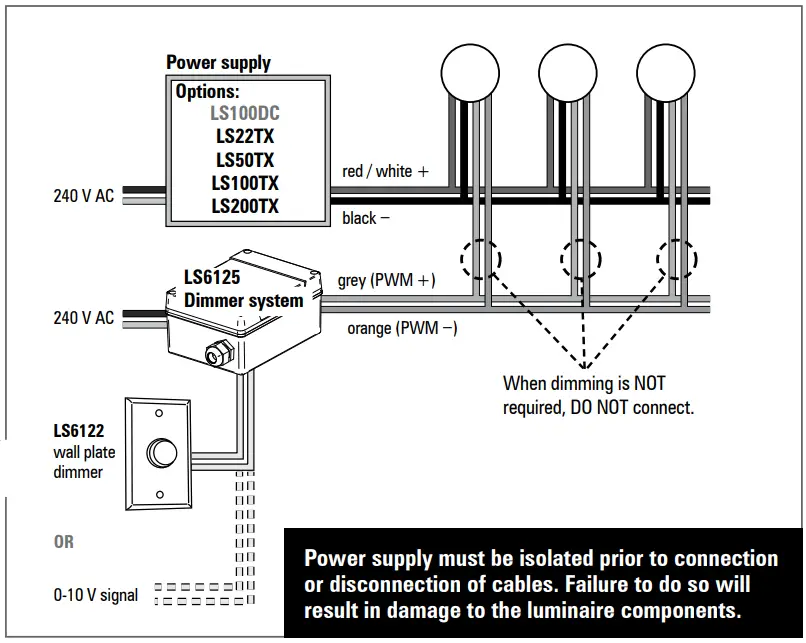

Wiring Diagram

Single Colour Dimming

NOTE: If dimming is required use LS6125 PwM to 0-10 V dimming.
IMPORTANT: Please note that the PwM dimming signal polarity is reversed with Lumascape’s LS6125 and any third party PwM controllers. See diagram on right for details.

Power supply

LS940LED Series

Power Supply/ Transformer & Maximum Cable Runs

means the maximum number of luminaires can be accommodated on smaller cables.
NOTE: 24 V DC power supplies are far more efficient than AC transformers.

SAFETY INSTRUCTIONS

WARNING – To reduce the risk of FIRE or INJURY:

1. Luminaires and transformers to be installed by licensed electrical contractors.
2. Luminaires to be used for intended purpose only.
3. Do not operate the luminaires with a missing or damaged parts.
4. Use only genuine Lumascape parts to replace damaged or missing components.
5. Refer to instructions for installation and operating requirements.
6. Ensure installation complies with local regulations
   Voltage insulation test (megger) will permanently damage product and will void warranty.
   SAVE THESE INSTRUCTIONS.
