Deepcool Gammaxx L240 Motherboard All In One Liquid Cooler 12 Cm Black User Guide

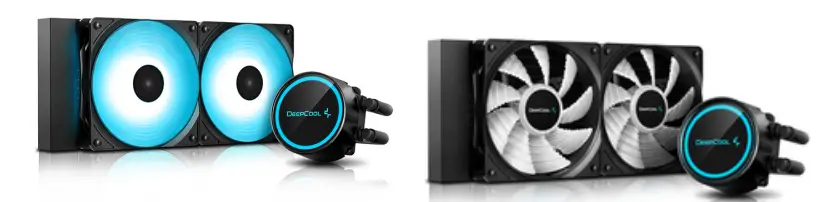

DeepCool GAMMAXX L240 Motherboard All-in-one liquid cooler 12
cm Black

Brand : DeepCool
Product code: DP-H12RF-GL240V2
Product name : GAMMAXX L240

DeepCool GAMMAXX L240. Type: All-in-one liquid cooler, Fan diameter: 12 cm, Maximum airflow: 69.34 cfm, Maximum air pressure: 2.42 mmH2O. Product colour: Black

Performance

Suitable location *	Motherboard
Type *	All-in-one liquid cooler
Fan diameter	12 cm
Supported processor sockets	LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1356 (Socket B2), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2, Socket FM2+
Maximum airflow	69.34 cfm
Maximum air pressure	2.42 mmH2O
Pulse-width modulation (PWM) support
Fan noise level (max)	30 dB
Pump noise level	17.8 dB
Fan bearing technology	Hydro bearing
Pump connector	3-pin
Pump motor speed	2400 RPM
Pump motor speed (max)	2400 RPM
Fan speed (min)	500 RPM
Fan speed (max)	1800 RPM

Design

Product colour *	Black
Radiator material	Aluminium
Number of fans	2 fan(s)
Illumination LED
Illumination colour	Blue, Green, Red
Fan connector	4-pin
Lighting effects quantity	3

Power

Weight & dimensions

Other features
