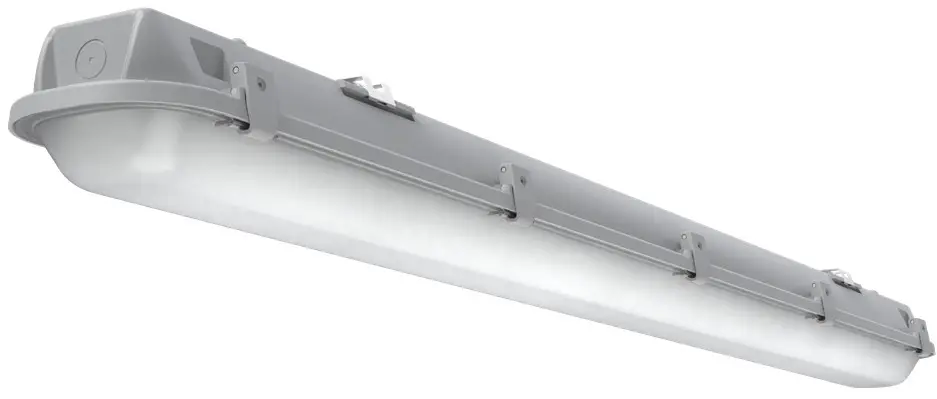

CSVT Vapor Tight LED Strip Light
Owner’s Manual

Capable Luminaire

This item is an A+ capable luminaire, which has been designed and tested to provide consistent color appearance and out-of-the-box control compatibility with simple commissioning.

• All configurations of this luminaire meet the Acuity Brands’ specification for chromatic consistency
• This luminaire is part of an A+ Certified solution for light® or Point™ Wireless control networks marked by a shaded background*
  To learn more about A+, visit www.acuitybrands.com/aplus. *See ordering tree for details

FEATURES & SPECIFICATIONS

INTENDED USE — Ideal for damp/wet locations such as outdoor venues, canopies and locker rooms. Not for use or installation in direct outdoor sunlight. Must be  installed under canopy or covered ceiling. For direct sunlight installations, please refer to the FEX product family. Certain airborne contaminants can diminish integrity of  acrylic and/or polycarbonate. Click here for Acrylic-Polycarbonate Compatibility table for suitable uses.
Certain airborne contaminants may adversely affect the functioning of LEDs and other electronic components, depending on various factors such as concentrations of the  contaminants, ventilation, and temperature at the end-user location. Click here for a list of substances that may not be suitable for interaction with LEDs and other electronic components.

CONSTRUCTION
– Light Gray Polycarbonate housing
– Frosted Polycarbonate lens
– Poured in place polyurethane gasket
– Polycarbonate Latches, optional stainless steel latches available.
– Standard 1/2″ wet location fitting

ELECTRICAL
– High Efficiency LEDs meet DLC Standard
– MVOLT (120-277V) & 347V
– 0-10V Dimming standard
Luminaire Surge Protection Level: Designed to withstand up to 2.5kV/0.75kA per ANSI C82.77-5-2015. For applications requiring higher level of protection additional surge protection must be provided.

INSTALLATION
– Surface (wall, ceiling) using standard brackets
– Suspended (chain, cable) using standard brackets

LISTINGS
– CSA Certified to UL & C-UL Standards for wet location
– IP65, IP66 rated per IEC60529
– NSF Splash zone rated
– FCC Title 47, Part 15 Subpart B compliant
– 2.5kV/0.75kA Surge Rated per ANSI C82-77-5-2015
– CSA Ambient Listings on Page 3
– Lumen Maintenance Listed on Page 3

Design Lights Consortium® (DLC) qualified product. Not all versions of this product may be DLC qualified. Please check the DLC Qualified Products List at  www.designlights.org/QPL to confirm which versions are qualified.
WARRANTY — 5-year limited warranty. This is the only warranty provided and no other statements in this specification sheet create any warranty of any kind. All other  express and implied warranties are disclaimed.
Complete warranty terms located at: www.acuitybrands.com/support/warranty/terms-and-conditions Note: Actual performance may differ as a result of end-user  environment and application. All values are design or typical values, measured under laboratory conditions at 25 °C. Specifications subject to change without notice.

Looking for Contractor Select readily available configurations? Click here to visit Contractor Select™ spec sheet or go to www.contractorselect.com.
A+ Capable options indicated by this color background.

ORDERING INFORMATION

Lead times will vary depending on options selected. Consult with your sales representative.
Example: CSVT L48 AL03 MVOLT SWW3 80CRI

Options

Individual Controls ‡

Light Wireless Controls ‡
NLTAIR2 RSBOR10 light (wireless) gen 2 high mount occupancy & daylight sensor
NOTE: ‡ indicates option chosen has ordering restrictions. Please reference ordering restrictions chart.

Accessories: Order as separate catalog number.
CSVT STSL LATCH Stainless steel latch kit (Set of 10) ‡
How to Estimate Delivered Lumens in Emergency Mode
Use the formula below to estimate the delivered lumens in emergency mode Delivered Lumens = 1.25 x P x LPW
P = Output power of emergency driver. P = 10W for IE10WCPHE
LPW = Lumen per watt rating of the luminaire. This information is available on the ABL luminaire spec sheet. The LPW rating is also available at Design light Consortium.

DIMENSIONS

All dimensions are shown in inches unless otherwise noted.

*Weights will vary slightly with added options.

OPERATIONAL DATA

*All values are typical and are at 25C. Actual performance may vary and is dependent on operating environment.

*Actual performance may vary based on ambient temperature of installed location.
Ambient Temperature Ratings

Number of Boards and Drivers

INDUSTRIAL: One Lithonia Way, Conyers,
GA 30012 Phone: 800-705-SERV (7378)
[email protected]
www.lithonia.com
