Ovela Ovdeluxwcra Deluxe Washing Clothes Drying Rack User Guide

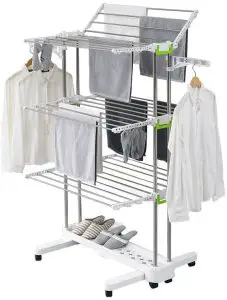

ovela OVDELUXWCRA Deluxe Washing Clothes Drying Rack User Guide

COMPONENTS

A. Base

B. Rack (x6)

C. Handle Lock (x6)

D. Upper Tube (x4)

E. Lower Tube (x4)

F. Small Tube (x6)

G. Wheels (x8)

H. Multi-function Hanger (x2)

ASSEMBLY

Step 1

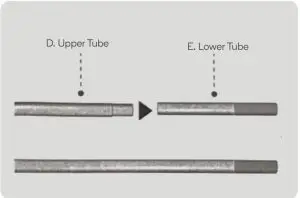

• Following the diagram below, connect tubes (Dx4 & Ex4) to make four long tubes


Step 2

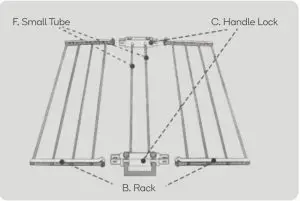

• Use items (Fx2, Cx2 & Bx2) to assemble the shelf.
• Repeat this step two more times.


Step 3

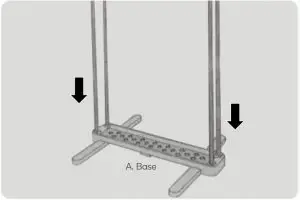

• Insert the four long tubes into the base (A).


Step 4

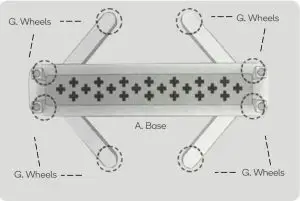

• Insert the eight wheels (Gx8) onto the base (A).


Step 5

• Insert the racks over the four long tubes at the desired heights.
• Attach the two multi-function hangers (Hx2) in the desired positions.


Step 6

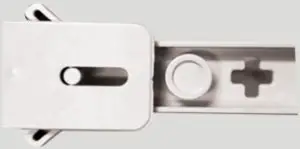

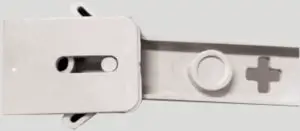

• How to connect rack panels with handles on each side:
  • Step 1:
    Gently and evenly slide the buttons on the racks into handle slot along the groove

  • Step 2:
    Choose the desired angle, the panel will be secured once the buttons reach the end of the slot.


Need more information?
We hope that this user guide has given you the assistance needed for a simple set-up.
For the most up-to-date guide for your product, as well as any additional assistance you may require, head online to help.kogan.com
