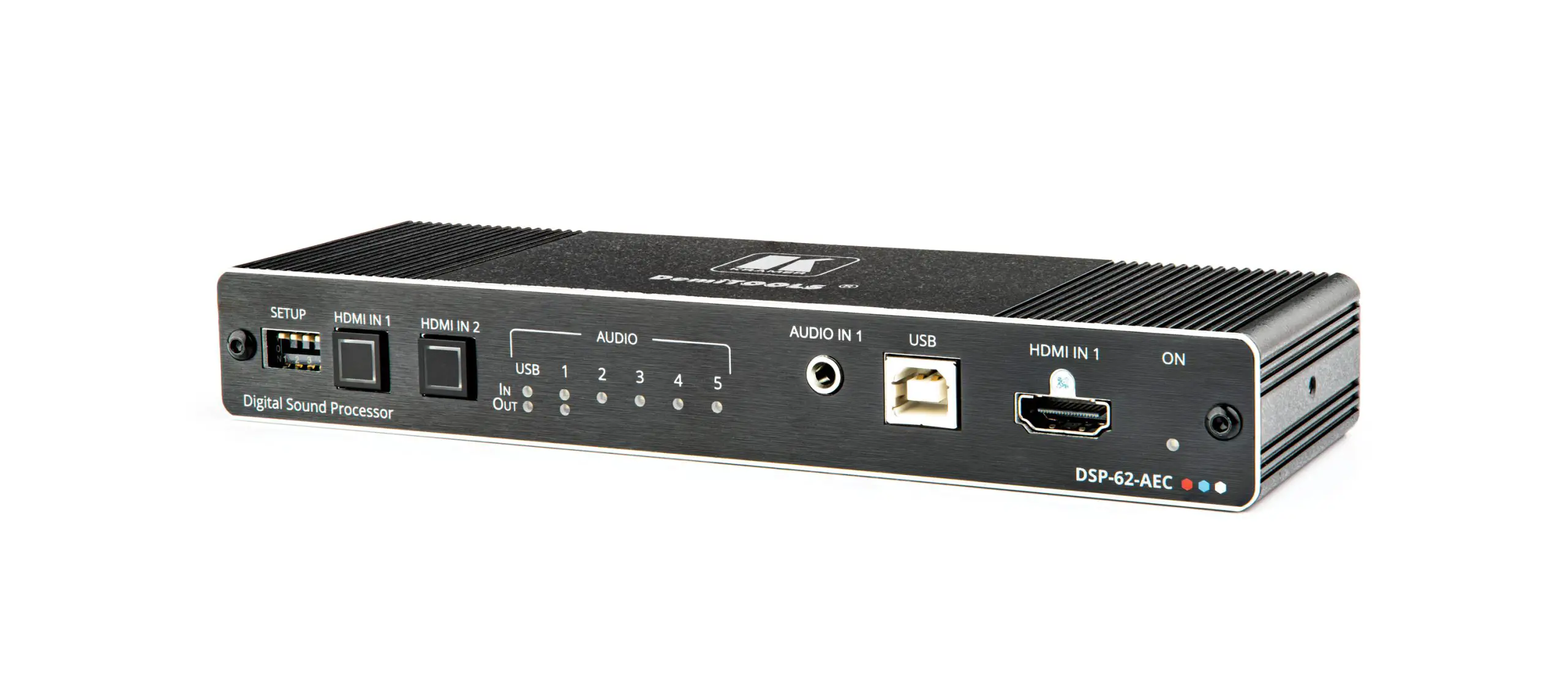

KRAMER DSP-62-AEC Digital Sound Processor User Guide
KRAMER DSP-62-AEC Digital Sound Processor User Guide
This guide helps you install and use your DSP-62-AEC for the first time.
Go to www.kramerav.com/downloads/DSP-62-AEC to download the latest user manual and check if firmware upgrades are available.
Check what’s in the box
- DSP-62-AEC Digital Sound Processor
- 1 Power adapter and cord
- 1 Kramer C-USB/AB-6 cable
- 1 Quick start guide
- 4 Rubber feet
- 1 Bracket set

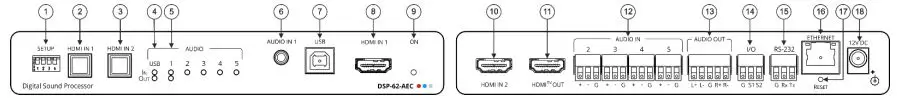

Get to know your DSP-62-AEC
| # | Feature | Function | |
| 1 | SETUP DIP-switches | Set DIP-switch 4 to ON to upgrade the firmware, OFF (default) for normal operation (other DIP-switches are reserved for future use). | |
| 2 | HDMI IN 1 Button | Press to select HDMI IN 1 input (on the front panel). | |
| 3 | HDMI IN 2 Button | Press to select HDMI IN 2 input (on the rear panel). | |
| 4 | AUDIO LEDs | USB IN | Lights green when an audio source is received from the USB host port. |
| USB OUT | Lights green when an audio signal is sent to the USB host port. | ||
| 5 | IN (1 to 5) | Lights green when a signal is present, lights red when clipping is detected. For IN 2 to IN 5, when connecting a microphone and setting to Mic mode via the embedded Web pages, lights blue. | |
| OUT | Lights green when a signal is present, lights red when clipping is detected. | ||
| 6 | AUDIO IN 3.5mm Mini Jack | Connect to an unbalanced audio source. | |
| 7 | USB Type B Bi-Directional Host Port | Connect to an audio source or acceptor. | |
| 8 | HDMI IN 1 Connector | Connect to an HDMI source. | |
| 9 | ON LED | Lights green when the device is powered. | |
| 10 | HDMI IN 2 Connector | Connect to an HDMI source. | |
| 11 | HDMI™ OUT Connector | Connect to an HDMI acceptor. | |
| 12 | AUDIO IN 3-pin Terminal Block Connectors (2 to 5) | Connect to up to 4 mono balanced audio sources (mono or mic level with selectable 48V). | |
| 13 | AUDIO OUT 5-pin Terminal Block Connector | Connect to a stereo balanced audio acceptor. | |
| 14 | I/O Terminal Block Connectors (1 to 2) | Connect to up to two sensors, switches, LEDs, or relays. | |
| 15 | RS-232 (G, Rx, Tx) Terminal Block Connector | Connect to a PC/serial controller | |
| 16 | ETHERNET RJ-45 Connector | Connect to a PC via a LAN. | |
| 17 | RESET Recessed Button | Press and hold while powering the device to reset to factory default values, including IP settings. | |
| 18 | 12V DC Power Connector | Connect to the power supply and to the mains electricity. | |
Mount DSP-62-AEC
Install DSP-62-AEC using one of the following methods:
- Attach the rubber feet and place the unit on a flat surface.
- Fasten a bracket (included) on each side of the unit and attach it to a flat surface (see www.kramerav.com/downloads/DSP-62-AEC).
- Mount the unit in a rack using the recommended rack adapter (see www.kramerav.com/product/DSP-62-AEC).
- Mount the unit in a Kramer Table-Mount unit
(see www.kramerav.com/product/DSP-62-AEC).
- Ensure that the environment (e.g., maximum ambient temperature & air flow) is compatible for the device.
- Avoid uneven mechanical loading.
- Appropriate consideration of equipment nameplate ratings should be used for avoiding overloading of the circuits.
- Reliable earthing of rack-mounted equipment should be maintained.
- Maximum mounting height for the device is 2 meters.

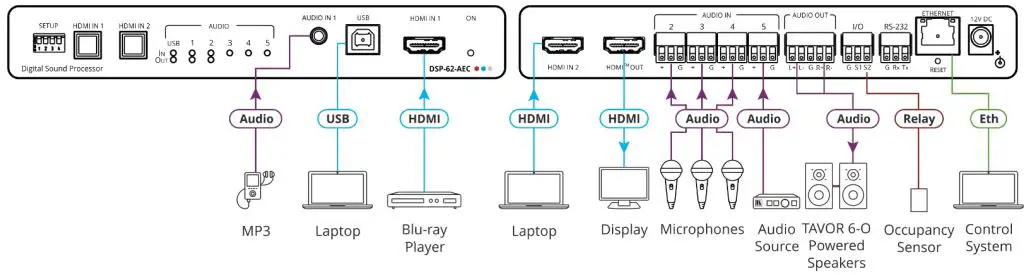

Connect inputs and outputs
Always switch OFF the power on each device before connecting it to your DSP-62-AEC.
Connecting the audio output
To a balanced stereo audio acceptor:
To an unbalanced stereo audio acceptor:
To achieve specified extension distances, use the recommended Kramer cables available at www.kramerav.com/product/DSP-62-AEC. Using third-party cables may cause damage!
Connect power
Connect the power cord to DSP-62-AEC and plug it into the mains electricity.
Safety Instructions (See www.kramerav.com for updated safety information)
Caution:
- For products with relay terminals and GPI\O ports, please refer to the permitted rating for an external connection, located next to the terminal or in the User Manual.
- There are no operator serviceable parts inside the unit.
Warning:
- Use only the power cord that is supplied with the unit.
- Disconnect the power and unplug the unit from the wall before installing.
Operate the DSP-62-AEC
Operate DSP-62-AEC via:
- Embedded web pages via the Ethernet.
- RS-232 serial commands transmitted by a touch screen system, PC, or other serial controller.
| RS-232 Control / Protocol 3000 | ||||
| Baud Rate: | 115,200 | Parity: | None | |
| Data Bits: | 8 | Command Format: | ASCII | |
| Stop Bits: | 1 | |||
| Example: (adjust analog audio output 1 to “-10dB”): #x-aud-lvl out.analog_audio.1.audio.1,-10 | ||||
| Default Ethernet Parameters | ||||
| IP Address: | 192.168.1.39 | UDP Port #: | 50000 | |
| Subnet mask: | 255.255.0.0 | TCP Port #: | 5000 | |
| Gateway: | 192.168.0.1 | User/Password | Admin/Admin | |
| Factory Reset | ||||
| Recessed Button | Press and hold while powering the device. | |||
| Protocol 3000: | “#factory” command. | |||
| Web Pages: | In the Settings page, click Reset. | |||
