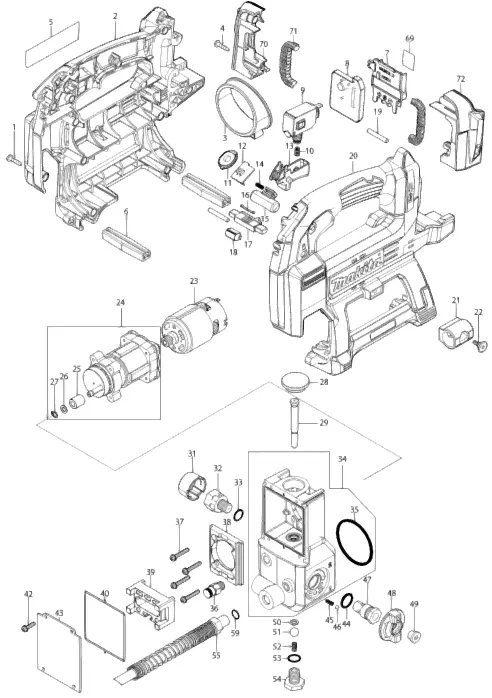

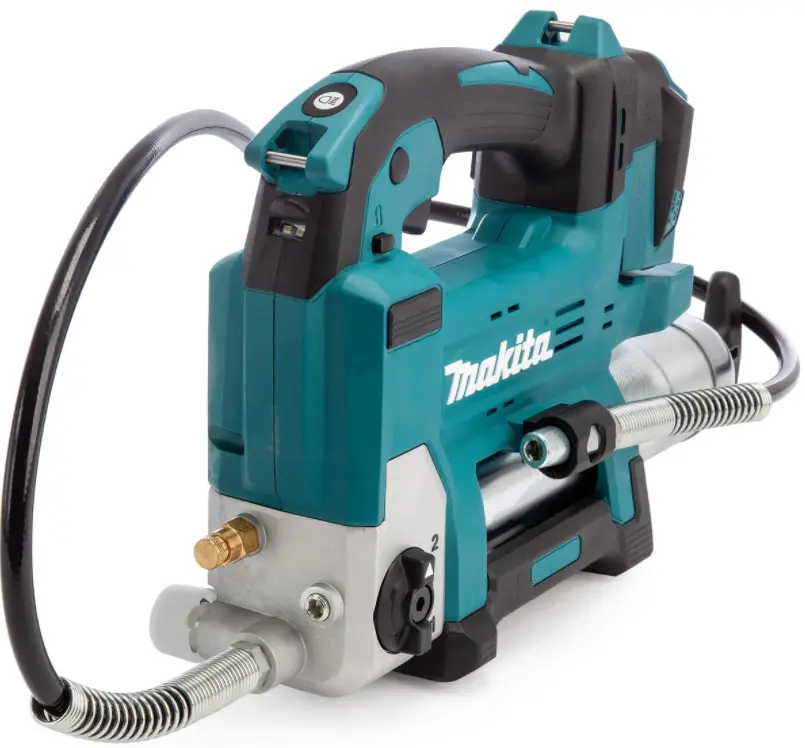

MAKITA DGP180 CORDLESS GREASE GUN

Item	Parts No.	Description	I/C	Qty	New/Old	Opt. 1	Opt. 2	Note
001	265995-6	TAPPING SCREW 4X18		13
002	183R38-9	HOUSING SET		1
C10	263002-9	RUBBER PIN 4		2
C20	252126-6	HEX. LOCK NUT M4-7		2
D10		INC. 20
003	459621-9	BARREL HOLDER		1
004	265995-6	TAPPING SCREW 4X18		2
005	856C52-5	DGP180 NAME PLATE		1
006	422479-9	FOOT		2
007	644809-6	TERMINAL		1
008	620A91-7	CONTROLLER		1
009	651391-8	SWITCH C3JW-6BM-PN		1
010	233306-3	COMPRESSION SPRING 4		1
011	140M75-6	SWITCH PLATE COMPLETE		1
C10	819V26-1	SWITCH LABEL		1
012	620A89-4	SWITCH CIRCUIT		1
013	459623-5	SWITCH LEVER		1
014	231433-0	COMPRESSION SPRING 4		1
015	419705-5	LOCK ON BUTTON		1
016	232201-4	LEAF SPRING		1
017	459624-3	LOCK OFF BUTTON		1
018	620A90-9	LED CIRCUIT		1
019	268306-4	PIN 5		2
020	183R38-9	HOUSING SET		1
C10	263002-9	RUBBER PIN 4		2
C20	252126-6	HEX. LOCK NUT M4-7		2
D10		INC. 2
021	422643-2	HOSE HOLDER		1
022	265B56-4	+FLAT HEAD SCREW M4X14		1
023	629386-9	DC MOTOR		1
024	136124-7	GEAR ASSEMBLY		1
D10		INC. 25-27
025	214079-7	PLANE BEARING 6		1
026	253477-0	FLAT WASHER 6		1
027-1	961022-4	RETAINING RING (EXT) ROUND S-6		1
028	286043-8	CAP 32		1
029	256951-7	SHOULDER PIN 7-8		1
031	459622-7	VALVE COVER		1
032	140M83-7	RELIEF VALVE COMPLETE		1
033	213918-8	O-RING 12.5		1
034	136128-9	PUMP HOUSING ASSY		1
C11	265A55-0	H.S.SET SCREW(FLAT POINT)NPT1/		1
D10		INC. 35
035	422476-5	RUBBER PACKING A		1
036-1	162667-3	DRAIN VALVE		1
037	911148-2	PAN HEAD SCREW M4X25		4
038	310961-9	SLIDER GUIDE		1
039	310960-1	SLIDER		1
040	422480-4	SEAL RING		1
042	911128-8	P.H.SCREW M4X16 WITH WR		4
043	347546-8	PUMP COVER		1
044	213182-1	O RING 14		1
045	233151-6	COMPRESSION SPRING 4		1
046	216008-6	STEEL BALL 4		1
047	140M82-9	CHANGE VALVE COMPLETE		1
048	459620-1	THUMB		1
049	265A57-6	HEX. SOCKET HEAD BOLT M10X7		1
050	257494-2	RING 8		1
051	216003-6	STEEL BALL 10		1
052	232557-5	COMPRESSION SPRING 4		1
053	213918-8	O-RING 12.5		1
054	265A56-8	HEX BOLT M12X16		1
055	191A79-9	FLEXIBLE HOSE 1200 SET		1	*
C10	162662-3	ADAPTER		1	*
055-1	191W58-9	FLEXIBLE HOSE 1200 SET	O	1
C10	191W61-0	ADAPTER SET (1PCS)		1
059	213054-0	O RING 9		1

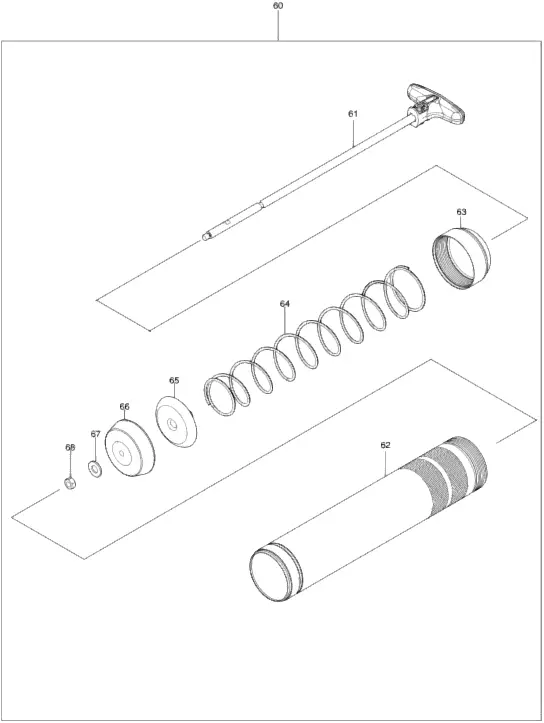

060	191B12-7	BARREL ASSEMBLY A SET		1
D10		INC. 61-68
061	140T28-7	SHAFT COMPLETE		1
C10	459619-6	LEVER		1
C20	951116-3	SPRING PIN 4-20		1
062	327379-7	BARREL A		1
063	347543-4	CAP A		1
064	232684-8	CONICAL SPRING		1
065	413459-6	PLATE A		1
066	422685-6	RUBBER SEAL A		1
067	253494-0	FLAT WASHER 8		1
068	931302-2	HEX. NUT M6		1
069	856C61-4	DGP180 SERIAL NO. LABEL		1
070	187303-0	BATTERY HOUSING SET		1
D10		INC. 72
071	424473-7	CUSHION RUBBER		2
072	187303-0	BATTERY HOUSING SET		1
D10		INC. 70
A01	166094-6	SHOULDER BELT		1
