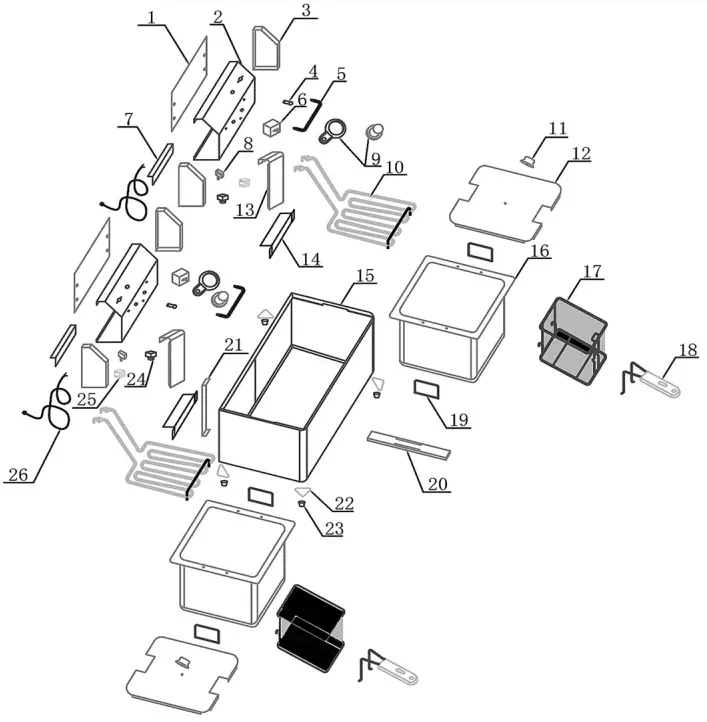

Drawing
| Item | Description | Part# | Quantity | Remark | Picture |
| 1 | Back cover | n/a | 2 | ||
| 2 | Front cover | n/a | 2 | ||
| 3 | Side cover | n/a | 4 | ||
| 4 | Indicator light | 930533 | 2 | ||
| 5 | Bracket | n/a | 2 | ||
| 6 | Thermostat | 930557 | 2 | ||
| 7 | Bracket | n/a | 2 | ||
| 8 | Microswitch | 930571 | 2 | ||
| 9 | Knob | 930564 | 2 | ||
| 10 | Element | 930649 | 2 | ||
| 11 | Knob for lid | 940402 | 2 | Color may differ from the original. | |
| 12 | Lid | n/a | 2 | ||
| 13 | Bracket | n/a | 2 | ||
| 14 | Support | n/a | 2 | ||
| 15 | Frame | n/a | 1 | ||
| 16 | Fryer bassin | n/a | 2 | ||
| 17 | Fryer basket | 930656 | 2 | Ind item 18 | |
| 18 | Handle fryer basket | nss | 2 | Available as 930656 | |
| 19 | Handle | n/a | 4 | ||
| 20 | Bracket | n/a | 1 | ||
| 21 | Bracket | n/a | 1 | ||
| 22 | Support plate | n/a | 4 | ||
| 23 | Feet | 930588 | 4 | ||
| 24 | Hi-Limiter | 930595 | 2 | ||
| 25 | Terminal | 930540 | 2 | ||
| 26 | Power cord | 930045 | 2 | ||
| Probe holder | 930663 | 4 | ( Not shown on exploded view) |
n/a -> not available nss -> not sold separately
