JR 406 NC
Quick start guide

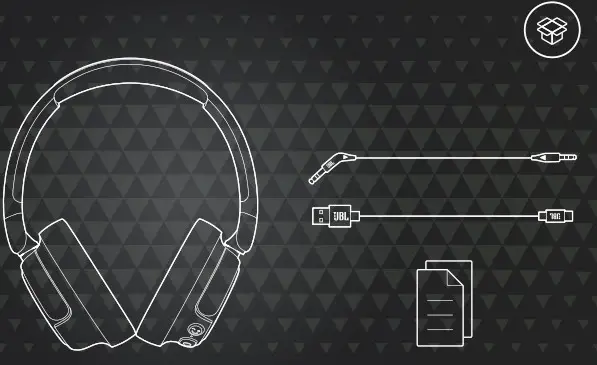

WHAT’S IN THE BOX

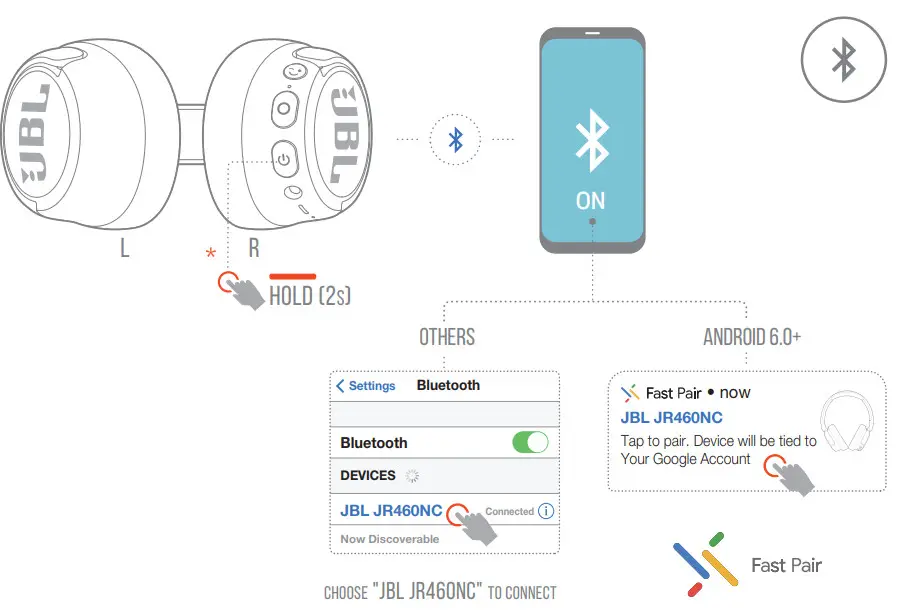

power on & connect
* To enter pairing mode again, power off and then hold for 5 seconds.

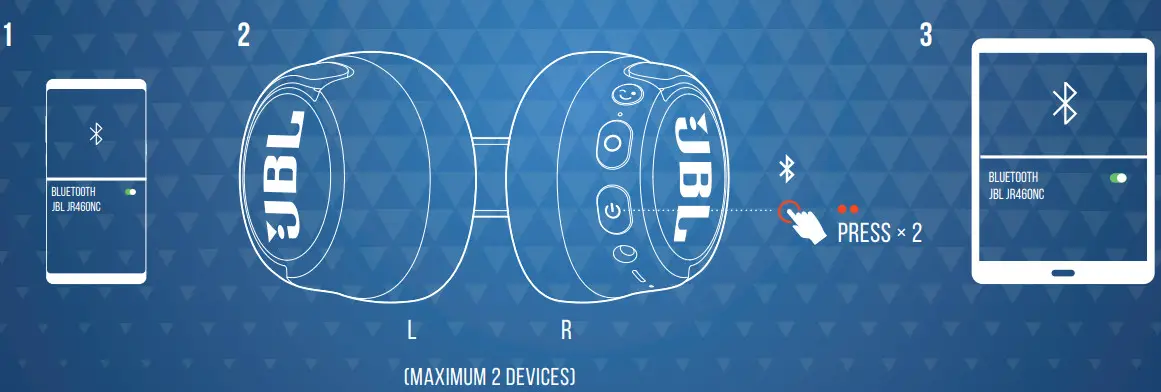

Multi-point connection

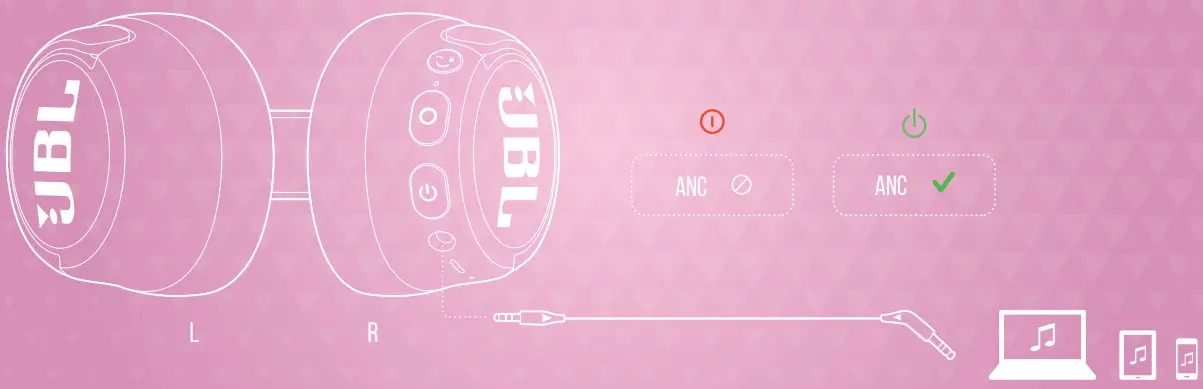

WIRED LISTENING MODE
CHARGING

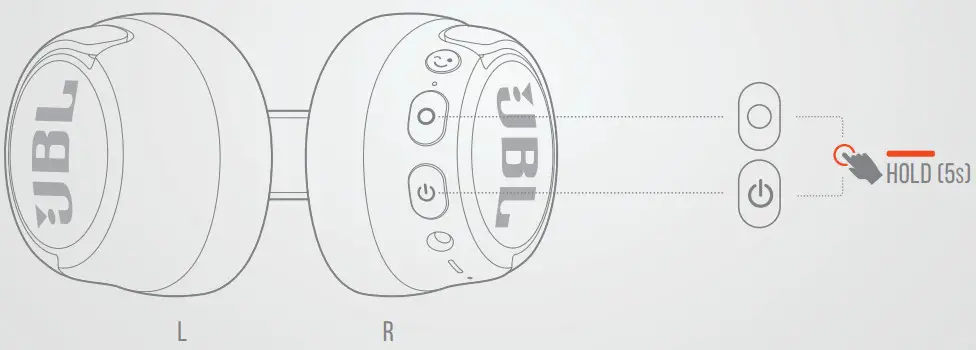

FACTORY RESET

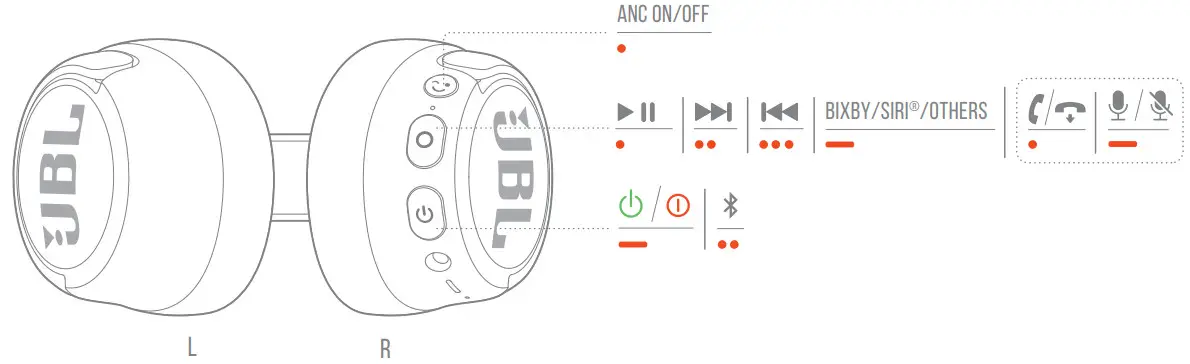

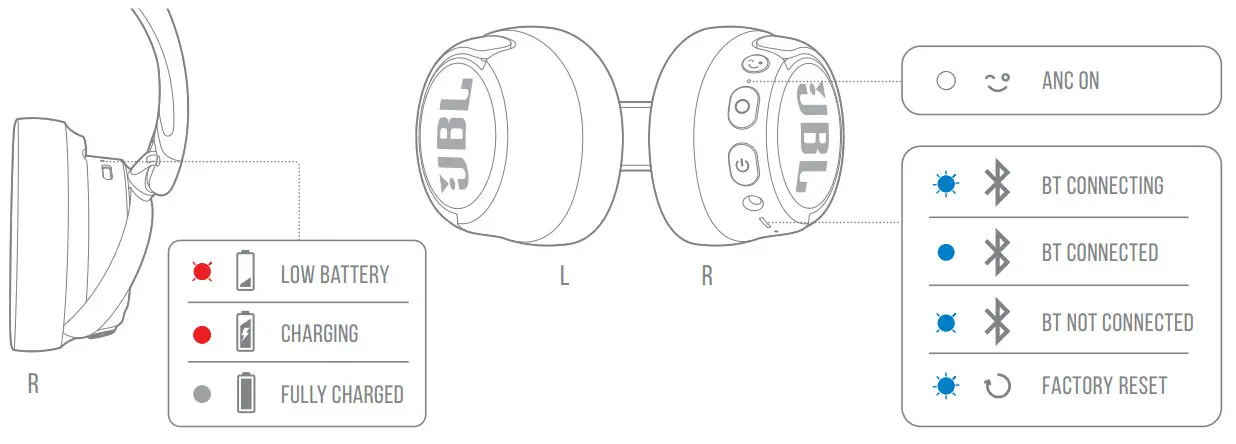

LED BEHAVIORS
TECH SPEC
Model: JR460NC
Driver Size: 32 mm / 1.26″ Dynamic Driver
Power supply: 5.0 V 1.0 A
Weight: 200 g / 0.44 lbs
Battery type: Lithium-ion Polymer (450 mA / 3.7 V)
Charging time: <2 hrs from empty
Music play time with BT on and ANC off: up to 30 hrs
Music playtime with BT on and ANC on: up to 20 hrs
Frequency Response: 20 Hz – 20 kHz
Impedance: 32 ohm
Sensitivity: 92 dB SPL@1 kHz
Maximum SPL: 81 dB
Microphone sensitivity: -27 dBV@1 kHz / Pa
Bluetooth version: 5.0
Bluetooth profile version: HFP 1.6 AVRCP 1.5 A2DP 1.3
Bluetooth transmitter frequency range: 2.4 GHz – 2.4835 GHz
Bluetooth transmitter power: <10 dBm
Bluetooth transmitter modulation: GFSK, π/4 DQPSK, 8DPSK
Maximum operation temperature: 45 °C
TO PROLONG BATTERY LIFESPAN, FULLY CHARGE AT LEAST ONCE EVERY 3 MONTHS. BATTERY LIFE VARIES BY USE AND SETTING.
IC RF Exposure Information and Statement
The SAR limit of Canada (C) is 1.6 W/kg averaged over one gram of tissue. Device types: (IC: 6132A-JBLJR460NC) has also been tested against this SAR limit According to this standard, the highest SAR value reported during product certification for head use is 0.006 W/Kg.The device was tested for typical bodily operations where the product was kept 0 mm from the head. To maintain compliance with IC RF exposure requirements, use accessories that maintain a separation distance of 0mm between the user›s head and the back of the headset. The use of belt clips, holsters and similar accessories shall not contain metal parts in its assembly. Use of accessories that do not
meet these requirements may not comply with IC RF exposure requirements and should be avoided.
Head operation
The device was subjected to a typical head manipulation test. In order to comply with RF exposure requirements, a minimum separation distance of 0 cm must be maintained between the user›s ear and the product (including the antenna). Head exposure that do not meet these requirements may not meet RF exposure requirements and should be avoided. Use only the supplied or approved antenna.
FCC ID: APIJBLJR460NC
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by HARMAN International Industries, Incorporated is under license.
Other trademarks and trade names are those of their respective owners.
HP_JBL_JR460NC_QSG_Global_SOP_V11
