French Fitness Ff-ct80 Manual Curve Treadmill With Resistance Instruction Manual

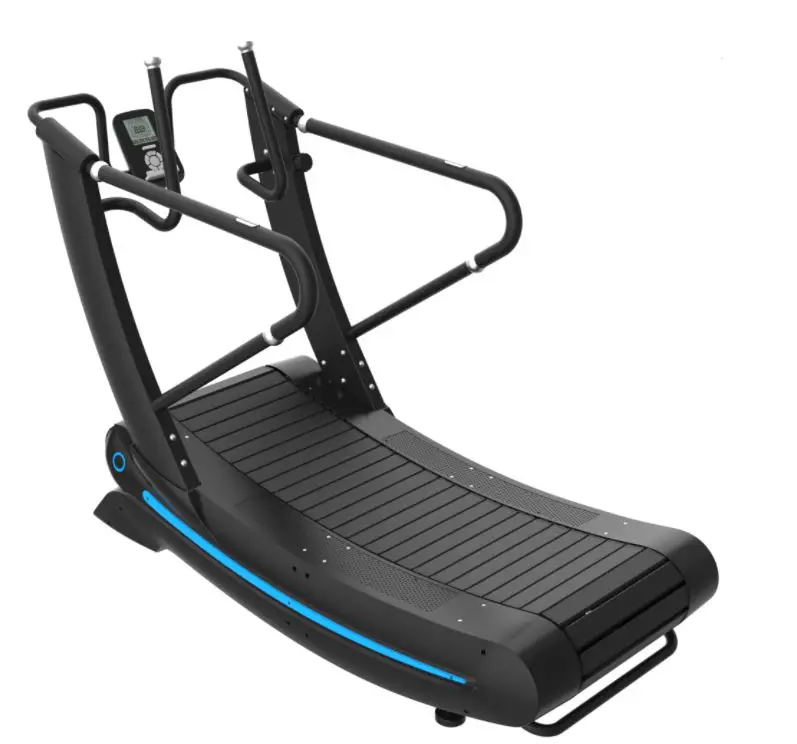

FRENCH FITNESS FF-CT80 Manual Curve Treadmill with Resistance

Features

• Transport Wheels in front & Handles in rear for easy transportation
• Non-motorized Zero- energy consumption
• Pure green energy treadmill
• Creative crawler belt without running board design ensures that the running belt has no sideways deviation and waxing.
• Fully shock- absorbing, safe and comfortable.
• Creative precision bearing transmission system, smooth, zero drag and stick
• Lower noise, power consumption, failure rate and maintenance cost
• Eliminates the slippage of traditional running belts
• Accurate speed, no block or cover of running area, wider field of vision, easier for gait analysis.

Technical Specifications

• 8 Resistance Levels
• Run at no resistance
• Jog at low resistance
• Walk / Push at medium resistance
• Sled Push at high resistance
• Non-motorized
• Power: Cordless (Self Generated); Display uses batteries
• Speed: Resistance adjustment by a rotary knob
• Console Readouts: Time, Distance, Calories, and Speed
• Running belt size (L x W)：67 in x 18 in (1700 mm x 440 mm)
• Weight: 346 lb (157 kg)
• Dimensions (L x W x H): 78 in x 34 in 59.5 in (1981 mm x 864 mm x 1511 mm)

Safety Caution

Please read all precautions and instructions in this manual before using this equipment.

1. This Curve treadmill is suitable for commercial fitness clubs, clubhouse fitness, bodybuilding training, sports training, physical education and so on.
2. This Curve treadmill is suitable for indoor use, do not use it outdoors or in high humidity situation. Do not splash water or any other liquid on the treadmill. Do not put or insert any abnormal things on the treadmill.
3. Please ensure its 4 feet on the ground when using it and placed it smoothly. There should retain 2000 mm * 1000 mm of safety space behind the treadmill.
4. When using the treadmill, please wear appropriate sportswear and sports shoes. For the exerciser who use the treadmill for the first time, professional guidance will be needed. In the event of an emergency, stop the machine immediately.
5. It is forbidden to let two or more people stand on the treadmill at the same time, the maximum load weight is 170 kg.
6. The heart rate sensor is not professional medical equipment, there are many reasons which can cause inaccurate detection, test results are for reference only.(Hold the heart of the handrail with both hands, several seconds later, to get a relatively accurate heart rate).
7. The action guidance:
   1. Aerobic exercise : energy consumption, improve cardiopulmonary skills, accelerate the blood circulation, enhance physical fitness, loss weight.
   2. When using this treadmill for the first time, exerciser needs to hold the handrail to keep the balance.
   3. People can only walk down the treadmill after after safety confirmation.
8. Any part of treadmill can not be in loose status.
9. Never touch any parts of running treadmill with your finger.
10. People with long hair should pay attention to the safety of hair when using this treadmill.
11. When you feel uncomfortable when using this treadmill, please stop immediately and consult to the doctor.
12. Please check and make sure every bolt and screw was locked tight every time before you start to use the treadmill. If any of them is loose, please change or fixed it.
13. There must be the mark of “Stop” in maintenance.
14. If there is abnormal noise or other abnormal situation of the treadmill, please stop running immediately and contact our after-sales department immediately, or seek professional help.
15. This treadmill is coincident to the type of SC in EN 957-6.

Technical Standard

• Input supply voltage: four-cell dry battery
• Time: 0:00 — 99.59
• Distance: 0.00 — 99.99 (km)
• Calories: 0 — 999 (kcal)
• Heart rate: 60 — 300 (beats/min)
• Rotating speed: 0 — 90（KM/H）
• Resistance adjustment level: 1 — 8 (at1, the resistance is 0, at 8, the resistance is maximum)

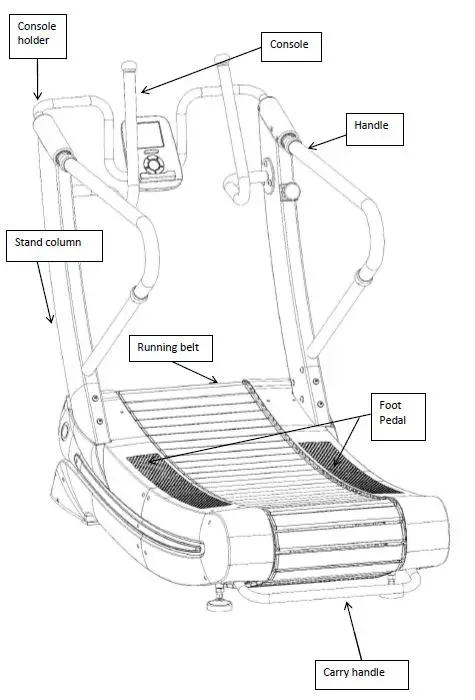

Machine Diagram

Installation Procedure

Taking easy-assembly as the principle:
User Manual of this section is designed to ensure that the treadmills can be assembled correctly and easily.

• Considering the big size of the treadmill, please select the location where the treadmill will be placed and ensure there is enough space around it.
• Place all parts of the treadmill in the empty area and remove all packing materials. Do not discard the packing materials until the assembly work is completed.
• All bolts must be tightened during the assembly process unless otherwise stated, and all bolts must be tightened when the assembly work is completed.
• When assembling the treadmill, please make sure all parts are assembled according to the assembly drawing.

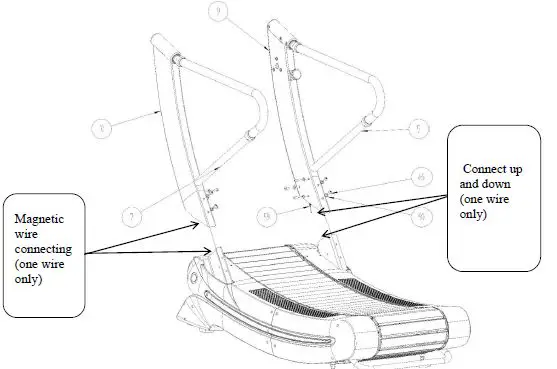

Assembly step one:
Connect the magnetic induction line and assemble the stand column.

Assembly instructions:

1. Remove the packing materials on both sides of the stand column.
   Fix the stand column to the corresponding position of the main frame as shown in the picture below.
   Note: Connect the magnetic line below.

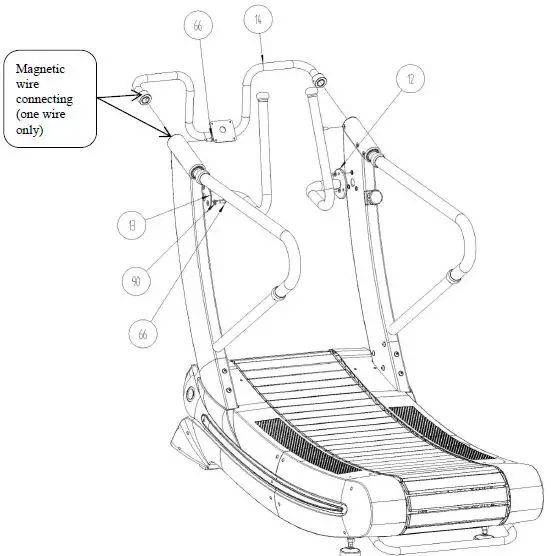

Assembly step two:
Connect the magnetic induction line，assemble the console holder and handrail

Assembly instructions:

1. Connect the magnetic induction line of the console holder to those in the stand column.
2. Fix the console holder tightly with the stand column as shown in the picture below, using 2 pcs of (27).
3. Fix the handrail tightly with the stand column as shown in the picture below.

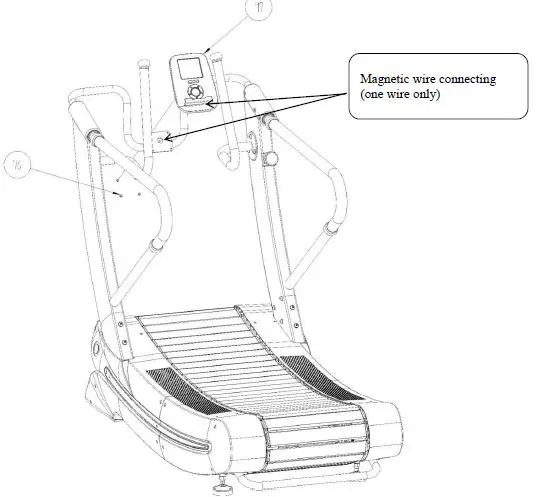

Assembly step three:
Assembling the console; connecting the magnetic line

1. Connecting the magnetic line of the console with the line in the holder console holder.
2. After connected the magnetic line, place the console at the joint of console holder and fasten it (as shown), using 4pcs of (13) and 4pcs of (14).
3. Stepping on the running belt run it, and press the button to start the treadmill, check the machine is running normally or not, the console data display is comprehensive and accurate or not.
4. If the machine runs normally, all bolts are tightened in place, then, the treadmill is assembled;

Operation Guide

Console Introduction:
This treadmill adopts console model, four dry battery power supply, low power consumption, no external power supply required; This treadmill interface has only one main interface, with six buttons to achieve the purpose of use, the specific operation methods of the treadmill are as follows:

Home page

The main interface is used to display device name, time, distance, calories, speed,

Six button

1. Start/Stop button. In standby mode, all data will start counting only when you click this button.Click this key while running, and all data will stop counting.
2. Numerical plus key: For numerical addition on numerical setting interface, growing rate: +1.
3. Numerical minus key: For numerical reduction on numerical setting interface, reduction rate: -1
4. Program setting key: Click this key to start program setting, consist of body fat test; time reciprocal, distance reciprocal, calories reciprocal and heart rate monitoring five kinds of procedures;
5. Reset key: Touch this button (no more than 3s) to back step.; Long press this key (more than or equal to 3s) to return to the initial interface, all data will be reset.
6. Confirm key: Confirm key for data and program selection. numerical modification confirmation;

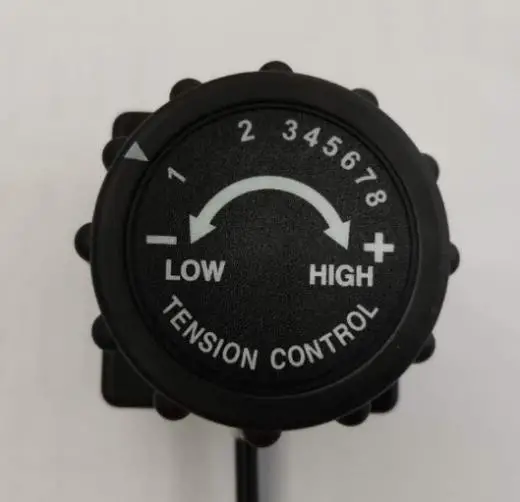

Resistance knob operation instruction:
This treadmill uses a knob to adjust the resistance of the wire. As shown in the picture it is divided into 1-8 gears from left to right, and the resistance increases gradually.

Packing List

1. Main frame assembly one piece
2. Right side stand column handrail one piece
3. Left side stand column handrail one piece
4. Console welding assembly one piece
5. Console one piece
6. Whole Screw one piece

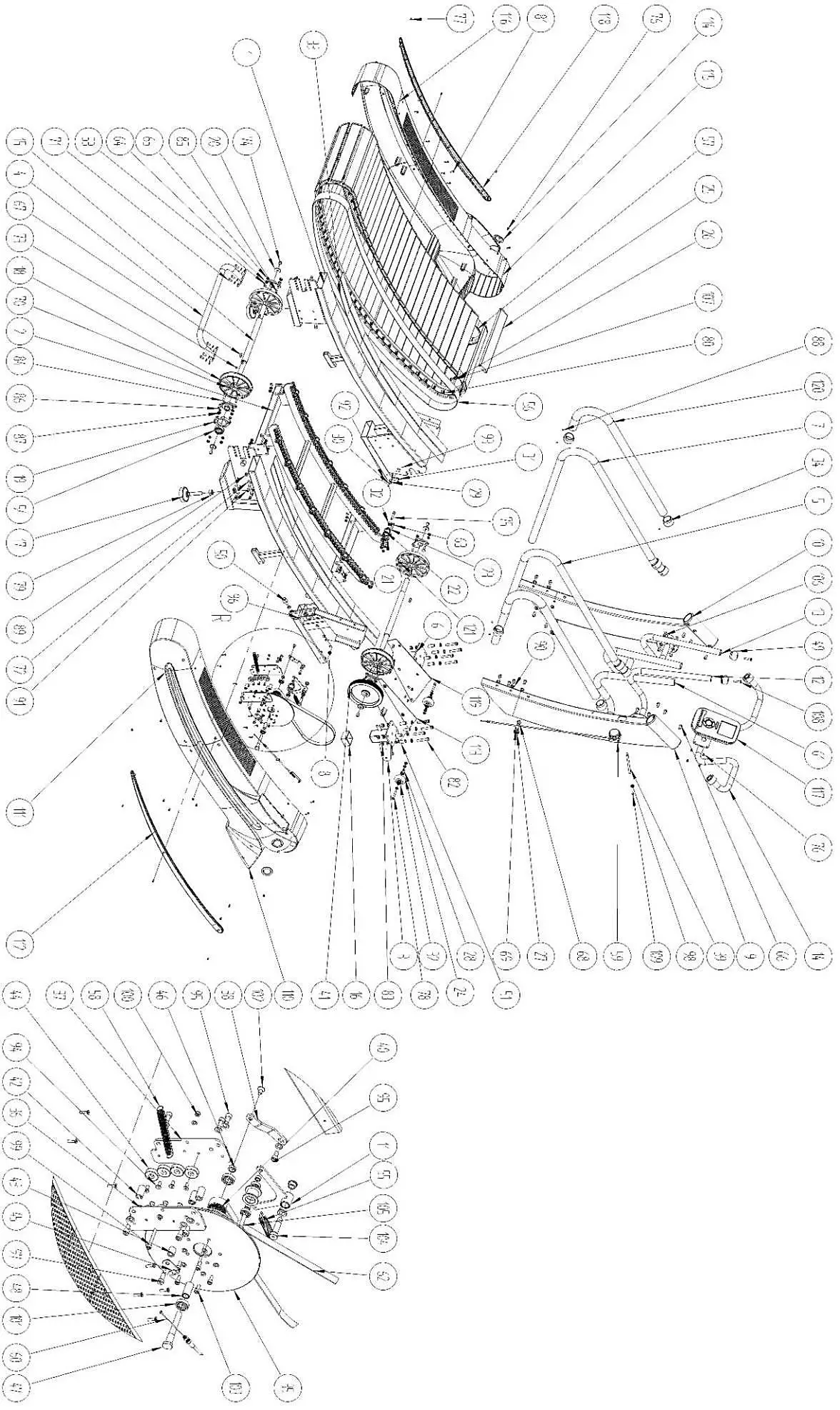

Explosive view:
