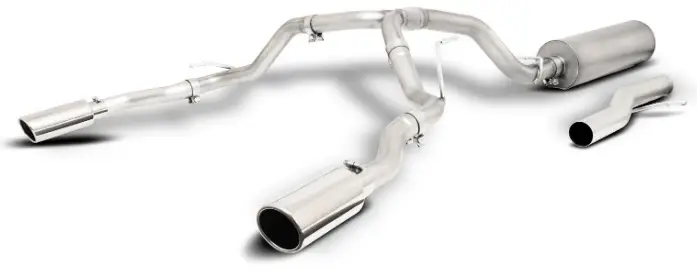

GIBSON 65715 Split Rear Exhaust System

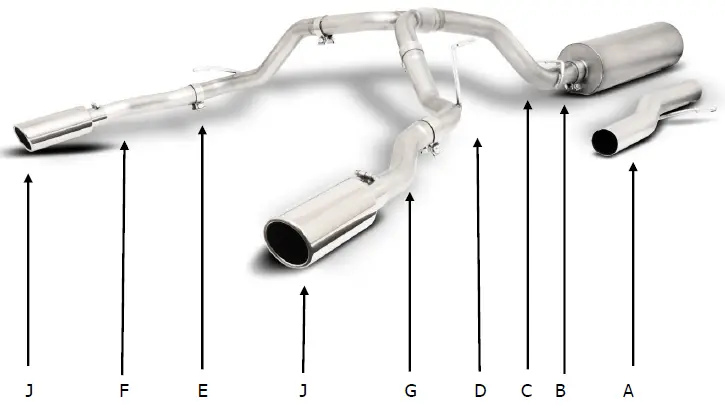

PARTS
| Item | Part Number | Quantity | Description |
| A | 99701108S | 1 | 3.5″ Head Pipe |
| B | 420887-V | 1 | SFT Muffler |
| C | 999701094S | 1 | 3.0″ Over Axle Y- pipe |
| D | 999701094S-B | 1 | 2.50″ Passenger side Extension pipe w hanger |
| E | 999701094S-C | 1 | 2.50″ Driver side Extension pipe w hanger |
| F | 999701109S | 1 | 2.5″ Stainless Exit pipe Notched (Driver Side ) |
| G | 999701110S | 1 | 2.5″ Stainless Exit pipe Notched (Passenger Side ) |
| H | 5762 | 4 | 2.5” Band Clamp |
| I | 5763 | 2 | 3.0″ band clamp |
| J | 500662 | 2 | Rolled Round Angle Cut Tip |
| K | 4240 | 1 | Rubber Hanger |
CAREFULLY READ THE INSTRUCTIONS BEFORE INSTALLING THE PRODUCT
When installing this exhaust system make sure to use proper safety precautions. Therefore, make sure the instructions are thoroughly read and understood before attempting to install. Use jack stands when working under the vehicle, set the parking brakes, block tires and use safety glasses and gloves. Allow the exhaust system to cool before attempting installation. Severe injury or burns could occur if safety measures are not taken.
SUGGESTED TOOLS
Sawzall or hack-saw, 1/2″, 9/16” socket or wrench, 15mm deep socket or wrench. Hanger removal tool or large channel-lock pliers, WD-40 and Jack Stands.
INSTALLATION

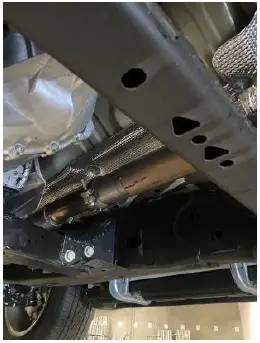

- TO REMOVE YOUR STOCK EXHAUST, Un Bolt the back half from the flange LOCATED above the rear suspension, then loosen the front clamp and remove the remaining exhaust. Your Spare Tire & Heat Shield will need to be removed for installation. (FACTORY RUBBER HANGER GROMMETS WILL BE RE-USED, USE WD-40 TO AID IN REMOVAL.).

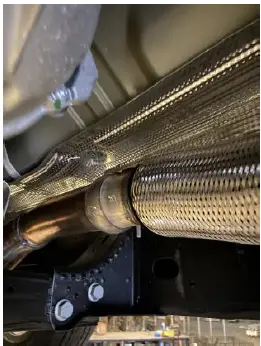

- Install head pipe #A onto you’re existing stock Pipe use your factory Band Clamp. Insert the welded hanger into the rubber grommet. Do not tighten.

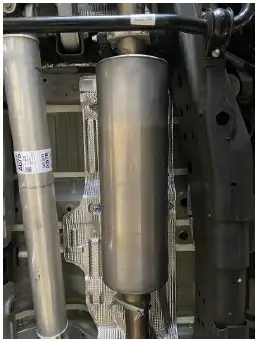

- Install muffler onto head pipe #A 1-1/2” to 2” with the louvers facing towards the converter. Use a jack stand to support the muffler. Use clamp #H to secure the muffler to the head pipe. Do not tighten.

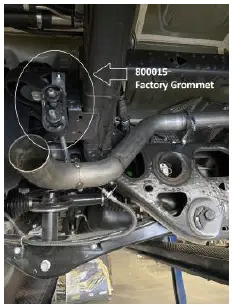

- Install metal hangers #K using Bolt Kit #J. We will Re-use the middle support hanger grommet from the stock exhaust for this bracket.

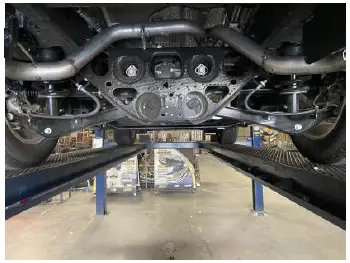

- Install the Over Axle Assy. #C into the muffler at least 1-1/2” to 2”. #C needs to be installed from the back of the car where the Spare Tire Sits. Use clamp #H to secure the pipe to the muffler. Do not tighten. Insert hangers into the rubber grommet.

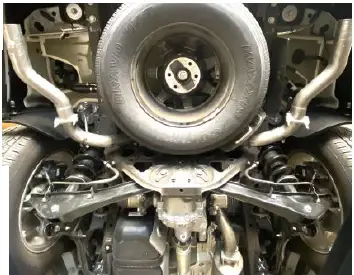

- Install the Over Axle (B) #D onto the PS output of the First Over Axle Pipe then install Over Axle (C). Use clamps #G to secure pipe. Do not tighten. Next, Install the Exit Pipes #E with the tips pre-installed to set height, then tighten using clamps #G. Re-install the spare tire and heat shield. Position all pipes and double-check all connections prior to tightening clamps.

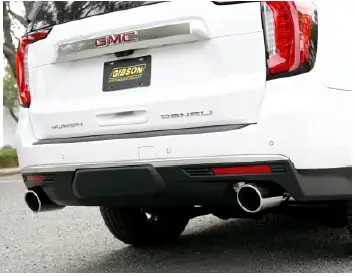

- Finally, go back and tighten all clamps, nuts, and bolts. Use stainless steel cleaner and a Scotch Brite pad weekly to prevent the tip from discoloration. Inspect all fasteners after 25-50 miles of operation and re-tighten as necessary.
GIBSON EXHAUST systems are designed on a factory stock vehicle. Any aftermarket products installed could increase the sound levels of this Exhaust. Make sure there is a 1” clearance from ALL rubber brake lines, shock boots, fuel lines, tires, etc to prevent heat-related damage or fire.
Vehicle. If you need further assistance, please do not hesitate to call our Technical Department at (800) 528-3044, Monday through Friday, 8:00 am to 5:00 pm PST.
