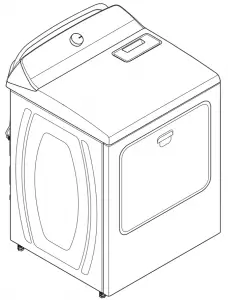

Whirlpool WED5010LW White Moisture Sensing Electric Dryer
DETAILED PLANNING DIMENSIONS
Electrical Requirements | ||
Fuel Type | Electric | Gas |
| Minimum Circuit Amperage Rating | 30A | 15A |
| Maximum AMP Draw | 26A | 6A |
| Operating Voltage | 120/240 V – AC only | 120 V – AC only |
| Current Canada Rating | 24A | |
| Operating Frequency | 60 Hz | |
Product Dimensions | |||
in | mm | ||

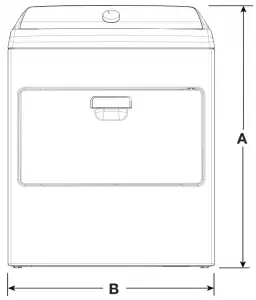

| A | Height (With leveling legs not extended) | 40 1/2 | 1028 |
| B | Width | 29 | 737 |

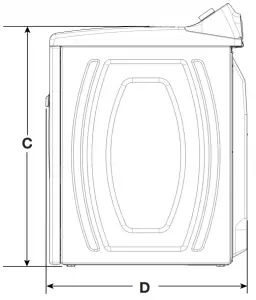

| C | Top Height (with min. feet) | 36 7/8 | 937 |
| D | Depth | 28 8/3 | 722 |

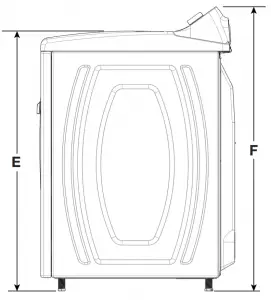

| E | Top Height (With leveling legs fully extended) | 38 1/2 | 978 |
| F | Height (With leveling legs fully extended) | 42 1/8 | 1069 |

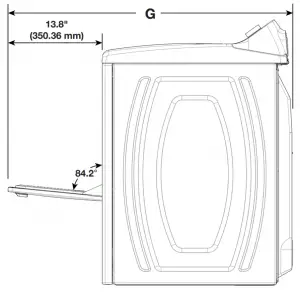

| G | Depth with Door Open | 4111∕16 | 1059 |
Product Dimensions | |||
in | mm | ||

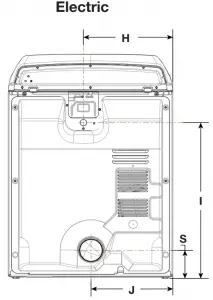

| H | Strain Relief from Side (electric) | 15 3/4 | 400 |
| I | Strain Relief Height (electric) (With leveling legs not extended) | 28 1/8 | 714 |
| J | Exhaust Duct from Side | 14 7/16 | 366 |

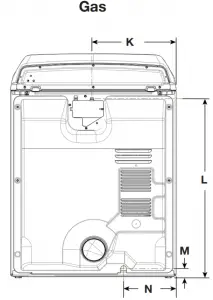

| K | Power Cord from Side (gas) | 14 3/4 | 375 |
| L | Power Cord Height (gas) | 32 3/8 | 822 |
| M | Gas Connection (With leveling legs not extended) | 1 11/16 | 43 |
| N | Gas Connection from Side | 9 3/16 | 234 |

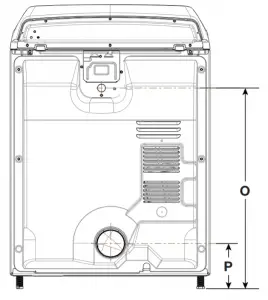

| O | Strain Relief Height (electric) (With leveling legs fully extended) | 29 3/4 | 755 |
| P | Exhaust Duct Height (With leveling legs fully extended) | 6 11/16 | 170 |

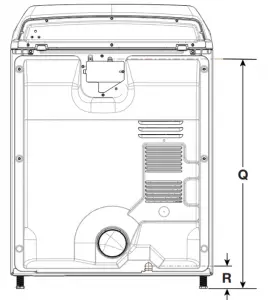

| Q | Power Cord Height (gas) | 34 | 863 |
| R | Gas Connection (With leveling legs fully extended) | 3 5/16 | 84 |
| S | Exhaust Duct Height (With leveling legs not extended) | 5 1/16 | 128 |
| Gas Power Cord Length | 60 | 1525 | |

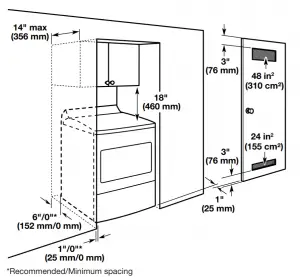

Spacing for recessed area or closet installation
The dimensions shown are for the recommended spacing allowed.
- Additional spacing should be considered for ease of installation and servicing.
- Additional clearances might be required for wall, door, and floor moldings.
- Additional spacing of 1″ (25 mm) on all sides of the dryer is recommended to reduce noise transfer.
- For closet installation, with a door, minimum ventilation openings in the top and bottom of the door are required. Louvered doors with equivalent ventilations openings are acceptable.
- Companion appliance spacing should also be considered.
