Whirlpool W11667326 Dryer User Guide

Quick guide

W11667326 Dryer

THANK YOU FOR BUYING A WHIRLPOOL PRODUCT.
In order to receive a more complete assistance, please register your product on www.whirlpool.eu/register
Before using the appliance carefully read the Safety Instruction.

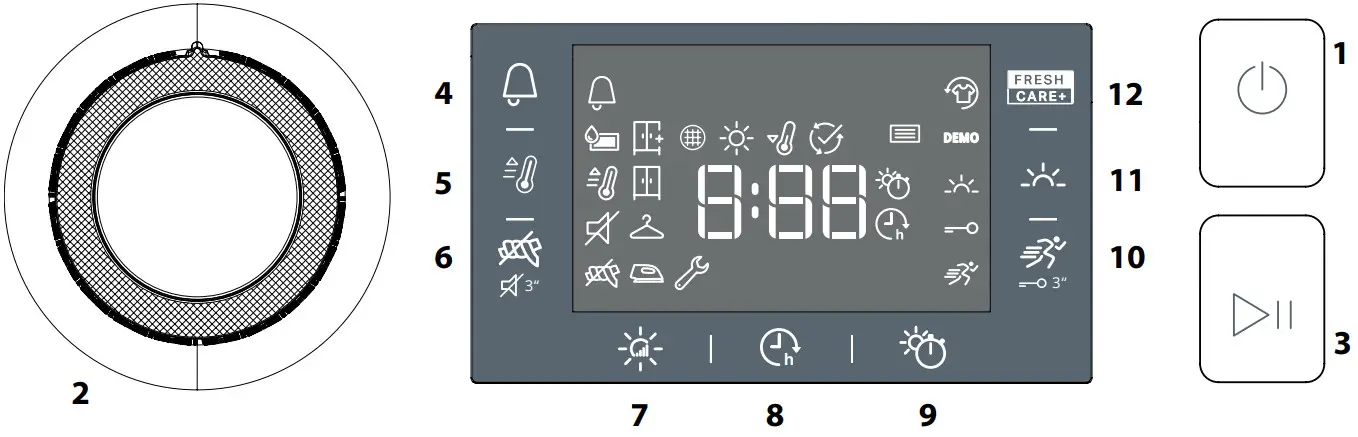

CONTROL PANEL

1. ON/OFF button (hold for Reset)
2. Programme selection Knob
3. Start/Pause
   Options Buttons*
4. Cycle end
5. High heat
6. Anti tangle (hold for Mute)
7. Dryness level
8. Start delay
9. Timed drying
10. Rapid (hold for Key lock)
11. Gentle
12. FreshCare+

*Note: some models may have the wording in full instead of the icons.

INDICATORS

Dryness level: Iron dry – Hanger dry – Cupboard dry – Extra dry
Cycle phase:Drying – Cool down – End of cycle
Empty water tank – Clean door filter – Clean bottom filter
Refer to troubleshooting section: Failure: Call after sales service – Demo mode

FIRST TIME USE
Make sure that the water tank is correctly inserted. Make sure that the drain hose on the back of the dryer is fixed correctly, either to the dryer’s water tank, or to your domestic drainage system.
The dryer must be installed in a room with a temperature ranging between 5°C and 35°C to ensure proper operation. Before you use your dryer ensure that it has been in a upright position for at least 6 hours.

DAILY USE

Doing this will keep your machine working at its BEST:

• remember to empty your water tank after each drying cycle.
• remember to clean your filters after each drying cycle.

Refer to the Care & Maintenance section.

1. Plug the dryer into the power supply socket.
2. Open the door and load garments; always refer to instructions on clothing labels and the max loads indicated in the programme section. Empty pockets. Make sure garments do not get caught between the door and/or the door filter. Do not load items that are dripping wet. Do not tumble dry large, very bulky items.
3. Close the door.
4. Press the “On/Off” button.
5. Select the most suitable programme for the type of fabric in that load.
6. Select the options, if necessary.
7. Press the “Start/Pause” button to begin drying.
8. At the end of the drying cycle, a buzzer will beep. An indicator on the control panel signals the end of the cycle. Pull the load out immediately to prevent the formation of creases on laundry.
9. Turn the machine off by pressing the “On/Off” button, open the door and pull the clothing out. If the machine is not switched off manually, after about a quarter of an hour from the end of the cycle , the appliance turns off automatically to save energy.
   Note that some programme/option accords with “Crease Care” system. This means that for some hours, after the end of the drying cycle, the drum rotates at regular intervals to prevent the formation of creases.
   In case of power failure, it is necessary to press the “Start/Pause” button to restart the cycle.

OPENING OF THE DOOR DURING THE CYCLE
Laundry can be checked while the drying cycle runs and any garments already dry can be removed, while drying continues for the remaining items. After closing the door, press the “Start/Pause” button to resume machine operation.
Keep the door closed until the cycle end to save time and energy.

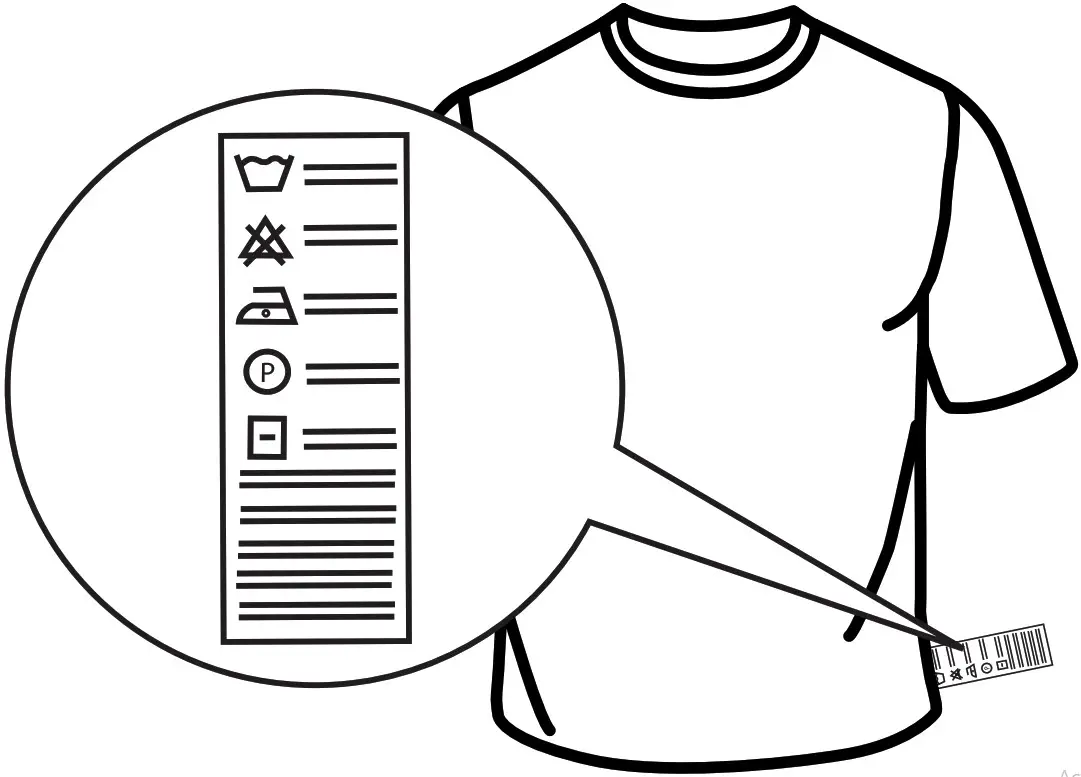

CARE LABEL
Always check the care labels, especially when placing garments in the tumble dryer for the fi rst time. Below are the most commonly used symbols:

	May be tumble dried.
	Do not tumble dry.
	Tumble dry – high heat.
	Tumble dry – low heat.

PROGRAMS

The duration of these programs will depend on the size of the load, types of textiles, the spin speed used in your washer and any extra options selected. In machines equipped with display, the duration of the cycles is shown on the control panel. The remaining time is constantly checked and adjusted during the drying cycle to show the best possible estimate.
Option to use – If all your loads on Automatic Cycles are consistently less dry or more dry than you would like, you may increase or decrease the dryness level using the specific option.

Eco – – – kg Max*
This is the most efficient programme in terms of energy consumption and is suitable for drying normal wet cotton laundry. The values on the Energy Label are based on this programme.
NOTE: For optimal energy efficiency this cycle by default is set up to”Cupboard Dry” level. For a higher dryness level we suggest using the Cotton cycle.
Cotton – – – kg Max*
Cycle suitable for drying all types of cotton, ready to be placed in the cupboard.
Mixed – – – kg 4
This programme is ideal for drying cotton and synthetic fabrics together.
Bed linen – – – kg Max*
This programme is intended for drying cotton sheets.
Duvet
Programme intended to dry bulky items, such as a single duvet.
Shirts – – – kg 3
This is a programme for Shirts made from cotton or cotton blend/synthetics.
Jeans – – – kg 3
For drying sturdy cotton including denim trousers and jackets.
Easy ironing
This cycle relaxes fibres, thus making ironing and folding easier. Suitable for small load of damp or dry cotton and cotton blend fabrics. Not for wet items.
Refresh
A short programme suitable for refreshing fibres and garments through the emission of fresh air. Do not use on wet items. It can be used on with any load size but is more effective with small loads. It lasts about 20 minutes.
Rapid 30′ – – – kg 0.5
Ideal for drying cotton garments spun at high speed in the washing machine.
Sport – – – kg 4
For drying synthetics or cotton sports garments.
Silk – – – kg 0.5
Gentle drying of silk garments.
Wool – – – kg 1
Programme for drying wool clothes. It is advisable to turn the items inside out before drying. If heavy edges remain damp, leave them to dry naturally.
Delicates – – – kg 2
For drying delicate laundry requiring gentle treatment.
Synthetics – – – kg 4
For drying synthetic fabrics.

*MAX LOAD 8 Kg (Dry load)

OPTIONS

These buttons allow you to personalise the selected programme according to personal requirements. Not all options are available for all programmes. Some options may be incompatible with ones you have previously set; if so, you will be alerted by the buzzer and/or blinking indicators. If the option is available, the option indicator will stay on. The programme may retain some options selected in previous drying cycles.
Dryness level
Press the related button several times to obtain a different level of residual moisture on garments. An indicator signals the level being selected.
Iron dry: very delicate drying. Items will be more easily ironed immediately after the cycle.
Hanger dry: a level intended for delicate garments ready to be hanged.
Cupboard dry: the laundry is ready to be folded and put away.
Extra dry: for laundry intended to be worn at the end of the cycle.
Timed drying
This option is to manually set the drying time. Press the corresponding button to set the required time for drying. An indicator on the control panel signals the time being selected.
Start delay
This option is for delaying the start of the cycle. Press the corresponding button several times to find the required delay. Once the max time is reached, the option is reset by pressing the button again. An indicator on the control panel signals the time being selected. After pressing the “Start/Pause” button, the machine signals the time remaining to the start of the cycle. If the door is opened, press the “Start/Pause” button once the door has been closed.
Rapid
Enables quicker drying.
FreshCare+
If laundry is left inside of the drum once the cycle has ended, it can be subjected to bacterial proliferation. This option helps to prevent this from happening by controlling the temperature and gently rotating the drum. This will continue for up to 6 hours after the end of the cycle. This setting will remain in the memory of the previous cycle. If this is used alongside Start Delay, a crease treatment will be perfomed during this phase by periodic rotations of the drum.
Key lock
This option makes all machine controls inaccesible, except the “On/Off” button. When the machine is on:

• to activate the option, keep the button pressed until the machines signals that the option has been enabled.
• to disable the option, keep the button pressed until the machine signals that the option has been disabled.

This option remains in memory if selected in previous drying.
Cycle end
This option activates a prolonged buzzer at the end of the cycle. Enable it if you are not sure to hear the normal sound at the end of the cycle. This option remains in memory if selected in the previous drying.
Mute
This option turns off all sounds of control panel. Only warnings remain active.

• to activate the option, keep the button pressed until the indicator goes on.
• to disable the option, keep the button pressed until the indicator goes off.

High heat
It improves the drying capacity. Option suitable for drying tough garments, it is used with timed cycles.
Anti tangle
This option performes a special drum movement that reduces tangling and knotting of your clothes. It gives best results when used with smaller loads.
Gentle
Enables a more gentle treatment of the laundry by reducing the drying temperature.

CARE AND MAINTENANCE

WARNING: unplug the dryer during the cleaning and maintenance procedures.
Emptying the water tank after each cycle (see Fig. A).
Pull the container out of the dryer and empty it into a sink or other suitable drain, then place it back properly. Do not use the dryer without having inserted the container back in place.
Cleaning the door filter after each cycle (see Fig. B).
Pull the filter out and clean it by removing the lint from the filter surface under running water or using a vacuum cleaner. For optimal performance, dry up the filter before inserting it back in place.
Do not use the dryer without having reinserted the filter in place.
Remove the door filter as described below:

1. Open the door and pull the filter upwards.
2. Open the filter and remove the lint from all its parts. Replace the filter correctly making sure it is fully seated.

Cleaning the bottom filter when the relevant indicator turns on (see Fig. C).
Pull the filter out and remove the lint from its surface by washing it under runing water or by using a vacuum cleaner.
However, it is advisable to clean this filter after each cycle to optimise drying performance.
Do not use the dryer without having reinserted the filter in place.
Remove the bottom filter as described below:

1. Open the bottom cover;
2. Take the handle and pull the filter out.
3. Open the rear side of the filter and remove the lint from the inner surface of the mesh.
4. Clean the filter chamber avoiding the direct contact with the fins.
5. Close the rear side of the filter and place it back by checking it is perfectly integrated into its seat.
6. Lower the filter handle and close the bottom cover.
7. Make sure the air intake is free.

The filters are essential parts for drying. They are intended to collect the lint formed during the drying process. In case of clogged filters, the air flow inside the dryer would be seriously affected: the drying times would be longer, the energy consumption would increase and the dryer could be damaged. If these procedures are not carried out properly, the dryer may not start.
Cleaning the tumble dryer

• The external metal, plastic and rubber parts can be cleaned with a damp cloth.
• Clean the front air intake grille regularly (every 6 months) with a vacuum cleaner to remove any lint, fluff or dust deposits. Furthermore, remove any lint deposits from the filters area, using a vacuum cleaner every so often.
• Do not use solvents or abrasives.

TRANSPORT AND HANDLING

Never lift the dryer by holding it at the worktop.

1. Unplug the dryer.
2. Remove the water from the water tank completely.
3. Make sure that door and water tank are properly closed.
4. If the drain hose is connected to your drainage system, re-connect it to the back of the dryer (see “Installation” section in the Safety Instruction guide).

Power consumption
off-mode (Po) – Watts			0.50
left-on mode (PI) – Watts			2.00
Programs	Kg	kWh	Minutes
Eco*	8	1.	165
Eco	4	0.78	96
Synthetics	4	0.94	113
This is the reference programme for the energy label and suitable to dry normal wet cotton laundry. This is the most efficient programme in terms of energy consumption for drying wet cotton laundry. (Standard/Default starting configuration).

Heat Pump System
The heat pump contains fluorinated greenhouse gases, contained in a hermetically sealed unit. This sealed unit contains 0.43 kg of the R134a gas. GWP = 1430 (1 t CO2).

PRODUCT DESCRIPTION

1. Water Tank
2. Air Intake
3. Bottom filter
4. Door filter

TROUBLESHOOTING

Before contacting the After-sales Service, refer to the table below. Often the malfunctions are minor and can be solved in few minutes.

*Note: some models are auto-cleaning and not equipped with bottom filter. Please refer to the Care & Maintenance section.
Policies, standard documentation, ordering of spare parts and additional product information can be found by:

• Visiting our website docs.whirlpool.eu and parts-selfservice.whirlpool.com
• Using QR Codehttp://docs.whirlpool.eu

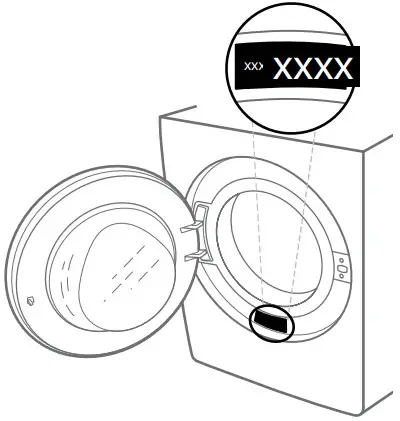

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product’s identifi cation plate.
