RL00 Non Motorised Diffusion
User Manual
RL00 Non Motorised Diffusion
FLOW TOOL
Visit Flowtool to calculate/select your installation.

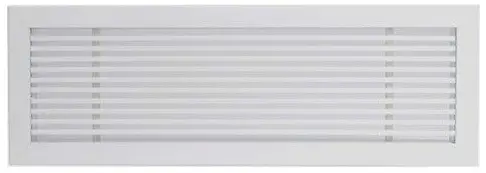

0° FIXED LINEAR-SLAT GRILLE
Diffusion grille made from extruded aluminum with a standard frame measuring 26 mm which facilitates airflow supply. Designed for air diffusion in air conditioning, ventilation or heating installations. The available regulation types are:
- All-nothing: The damper occupies 100% of the grille
- Minimum air: The damper occupies 80% of the grille
- 2 x 1: The damper occupies 50% of the grille

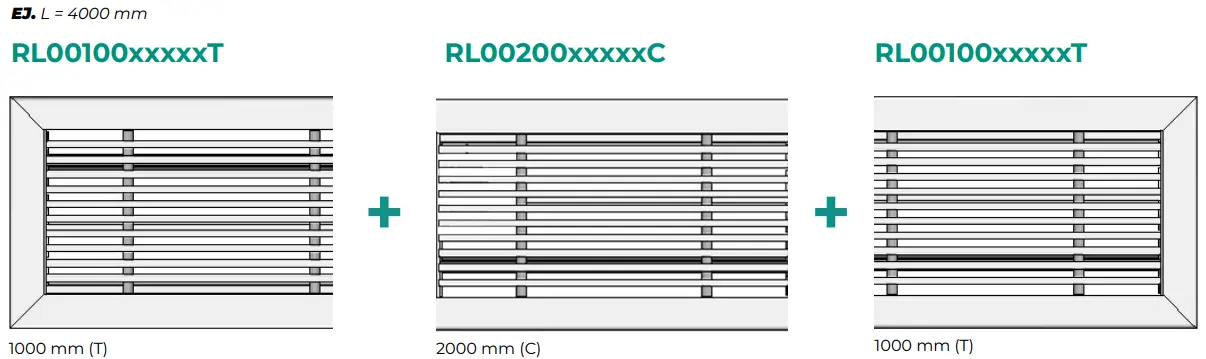

L > 2000: Request sections to assemble on site (C, T)

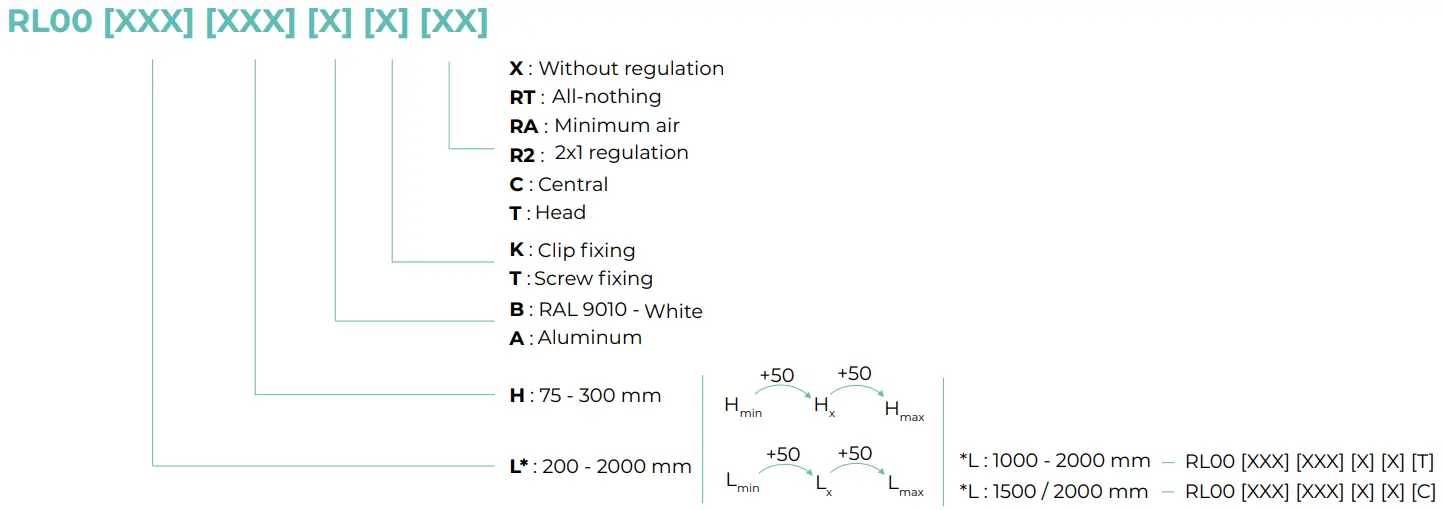

EJ. RL00[030][015][B][K][X]: RL00 measuring 300 x 150 mm in white with clip fixing and without regulation.

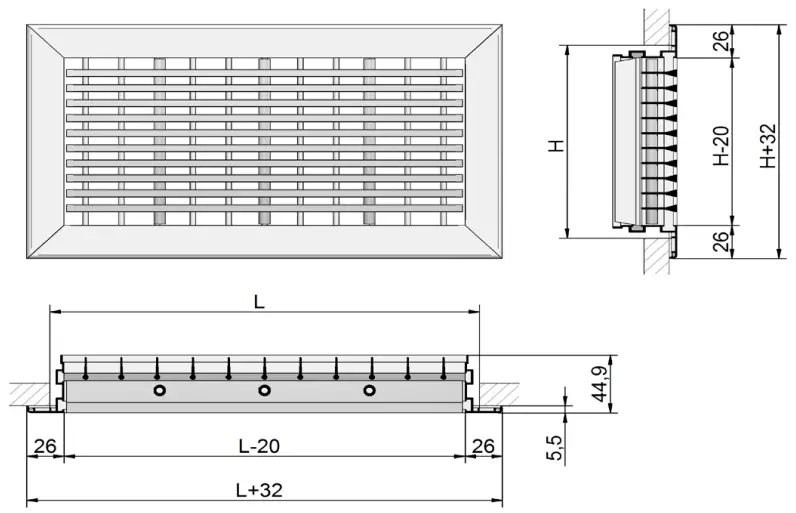

The dimensions may vary depending on the type of fixing or regulation.
COMPATIBLE ACCESSORIES
- PREJxx
- CREJ
- LAG
- DFxx
- FR-X2F

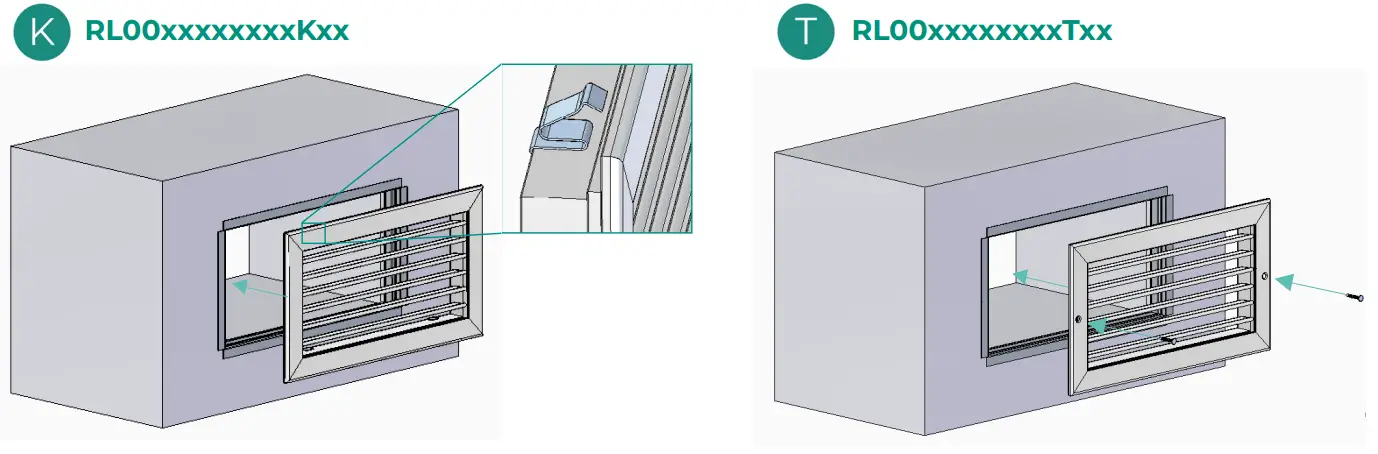

INSTALLATION
K Insert the grille into the opening until it clips into place.
T Fit the grille into the opening and screw it tightly into place.
For ceiling installation, the use of screws is necessary.
Requires assembly frame.
L > 2000: Request sections to assemble on site (C, T)
V 1.0
