6730-10

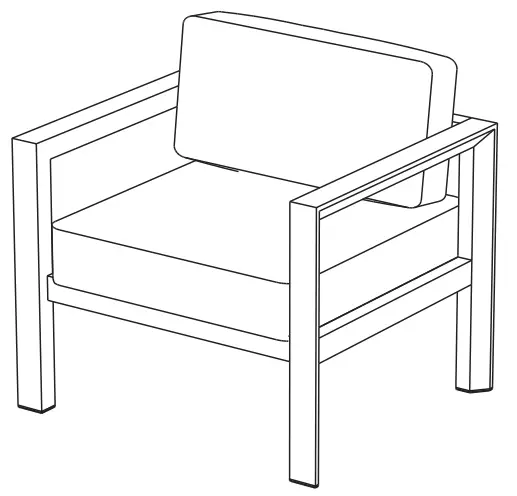

Chair
6730-10 Chair
IMPORTANT
Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage. Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools above 8 volts to assemble and only tighten bolts until snug. Over tightening can damage the aluminum.

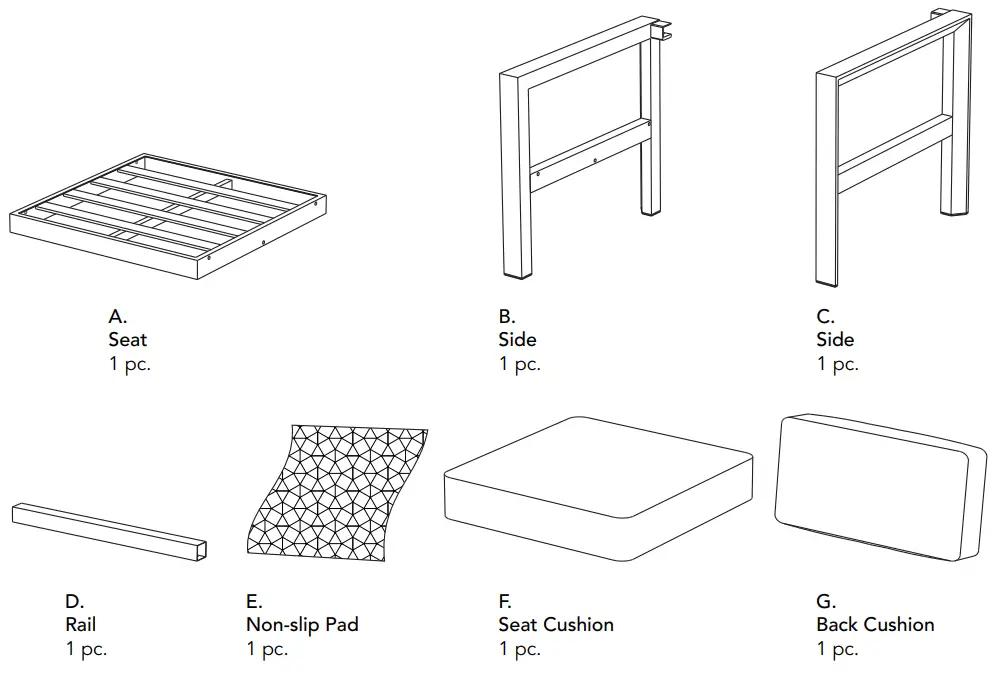

Part List

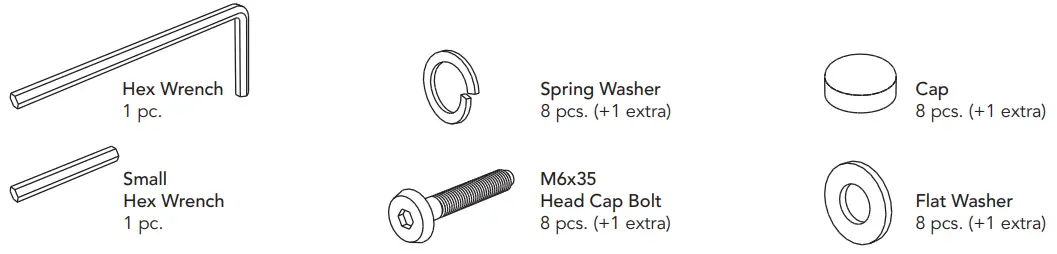

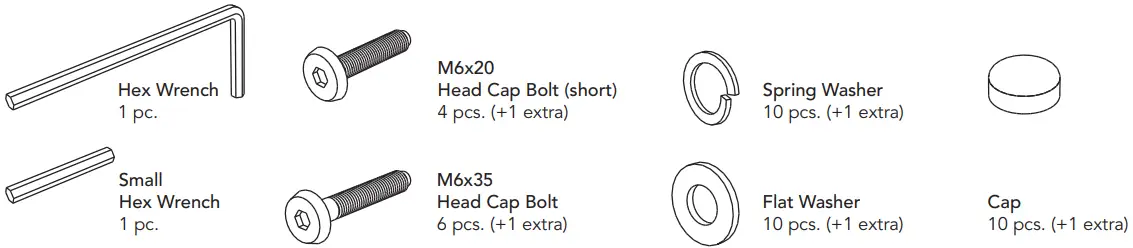

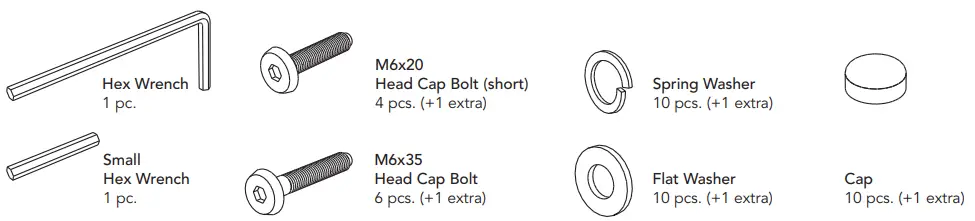

Hardware List
Assembly Instructions
IMPORTANT
- Use a soft cloth between these parts and the floor.
- Do not use power tools above 8 volts to assemble.
- Do not tighten all the bolts until each part is properly assembled.
- Keep Hex Wrench as the bolts may need to be tightened in the future.

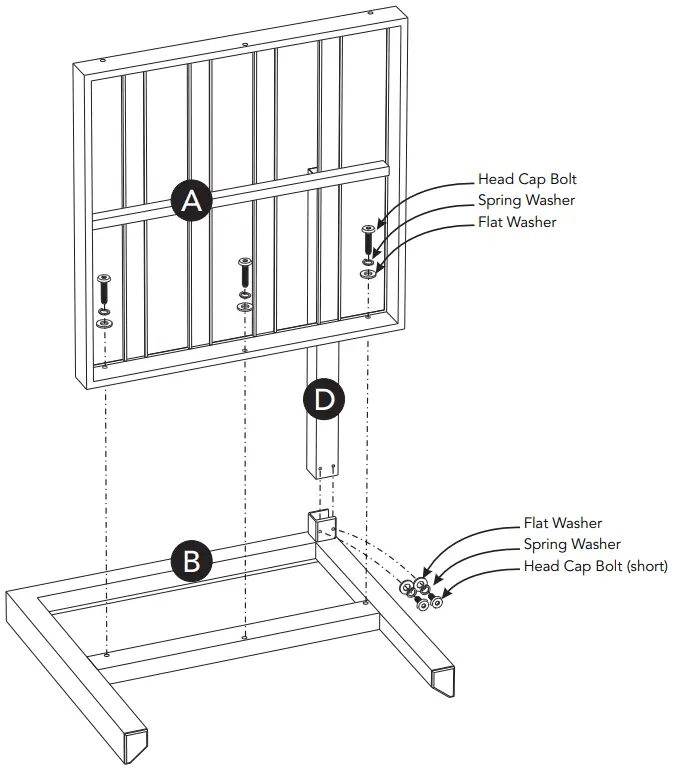

STEP 1

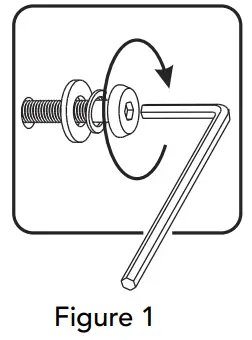

Attach Rail (D) to Side (B) with Head Cap Bolts (short), Spring Washers and Flat Washers, tightening bolts only halfway. (See Figure 1)
Attach Seat (A) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
STEP 2

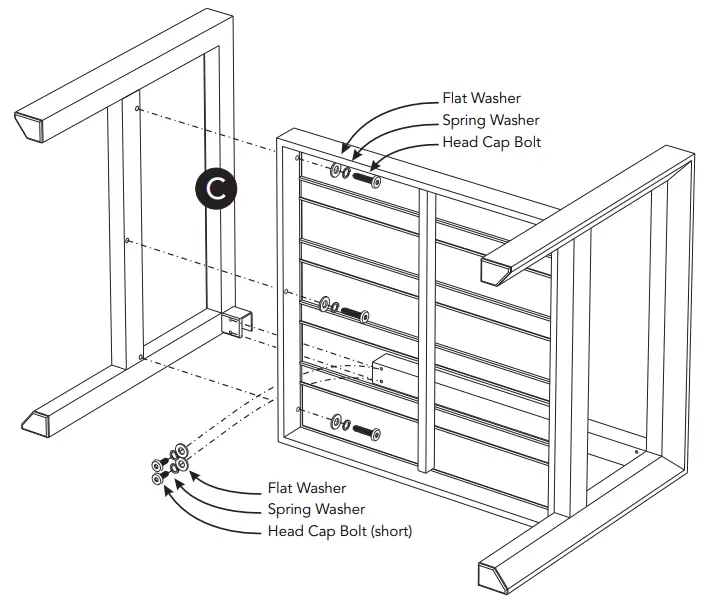

Attach Side (C) to unit with Head Cap Bolts, Head Cap Bolts (short), Spring Washers and Flat Washers, tightening bolts only halfway.
Tighten all bolts used in Steps 1 and 2.
Cover all Head Cap Bolts with Caps. (See Figure 2)
STEP 3
Turn unit to its upright position.

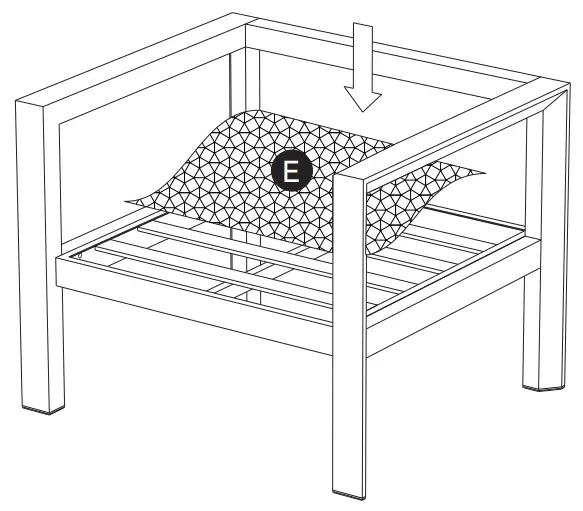

Place Non-slip Pad (E) into position.

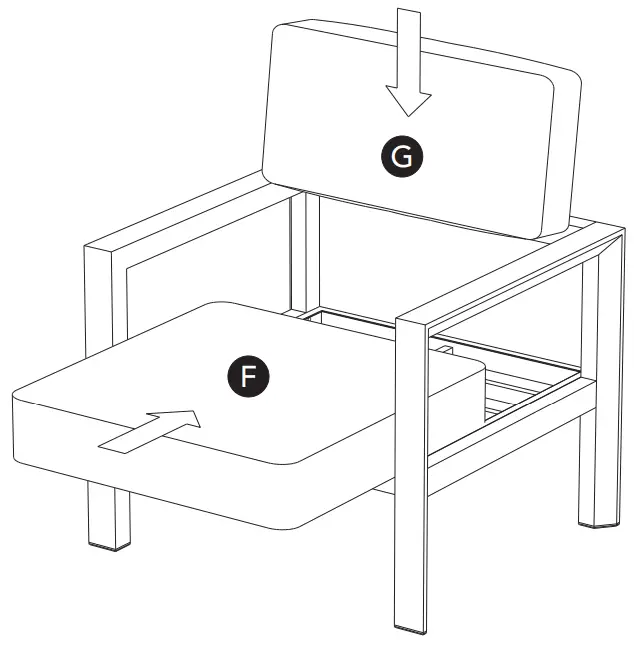

STEP 4
Place Seat Cushion (F) into position.
Place Back Cushion (G) into position.
Cushion Care Instructions
- Keep cushions free of natural debris.
- Tip and angle cushions after use.
- Store cushions inside when not in use.
- Allow a minimum of 24 hours for wet cushions to air dry.
- Never use a hairdryer on cushions.
- Never put cushions in a clothes dryer.
- Cushion covers are hand wash and air dry only.
CARE INSTRUCTIONS
NEVER allow liquids to remain on furniture. Absorption causes parts to warp and split and finishes to delaminate.
NEVER use glass cleaners on finished furniture. Ammonia chemically attacks the finish.
 |  |  |
| Do not use power tools above 8 volts to assemble. PREVENT CRACKING | Do not place in direct sunlight. PREVENT FADING | Do not write directly on surface. PREVENT MARKING |
 |  |  |
| Do not place hot objects on surface. PREVENT FINISH DAMAGE | Do not use rubber based placemats. PREVENT DISCOLORING | Do not use commercial waxes and polishes. PREVENT YELLOWING |
CLEAN
with a soft cloth moistened in lukewarm soap and water. Buff with a dry clean cloth.
homestyles will provide replacements free of charge for missing or damaged parts within 2 years of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
6730-60

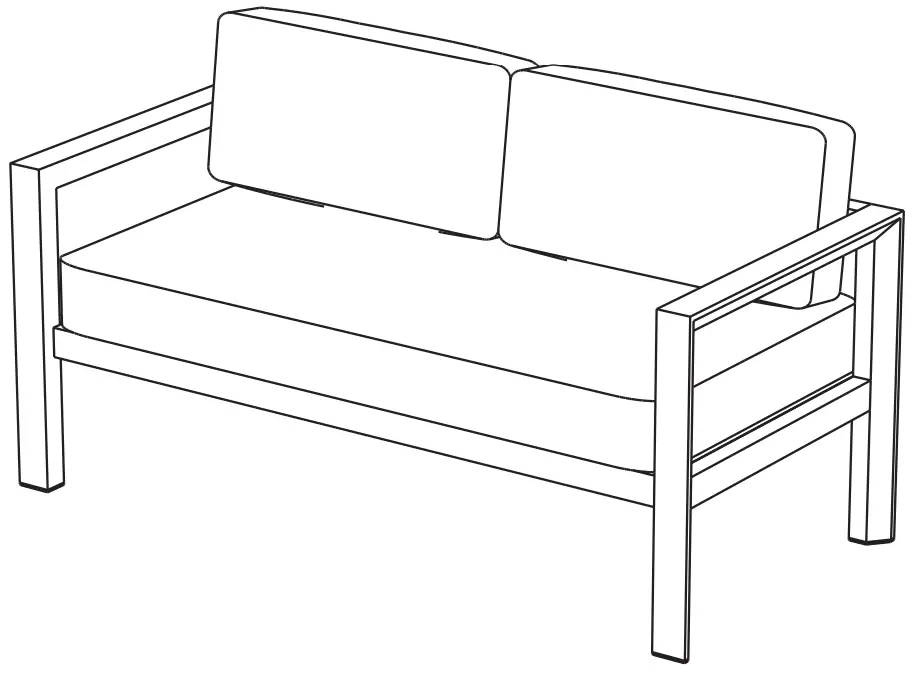

Loveseat
IMPORTANT
Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools above 8 volts to assemble and only tighten bolts until snug. Over tightening can damage the aluminum.

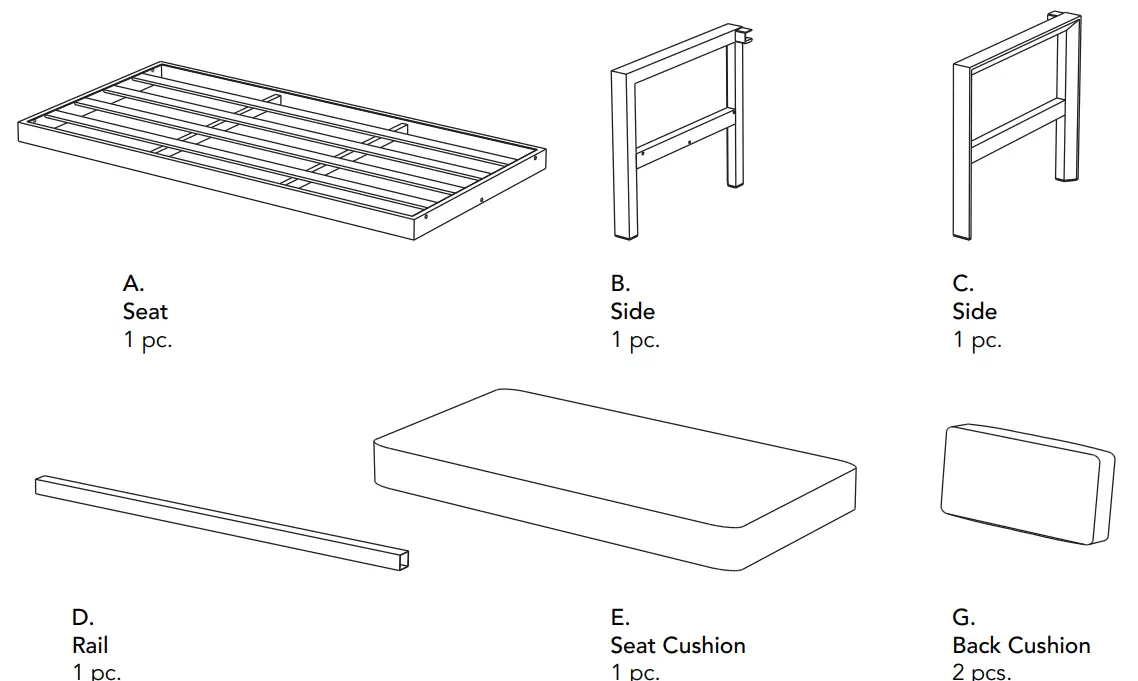

Part List
Hardware List
IMPORTANT
- Use a soft cloth between these parts and the floor.
- Do not use power tools above 8 volts to assemble.
- Do not tighten all the bolts until each part is properly assembled.
- Keep Hex Wrench as the bolts may need to be tightened in the future.

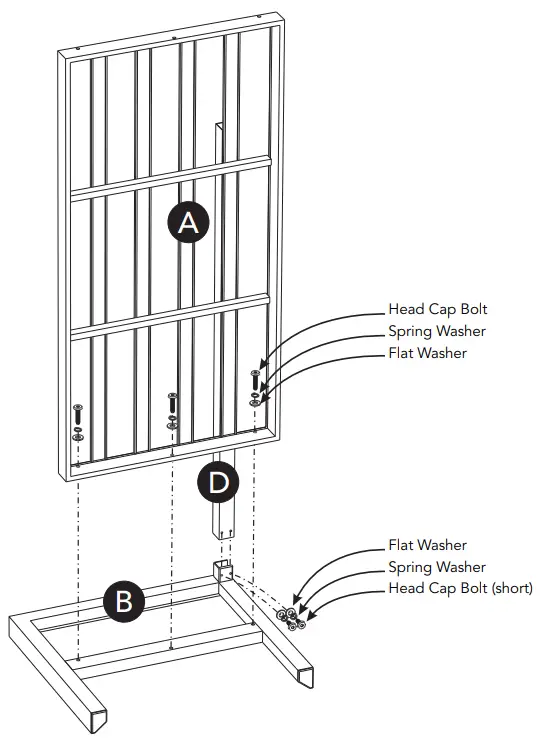

STEP 1
Attach Rail (D) to Side (B) with Head Cap Bolts (short), Spring Washers and Flat Washers, tightening bolts only halfway. (See Figure 1)
Attach Seat (A) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
STEP 2

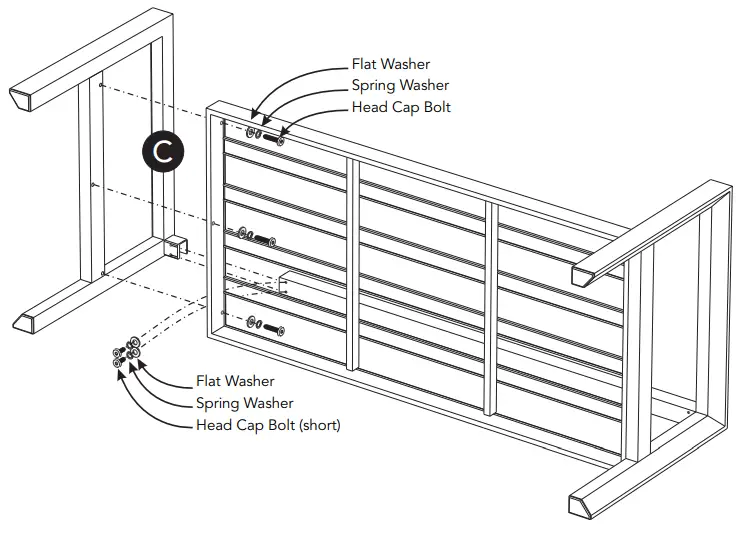

Attach Side (C) to unit with Head Cap Bolts,
Head Cap Bolts (short), Spring Washers and Flat Washers, tightening bolts only halfway.
Tighten all bolts used in Steps 1 and 2.
Cover all Head Cap Bolts with Caps. (See Figure 2)
STEP 3

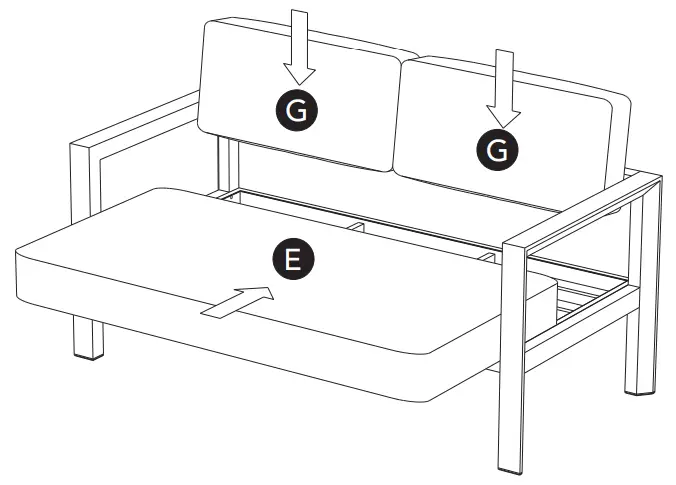

Place Seat Cushion (E) into position.
Place Back Cushions (G) into position.
Cushion Care Instructions
- Keep cushions free of natural debris.
- Tip and angle cushions after use.
- Store cushions inside when not in use.
- Allow a minimum of 24 hours for wet cushions to air dry.
- Never use a hairdryer on cushions.
- Never put cushions in a clothes dryer.
- Cushion covers are hand wash and air dry only.
CARE INSTRUCTIONS
NEVER allow liquids to remain on furniture. Absorption causes parts to warp and split and finishes to delaminate.
NEVER use glass cleaners on finished furniture. Ammonia chemically attacks the finish.
| | |
| Do not use power tools above 8 volts to assemble. PREVENT CRACKING | Do not place in direct sunlight. PREVENT FADING | Do not write directly on surface. PREVENT MARKING |
| | |
| Do not place hot objects on surface. PREVENT FINISH DAMAGE | Do not use rubber based placemats. PREVENT DISCOLORING | Do not use commercial waxes and polishes. PREVENT YELLOWING |
CLEAN
with a soft cloth moistened in lukewarm soap and water. Buff with a dry clean cloth.
homestyles will provide replacements free of charge for missing or damaged parts within 2 years of purchase.
Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
6730-21

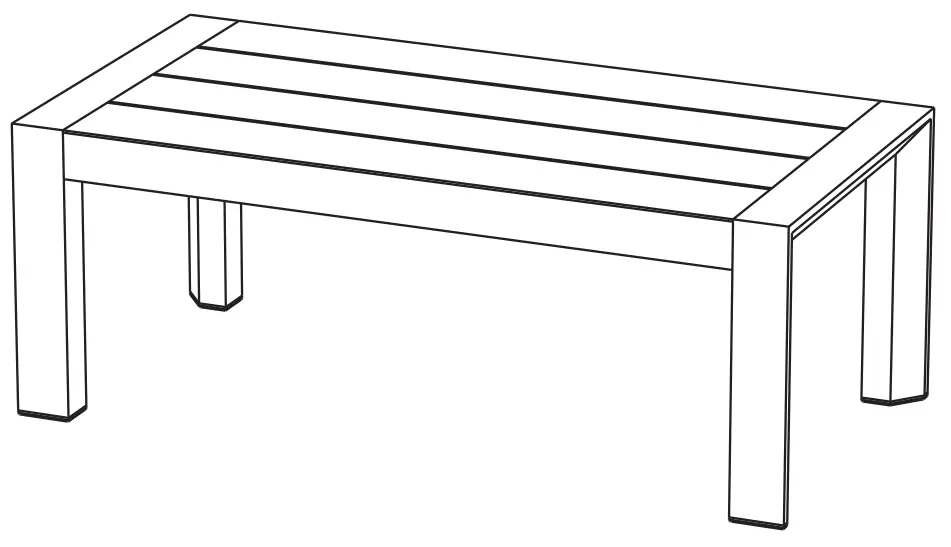

Coffee Table
IMPORTANT
Carefully remove all the parts from the carton and place them individually on a soft cloth to prevent scratches or other damage.
Carefully and strictly follow these assembly instructions to ensure a completed product as designed.
This product is made of aluminum. Do not use power tools above 8 volts to assemble and only tighten bolts until snug. Over tightening can damage the aluminum.

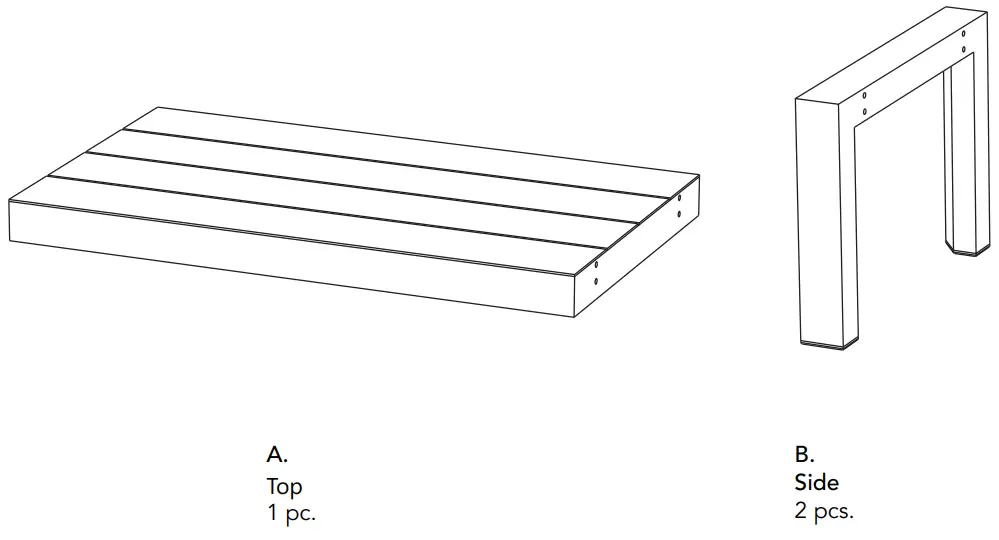

Part List
Hardware List
IMPORTANT
- Use a soft cloth between these parts and the floor.
- Do not use power tools above 8 volts to assemble.
- Do not tighten all the bolts until each part is properly assembled.
- Keep Hex Wrench as the bolts may need to be tightened in the future.

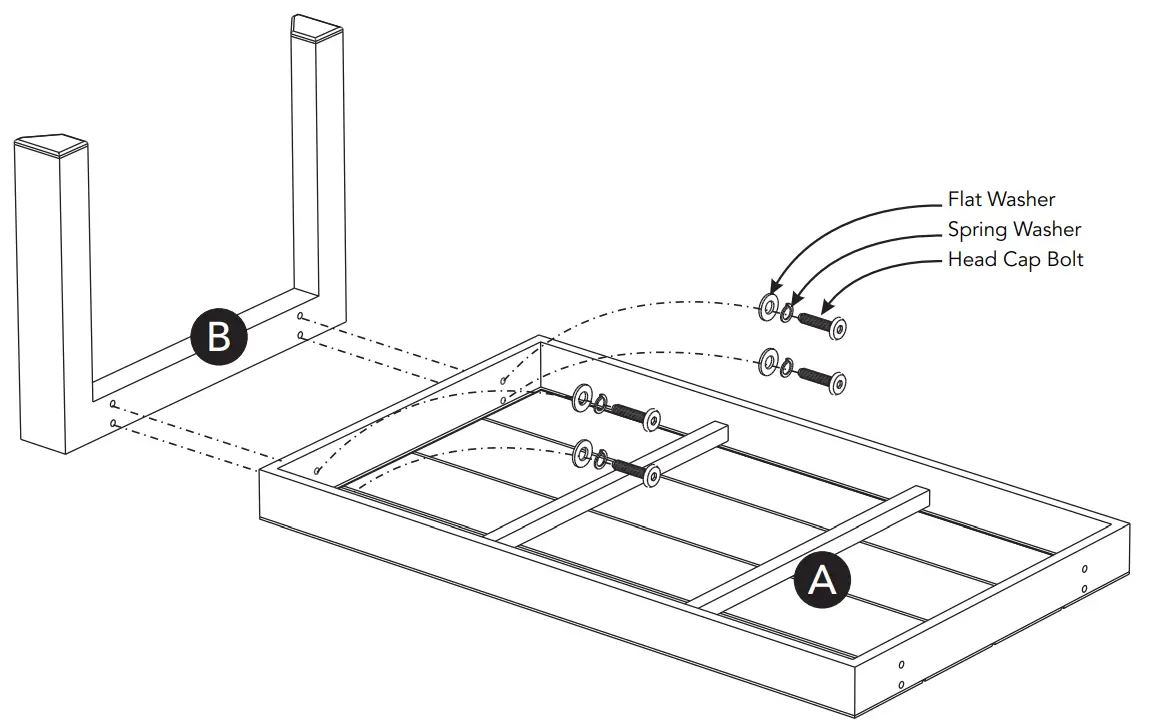

STEP 1

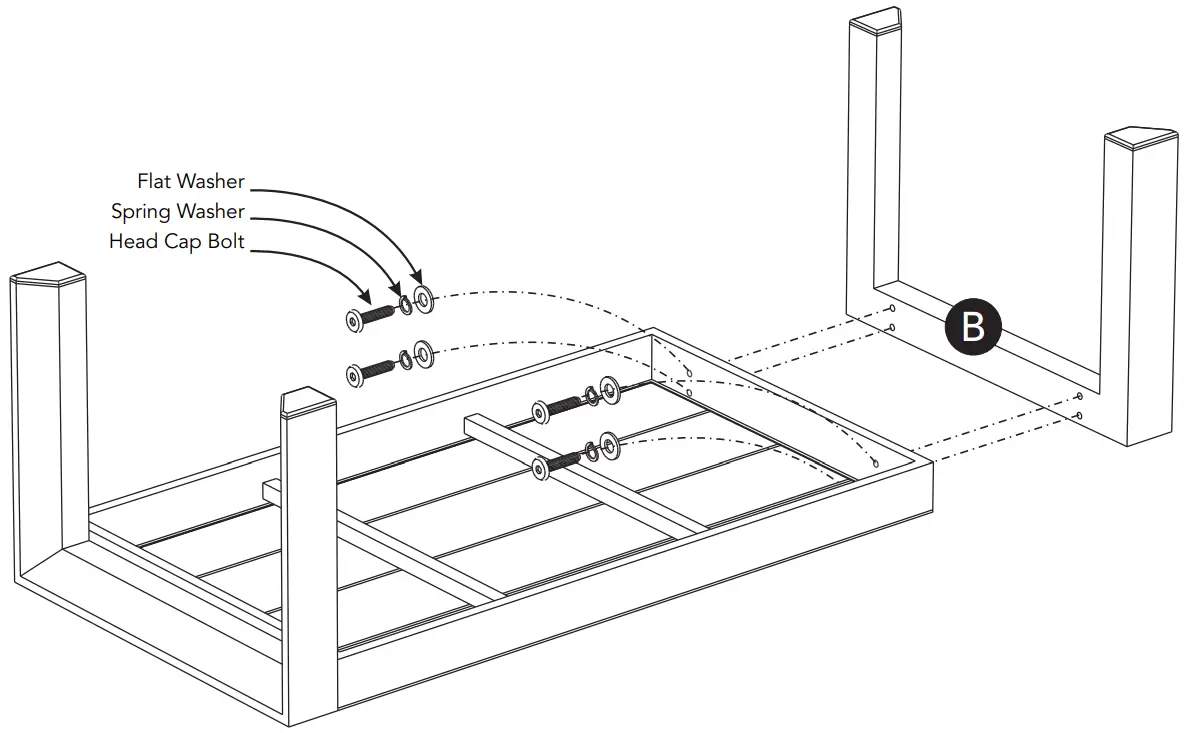

Attach Side (B) to Top (A) with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway. (See Figure 1)
STEP 2
Attach Side (B) to unit with Head Cap Bolts, Spring Washers and Flat Washers, tightening bolts only halfway.
Tighten all bolts used in Steps 1 and 2.
Cover all Head Cap Bolts with Caps. (See Figure 2)
Turn over unit to its upright position.
CARE INSTRUCTIONS
NEVER allow liquids to remain on furniture. Absorption causes parts to warp and split and finishes to delaminate.
NEVER use glass cleaners on finished furniture. Ammonia chemically attacks the finish.
| | |
| Do not use power tools above 8 volts to assemble. PREVENT CRACKING | Do not place in direct sunlight. PREVENT FADING | Do not write directly on surface. PREVENT MARKING |
| | |
| Do not place hot objects on surface. PREVENT FINISH DAMAGE | Do not use rubber based placemats. PREVENT DISCOLORING | Do not use commercial waxes and polishes. PREVENT YELLOWING |
CLEAN
with a soft cloth moistened in lukewarm soap and water. Buff with a dry clean cloth.
homestyles will provide replacements free of charge for missing or damaged parts within 2 years of purchase. Digital images of the defective parts may be required. If the product was not purchased from an authorized retailer, homestyles is under no obligation to provide replacement parts. Parts are not available for fully assembled items nor are parts available for sale. Replacements for missing or damaged parts may be requested via contact info below.
homestyles Customer Service: www.homestylesfurniture.com,
[email protected],
888-680-7460
