APC Easy Racks 42U Black with Roof Castors
Product Information

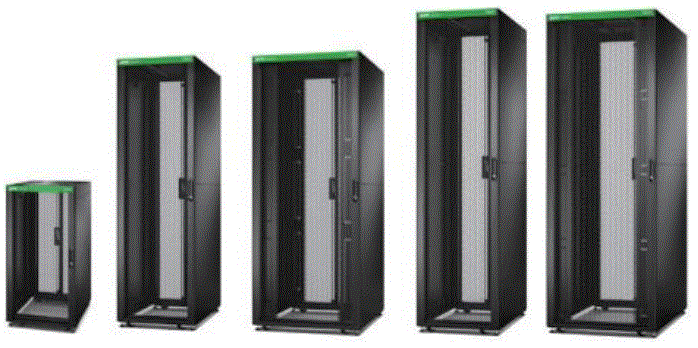

APC Easy Racks
APC Easy Racks are a series of reliable, affordable, and easy-to-use racks and accessories from the trusted brand APC. These racks are available in multiple sizes and configurations, making them scalable for IT deployments from network closets to data centers. They are fully assembled and can also be purchased as flatpack unassembled. The key features for fast deployment include APC solution compatibility. The racks come in several heights, widths, depths, and with or without sides for any IT application, making it easy to standardize on a single platform from the edge to data center. These racks are the base building block of data center and micro data center solutions. The APC quality and reliability ensure that the racks meet industry standards adherence: EIA-310-E compliant and UL Listed, and come with a standard 5-year factory warranty.
Easy Rack for Data Center
As the main carrier of IT equipment, the rack is the cornerstone of the data center. Based on the current IT market server and network application trends, APC Easy Rack offers a wide variety of IT rack designs suitable for any IT application including servers, networks, storage, and converged IT.
Easy Rack at the Edge
APC Easy Rack provides a variety of configurations to meet the high security, cost-effective, and rapid deployment requirements of edge systems. The 24U and 800mm deep form factors make these racks suitable for smaller spaces often out at the edge of networks.
Product Typical Applications
- Cloud and Service Providers/Colocation
- Small, medium, large data center
- Enterprise Edge Computing

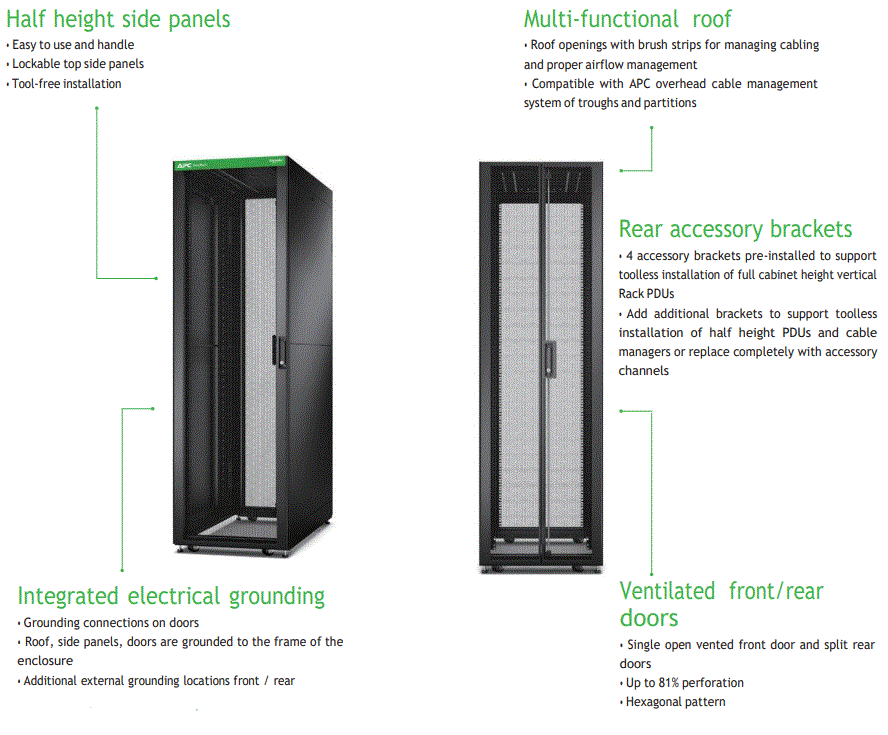

Easy Rack Key Features
- Half-height side panels
- Multi-functional roof
- Rear accessory brackets
- Integrated electrical grounding
- Ventilated front/rear doors
Product Easy Rack Selection
| Reference | U space | Width A(mm) | Depth B(mm) | Height C(mm) | Height D(mm) | Net weight(kg) | Shipping dimensions | Packaged weight (kg) | Option without sides |
|---|---|---|---|---|---|---|---|---|---|
| ER6222 | 42U | 600 | 1200 | 1955 | 1991 | 108 | 650 x 1250 x 2120 | 116 | ER6220 |
| ER6212 | 42U | 600 | 1100 | 1955 | 1991 | 116 | 650 x 1150 x 2120 | 1198 | |
| ER8222 | 42U | 800 | 1200 | 1955 | 1991 | 135 | 850 x 1250 x 2120 | 144 | ER8220 |
| ER8212 | 42U | 800 | 1100 | 1955 | 1991 | 140 | 850 x 1150 x 2120 | 128 | |
| ER6822 | 48U | 600 | 1200 | 2222 | 2258 | 150 | 850 x 1250 x 2390 | 159 | ER6820 |
| ER8822 | 48U | 800 | 1200 | 2222 | 2258 | 122 | 650 x 1250 x 2390 | 130 | ER8820 |
| ER6202 | 42U | 600 | 1000 | 1955 | 1991 | 100 | 650 x 1050 x 2120 | 106 | ER6200 |
| ER6202FP1 | 42U | 600 | 1000 | 1955 | 1991 | 100 | 650 x 1050 x 2120 | 106 | |
| ER8202* | 42U | 800 | 1000 | 1955 | 1991 | 128 | 850 x 1050 x 2120 | 137 | ER8200 |
| ER6802 | 48U | 600 | 1000 | 2222 | 2258 | 113 | 650 x 1050 x 2390 | 120 | ER6800 |
| ER8802 | 48U | 800 | 1000 | 2222 | 2258 | 140 | 850 x 1050 x 2390 | 149 | ER8800 |
| ER6402 | 24U | 600 | 800 | 1955 | 1162 | 68 | 650 x 850 x 1330 | 74 | |
| ER6422 | 24U | 600 | 800 | 1955 | 1162 | 94 | 650 x 850 x 2120 | 100 | |
| ER8282 | 42U | 800 | 800 | 1955 | 1955 | 120 | 850 x 850 x 2120 | 128 |
Product Usage Instructions
- Select the appropriate Easy Rack for your IT application based on the reference number, U space, width, depth, and height dimensions.
- Choose whether to purchase the rack fully assembled or as a flatpack unassembled.
- Install the rack in the desired location, ensuring proper clearance and access for equipment installation and maintenance.
- Accessorize the rack with APC accessories as needed, such as half height side panels, a multi-functional roof, rear accessory brackets, and integrated electrical grounding.
- Connect the IT equipment to power and networking infrastructure as required.
- Monitor the IT equipment and rack performance to ensure proper functioning and address any issues as they arise.
Introducing APC Easy Racks
From APC comes reliable, affordable, and easy to use series of racks and accessories from a trusted brand. These racks are easy to choose, install, and accessorize with APC accessories and are available in a variety of sizes that allows this series scalability for IT deployments from network closets to data centers.
Fast Deployment
- Fully assembled, also option as flatpack unassembled
- Key features for fast deployment
- APC solution compatibility
Standardization
- Several heights, widths, depths and with and without sides for any IT application
- Standardize on a single platform from the edge to data centre
- Base building block of data centre and micro data centre solutions
Reliable
- APC quality and reliability
- Industry standards adherence: EIA-310-E compliant and UL Listed
- Standard 5 year factory warranty
Easy Rack for data center
As the main carrier of IT equipment, the rack is the cornerstone of the data centre, based on the current IT market server and network application trends Easy Rack offers a wide variety of IT rack designs suitable for any IT application server, network, storage, and converged IT.
Easy Rack at the Edge
APC Easy Rack provide a variety of configurations to meet the high security, cost-effective, and rapid deployment requirements of edge systems. 24U and 800mm deep form factors make these racks suitable for smaller spaces often
out at the edge of networks.
Typical applications
- Cloud and Service Providers / Colocation
- Small, medium, large data centre
- Enterprise Edge Computing
Easy Rack Key Features
Additional features
- Industry proven frame design
- Supports racks with or without side panels
- Static load rating: 1200kg
- Dynamic load rating: 600kg
- Torx T30/ #2 Phillips tool (1)
- Cage nut tool (1)
- Tool-free installation of Rack PDUs
- 24, 42, and 48U designs
- 600, 800mm widths and 800, 1000, 1100, 1200mm Depths
- Flatpack unassembled option available for deployment in spaces a full assembled rack cannot be transported.

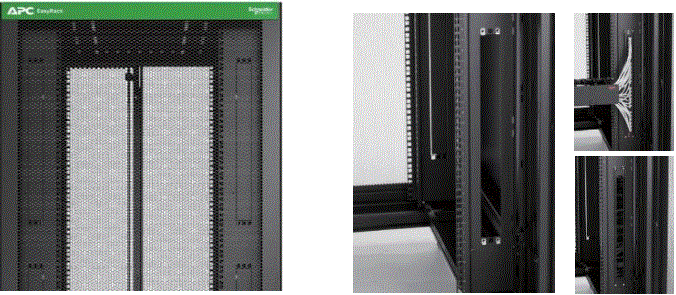

800mm Racks Feature
- Up to 16 x 1U vertical knockout panels located within the front and rear equipment mounting rails (12 in 42U)
- Vertically mount patch panels or 1U devices and save horizontal mounting space for other IT devices
- Adds another 16U to an enclosure solution!
Easy Rack Selection
| Reference | U space | Width A(mm) | Depth B(mm) | Height C(mm) | Height D(mm) | Net weight(kg) | Shipping dimensions | Packa ged weight (kg) | Option without sides |
| ER6222 | 42U | 600 | 1200 | 1955 | 1991 | 108 | 650 x 1250 x 2120 | 116 | ER6220 |
| ER6212 | 42U | 600 | 1100 | 1955 | 1991 | 105 | 650 x 1150 x 2120 | 112 | |
| ER8222 | 42U | 800 | 1200 | 1955 | 1991 | 135 | 850 x 1250 x 2120 | 144 | ER8220 |
| ER8212 | 42U | 800 | 1100 | 1955 | 1991 | 131 | 850 x 1150 x 2120 | 140 | |
| ER6822 | 48U | 600 | 1200 | 2222 | 2258 | 122 | 650 x 1250 x 2390 | 130 | ER6820 |
| ER8822 | 48U | 800 | 1200 | 2222 | 2258 | 150 | 850 x 1250 x 2390 | 159 | ER8820 |
| ER6202 | 42U | 600 | 1000 | 1955 | 1991 | 100 | 650 x 1050 x 2120 | 106 | ER6200 |
| ER6202FP1 * | 42U | 600 | 1000 | 1955 | 1991 | 100 | 650 x 1050 x 2120 | 106 | |
| ER8202 | 42U | 800 | 1000 | 1955 | 1991 | 128 | 850 x 1050 x 2120 | 137 | ER8200 |
| ER6802 | 48U | 600 | 1000 | 2222 | 2258 | 113 | 650 x 1050 x 2390 | 120 | ER6800 |
| ER8802 | 48U | 800 | 1000 | 2222 | 2258 | 140 | 850 x 1050 x 2390 | 149 | ER8800 |
| ER6402 | 24U | 600 | 1000 | 1162 | 1198 | 68 | 650 x 850 x 1330 | 74 | |
| ER6422 | 24U | 600 | 1200 | 1162 | 1991 | 94 | 650 x 850 x 2120 | 100 | |
| ER8282 | 42U | 800 | 800 | 1955 | 1991 | 120 | 850 x 850 x 2120 | 128 |
