Hilti Cfs-w P Firestop Power Wrap Instruction Manual (+ PDF)

FIRESTOP
POWER WRAP
CFS-W P
Technical Manual
European Technical Assessment
ETA-20/0989
Instruction Manual

Contents hide

1 CFS-W P FIRESTOP POWER WRAP

2 INSTRUCTIONS FOR USE

3 GENERAL INFORMATION

4 MAIN APPROVED APPLICATIONS

5 OTHER APPROVED APPLICATIONS

6 CHARACTERISTICS OF CFS-W P

7 Documents / Resources

8 Related Posts

CFS-W P FIRESTOP POWER WRAP

The all-rounder for combustible pipes and insulation in coated board

Applications

Passive fire protection of wastewater, roof drainage, potable water, and refrigeration pipes in board applications
Firestopping wastewater and roof drainage pipes in drywall, aerated concrete, masonry, and concrete
Heating, cooling, and freshwater pipes in the shaft wall

Advantages

Approved for a comprehensive range of combustible pipe and insulation materials in coated board applications
Endless solution: one firestop product for all common combustible pipes and types of pipe insulation
Cost-effective installation: one-person installation with no need for hooks, anchors, or drilling
Code-compliant: all pipes tested with end configurations meeting code requirements for the application

Technical Data

Dimensions (L × W × H)	10000 × 50 × 2 mm
Storage and transportation temperature range	–5 to 50 °C
Complementary products	CFS-S ACR

Order designation	Package contents	Length	Sales pack quantity	Item number
CFS-W P Firestop power wrap	1 × CFS-W P Firestop power wrap	10 m	1 pc	2133384
CFS-W P Hook	20 × CFS-W P Hook		20 pc	2133385

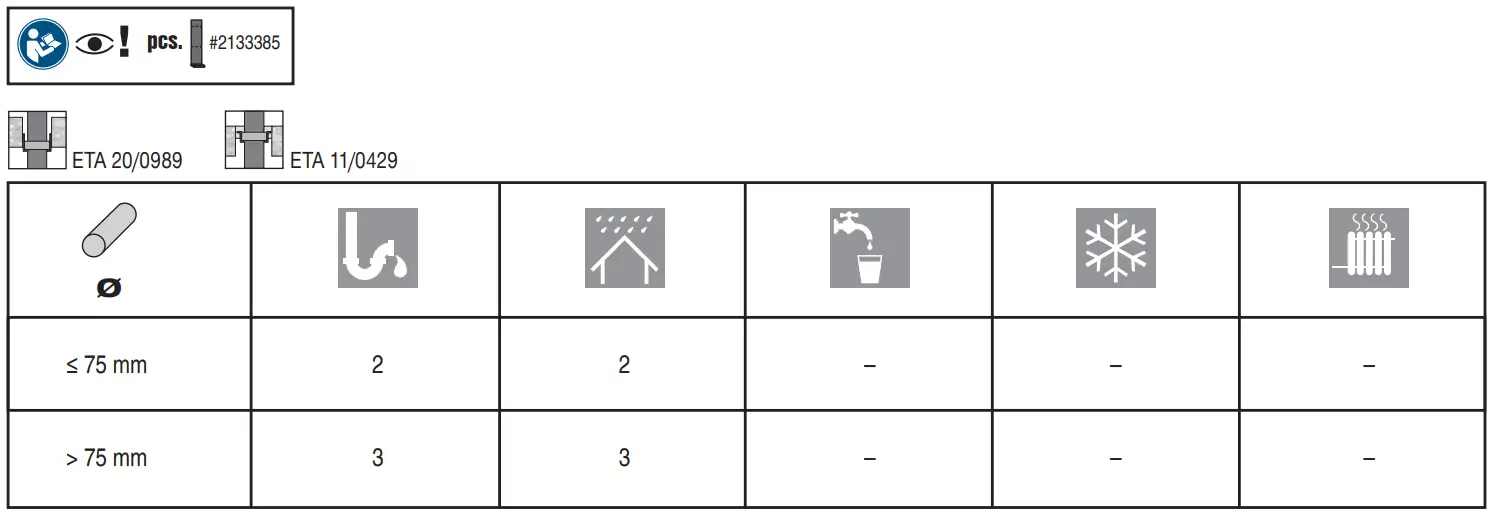

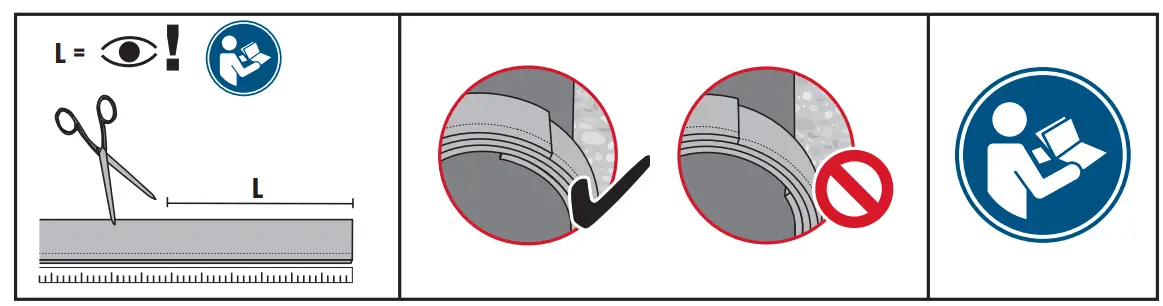

INSTRUCTIONS FOR USE

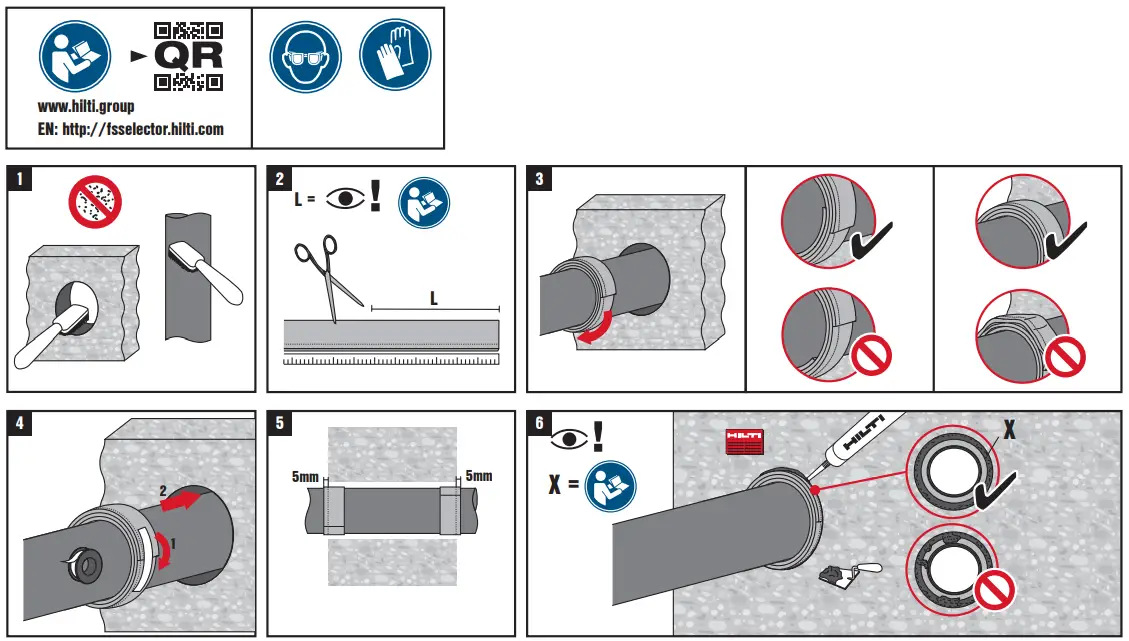

RIGID / FLEXIBLE WALL APPLICATION
ETA-20/0989

www.hilti.group
http://fsselector.hilti.com

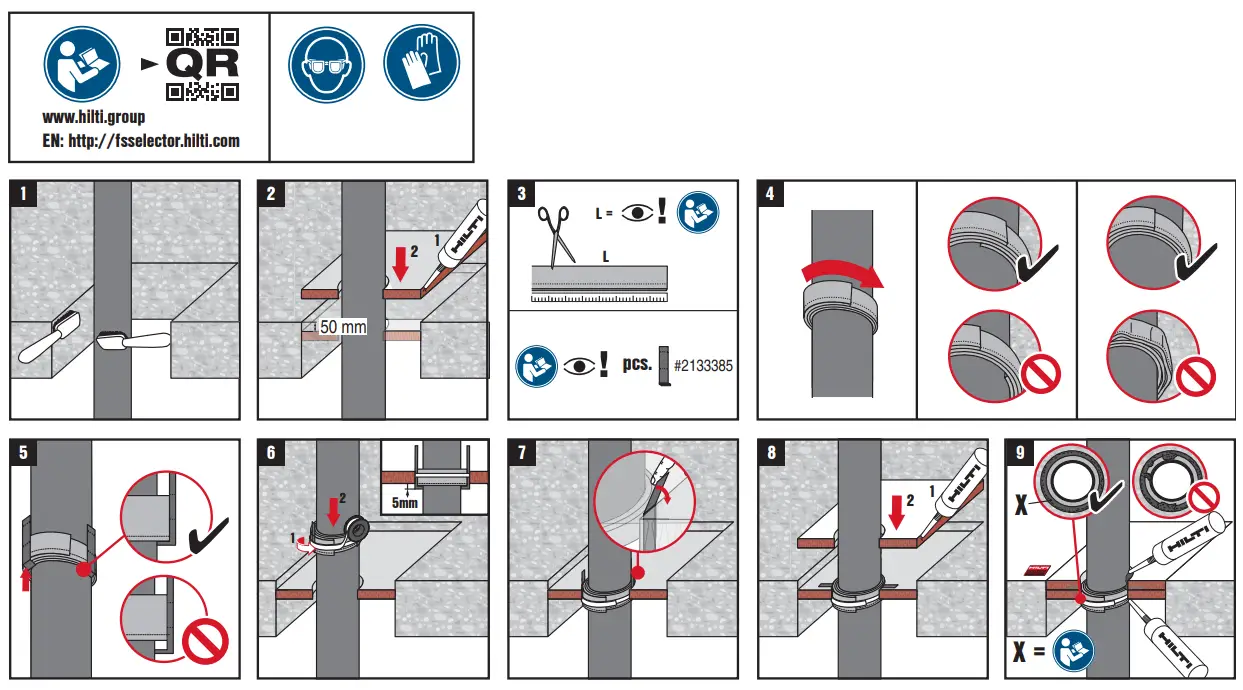

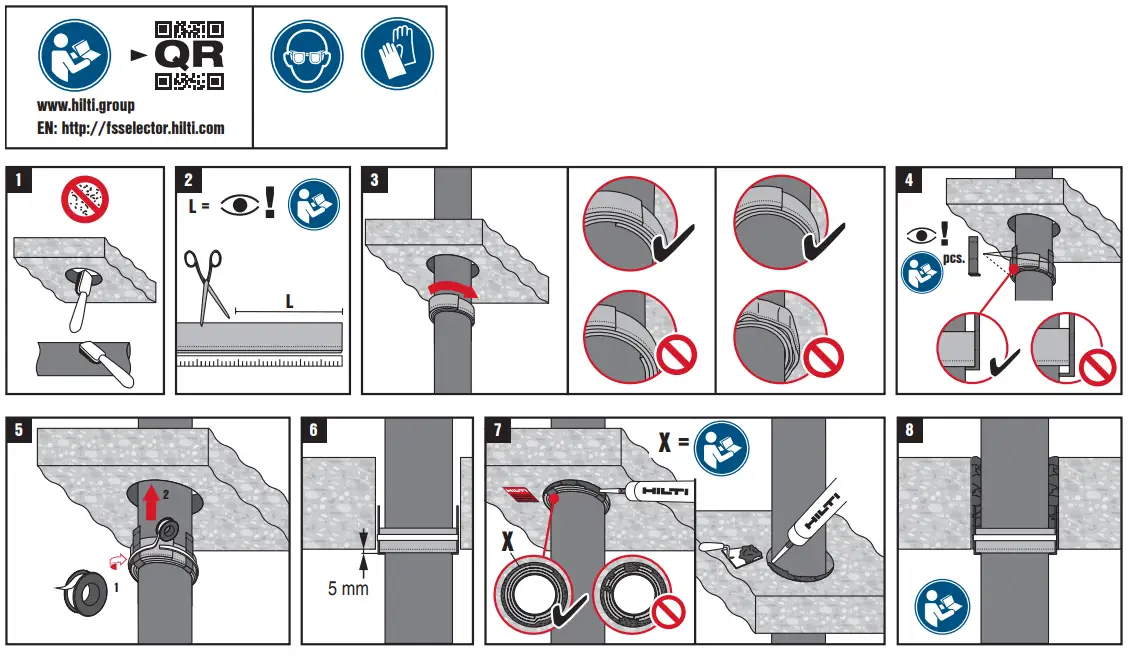

RIGID FLOOR APPLICATION
ETA-20/0989

https://qrco.de/bby6C5

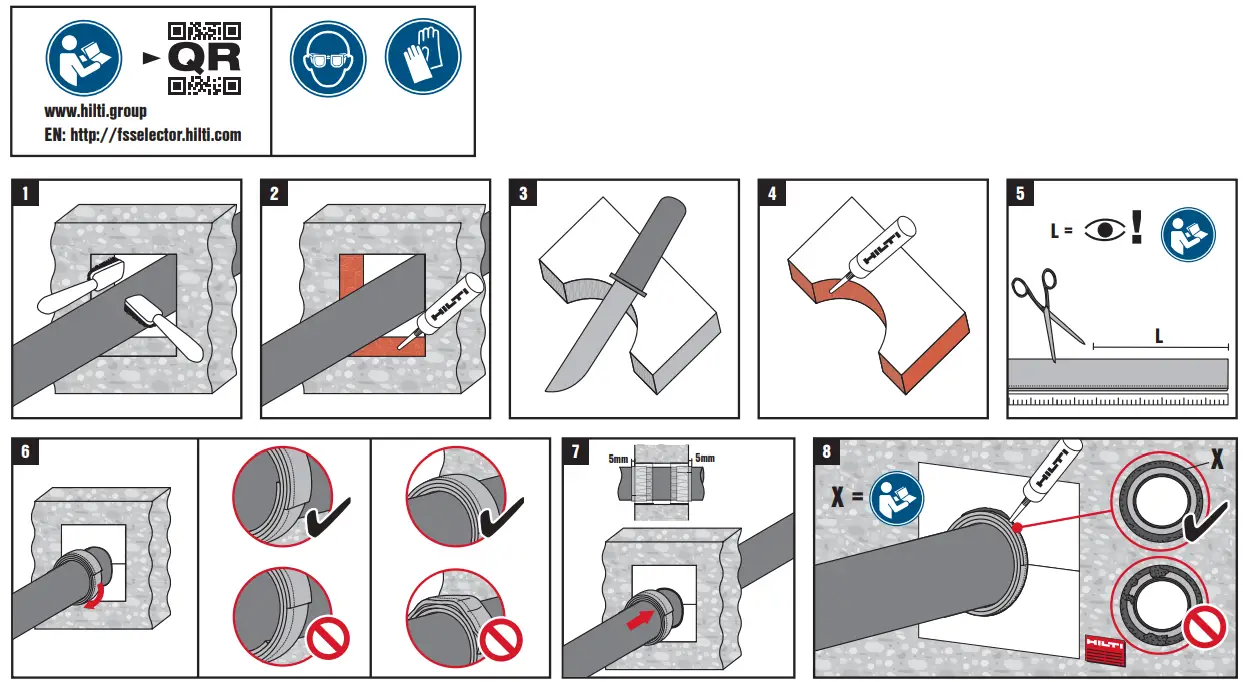

WALL APPLICATION IN COATED BOARD
ETA 11 / 0429

https://qrco.de/bby6C5

Layers
	0	–	4 mm	9 mm
	(mm)	L (mm)	L (mm)	L (mm)
2	32	? 250	300	360
	40	? 300	_?. 360	410
	50	? 370	_?. 420	470
	56	?410	? 460	520
3	63	? 690	? 770	820
3	75	? 810	? 880	950
4	82	1200	1300	1400
	90	_?. 1300	_?. 1400	1500
	110	1530	1650	1750
	125	1730	1830	1960
6	135	2850	3000	3150
	140	2960	3120	3300
	160	3330	3520	3650

Layers
	Ø	AF1	AF2	AF3	AF4
	(mm)	L (mm)	L (mm)	L (mm)	L (mm)
2	32	≥ 400	≥ 420	≥ 460	≥ 500
	40	≥ 420	≥ 470	≥ 530	≥ 580
	50	≥ 490	≥ 540	≥ 590	≥ 640
	56	≥ 520	≥ 590	≥ 620	≥ 690
4	63	≥ 1180	≥ 1290	≥ 1370	≥ 1500
4	75	≥ 1390	≥ 1500	≥ 1600	≥ 1720
5	90	≥ 1940	≥ 2110	≥ 2210	≥ 2360
5	110	≥ 2290	≥ 2570	≥ 2570	≥ 2730

GENERAL INFORMATION

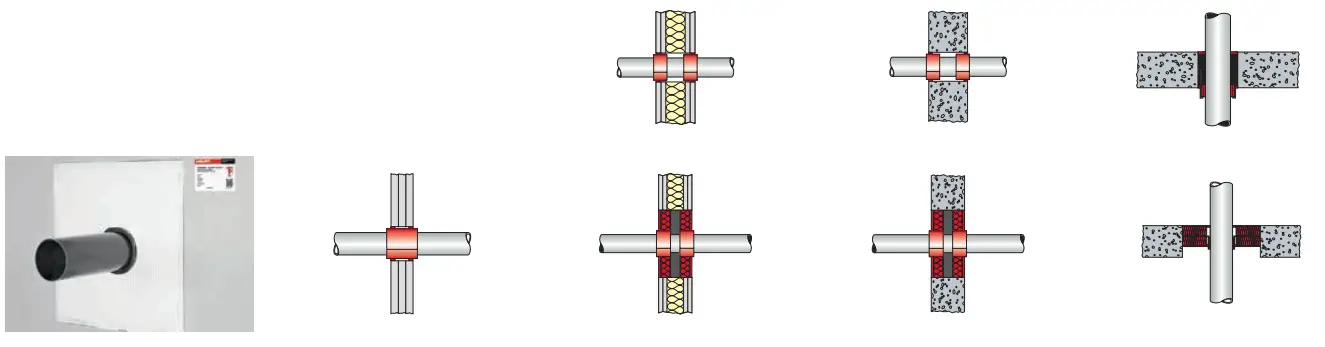

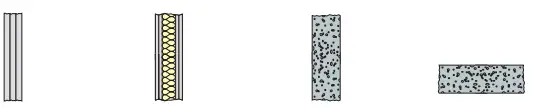

Partition	Shaft Wall	Flexible Wall	Rigid Wall	Rigid Floor
Base Material Thickness (tE)	3 × 15 mm	≥ 100 mm	≥ 100 mm	≥ 150 mm
Annular Gap	0–15 mm		0–15 mm
Gap Filler	CFS-S ACR	CFS-S ACR or gypsum plaster	CFS-S ACR or mortar
Penetrant	Standard and nonstandard Aluminium composite pipes, plastic conduits	Plastic pipes (PE,PP, PVC, ABS)

MAIN APPROVED APPLICATIONS


Application	Pipe material	Pipe Ø mm	Shaft wall	Flexible wall	Rigid wall	Rigid floor
Waste Water & Roof Drainage	PE, PE-HD (EN1519-1, EN12666-1, EN12201-2)	32 to 110 (32 to 160)	–	EI 90 U/U (EI 90U/C)
	ABS (EN1455-1)		–	EI 90 U/U (EI 90 U/C)
	SAN+PVC (EN1565-1)		–	EI 90 U/U (EI 90 U/C)
	PVC-U (EN1329-1, EN 1453-1, EN1452-1, EN1566-1, EN ISO 15493, EN 1452)		–	EI 90 U/U (EI 90 U/C)
	PE (EN ISO 15494, DIN 8074)		–	EI 90 U/U (EI 90 U/C)
	PE-S2 Geberit® dB20		–	EI 90 U/U (EI 90 U/C)
	PP Non-regulated		–	EI 90 U/U (EI 90 U/C)
	PE, PE-HD (EN1519-1, EN12666-1, EN12201-2) with Elastomeric insulation	32 to 110	–	EI 90 U/U
	ABS (EN1455-1) with Elastomeric insulation		–	EI 90 U/U
	SAN+PVC (EN1565-1) with Elastomeric insulation		–	EI 90 U/U

Heating & Cooling, Freshwater

HILTI CFS W P Firestop Power Wrap - icon8

AI Composite*

14–32

EI 90 U/C

–

Al Composite: Geberit® Mepla, Uponor Uni Pipes Plus®, Ke Kelit® Kelox Multilayer pipe®, Rehau® Rautitan Stabi®, TECEFlex®, Rehau® Rautitan Flex Roth Alu-Laserplus®,®, Viega Sanfix Fosta®

Application	Pipe material	Pipe Ø mm	Coated board in flexible/ rigid wall	Coated board in rigid floor
Wastewater	PE/PE-HD (EN 1519-1, EN12555-1,EN12201-2), Geberit® Silent dB20	32 to 110 (32 to 160)	EI 90 U/U (EI 90 U/C)
	PVC (EN1452-1, EN1329-1, EN1453-1, EN1566-1, EN ISO1452-2, EN ISO 15493, DIN8061/8062)
	PP non-regulated*
Industry	PE (EN15494, DIN8074/8075)		EI 90 U/C
	PVC (EN1452-1, EN1329-1, EN1453-1, EN1566-1, EN ISO1452-2, EN ISO 15493, DIN8061/8062)
Roof drainage	PE/PE-HD (EN 1519-1, EN12555-1,EN12201-2) with Elastomeric insulation	32 to 110	EI 90 U/U
Potable water & Cooling	Composite pipes** with elastomeric insulation	16 to 75	EI 90 U/C
	Copper pipe with combustible insulation	10 to 42	EI 90 C/U
	Steel pipe with combustible insulation	10 to 219

* PP non-regulated: Coes ® BLUE POWER, Coes ® PhoNo Fire, Geberit ® Silent PP, Ke Kelit ® PhonEx ® AS, Marley ® Silent, Ostendorf ® Skolan ®, Pipelife ® Master3, Poloplast ® Polo-KAL 3S ®, Poloplast ® NG ®, Poloplast ® Polo-KAL XS ®, Rehau ® Raupiano ® Plus, Valsir ® Silere ®, Valsir ® Triplus ®, Wavin ® AS ®, Wavin SciTech
** Composite pipes: Rehau ® ® Rautitan stabil, Geberit ® Mepla, Ke Kelit ® Kelox, Uponor MLC

Excerpt of ETA documents. Check the exact field of application for each pipe (type, diameter, pipe wall thickness) in the ETA-20/0989 and ETA 11/0429 document

OTHER APPROVED APPLICATIONS

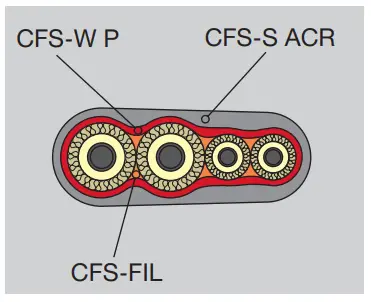

Multiple penetrations of Al. composite pipes

EI90 U/C

See ETA-20/0989 for details of approved pipes

CHARACTERISTICS OF CFS-W P

Characteristics	Assessment of characteristics	Norm, standard, test
Health and the environment Dangerous substances	Hilti Firestop wrap CFS-W P” was tested for SVOC and VOC according to EAD 350454-00-1104, clause 2.2.5.1, in accordance with EN 16516 with a loading factor of 0.007m²/m³. Release scenarios IA1 and IA2 have been tested. The concentration of SVOC after 3 days and after 28 days was <0.005mg/m³. The concentration of the total emission of VOC after 3 days and after 28 days was, as well, <0.005mg/m³.	Material safety data sheet
Durability and serviceability	Category Y2 (Product intended for use at a temperature below 0 °C, but with no exposure to rain or UV	EAD 350454-00-1104
Reaction to fire	Class E	EN 13501-1
