HILTI 10-0292 Firestop Acrylic Sealant CFS-S ACR Instruction Manual

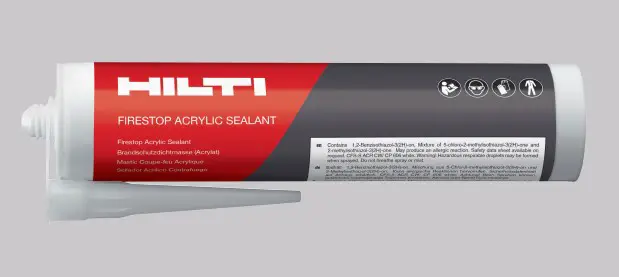

HILTI FIRESTOP ACRYLIC SEALANT CFS-S ACR
Applications
- Sealing low-movement joints in flexible wall, rigid wall, rigid floor and steel construction
- Sealing metal pipe penetrations
- For use in concrete, masonry, drywall, steel, aerated concrete
Advantages
- Easy to dispense, apply and tool
- Strong adhesion to various base materials
- Low shrinkage after curing
- Excellent sound insulation property
- Easy clean up with water
Technical Data
Chemical basis Water-based acrylic dispersion
Colours Grey, White
Application temperature range 1.5 – 40 °C
Movement 12.5% (ISO 11600)
Shelf life (@23 °C and 50%relative humidity 24 months
Mold and mildew performance Class 0 (EN ISO 846, Method A)
| Order designation | Packaging | Volume | Color | Sales Quantity | Item Number |
| Firestop Acrylic Sealant CFS-S ACR CG | Cartridge | 310 ml | Grey | 1 pc | 00435862 |
| Firestop Acrylic Sealant CFS-S ACR CW | Cartridge | 310 ml | White | 1 pc | 00435859 |
| Firestop Acrylic Sealant CFS-S ACR FW | Foil pack | 580 ml | White | 20 pc | 00435863 |
| Firestop Acrylic Sealant CFS-S ACR PW | Pail | 5000 ml | White | 1 pc | 00435864 |
| Firestop Acrylic Sealant CFS-S ACR PW L | Pail | 1000 ml | White | 1 pc | 02046766 |
| Accessories | |||||
| Ordering designation |  | USE | Sales pack quantity | Item number | |
| CFS-DISP |  | Cartridge | 1 pc | 2005843 | |
| CS 270-P1 |  | Foil | 1 pc | 24669 |

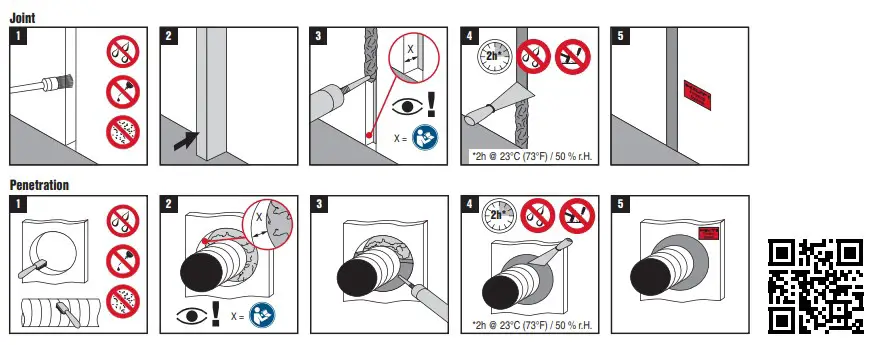

INSTRUCTIONS FOR USE: HILTI FIRESTIOP ACRYLIC SEALANT CFS-S ACR
GENERAL INFORMATION
Backfilling material (B): stone wool, CE marked in accordance with EN 13162 or EN 14303 or combustible material, PE or PU based (see ETA for more details)
Maximum seal diameter of 300 mm with annular space WA depending on pipe diameter (minimum distance between seals = 200 mm). Backfilling material (B): stone wool, CE marked in accordance with EN 13162 or EN 14303.

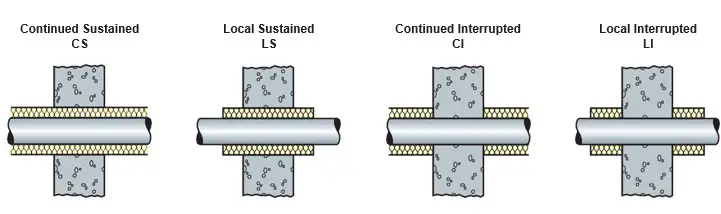

PIPE INSULATION TYPES

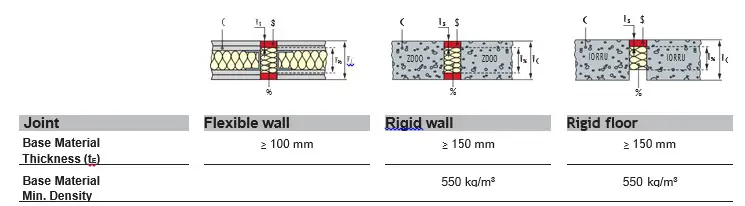

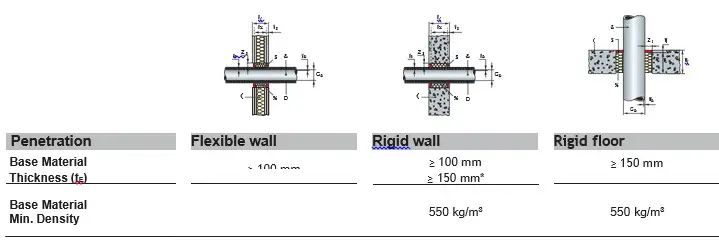

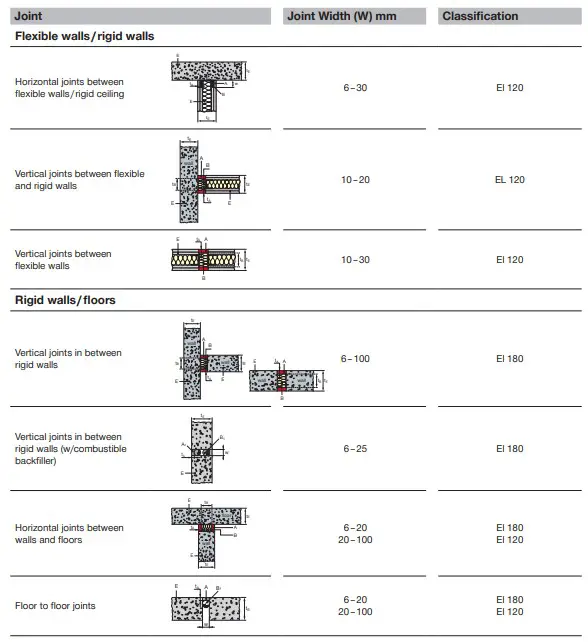

MAIN APPROVED APPLICATIONS

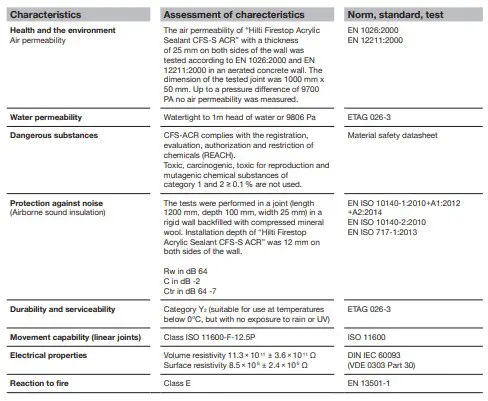

CHARACTERISTICS OF CFS-S ACR
