HILTI Firestop Rectangular Cable Collar CFS-RCC

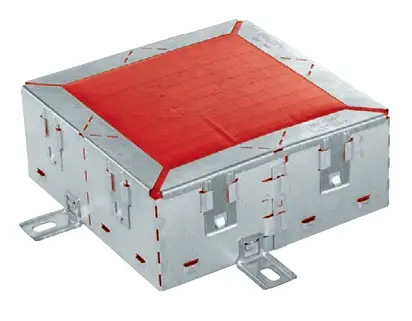

FIRESTOP CABLE COLLAR CFS-RCC

Applications

Flexible solution for cables, conduits, cable trays and pipes in concrete, masonry and drywall applications
For new and existing penetrations in floors and walls
Especially suitable for renovation projects under difficult conditions
Can be used to seal old/damaged fire compartment penetrations without removing the existing material

Advantages

Broad approval range – also covers mixed penetrations and mechanical penetrations with metal pipes up to 114 mm and plastic pipes up to 50 mm
Modular system – fast and easy to install, no mortar or mineral wool required
Surface-mounted solution – perfect for use at openings with 100% cable fill
Excellent solution for irregular openings
Time-saving, dust-free solution – no need for framework for drywall applications, no chiseling work on solid walls necessary
Preformed product – immediately functional after installation
Reliable solution – easy to inspect
Re-penetrable – allows easy increase in future cable capacity
Also suitable for single-sided applications for floor and wall openings
Green building – contains no halogens, solvents or asbestos.
LEED information available

Technical Data

Order designation	Package contents	Minimum order quantity	Item number
CFS-RCC firestop cable collar	2	2	2126526
CFS-RCC EXT firestop cable collar	2	2	2126527

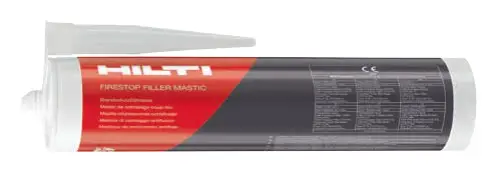

FIRESTOP FILLER MASTIC CFS-FIL

Applications

For use with Hilti Firestop Cable Collar CFS-RCC (gap filling)

Advantages

Can be used with Hilti dispenser CFS-DISP

Order designation	Package contents	Minimum order quantity	Item number
Firestop Filler Mastic CFS-FIL	310 ml	1 pc	2052899

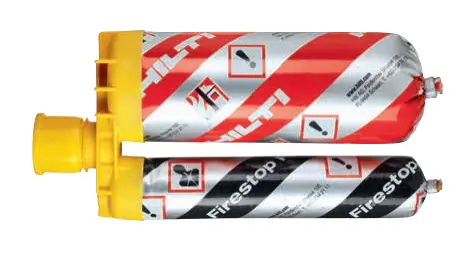

CFS-F FX FIRESTOP FOAM

Applications

For use with Hilti Firestop Cable Collar RCC (gap filling)
For use with Hilti Firestop Cable Collar (polyurethane inlay replacement on both sides)
For use with Hilti Firestop Cable Collar (wall opening filling for single-sided application)

Advantages

Can be used with Hilti HDM 330 Manual Dispenser and HDE 500-A22 Cordless Dispenser
Allows rough cutting of the polyurethane inlay

Order designation	Package contents	Item number
CFS-F FX Firestop foam	incl. 1 mixing nozzle, instructions for use	429802

FIRESTOP PUTTY BANDAGE CFS-B PA

Applications

For use with Hilti Cable Collar CFS-RCC
For specific cable configurations, to achieve EI 120

Advantages

Easy to cut
Self-adhesive

Order designation	Packing content	Minimum order quantity	Item number
Firestop Putty Bandage CFS-PBA	5 m	1 pc	2062876

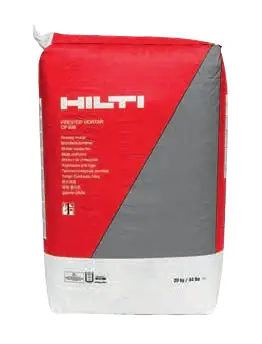

CP 636 FIRESTOP MORTAR

Applications

Permanent firestopping of cables, cable trays, and noncombustible pipes in medium-to-large wall and floor openings
Single, multiple and mixed penetrations
Medium-large multiple penetrations in concrete and masonry in combination with other products

Advantages

Easier to install – consistency can be varied for application with a trowel or commercially available pumps
Excellent thermal insulating properties
Minimal shrinkage during curing and no spalling in event of fire

Order designation	Packing content	Minimum order quantity	Item number
CP 636 Firestop Mortar	20 kg	1	334897

INSTALLATION INSTRUCTIONS

GENERAL INFORMATION

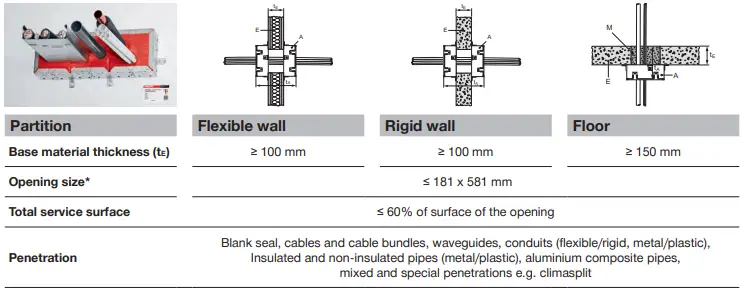

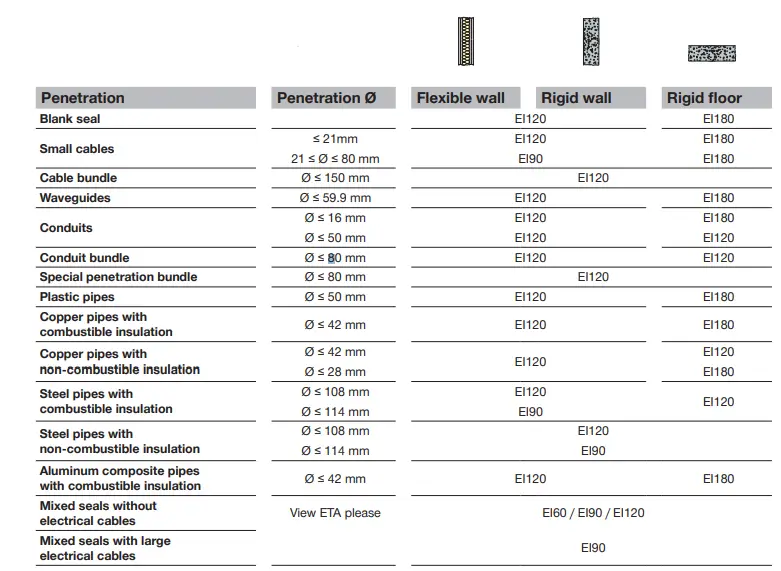

MAIN APPROVED APPLICATIONS

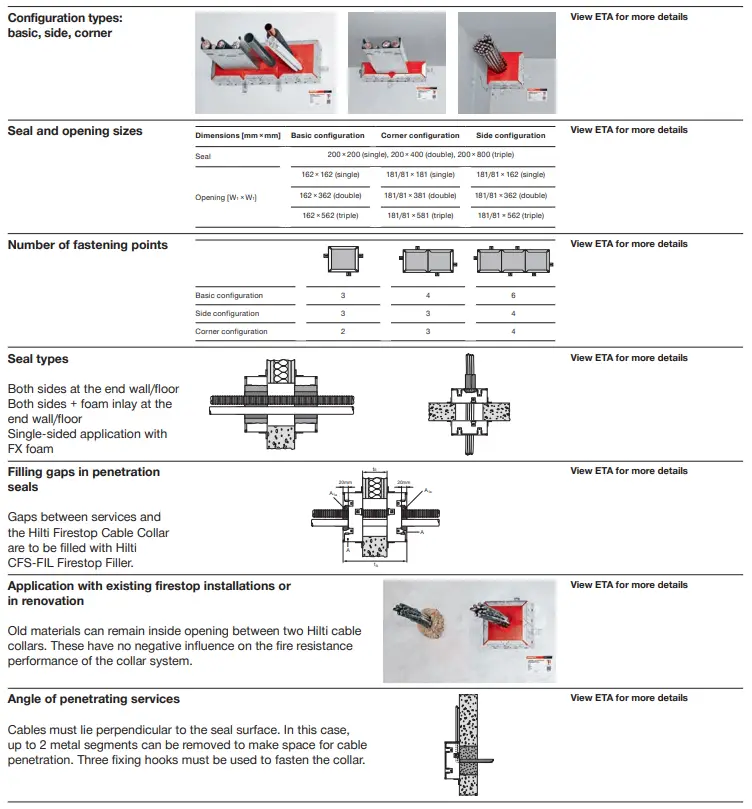

RELEVANT CONSIDERATIONS

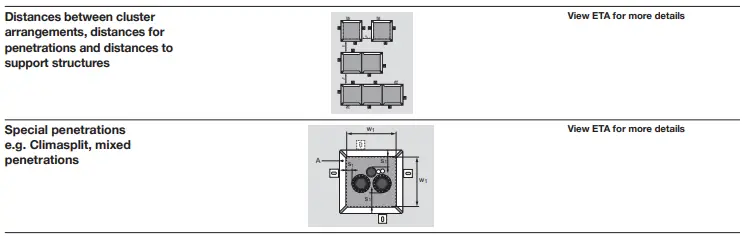

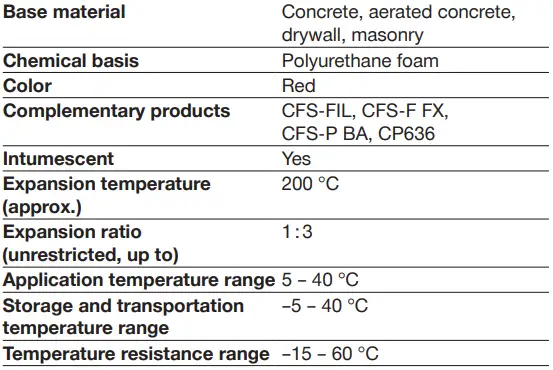

CHARACTERISTICS OF FIRESTOP CABLE COLLAR CFS-RCC

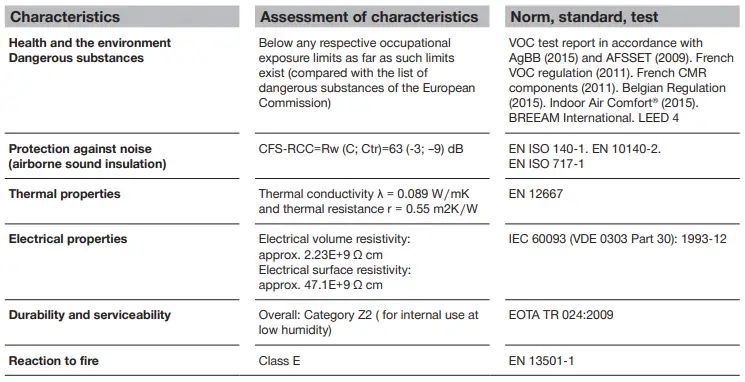

Hilti firestop products are comprehensively tested and individually tailored to the technical requirements of a building’s mechanical and electrical installations. In addition to their superior behavior in passive fire protection, Hilti firestop products also meet the requirements in building technology that continue to gain significance and also help the designer and installer to meet these additional requirements. The assessment of fitness for use has been made in accordance with EOTA ETAG No 026 – Part 2.
