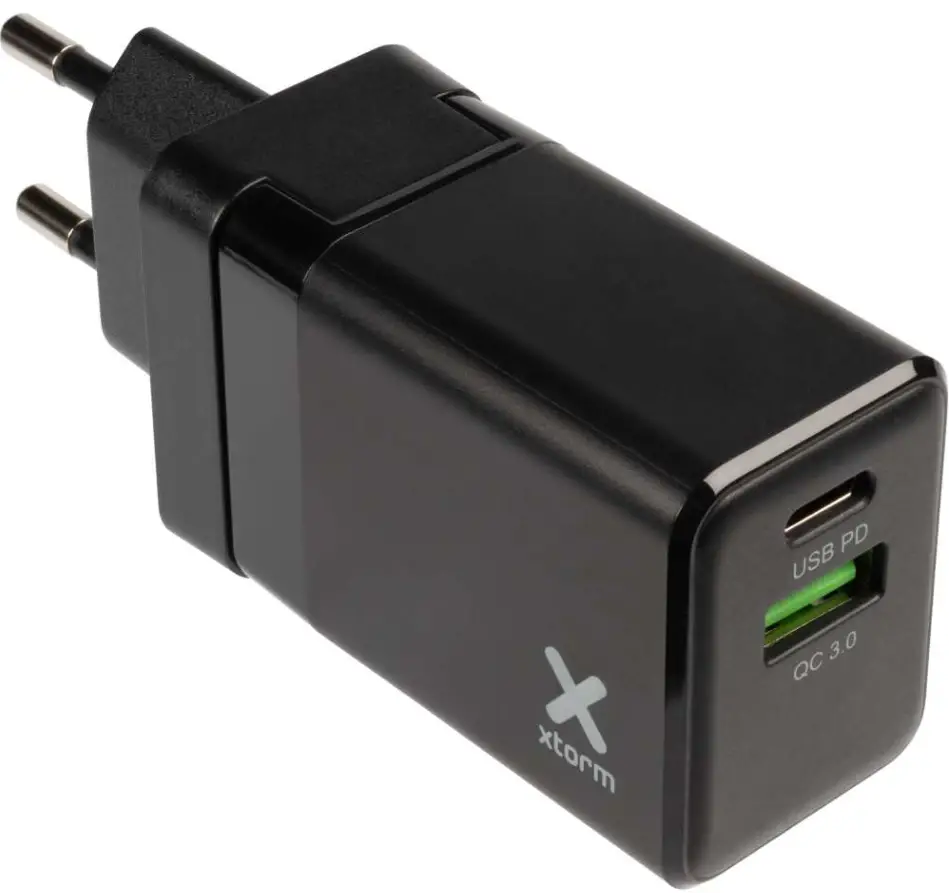

xtorm XA080 Travel Fast Charger

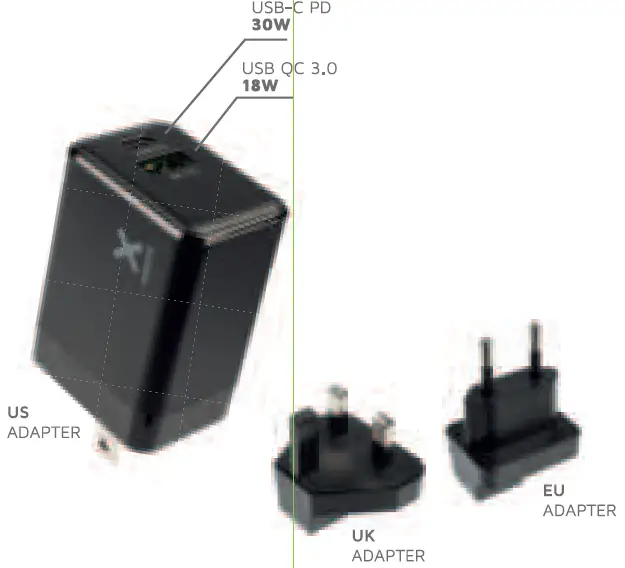

PRODUCT OVERVIEW
Don’t drop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don’t expose to any heat source. Keep Out of reach of children Don’t use in the presence of flammable gas. Telco Accessories has tested the product in a test environment All statements/declarations made by Telco Accessories about the (operation) of the product are based on the results obtained from synch tests. These results/statements/declarations cannot be quarantined, for example in cases of deviating or injudicious Use and/or use in a different environment.
SPECIFICATIONS
- Output 1 USB-C Power Delivery (30W): 5V/3A, 9V/2.22A, 12V/ 2.SA,1 V/2A, 20V/1.5A
- Output 2 USB Quick Charge 3.0 (18W)c .6V-6.5V/3A, 6.5V-9V/2A, 9V-12V/1.5A
- Max. power 15W (5V/3A)
- Input AC 100V-240V; 50/60Hz; 0.5 Max
- Dimensions 80x40x28mm
- Weight Charger 53g / EU adapter 17g / UK adapter 18g
- Including EU & UK adapter, pouch, manual
IN THE BOX
TO USE OR CHANGE THE EU OR UK ADAPTER, FOLLOW THESE STEPS:

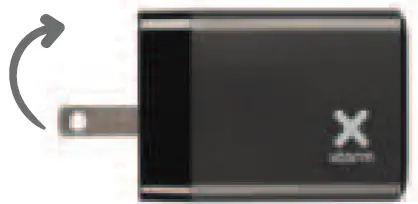

- Make sure the two pins on the US plug are folded upwards in the charger, so they don’t stick out.

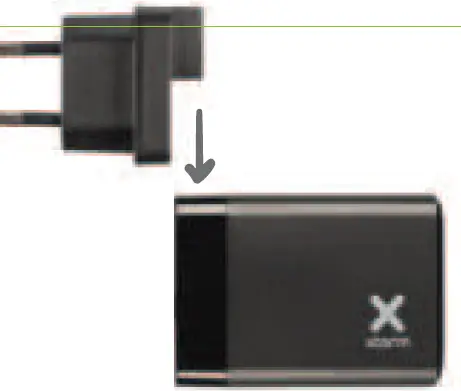

- When in this position, you can slide one of the travel plugs into position, where it clicks in place.
To use the US plug, simply fold out the pins and the charger is ready to use.

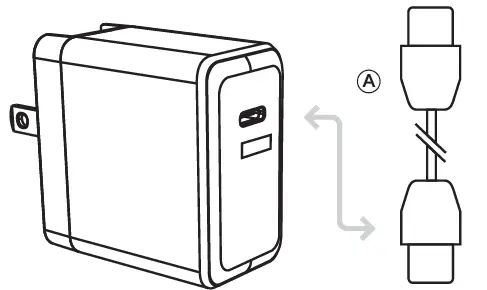

CONNECT A CHARGING CABLE
Please note: For fast charging via Power Delivery (PD) your device needs to be compatible with USB-C PD. Please check before using the product.
If your device is not compatible with USB-C PD the charging process will still work but also at a slower rate.
To be compatible with Quick-change. Please check before using the product. If your device is not compatible with Quick-change the charging will not be fast charging.

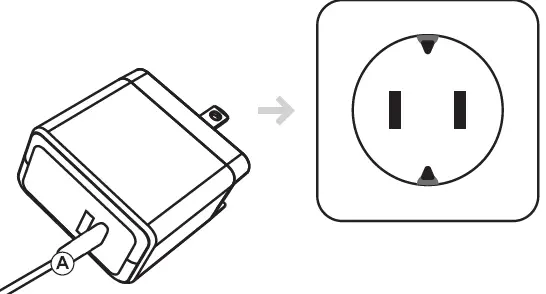

PLUG THE AC ADAPTER INTO THE POWER OUTLET
Connect the Xtorm Travel Charger with the power outlet.

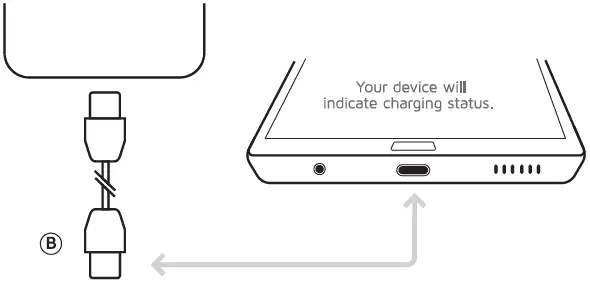

CHARGE YOUR DEVICE
- Connect the other USB-C connector (B) with the input of your device.
- It’s also possible to charge 2 devices at the same time.
