User guide
Front view

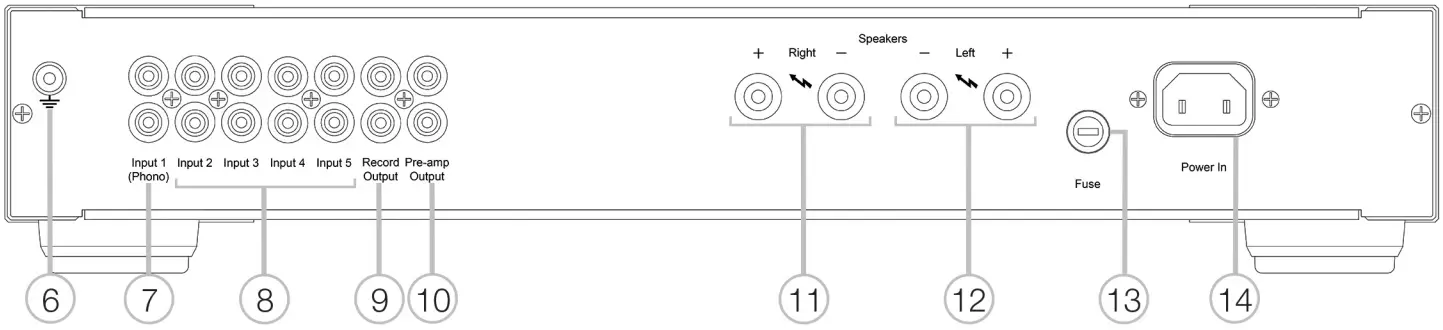

Rear view

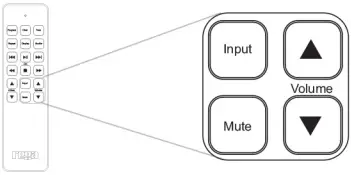

Remote
- Power on/off
- Remote receiver
- Input selector
- Volume control
- Mute
- Tonearm ground
- Phono input
- Line inputs
- Record output
- Pre-amp output
- Right speaker
- Left speaker
- Fuse
- Power
Set-up
Power input

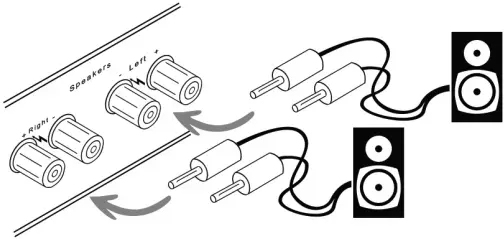

Speaker outputs (2)

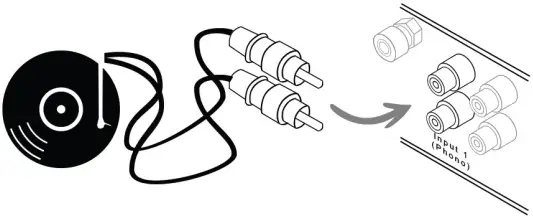

Phono input

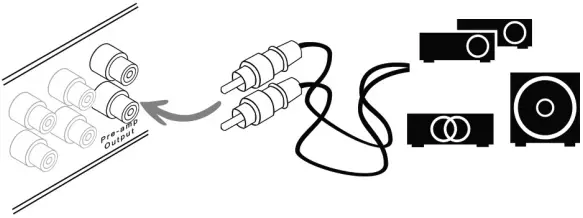

Pre-amp output

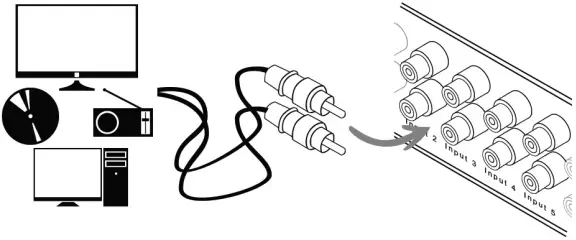

Line inputs (4)

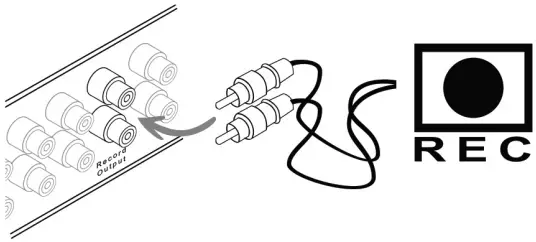

Record output
Specifications
Power Supply
Voltage: 230V or 115V
Frequency: 60 or 50Hz
Power Consumption: 250W
230V Fuse: T3.15AL 20mm
115V Fuse: T5AL 20mm
Inputs
Phono input sensitivity: 1.7mV (47KΩ // 220pF)
Phono maximum input level: 100mV
Line input sensitivity: 164mV (40KΩ)
Line maximum input level: 10V
Outputs
Speakers output power: 90W (6Ω)
Record output level: 164mV
Record output impedance: 470Ω
Pre-amp output level: 625mV
Pre-amp output impedance: 600Ω
*Full product details and specifications available at www.rega.co.uk
- This unit can become hot. Always allow adequate air circulation.
- Never cover any part of the amplifier.
- Never expose the unit to rain or moisture.
- Do not open the case covers. There are no user serviceable parts inside
- This unit is intended for use in moderate climates.
- Always turn off the amplifier when changing leads or speaker cables.
Made in England
