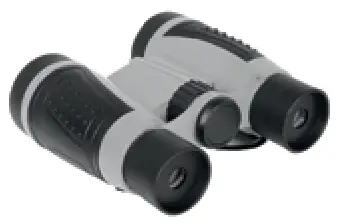

Levenhuk Bb10 Discovery Basics Binoculars User Manual

Discovery Basics Binoculars

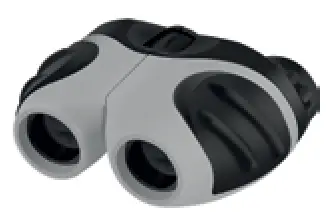

User ManualBasics BB10 Binoculars Basics BB 10×25 Binoculars Basics BB 8×21 BinocularsBasics BBС 8×21 Gravity Binoculars
Basics BBС 8×21 Terra Binoculars

 Parts of binoculars

1. Objective lens
2. Eyepieces
3. Diopter adjustment ring
4. Central focusing wheel

 Discovery Basics binoculars
Caution! Never look directly at the Sun through this device, as this may cause permanent eye damage and even blindness.

Interpupillary distance adjustment

Look through the binoculars’ eyepieces with both eyes. To adjust the interpupillary distance, keep varying the angle between the binoculars’ parts (relative to its central axis) until the image merges into a single circle. Remember the setting for future use.
Focusing and diopter adjustment
Your left eye vision might be different from that of your right eye and you might need to adjust the diopter setting. Use the diopter adjustment ring on the right eyepiece to equalize this difference. Note that the diopter adjustment ring can be located on the left eyepiece for models with variable magnification.
Follow this procedure to adjust focus and diopter setting:

• Look through your binoculars at a distant object;
• Close your right eye and rotate the central focusing wheel until the view is focused;
• Now, close your left eye and observe with your right. Slowly rotate the diopter adjustment ring on the right eyepiece until the view is focused again.

Now that your binoculars are focused, you only need to use the central focusing wheel during observations.
The kit includes binoculars, strap, pouch and cleaning wipe (BB 10×25, BB 8×21), user manual, and warranty.
Warranty: 10 years. For further details, please visit our website: www.levenhuk.com/warranty
The manufacturer reserves the right to make changes to the product range and specifications without prior notice.
© 2022 Discovery or its subsidiaries and affiliates. Discovery and related logos are trademarks of Discovery or its subsidiaries and affiliates, used under license. All rights reserved. Discovery.com

levenhuk.com
Levenhuk Inc. (USA): 928 E 124th Ave. Ste D, Tampa, FL 33612,
USA, +1 813 468-3001, [email protected]
Levenhuk Optics s.r.o. (Europe): V Chotejně 700/7, 102 00 Prague 102,
Czech Republic, +420 737-004-919,
[email protected]
Levenhuk ® is a registered trademark of Levenhuk, Inc.
© 2006—2022 Levenhuk, Inc. All rights reserved.
20220329
