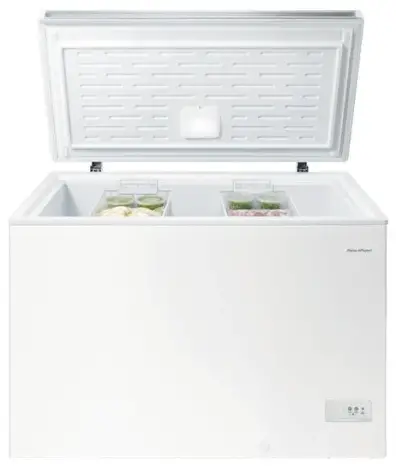

FISHER PAYKEL RC376W2 FP AA Chest Freezer
INTRODUCTION
| BRAND | VOLTAGE | MODEL | PRODUCT CODE |
| Fisher & Paykel | 220-240 50Hz | RC376W2 FP AA | 26053-A |
MODELS
The models covered by this manual are listed on the front cover.
The information detailed in this manual is subject to change without notice. The latest version is indicated by the reprint date and replaces any earlier editions.
KIT PARTS
Where a part number is shown against the descriptions for kit components, they are also available as separate items. In addition, some parts may be supplied with these kits that are not available as separate items, and are therefore either not listed, or a part number is not shown against the part description in this manual.
PARTS LIST KEY
| NI | As a part reference, indicates the part is not illustrated on the diagram. |
| NOT USED | As a part number, indicates the diagram part reference is not used in this manual. |
| NS | As a part number, indicates the part is not servicable. |

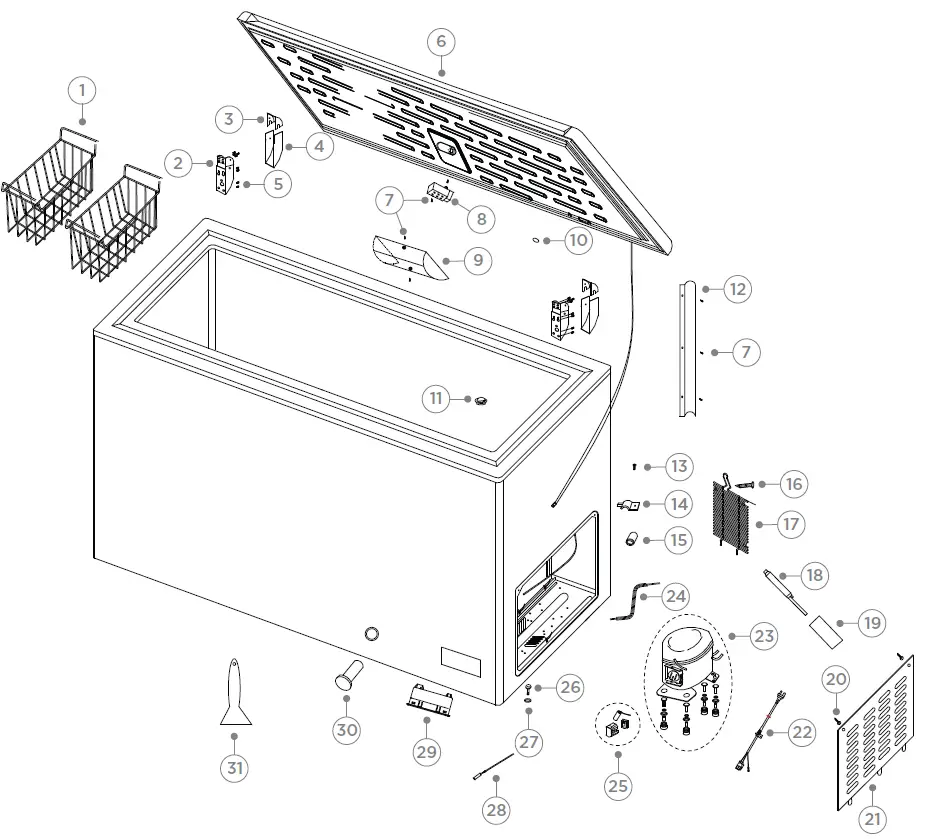

FREEZER COMPONENTS
| REFERENCE | PART NUMBER | PART DESCRIPTION |
| 1 | H0070827250 | BASKET RC376 |
| 2 | H0070816333 | HINGE WITH SPRING HCF |
| 3 | H0070203942 | COVER HINGE TOP |
| 4 | H0070204349 | BOTTOM HINGE COVER |
| 5 | H0070601233 | SCREW HINGE |
| 6 | H0070839198 | LID CF RC376W2 |
| 7 | H0060801032 | SCREW |
| 8 | H0074000498 | LED LIGHT |
| 9 | H0070206158 | LAMP COVER |
| 10 | H0072040402 | CAP |
| 11 | H0070202866B | PLUG |
| 12 | H0070201891 | COVER WIRING |
| 13 | H0070601305 | SCREW CLAMP POWER CORD HCF148A |
| 14 | H0070104651 | CLAMP POWER CORD HCF |
| 15 | H0070400259 | GROMMET & SADDLE POWER CORD |
| 16 | H0077010036 | SCREW PHILIPS |
| 17 | H0070103022 | COVER COMPRESSOR COMPARTMENT |
| 18 | H0060703265 | FILTER DRIER |
| 19 | H0070300427 | CONDUIT PIPE |
| 20 | H0077010059 | SCREW |
| 21 | H0070106186PB | GRILLE CF |
| 22 | H0070400755 | POWER CORD |
| 23 | H0060705137 | COMPPRESSOR |
| 24 | H0070700800A | PROCESS PIPE |
| 25 | H0074000494FJ | ANCILL PARTS COMP |
| 26 | H0077050006 | SCREW COMPRESSOR HCF |
| 27 | H0070601303 | WASHER SERATED |
| 28 | H0070400497 | TEMPERATURE SENSOR |
| 29 | H0070825037C | POWER CONTROLLER |
| 30 | H0072040012C | DRAIN PLUG |
| 31 | H0070202413 | SCRAPER DEFROST |
| NI | H0070201812 | CAP CABINET |
